canobj.h File Reference

The base class for all drawable objects in a a2dCanvasDocument. More...

#include "wx/wx.h"
#include "wx/image.h"
#include "wx/txtstrm.h"
#include "wx/general/genmod.h"
#include "wx/geometry.h"
#include "wx/artbase/afmatrix.h"
#include "wx/artbase/bbox.h"
#include "wx/canvas/candefs.h"
#include "wx/canvas/styleprop.h"
#include "wx/canvas/xmlpars.h"
#include "wx/canvas/restrict.h"
#include "wx/canvas/hittest.h"

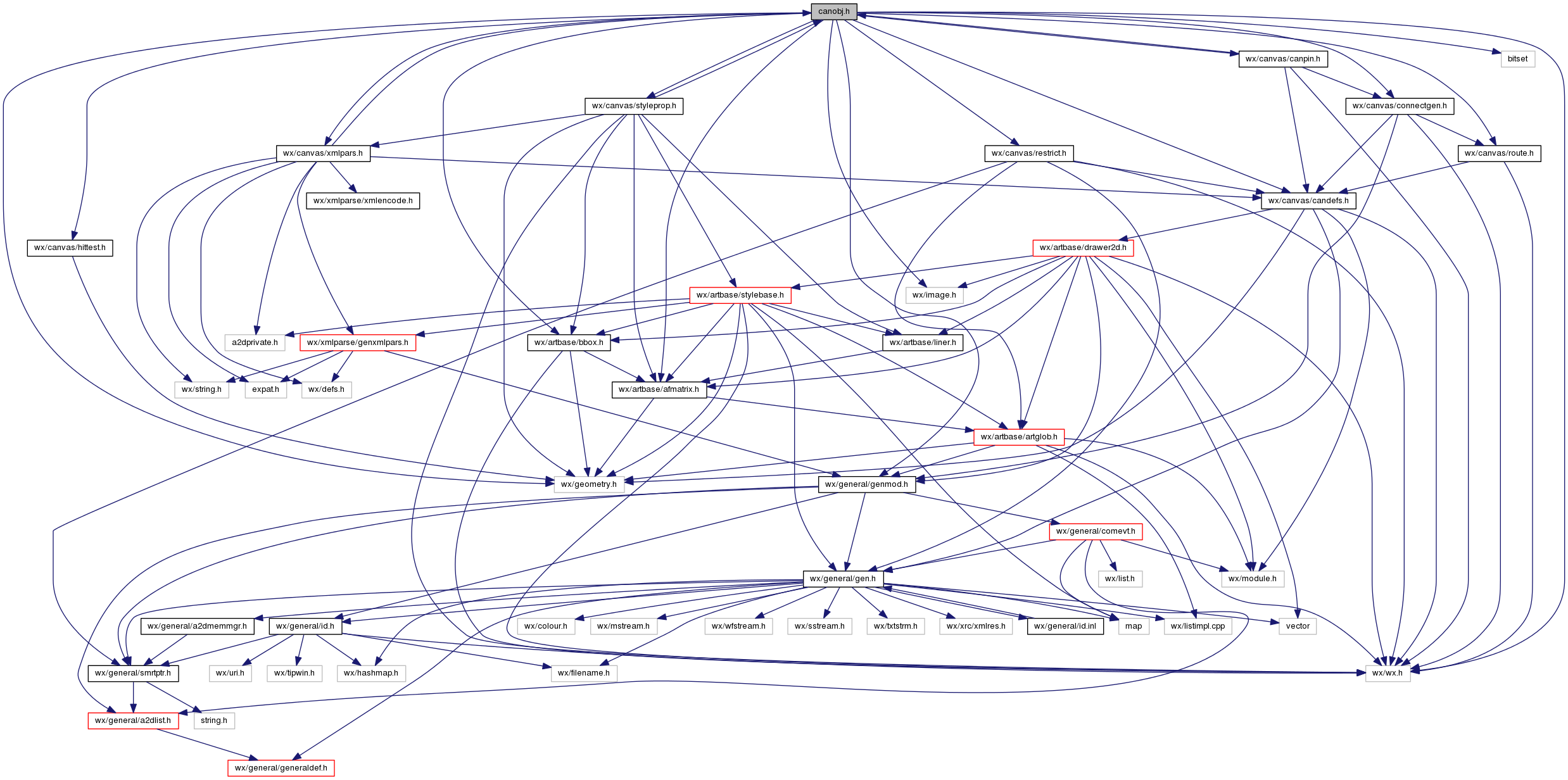

Include dependency graph for canobj.h:

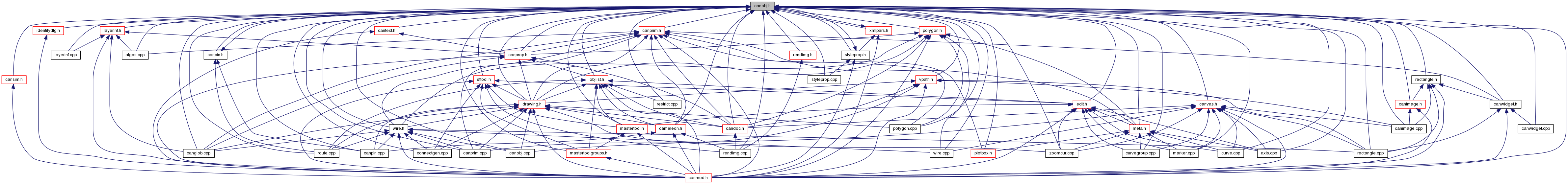

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	a2dCanvasOFlags
	a2dCanvasObject flags as a structure More...
struct	a2dCanvasOHitFlags
	a2dCanvasObject hit flags as a structure More...
class	a2dExtendedResultItem
	This is one hit result from a2dExtendedResult. More...
class	a2dExtendedResult
	An object of this class represents the context of a query like a hit test. More...
class	a2dHitEvent
	structure to give as parameter to member functions of wxCanvasObject More...
class	a2dConnectionGenerator
	when a new wire or other connection object needs to be created, More...
class	a2dCanvasObject
	a2dCanvasObject is the base class for Canvas Objects. More...
struct	a2dCanvasObject::RenderChild
	used to tell which child object to render and to detect the need for it. More...
class	a2dCanvasObject::a2dDoUpdateImmediateData
	A data structure for DoUpdateImmediate. More...
class	a2dCanvasObject::a2dFeedbackId
	provide visual feedback by other objects that might participate in an editing More...
class	a2dCanvasObject::a2dFeedbackIdPinMapping
	feed back information of pins which can connect according to the More...
class	a2dCanvasObjectFilter
	class use by a2dIterC to filter objects for rendering. More...
class	a2dCanvasObjectFilterLayerMask
	filter on this layer and mask. More...
class	a2dCanvasObjectFilterLayerMaskNoToolNoEdit
	objects with m_editingcopy or m_toolobject are skipped. More...
class	a2dCanvasObjectFilterOnlyNoMaskBlind
	object not fitting the mask are drawn blind. More...
class	a2dCanvasObjectFilterPropertyNoMaskBlind
	objects not fitting the property are not drawn, inclusif its children. More...
class	a2dCanvasObjectFilterSelected
	filter for selected a2dCanvasObject's More...
class	a2dCanvasObjectFilterHighLighted
	filter for selected a2dCanvasObject's More...
class	a2dCanvasObjectFilterToolObjects
	filter for tool related a2dCanvasObject's More...
class	a2dIterCU
	An object of this class will update a a2dIterC with the required information. More...
class	a2dIterC
	while iterating a a2dCanvasDocument, this holds the context. More...
Typedefs
typedef a2dSmrtPtr < a2dCanvasObject >	a2dCanvasObjectPtr
typedef a2dPropertyIdTyped < a2dCanvasObjectPtr, class a2dCanvasObjectPtrProperty >	a2dPropertyIdCanvasObject
typedef a2dPropertyIdProp < class a2dStyleProperty >	a2dPropertyIdCanvasStyle
typedef a2dPropertyIdProp < class a2dShadowStyleProperty >	a2dPropertyIdCanvasShadowStyle
typedef a2dPropertyIdTyped < a2dBoundingBox, a2dBoudingBoxProperty >	a2dPropertyIdBoundingBox
typedef wxUint64	a2dCanvasObjectFlagsMask
	mask flags for a2dCanvasObject
typedef a2dSmrtPtr < a2dConnectionGenerator >	a2dConnectionGeneratorPtr
typedef bool(*	a2dCanvasObjectSorter )(const a2dCanvasObjectPtr &x, const a2dCanvasObjectPtr &y)
typedef unsigned int	wxIterCFlagsMask
	mask flags for a2dIterC
Enumerations
enum	a2dHitOption {   a2dCANOBJHITOPTION_NONE = 0x0000, a2dCANOBJHITOPTION_LAYERS = 0x0001, a2dCANOBJHITOPTION_NOROOT = 0x0002, a2dCANOBJHITOPTION_NOTSELECTED = 0x0004,   a2dCANOBJHITOPTION_ALL = 0x0008 }
	Enum for hit test options. More...
enum	wxEditStyle { wxEDITSTYLE_NONE = 0x0000, wxEDITSTYLE_COPY = 0x0001, wxEDITSTYLE_NOHANDLES = 0x0002, wxEDITSTYLE_CONNECTED = 0x0004 }
enum	a2dCanvasObjectHitFlags {   a2dCANOBJ_EVENT_NON = 0x0001, a2dCANOBJ_EVENT_FILL = 0x0002, a2dCANOBJ_EVENT_STROKE = 0x0004, a2dCANOBJ_EVENT_FILL_NON_TRANSPARENT = 0x0008,   a2dCANOBJ_EVENT_STROKE_NON_TRANSPARENT = 0x0010, a2dCANOBJ_EVENT_VISIBLE = 0x0020, a2dCANOBJ_EVENT_ALL = 0x0040 }
	event mask flags for a2dCanvasObject hit More...
enum	a2dConnectTask {   a2d_ToConnectPinClassWire_ObjectPinClass_In, a2d_ToConnectPinClassWire_ObjectPinClass_Out, a2d_ToConnectPinClassWire_ObjectPinClass_InOut, a2d_ObjectPinClass_ToConnectPinClassWire_In,   a2d_ObjectPinClass_ToConnectPinClassWire_Out, a2d_ObjectPinClass_ToConnectPinClassWire_InOut, a2d_ToConnectPinClassObject_ObjectPinClass_In, a2d_ToConnectPinClassObject_ObjectPinClass_Out,   a2d_ToConnectPinClassObject_ObjectPinClass_InOut, a2d_ObjectPinClass_ToConnectPinClassObject_In, a2d_ObjectPinClass_ToConnectPinClassObject_Out, a2d_ObjectPinClass_ToConnectPinClassObject_InOut }
	flags for searching a connecting a2dpinClass, for the connecting task at hand. More...
Functions
a2dHitOption	operator| (a2dHitOption a, a2dHitOption b)
	OR-ing a2dHitOption is allowed.
wxEditStyle	operator| (wxEditStyle a, wxEditStyle b)
bool	operator< (const a2dCanvasObjectPtr &a, const a2dCanvasObjectPtr &b)
Variables
a2dCanvasObjectSorter	s_a2dCanvasObjectSorter

---

Detailed Description

The base class for all drawable objects in a a2dCanvasDocument.

Next to a2dCanvasObject, there are classes for filtering object ( a2dCanvasObjectFilter ) when iterating recursively through a document hierarchy. The class a2dIterC is used for holding the iteration context, which on its turn holds the drawing context when needed.

Author:

Klaas Holwerda & Robert Roebling

Copyright: 2000-2004 (c) Robert Roebling

Licence: wxWidgets Licence

RCS-ID:

Id

canobj.h,v 1.85 2009/07/10 19:23:13 titato Exp

Definition in file canobj.h.

---

Enumeration Type Documentation

enum a2dConnectTask

flags for searching a connecting a2dpinClass, for the connecting task at hand.

The format is:

a2d_PinClassWanted_ForPinClassGiven_DirectionFlags

ObjectPinClass is the object to which we want to connect ToConnectPinClass is pinclass from where we want to connect to an object

Enumerator:

a2d_ToConnectPinClassWire_ObjectPinClass_In	find wire/connect pinclass, given Normal Object In pinclass
a2d_ToConnectPinClassWire_ObjectPinClass_Out	find wire/connect pinclass, given Normal Object Out pinclass
a2d_ToConnectPinClassWire_ObjectPinClass_InOut	find wire/connect pinclass, given Normal Object In pinclass
a2d_ObjectPinClass_ToConnectPinClassWire_In	find normal object pinclass, given Connect/wire pinclass In
a2d_ObjectPinClass_ToConnectPinClassWire_Out	find normal object pinclass, given Connect/wire pinclass Out
a2d_ObjectPinClass_ToConnectPinClassWire_InOut	find normal object pinclass, given Connect/wire pinclass In/Out
a2d_ToConnectPinClassObject_ObjectPinClass_In	find pinclass, given Normal Object In pinclass
a2d_ToConnectPinClassObject_ObjectPinClass_Out	find pinclass, given Normal Object Out pinclass
a2d_ToConnectPinClassObject_ObjectPinClass_InOut	find pinclass, given Normal Object In/Out pinclass
a2d_ObjectPinClass_ToConnectPinClassObject_In	find normal object pinclass, given Normal Object In pinclass
a2d_ObjectPinClass_ToConnectPinClassObject_Out	find normal object pinclass, given Normal Object Out pinclass
a2d_ObjectPinClass_ToConnectPinClassObject_InOut	find normal object pinclass, given Normal Object In/Out pinclass

Definition at line 368 of file canobj.h.

enum a2dHitOption

Enum for hit test options.

Enumerator:

a2dCANOBJHITOPTION_NONE	no special options
a2dCANOBJHITOPTION_LAYERS	if set, respect layer order, hit testing is done per layer from the top.
a2dCANOBJHITOPTION_NOROOT	if set, don't hit test the root object or object for which IsHitWorld is called This option hit tests the child objects as seen from the parent object.
a2dCANOBJHITOPTION_NOTSELECTED	object hit should not have select flag set
a2dCANOBJHITOPTION_ALL	if set, don't stop at the first hit, but test child/sibling objects anyway

Definition at line 73 of file canobj.h.

enum wxEditStyle

Enumerator:

wxEDITSTYLE_NONE	no special flags set
wxEDITSTYLE_COPY	edit a copy of the original object There are two reasons, why you might want to edit a copy: In layered drawings, one might want to see the effect of the layering during editing (e.g. that the edited object ist partially obscured), while at the same time the outline of the object and the editing handles should be rendered on top. This behaviour is best implemented by having two objects, an editing object with handles on top and the usual object. in wxEDIT_COPY mode the editing information is transfered from the editing object to the original object using the command processor. This way the command processor is not only used for undo and redo but for all editing. This results in a more robust architecture (especially concerning undo/redo). If this style is not set, the original object is edited directly. Commands are still generated for undo/redo but the original object is not changed by these commands, so undo/redo is less robust.
wxEDITSTYLE_NOHANDLES	editing is completely controlled by tools. No handles are added If a master tool is used, handle editing is not realy appropriate, because the editing tool is not active and handles are not visible before the user clicks somewhere. Also master tools need fine control over editing and use tools that perform a very specific task. This can be done without handles.
wxEDITSTYLE_CONNECTED	Clone the edit object using clone_reconnectable.

Definition at line 101 of file canobj.h.
