when a new wire or other connection object needs to be created, More...

#include <connectgen.h>

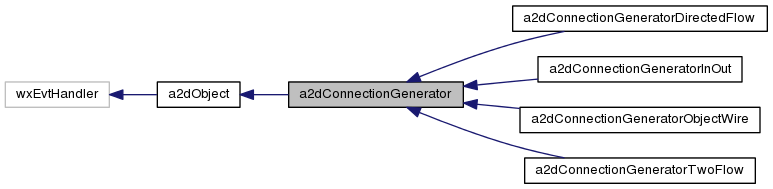

Inheritance diagram for a2dConnectionGenerator:

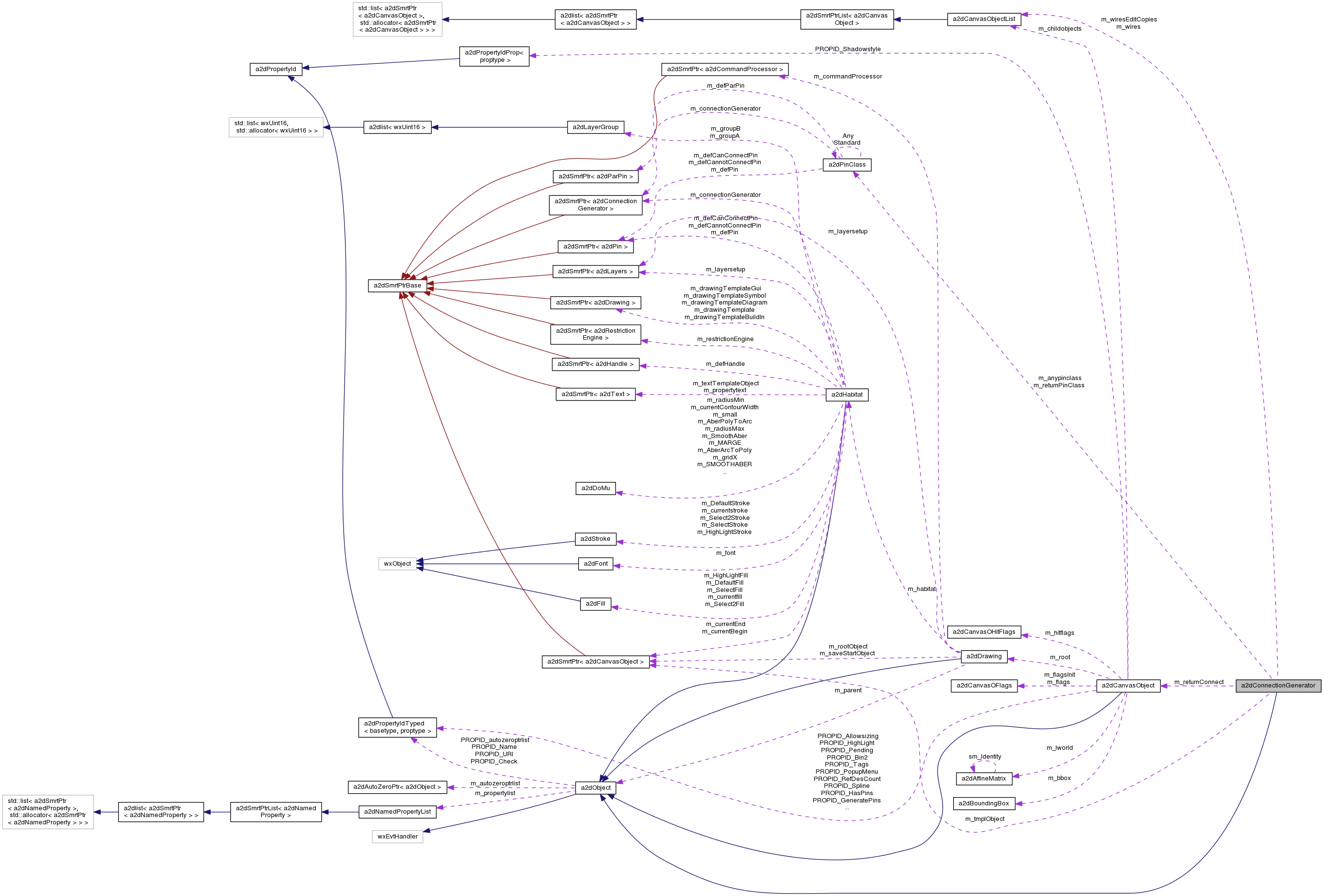

Collaboration diagram for a2dConnectionGenerator:

Public Types
enum	RouteMethod { StraightSegment, StraightEndSegment, GridRouting, StraightEndSegmentUnlessPins, StraightSegmentUnlessPins, ManhattanSegments, ManhattanEndSegments, ManhattanEndSegmentsStay, ManhattanEndSegmentsConvertAndStay }

Public Types inherited from a2dObject
enum	CloneOptions { clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008, clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080, clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members \| clone_properties \| clone_childs }
	options for cloning More...

typedef a2dAutoZeroPtr< a2dObject >	TAutoZeroPtrListClass
	this is needed inside the smart pointer template code

Public Member Functions
	a2dConnectionGenerator ()
	constructor

	~a2dConnectionGenerator ()
	destructor

virtual a2dCanvasObject *	CreateConnectObject (a2dCanvasObject parent, a2dPin pinThis, a2dPin *pinOther, bool undo=false) const
	create connection object based on two pins which need to be connected. More...

virtual a2dCanvasObject *	GetConnectTemplate (const a2dCanvasObject object, a2dPinClass thisPinClass, const a2dCanvasObject other, a2dPinClass otherPinClass) const
	create connection object based on two pin classes, which (may) need to be connected. More...

virtual void	SetPinsToBeginState (a2dCanvasObject *root, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::VISIBLE)
	set begin state of pins, before a tools starts asking feedback or after tool is finsihed

virtual void	SetPinsToEndState (a2dCanvasObject *root, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::VISIBLE)
	set end state of pins after tool is finsihed

virtual bool	GeneratePossibleConnections (a2dCanvasObject object, a2dPinClass pinClass, a2dConnectTask task, double x, double y, double margin) const
	generate temporary pins to which objects can connect More...

virtual a2dPinClass *	GetPinClassForTask (a2dPinClass pinClass, a2dConnectTask task, a2dCanvasObject obj=NULL, a2dPinClass pinClassTo=NULL, a2dPin pinFrom=NULL) const
	return a a2dPinClass which should be used to connect to the input a2dPinClass. More...

a2dPinClass *	GetAnyPinClass () const
	return the pin class for GetPinClassForTask( a2dPinClass::Any ) More...

void	SetAnyPinClass (a2dPinClass *pinClass)
	see GetAnyPinClass()

a2dPinClass *	GetReturnPinClass () const

a2dCanvasObject *	GetReturnConnect () const

bool	GetLastConnectCreationDirection () const
	when a wire was created, this return the direction is was created ( first to last pin or visa versa ).

virtual bool	GeneratePinsToConnect (a2dDrawingPart part, a2dCanvasObject root, a2dPinClass *pinClassToConnectTo, a2dConnectTask task, double xpin, double ypin, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::VISIBLE)

virtual a2dPin *	SearchPinForFinishWire (a2dCanvasObject root, a2dPin pinToConnectTo, a2dPinClass *pinClassToConnectTo, double margin, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::VISIBLE)

virtual a2dPin *	SearchPinForStartWire (a2dCanvasObject root, double xpin, double ypin, a2dPinClass pinClassToConnectTo, double margin, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::VISIBLE)

virtual bool	GeneratePinsToConnectObject (a2dDrawingPart part, a2dCanvasObject root, a2dCanvasObject connectObject, a2dPinClass pinClassToConnectTo=NULL, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::VISIBLE)
	Generate pins on objects, and test which can connect to the given object. More...

virtual bool	ConnectToPinsObject (a2dCanvasObject root, a2dCanvasObject connectObject, double margin, a2dPinClass *pinClassToConnectTo=NULL, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::VISIBLE)

void	SetConnectObject (a2dCanvasObject *tmplObject)
	the template object is used as a template for creating new wires between pins. More...

a2dCanvasObject *	GetConnectObject () const
	return connect object.

void	AddRerouteWires (a2dCanvasObjectList wires, a2dCanvasObject parentOfWires)

void	AddRerouteWire (a2dCanvasObject wire, a2dCanvasObject parentOfWires)

void	PrepareForRewire (a2dCanvasObject parent, a2dCanvasObjectList &dragList, bool walkWires=true, bool selected=false, bool stopAtSelectedWire=false, bool CreateExtraWires=true, a2dBaseTool tool=NULL, a2dRefMap *refs=NULL)

void	CreateWiresOnPins (a2dCanvasObject *parent, const a2dCanvasObjectList &objectsToDrag, bool undo, bool onlyNonSelected=false)
	create wires on pins which do not have wires, but directly are connected to other objects. More...

void	OptimizeRerouteWires (bool removeZero=false)

void	ResetCloneBrother ()
	Reset clonebrothers.

void	ResetPositionsToOrignals ()

void	PrepareForRerouteWires (a2dBaseTool tool=NULL, a2dRefMap refs=NULL)

void	RerouteWires (bool final=false, bool fromOriginal=true)

void	SetRouteWhenDrag (bool routeWhenDrag)
	route also while dragging object

bool	GetRouteWhenDrag ()
	route also while dragging object

void	SetRouteMethod (RouteMethod routing)
	set the way routing will be done

RouteMethod	GetRouteMethod ()

wxString	GetRouteMethodAsString ()

void	RotateRouteMethod ()
	cycle through routing methods

void	SetAllowRedirect (bool allowredirect)

bool	GetAllowRedirect ()
	see SetAllowRedirect()

void	SetGeneratePins (bool onOff)

bool	GetGeneratePins () const

void	SetNoEditCopy (bool noEditCopy)

bool	GetNoEditCopy ()

void	SetOffSet (double offset)

double	GetOffSet () const

Public Member Functions inherited from a2dObject
virtual bool	ProcessEvent (wxEvent &event)

bool	SearchDynamicEventTable (wxEvent &event)

void	Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

bool	Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

void	ProcessConnectedEvent (wxEvent &event)
	wxCHECK_VERSION(2,9,0) More...

void	ConnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEventAll (wxEvtHandler *eventSink)
	Remove all dynamic events in classA, going to classB (eventSink) More...

	a2dObject ()
	constructor

virtual	~a2dObject ()
	destructor

void	operator= (const a2dObject &other)
	assignment operator

int	GetOwnedBy ()
	like it to be protected, but this does not work with wxList macros More...

virtual a2dObject *	SetNonDynamic ()
	Call to mark this object as non-dynamic (static/local/auto) More...

void	CheckReferences ()
	Check zero reference count and delete if count is 0. More...

a2dObject *	Clone (CloneOptions options, a2dRefMap *refs=NULL) const
	create an exact copy of this property

	a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)

virtual wxString	GetName () const
	Returns the name of this object, if no name is given the internal id will be returned. More...

virtual void	SetName (const wxString &name)
	Creates the a2dStringProperty PROPID_Name. More...

virtual bool	IsTemporary_DontSave () const
	Check if this is a temporary object, which should not be saved.

void	SaveAsDocument (a2dIOHandlerXmlSerOut &out)
	Save this object and all below as an XML document. More...

virtual void	Save (wxObject parent, a2dIOHandlerXmlSerOut &out, a2dObjectList towrite)
	write all needed to an XML type of file called the CVG format More...

void	LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
	Load this object and all below from an XML document. More...

virtual void	Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
	load object from CVG file More...

wxInt64	GetUniqueSerializationId () const
	return a unique id for this object More...

virtual bool	AlwaysWriteSerializationId () const
	If true, always write an id. More...

virtual bool	LinkReference (a2dObject *other)
	link a reference in the object to the given value More...

virtual void	ResolveInform ()
	inform an object that reference resolution was done More...

void	Walker (wxObject *parent, a2dWalkerIOHandler &handler)
	This is used to recursively walk through an object tree.

void	SetCheck (bool check)
	general flag use at will. More...

bool	GetCheck () const
	general flag use at will.

void	SetRelease (bool value)
	set release flag More...

bool	GetRelease () const
	get release flag More...

a2dAutoZeroPtr< a2dObject > **	GetAutoZeroPtrList ()
	return the list head pointer for autozero pointers to this object More...

	DECLARE_PROPERTIES ()

a2dNamedProperty *	GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	get property on this object More...

void	SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object. More...

void	SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object and if enabled, to all childs and object members. More...

virtual a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
	Find a dynamic property with given id in the property list. More...

virtual const a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	Find a dynamic property with given id in the property list. More...

virtual bool	HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
	Check if the object has a property with given id and string representation. More...

virtual void	OnPropertyChanged (const a2dPropertyId *id)
	This function is called after a property changed. More...

virtual bool	EditProperties (const a2dPropertyId *id, bool withUndo=true)
	edit properties of the object More...

void	TakeOverProperties (a2dObject from, a2dPropertyIdList listOfIds)
	Properties in the id list are taken from the given object, en set to this. More...

wxURI	GetURI () const
	quick way to get to PROPID_URI property More...

void	SetURI (const wxURI &url)
	quickly set a property PROPID_URI More...

const a2dNamedPropertyList &	GetPropertyList () const
	Get the Property List. More...

bool	HasDynamicProperties () const
	test if there are dynamic properties in the m_propertylist

virtual bool	RemoveProperty (const a2dPropertyId *id, bool all=true)
	This function is called by a2dPropertyId to remove a property from the list. More...

void	RemoveTemporaryProperties ()
	remove all temporary properties

virtual bool	AddProperty (a2dNamedProperty *property)
	This function is called by a2dPropertyId to add a property to the list. More...

Protected Member Functions
void	EndManhattanRoute (a2dPin pin, a2dLineSegment seg1, a2dLineSegment seg2, a2dLineSegment seg3, a2dVertexList *points, bool reverse)

Protected Member Functions inherited from a2dObject
virtual bool	DoIgnoreIfNotMember (const a2dPropertyId *id) const
	used to decide if a property shall be ignored, if it is not a member More...

virtual void	DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
	iterate over this object and its children More...

Protected Attributes
a2dCanvasObjectList *	m_wires

a2dCanvasObjectList *	m_wiresEditCopies

bool	m_routeWhenDrag

RouteMethod	m_routeMethod

a2dCanvasObjectPtr	m_tmplObject
	Template for created object which represents a connection. e.g a2dWirePolylineL.

a2dPinClass *	m_returnPinClass

a2dCanvasObject *	m_returnConnect

a2dPinClass *	m_anypinclass
	template pinclass

bool	m_reverseCreate
	how to create a connection

bool	m_allowredirect

bool	m_generatePins

double	m_offset

Protected Attributes inherited from a2dObject
a2dNamedPropertyList	m_propertylist
	properties

int	m_refcount
	how many references to this object do exist

bool	m_check: 1
	used for linking multiple referenced objects when serializing

bool	m_release: 1
	when set object is treated as being deleted, and wil be deleted in idle time.

bool	m_recursion_active: 1
	this is used as a recursion stopper

bool	m_pendingDisconnects: 1

unsigned int	m_iteratorCount

a2dAutoZeroPtr< a2dObject > *	m_autozeroptrlist
	this is a list of all a2dAutoZeroPtr object pointing to this object

Additional Inherited Members
Static Public Attributes inherited from a2dObject
static a2dPropertyIdBool *	PROPID_Check = NULL
	used for linking multiple referenced objects when serializing

static a2dPropertyIdUri *	PROPID_URI = NULL
	attach an URL to the object

static a2dPropertyIdString *	PROPID_Name = NULL
	Name property, to return name of this object.

static a2dPropertyIdVoidPtr *	PROPID_autozeroptrlist = NULL

static const a2dSignal	sm_Edit_properties = wxNewId()
	edit properties event, see EditProperties()

Protected Types inherited from a2dObject
enum	{ refcount_nondynamic = 0x76543210 }
	special refcount value for non-dynamic objects

Detailed Description

when a new wire or other connection object needs to be created,

this class or a derived one, will deliver the right connection object. In other situations it will tell which objects are connectable on two pins, and the wire needed for that.

The idea is that objects do not only decide themselfs if they can connect to other objects and which. Instead this job is centralized to this class. Because of that, an object does not need to know himself to which objects it can connect, and what wire to use for that. The a2dConnectionGenerator knows which objects can connect to others. Actually in the default situation it is not the canvas object which decides, what can be connected to it. Instead the pinclass of a pin on the canvas object, is the input for the a2dConnectionGenerator. So one asks the a2dConnectionGenerator if a pinclass of a pin on a certain object, can connect to something else.

This class here can restrict what is the default way of allowing connections, or implement its own rules. When you want to limit the possible connection you can switch to a derived a2dConnectionGenerator. An a2dConnectionGenerator is shared by a set of a2dPinClass Objects, and this is how one finds the a2dConnectionGenerator for a connection task at hand.

As an example of a derived a2dConnectionGenerator: if you want to limit a wire tool to only draw lines from objects which have pins of a specific pin class, overriding GeneratePossibleConnections() can do the job.

a2dPinClass itself has information on which other a2dPinClass it may connect to, and two pin classes can only connect if they both agree. a2dPinClass even knows which type of wire/connect object is required to connect the pin to a pin on a wire. So when starting a new wire, at a certain pin, the object and wire its a2dPinClass must be able to connect to one another. A wiretool is only able to connect two pins of objects if the pinclasses in its connect lists are compatible, meaning the one pin contains the other as connectable. If the pin is oke, the found PinClassMap defines what type of wire needs to be created now. This information is stored in the a2dPinClass, as a template wire/connect object. The tool therefore is able to generate a2dCanvasObject connections ( e.g. a2dWirePolylineL wires ) of different types, and which type is created depends on the pin that is hit when starting a wire.

In the above one canvas object was normal and the connecting canvas object was a wire. Another situation is when two normal canvas objects are dragged appart and a wire needs to be created in between. Again pinclasses of the two a2dPin's that will be disconnected, will be searched in its connect lists, for a wire pincclass, which can connect to both pins. When a wire pinclass is found which can connect to both pins, the type of wire will be created via that same pinclass its template object for a wire. This is achieved CreateConnectObject().

To understand the principle, imagine 3 a2dCanvasObject's with pins which have Pin classes.

one with a2dPinClass A
the second with a2dPinClass B
the third with a2dPinClass C Now when A connects to B we want a wire of type X, if A connects to C, we want wire Y, at last when C connects to B we want wire Z. On top of this the direction of the connection can be defined, A to C can be different from C to A. The information on which pin can connect to which other pin, is stored in the a2dPinClass of the a2dPin. Here one can find which other a2dPinClass object can connect to this one, and if it is for a wire, a template object to create that wire.

If more B objects are connected to an A object, via multiple wires, the connection of wires to wires must be defined too To conclude we are not only defining the relations between A-B-C, but also the wire begin and end relations towards eachother. In our case here, we create wires which are extensions of the pin where they are connected to, meaning the end pin of the wire is the same as the pinclass to which the begin pin is connected. All this to connect one object pin with pinclass to other objects at a pin with a certain pin class. If we define 3 pinclasses for pins on the object A,B,C and three extra pinclasses WA WB WC for wire between those objects, we get the following connection tables.

For the pinclasses which can be connected to each other:

(A-PinClass) -> (B-PinClass) (C-PinClass) (WB-PinClass) (WC-PinClass)
(B-PinClass) -> (A-PinClass) (C-PinClass) (WA-PinClass) (WC-PinClass)
(C-PinClass) -> (A-PinClass) (B-PinClass) (WA-PinClass) (WB-PinClass)

We get for wires which start at A or C:

(A-PinClass) -> (WB-PinClass) Wire X (WA-PinClass) -> (B-PinClass)
(A-PinClass) -> (WC-PinClass) Wire Y (WA-PinClass) -> (C-PinClass)
(C-PinClass) -> (WB-PinClass) Wire Z (WC-PinClass) -> (B-PinClass)

And if bidirectional wires which start at B or C:

(B-PinClass) -> (WA-PinClass) Wire X (WB-PinClass) -> (A-PinClass)
(C-PinClass) -> (WA-PinClass) Wire Y (WC-PinClass) -> (A-PinClass)
(B-PinClass) -> (WC-PinClass) Wire Z (WB-PinClass) -> (C-PinClass)

Interesting in this table is that one can not start a wire on an object, whithout knowing its type, since always two are possible. So a wire tool needs to define for which pinclass a wire is needed, before asking this a2dConnectionGenerator to tell if the object is oke with that. Another option is to start a wire on a starting pin, and only when finishing the wire decide what type of wire is really needed for the begin and end pin of the wire. It is best to give wires other pinclasses then normal objects, since that makes it easier to know if one can start a wire on a certain pin, and what type of wire it needs to be.

As an example, drawing a wire using a tool. If the user clicks on an object type pin, the corresponding pin in the newly created wire will be a Non object type pin.

At last in the above, there were three objects, but in fact they are of no interest, since the pins its pinclasses define all. This way it is possible to define several "flows" in a group of objects. E.g. You can define in and output pinclasses for each flow you require. Multiple flow pins can be added to the same object, connecting a set of flow pins by one type of wire. You end up with several flows within a group of objects ( control flow - data flow ).

Where need a2dConnectionGenerator takes settings from the currently active a2dHabitat: a2dCanvasGlobals->GetHabitat() So if not set already by the currently active view/drawingpart, set it first ( a2dDrawingPart::SetShowObject() ).

Definition at line 153 of file connectgen.h.

Member Enumeration Documentation

enum a2dConnectionGenerator::RouteMethod

Enumerator
StraightSegment	Remove original and replace with one straight segment, dynamic pins move with segment.
StraightEndSegment	Reuse last straight segment at begin or end of line, dynamic pins move with segment.
GridRouting	Reroute using Lee routing.
StraightEndSegmentUnlessPins	Same as StraightEndSegment, unless there are dynamic pins on segment.
StraightSegmentUnlessPins	Same as StraightSegment, unless there are dynamic pins on segment.
ManhattanSegments	Remove original and replace with manhattan lines.
ManhattanEndSegments	Add manhattan lines to end.
ManhattanEndSegmentsStay	Keep manhattan lines at end intact.
ManhattanEndSegmentsConvertAndStay	Convert straight segments to manhattan lines and keep manhattan lines at end intact.

Definition at line 159 of file connectgen.h.

Member Function Documentation

a2dCanvasObject * a2dConnectionGenerator::CreateConnectObject	(	a2dCanvasObject *	parent,
		a2dPin *	pinThis,
		a2dPin *	pinOther,
		bool	undo = `false`
	)		const

virtual

create connection object based on two pins which need to be connected.

Called from the default a2dCanvasObject::CreateConnectObject(), in order to easily change the behaviour of standard objects concerning possible connections. The returned object is a (connection) object (e.g. a2dWirePolylineL ), with correct pins at the position of pinThis and pinOther. The pins are connected already. When undo is true, the right commands are sent to the document its command processor. In general this means those commands are part of a group of commands in a a2dCommandGroup, which internal resulted in a connection being created. For example as a result of dragging an object.

Reimplemented in a2dConnectionGeneratorTwoFlow.

Definition at line 1766 of file connectgen.cpp.

void a2dConnectionGenerator::CreateWiresOnPins	(	a2dCanvasObject *	parent,
		const a2dCanvasObjectList &	objectsToDrag,
		bool	undo,
		bool	onlyNonSelected = `false`
	)

create wires on pins which do not have wires, but directly are connected to other objects.

This prepares the object for dragging/moving, while preserving the connection, since then wires will be rerouted when dragging.

Definition at line 163 of file connectgen.cpp.

bool a2dConnectionGenerator::GeneratePossibleConnections	(	a2dCanvasObject *	object,
		a2dPinClass *	pinClass,
		a2dConnectTask	task,
		double	x,
		double	y,
		double	margin
	)		const

virtual

generate temporary pins to which objects can connect

When drawing wires object, other object are asked to display pin position, to which the wire may connect. See a2dCanvasObject::GeneratePinsPossibleConnections(). This process is called by the tools, and is called editing Feedback. The pins created are only temporary, and will be removed at the end of a tool its busy cycle or when needed.

The default implementation uses pinClass->GetConnectionGenerator() to ask this object to generate a pin in a2dCanvasObject::GeneratePins(). The reason for this, is that there may be more involved to allow a pin to connect. Like the pin class.

Parameters

object	The object on which to create temporary pins
pinClass	The pinclass to which the generated pins must be able to connect, if NULL any pinclass
task	for what purpose is the connection needed
x	only connect at this position
y	only connect at this position

Definition at line 1989 of file connectgen.cpp.

a2dPinClass* a2dConnectionGenerator::GetAnyPinClass ( ) const

inline

return the pin class for GetPinClassForTask( a2dPinClass::Any )

Basic object can generate pins by a2dPinclass, but i8n case of a2dPinClass::Any it will generate pins of this pinclass.

Definition at line 239 of file connectgen.h.

a2dCanvasObject * a2dConnectionGenerator::GetConnectTemplate	(	const a2dCanvasObject *	object,
		a2dPinClass *	thisPinClass,
		const a2dCanvasObject *	other,
		a2dPinClass *	otherPinClass
	)		const

virtual

create connection object based on two pin classes, which (may) need to be connected.

The default just returns m_tmplObject.

Definition at line 1926 of file connectgen.cpp.

a2dPinClass * a2dConnectionGenerator::GetPinClassForTask	(	a2dPinClass *	pinClass,
		a2dConnectTask	task,
		a2dCanvasObject *	obj = `NULL`,
		a2dPinClass *	pinClassTo = `NULL`,
		a2dPin *	pinFrom = `NULL`
	)		const

virtual

return a a2dPinClass which should be used to connect to the input a2dPinClass.

The connection generator searches for a possible connection to the input a2dPinClass in combination with the canvasobject obj if needed.

Parameters

pinClass	pin class for which to search a connecting PinClass
task	for what purpose is the connection needed
obj	object for which pins are checked / needed.

Returns: If a a2dPinClass is not found NULL is returned.

Reimplemented in a2dConnectionGeneratorTwoFlow, a2dConnectionGeneratorDirectedFlow, a2dConnectionGeneratorObjectWire, and a2dConnectionGeneratorInOut.

Definition at line 2002 of file connectgen.cpp.

void a2dConnectionGenerator::PrepareForRerouteWires	(	a2dBaseTool *	tool = `NULL`,
		a2dRefMap *	refs = `NULL`
	)

prepare a set of wires for rerouting them.

Parameters

tool	ointer to the tool it was called from
resetCloneBrothers	if true all clonebrothers in pins are reset to NULL.

Definition at line 495 of file connectgen.cpp.

a2dPin * a2dConnectionGenerator::SearchPinForFinishWire	(	a2dCanvasObject *	root,
		a2dPin *	pinToConnectTo,
		a2dPinClass *	pinClassToConnectTo,
		double	margin,
		a2dCanvasObjectFlagsMask	mask = `a2dCanvasOFlags::VISIBLE`
	)

virtual

Parameters

root	search in children fromt this.
pin	The pin to which the generated pins must connect
pinClass	The pinclass to which the generated pins must be able to connect, if NULL any pinclass
margin	how close to pinToConnectTo, must the searched pins be.
mask	search only objects with this mask

Definition at line 2109 of file connectgen.cpp.

a2dPin * a2dConnectionGenerator::SearchPinForStartWire	(	a2dCanvasObject *	root,
		double	xpin,
		double	ypin,
		a2dPinClass *	pinClassToConnectTo,
		double	margin,
		a2dCanvasObjectFlagsMask	mask = `a2dCanvasOFlags::VISIBLE`
	)

virtual

Parameters

root	search in children fromt this.
xpin	The pin x to which the generated pins must connect
ypin	The pin y to which the generated pins must connect
pinClass	The pinclass to which the generated pins must be able to connect, if NULL any pinclass
margin	how close to pinToConnectTo, must the searched pins be.
mask	search only objects with this mask

Definition at line 2127 of file connectgen.cpp.

void a2dConnectionGenerator::SetAllowRedirect ( bool allowredirect )

inline

when optimizing wires, and wire direction (end and begin pins) is not important, this can be set true. When true, joining wires which are not in same direction, are redirected.

Definition at line 355 of file connectgen.h.

void a2dConnectionGenerator::SetConnectObject ( a2dCanvasObject * tmplObject )

the template object is used as a template for creating new wires between pins.

You can use it for other purposes as well if needed. This is a template for a new wire.

Definition at line 1756 of file connectgen.cpp.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Member Function Documentation
