a2dDocumentTemplate Class Reference

The a2dDocumentTemplate class is used to model the relationship between a document class and files. More...

#include <docviewref.h>

Inheritance diagram for a2dDocumentTemplate:
Inheritance graph
[legend]

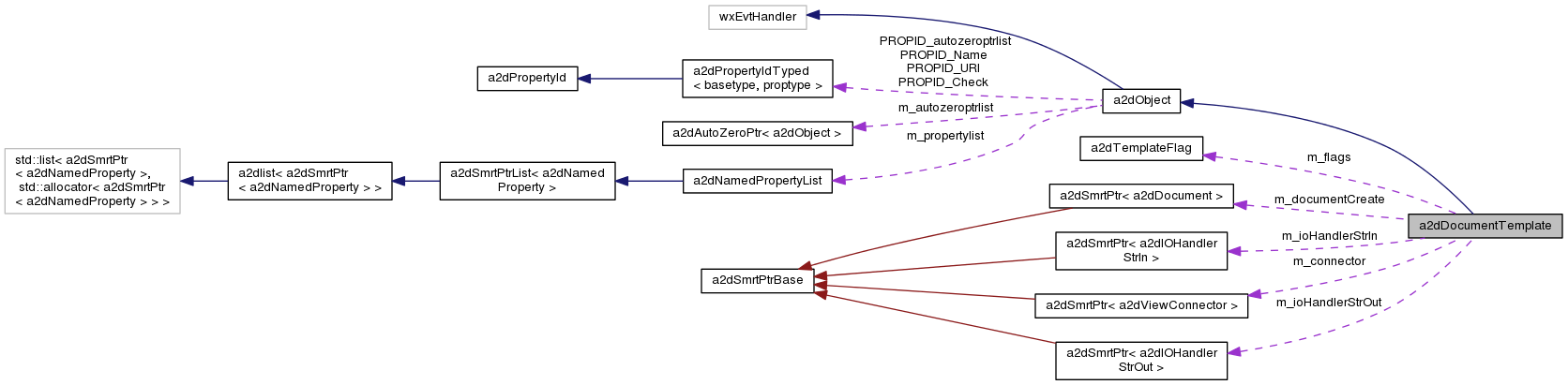

Collaboration diagram for a2dDocumentTemplate:
Collaboration graph
[legend]

Public Member Functions

 a2dDocumentTemplate (const wxString &descr, const wxString &filter, const wxString &dir, const wxString &ext, const wxString &docTypeName, wxClassInfo *docClassInfo=(wxClassInfo *) NULL, a2dViewConnector *connector=(a2dViewConnector *) NULL, long flags=a2dTemplateFlag::DEFAULT, a2dIOHandlerStrIn *handlerIn=NULL, a2dIOHandlerStrOut *handlerOut=NULL)
 Associate document and view types. They're for identifying what view is associated with what template/document type. More...

 ~a2dDocumentTemplate ()
 Destructor.

virtual a2dDocumentCreateDocument (const wxFileName &path, a2dDocumentFlagMask flags=a2dREFDOC_NON)
 Creates a new document. More...

a2dDocumentSentPreAddCreatedDocumentEvent (a2dDocument *newDoc, a2dDocumentFlagMask flags)
 sents a wxEVT_PRE_ADD_DOCUMENT event to m_connector if available. More...

bool SentPostCreateDocumentEvent (a2dDocument *newDoc, a2dDocumentFlagMask flags)
 sents a wxEVT_POST_CREATE_DOCUMENT called in general from a2dDocumentCommandProcessor() when a new document was created. More...

wxString GetDefaultExtension () const
 Returns the default file extension for the document data, as passed to the document template constructor.

wxString GetDescription () const
 Returns the text description of this template, as passed to the document template constructor.

wxString GetDirectory () const
 Returns the default directory, as passed to the document template constructor.

wxString GetFileFilter () const
 Returns the file filter, as passed to the document template constructor.

const a2dTemplateFlagGetFlags () const
 Returns the flags, as passed to the document template constructor.

void SetFlags (a2dTemplateFlagMask flags)
 Sets the internal document template flags (see the constructor description for more details).

void SetFlags (a2dTemplateFlag flags)
 Sets the internal document template flags (see the constructor description for more details).

bool CheckMask (a2dTemplateFlagMask mask)
 does template mask match

wxString GetDocumentTypeName () const
 Returns the document type name, as passed to the document template constructor.

void SetFileFilter (const wxString &filter)
 Sets the file filter.

void SetDirectory (const wxString &dir)
 Sets the default directory.

void SetDescription (const wxString &descr)
 Sets the template description.

void SetDefaultExtension (const wxString &ext)
 Sets the default file extension.

void SetVisible (bool value)
 Returns true if the document template can be shown in user dialogs, false otherwise.

void SetMarked (bool value)
 Returns true if the document template is marked , false otherwise.

bool IsVisible () const
 Returns true if the document template can be shown in user dialogs, false otherwise.

bool IsMarked () const
 Returns true if the document template is marked , false otherwise.

virtual bool FileMatchesTemplate (const wxString &path)
 to test if a file that needs to be loaded, is suitable for this template. More...

virtual a2dIOHandlerStrInGetDocumentIOHandlerStrIn ()
 Get Input handler used to store the document using this template.

virtual a2dIOHandlerStrOutGetDocumentIOHandlerStrOut ()
 Get output handler used to save the document using this template.

virtual a2dIOHandlerStrInGetDocumentIOHandlerForLoad (a2dDocumentInputStream &stream, a2dDocument *document)
 if there is an io handler, and it can load the document of this template, return it

virtual a2dIOHandlerStrOutGetDocumentIOHandlerForSave (const wxString &filename, a2dDocument *document)
 if there is an io handler, and it can save the document of this template, return it More...

virtual void SetDocumentIOHandlerStrIn (a2dIOHandlerStrIn *handler)
 Set Inputhandler used to load the document using this template.

virtual void SetDocumentIOHandlerStrOut (a2dIOHandlerStrOut *handler)
 Set output handler used to save the document using this template.

a2dViewConnectorGetViewConnector ()
 return the a2dViewConnector that is used for sending the ::wxEVT_POST_CREATE_DOCUMENT too.

wxPageSetupDialogData * GetPageSetupData (void) const

void SetPageSetupData (const wxPageSetupDialogData &pageSetupData)

void SetPageSetupData (wxPageSetupDialogData *pageSetupData)

wxClassInfo * GetDocumentClassInfo () const

a2dDocumentGetDocumentCreate ()
 if set this will be used instead of m_docClassInfo to initiate new documents

void SetDocumentCreate (a2dDocument *documentCreate)
 if set this will be used instead of m_docClassInfo to initiate new documents More...

- Public Member Functions inherited from a2dObject
virtual bool ProcessEvent (wxEvent &event)

bool SearchDynamicEventTable (wxEvent &event)

void Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)

bool Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)

void ProcessConnectedEvent (wxEvent &event)
 wxCHECK_VERSION(2,9,0) More...

void ConnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool DisconnectEventAll (wxEvtHandler *eventSink)
 Remove all dynamic events in classA, going to classB (eventSink) More...

 a2dObject ()
 constructor

virtual ~a2dObject ()
 destructor

void operator= (const a2dObject &other)
 assignment operator

int GetOwnedBy ()
 like it to be protected, but this does not work with wxList macros More...

virtual a2dObjectSetNonDynamic ()
 Call to mark this object as non-dynamic (static/local/auto) More...

void CheckReferences ()
 Check zero reference count and delete if count is 0. More...

a2dObjectClone (CloneOptions options, a2dRefMap *refs=NULL) const
 create an exact copy of this property

 a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)

virtual wxString GetName () const
 Returns the name of this object, if no name is given the internal id will be returned. More...

virtual void SetName (const wxString &name)
 Creates the a2dStringProperty PROPID_Name. More...

virtual bool IsTemporary_DontSave () const
 Check if this is a temporary object, which should not be saved.

void SaveAsDocument (a2dIOHandlerXmlSerOut &out)
 Save this object and all below as an XML document. More...

virtual void Save (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dObjectList *towrite)
 write all needed to an XML type of file called the CVG format More...

void LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
 Load this object and all below from an XML document. More...

virtual void Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
 load object from CVG file More...

wxInt64 GetUniqueSerializationId () const
 return a unique id for this object More...

virtual bool AlwaysWriteSerializationId () const
 If true, always write an id. More...

virtual bool LinkReference (a2dObject *other)
 link a reference in the object to the given value More...

virtual void ResolveInform ()
 inform an object that reference resolution was done More...

void Walker (wxObject *parent, a2dWalkerIOHandler &handler)
 This is used to recursively walk through an object tree.

void SetCheck (bool check)
 general flag use at will. More...

bool GetCheck () const
 general flag use at will.

void SetRelease (bool value)
 set release flag More...

bool GetRelease () const
 get release flag More...

a2dAutoZeroPtr< a2dObject > ** GetAutoZeroPtrList ()
 return the list head pointer for autozero pointers to this object More...

 DECLARE_PROPERTIES ()

a2dNamedPropertyGetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
 get property on this object More...

void SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
 Set the property to the this object. More...

void SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
 Set the property to the this object and if enabled, to all childs and object members. More...

virtual a2dNamedPropertyFindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
 Find a dynamic property with given id in the property list. More...

virtual const a2dNamedPropertyFindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
 Find a dynamic property with given id in the property list. More...

virtual bool HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
 Check if the object has a property with given id and string representation. More...

virtual void OnPropertyChanged (const a2dPropertyId *id)
 This function is called after a property changed. More...

virtual bool EditProperties (const a2dPropertyId *id, bool withUndo=true)
 edit properties of the object More...

void TakeOverProperties (a2dObject *from, a2dPropertyIdList *listOfIds)
 Properties in the id list are taken from the given object, en set to this. More...

wxURI GetURI () const
 quick way to get to PROPID_URI property More...

void SetURI (const wxURI &url)
 quickly set a property PROPID_URI More...

const a2dNamedPropertyListGetPropertyList () const
 Get the Property List. More...

bool HasDynamicProperties () const
 test if there are dynamic properties in the m_propertylist

virtual bool RemoveProperty (const a2dPropertyId *id, bool all=true)
 This function is called by a2dPropertyId to remove a property from the list. More...

void RemoveTemporaryProperties ()
 remove all temporary properties

virtual bool AddProperty (a2dNamedProperty *property)
 This function is called by a2dPropertyId to add a property to the list. More...


Protected Member Functions

a2dObjectDoClone (a2dObject::CloneOptions options, a2dRefMap *refs) const

virtual void DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)
 Save settings.

virtual void DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)
 Load settings.

- Protected Member Functions inherited from a2dObject
virtual bool DoIgnoreIfNotMember (const a2dPropertyId *id) const
 used to decide if a property shall be ignored, if it is not a member More...

virtual void DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
 iterate over this object and its children More...


Protected Attributes

a2dTemplateFlag m_flags
 The flags passed to the constructor.

wxString m_fileFilter
 The file filter (such as *.txt) to be used in file selector dialogs.

wxString m_directory
 The default directory for files of this type.

wxString m_description
 A short description of this template.

wxString m_defaultExt
 The default extension for files of this type.

wxString m_docTypeName
 The named type of the document associated with this template.

wxClassInfo * m_docClassInfo
 Run-time class information that allows document instances to be constructed dynamically.

a2dDocumentPtr m_documentCreate
 if set this will be used instead of m_docClassInfo to initiate new documents

a2dSmrtPtr< a2dIOHandlerStrInm_ioHandlerStrIn
 used for reading the document from streams.

a2dSmrtPtr< a2dIOHandlerStrOutm_ioHandlerStrOut
 used for writing the document to streams.

a2dSmrtPtr< a2dViewConnectorm_connector
 class used to connect new views with Frames and windows.

wxPageSetupDialogData * m_pageSetupData
 this is the printer page setup data for all documents with this template

- Protected Attributes inherited from a2dObject
a2dNamedPropertyList m_propertylist
 properties

int m_refcount
 how many references to this object do exist

bool m_check: 1
 used for linking multiple referenced objects when serializing

bool m_release: 1
 when set object is treated as being deleted, and wil be deleted in idle time.

bool m_recursion_active: 1
 this is used as a recursion stopper

bool m_pendingDisconnects: 1

unsigned int m_iteratorCount

a2dAutoZeroPtr< a2dObject > * m_autozeroptrlist
 this is a list of all a2dAutoZeroPtr object pointing to this object


Friends

class a2dSmrtPtrBase


Additional Inherited Members

- Public Types inherited from a2dObject
enum  CloneOptions {
  clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008,
  clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080,
  clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members | clone_properties | clone_childs
}
 options for cloning More...

typedef a2dAutoZeroPtr< a2dObjectTAutoZeroPtrListClass
 this is needed inside the smart pointer template code

- Static Public Attributes inherited from a2dObject
static a2dPropertyIdBoolPROPID_Check = NULL
 used for linking multiple referenced objects when serializing

static a2dPropertyIdUriPROPID_URI = NULL
 attach an URL to the object

static a2dPropertyIdStringPROPID_Name = NULL
 Name property, to return name of this object.

static a2dPropertyIdVoidPtrPROPID_autozeroptrlist = NULL

static const a2dSignal sm_Edit_properties = wxNewId()
 edit properties event, see EditProperties()

- Protected Types inherited from a2dObject
enum  { refcount_nondynamic = 0x76543210 }
 special refcount value for non-dynamic objects


Detailed Description

The a2dDocumentTemplate class is used to model the relationship between a document class and files.

Next to that, a a2dViewConnector class pointer is used to generate new views for new documents, or whatever the a2dViewConnector finds appropriate to do when a new document is created by the a2dDocumentCommandProcessor via a a2dDocumentTemplate.

Normally new views are created by the a2dViewConnector class via a a2dViewTemplate. When and where this new view will be displayed, is up to the a2dViewConnector.

After CreateDocument created a new document, it sents a ::wxEVT_POST_CREATE_DOCUMENT event to the a2dViewConnector class m_connector. The a2dViewConnector derived class may intercept the event to created new a2dView's for the new a2dDocument. This is what the default handler ::wxEVT_POST_CREATE_DOCUMENT in a2dViewConnector::OnPostCreateDocument() does do. It first uses the a2dDocumentCommandProcessor to display the available a2dViewTemplate's for the new created document type. The user chooses one, and that a2dViewTemplate will be used to create the first view on the document with a2dViewTemplate::CreateView(). But in other situations, one might prefer to hook the new document into an existing view. The existing view its current document is disconnected from the view, and the new one is connected to the view. a2dViewTemplate::CreateView() is what generates the ::wxEVT_POST_CREATE_VIEW which is also redirected to a a2dViewConnector. This event may or may no be handled by a connector. It depends on the application, how a connector wants to connect new views into the application.

Remarks
It is possible that newly created documents do not need a view. Therefore the connector class pointer may be NULL.
See Also
a2dDocumentTemplateEvent
a2dViewTemplateEvent

Definition at line 2297 of file docviewref.h.

Constructor & Destructor Documentation

a2dDocumentTemplate::a2dDocumentTemplate ( const wxString &  descr,
const wxString &  filter,
const wxString &  dir,
const wxString &  ext,
const wxString &  docTypeName,
wxClassInfo *  docClassInfo = ( wxClassInfo* ) NULL,
a2dViewConnector connector = a2dViewConnector* ) NULL,
long  flags = a2dTemplateFlag::DEFAULT,
a2dIOHandlerStrIn handlerIn = NULL,
a2dIOHandlerStrOut handlerOut = NULL
)

Associate document and view types. They're for identifying what view is associated with what template/document type.

Constructor. Create instances dynamically near the start of your application after creating a a2dDocumentCommandProcessor instance, and before doing any document or view operations.

Parameters
descris a short description of what the template is for. This string will be displayed in the file filter list of Windows file selectors.
filteris an appropriate file filter such as *.txt OR "*.cal;*.gds" for more the one.
diris the default directory to use for file selectors.
extis the default file extension (such as txt).
docTypeNameis a name that should be unique for a given type of document, used for gathering a list of views relevant to a particular document.
docClassInfois a pointer to the run-time document class information as returned by the CLASSINFO macro, e.g. CLASSINFO(MyDocumentClass). If this is not supplied, you will need to derive a new a2dDocumentTemplate class and override the CreateDocument member to return a new document instance on demand.
connectorconnector to use to attach this type of template to GUI.
flagsis a bit list of the following:
- a2dTemplateFlag::VISIBLE The template may be displayed to the user in dialogs.
- wxREFTEMPLATE_INVISIBLE The template may not be displayed to the user in dialogs.
- a2dTemplateFlag::DEFAULT Defined as a2dTemplateFlag::VISIBLE.
handlerInIO handler needed to read this type of files into the document.
handlerOutIO handler needed to write this type of files from the document.

Definition at line 1740 of file docviewref.cpp.

Member Function Documentation

a2dDocument * a2dDocumentTemplate::CreateDocument ( const wxFileName &  path,
a2dDocumentFlagMask  flags = a2dREFDOC_NON
)
virtual

Creates a new document.

Creates a new instance of the associated document class. If you have not supplied a wxClassInfo parameter to the template constructor, you will need to override this function to return an appropriate document instance.

After creating a new document two event are generated:

- a2dDocumentEvent of type ::wxEVT_CREATE_DOCUMENT sent to document
- a2dDocumentTemplateEvent of type ::wxEVT_POST_CREATE_DOCUMENT sent to a2dViewConnector.

Definition at line 1841 of file docviewref.cpp.

bool a2dDocumentTemplate::FileMatchesTemplate ( const wxString &  path)
virtual

to test if a file that needs to be loaded, is suitable for this template.

The default implementation is testing the file extension of the template against the file extension in the path. When no extension is given in the file and a m_ioHandlerStrIn is set, the a2dIOHandler::CanLoad() is used to test the file contents for that io handler. At last the m_fileFilter is search for the path extension, if found return true.

Definition at line 1904 of file docviewref.cpp.

a2dIOHandlerStrOut * a2dDocumentTemplate::GetDocumentIOHandlerForSave ( const wxString &  filename,
a2dDocument document
)
virtual

if there is an io handler, and it can save the document of this template, return it

Parameters
filenamewhen not empty, it is/can be used to choose io handler also based on the extension of the filename.
documentthe document that needs to be saved.

Reimplemented in a2dDocumentTemplateAuto.

Definition at line 1819 of file docviewref.cpp.

bool a2dDocumentTemplate::SentPostCreateDocumentEvent ( a2dDocument newDoc,
a2dDocumentFlagMask  flags
)

sents a wxEVT_POST_CREATE_DOCUMENT called in general from a2dDocumentCommandProcessor() when a new document was created.

This event is sent to the m_connector a2dViewConnector of the template, and the sender/eventObject is this template. The a2dViewConnector can react in several ways to this action:

  • create one or more new a2dView's ( if wanted a a2dViewTemplate can help to choose one )
  • use one or more existing a2dView's
  • create no a2dView at all
  • merge or copy the contents of the new a2dDocument, and directly close this new document, of course no new views generated then.
  • next to creating one or more a2dViews or re-using one or more a2dViews, also the a2dDocumentFrame's and/or a2dDocumentViewWindow's can be created or reused to connect the views into.

The default implementation see a2dViewConnector::OnPostCreateDocument().

In a derived a2dViewConnector you can implement your own handler, to treat the new document in ways more appropriate to your application.

Parameters
newDocthe new document which was created
flagssome flags telling for what purpose the new document was created. e.g a2dREFDOC_NEW

Definition at line 1887 of file docviewref.cpp.

a2dDocument * a2dDocumentTemplate::SentPreAddCreatedDocumentEvent ( a2dDocument newDoc,
a2dDocumentFlagMask  flags
)

sents a wxEVT_PRE_ADD_DOCUMENT event to m_connector if available.

This event is sent to the m_connector a2dViewConnector of the template, and the sender/eventObject is this template. It is sent just before a new created document is added to the framework. The a2dViewConnector can react to this action by closings existing documents and disconnect frames and views. At this stage the a2dDocumentCommandProcessor() its current document has not changed yet.

Parameters
newDocthe new document which was created
flagssome flags telling for what purpose the new document was created. e.g a2dREFDOC_NEW

Definition at line 1870 of file docviewref.cpp.

void a2dDocumentTemplate::SetDocumentCreate ( a2dDocument documentCreate)
inline

if set this will be used instead of m_docClassInfo to initiate new documents

Id set a clone of this document will be used to create new documents through this a2dDocumentTemplate. This is handy when a document has a lot of initial settings which can now be set once here. So for each document type/purpose you can have unique settings.

Remarks
m_docClassInfo still needs ot be set.

Definition at line 2506 of file docviewref.h.


The documentation for this class was generated from the following files:
a2dDocumentTemplate Class Reference -- Sun Oct 12 2014 17:04:35 -- Sun Oct 12 2014 -- 1.8.5 -- wxArt2D -- . -- Main Page Reference Documentation
