Interactive drag an object. More...

#include <sttool.h>

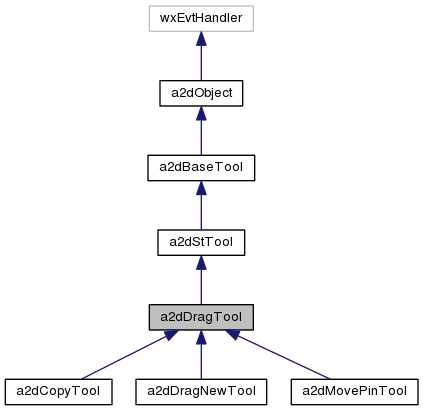

Inheritance diagram for a2dDragTool:
Inheritance graph
[legend]

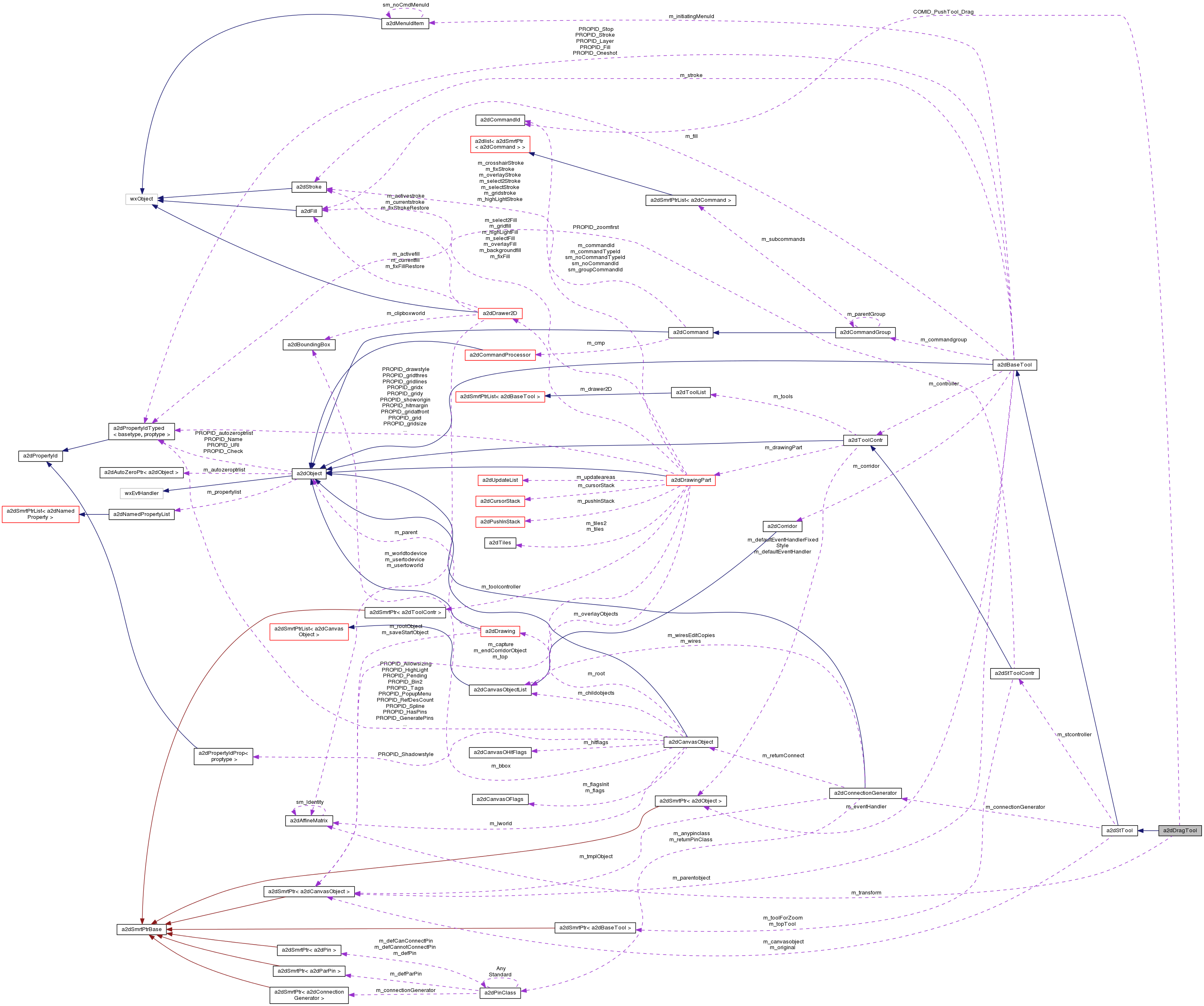

Collaboration diagram for a2dDragTool:
Collaboration graph
[legend]

Public Member Functions

 a2dDragTool (a2dStToolContr *controller, a2dCanvasObject *dragobject=NULL, double xw=0, double yw=0)
 constructor

 ~a2dDragTool ()
 destructor

bool StartDragging (int x, int y, a2dCanvasObject *original)

bool ZoomSave ()
 Is Zooming while the tool is busy Save. More...

void SetDeleteOnOutsideDrop (bool val)
 If set to true, the dragged object is deleted if dropped outside of the window.

void SetDropAndDrop (bool val)

void SetLateConnect (bool lateconnect)
 defines if an object will try to connect at the end of a drag

void CaptureMouse ()
 redirect all mouse events for the canvas to this object

void ReleaseMouse ()
 release the mouse capture for this object

void Render ()
 implement rendering More...

virtual void AdjustShift (double *x, double *y)
 This is overriden by copy tools to have a minimum distance between original and copy.

- Public Member Functions inherited from a2dStTool
 a2dStTool (a2dStToolContr *controller)

 a2dStTool (const a2dStTool &other, CloneOptions options, a2dRefMap *refs)
 constructor

virtual ~a2dStTool ()
 destructor

virtual bool OnPushNewTool (a2dBaseTool *newtool)
 halts the tool is busy

virtual void SetActive (bool active=true)
 set the tool active or inactive. More...

void AddCurrent (a2dCanvasObject *objectToAdd)
 add the current canvas object to parent as child More...

void RenderAnotation ()
 to render the tools its anotation text. More...

a2dStToolContrGetStToolContr ()
 return the staacked tool controller More...

a2dObjectEditToolStartEditTool (a2dCanvasObject *objecttoedit)
 to start editing tool when wanted

void SetEditAtEnd (bool editatend)
 flag for setting editing tool after drawing a primitive. More...

bool GetEditAtEnd ()
 see SetEditAtEnd

void SetOpacityFactorEditcopy (wxUint8 editOpacity)
 when enabling m_useEditOpaque, this is how transparent the editcopy will be made. More...

void SetUseOpaqueEditcopy (a2dOpaqueMode editOpaque)
 When set true, instead of using a special style for editcopies, a clone of the. More...

void SetConnectionGenerator (a2dConnectionGenerator *connectionGenerator)
 Set class for generating new connection objects between object and pins.

a2dConnectionGeneratorGetConnectionGenerator () const
 Get class for generating new connection objects between object and pins.

a2dCanvasObjectGetOriginal ()
 object to draw or edit

bool SetContext (a2dIterC &ic, a2dCanvasObject *startObject=NULL)
 defines the context, relative to which this tools works. More...

void SetStateString (const wxString &message=wxEmptyString, size_t field=0)

void SetSnapSourceFeatures (wxUint32 snapSourceFeatures)

void SetSnapSourceFeature (a2dRestrictionEngine::a2dSnapToWhat snapSourceFeature, bool value=true)
 set one of the snapping features for the source to true or false, leaf others as is

a2dSnapToWhatMask GetSnapSourceFeatures () const

void SetSnapTargetFeatures (wxUint32 snapTargetFeatures)

void SetSnapTargetFeature (a2dRestrictionEngine::a2dSnapToWhat snapTargetFeature, bool value=true)
 set one of the snapping features for targets to true or false, leaf others as is

bool GetSnapTargetFeature (a2dRestrictionEngine::a2dSnapToWhat snapTargetFeature) const
 return the setting of a specific snapping feature

a2dSnapToWhatMask GetSnapTargetFeatures () const

a2dCanvasObjectGetCanvasObject () const

a2dCanvasObjectGetOriginalObject () const

- Public Member Functions inherited from a2dBaseTool
bool ProcessEvent (wxEvent &event)
 events recieved from controller processed here More...

void SetEvtHandler (a2dObject *handler)
 to reroute events to this event handler

a2dObjectGetEventHandler ()

 a2dBaseTool (a2dToolContr *controller, const a2dMenuIdItem &initiatingMenuId=CmdMenu_NoMenu())
 construct a new tool for the given controller.

 a2dBaseTool (const a2dBaseTool &other, CloneOptions options, a2dRefMap *refs)
 constructor initializing partly from other tool

virtual ~a2dBaseTool ()
 destructor

a2dBaseToolTClone (CloneOptions options, a2dRefMap *refs=NULL)

virtual wxString GetToolString () const

virtual bool StartTool (a2dBaseTool *currenttool)
 called to initiate while pushing tool to toolcontroller More...

void SetOneShot ()
 Only one action of the tool, after that it will ask the controller to stop this tool.

virtual bool AllowPop ()
 tells if a tool can be poped from the stack. More...

void StopTool (bool abort=false)
 call to stop a tool, internal and external. More...

bool GetStopTool ()
 checked by controller to see if the tool needs to be stopped e.g. after a oneshot. More...

bool GetActive ()
 is the tool active? More...

bool GetBusy ()
 Check if the tool is busy editing a distinct object */. More...

virtual bool EnterBusyModeNoGroup ()

void SetFill (const a2dFill &fill)
 set fill if used inside a tool

const a2dFillGetFill () const
 get the current fill More...

void SetStroke (const a2dStroke &stroke)
 set stroke if used inside a tool

const a2dStrokeGetStroke () const
 get the current stroke More...

void SetLayer (wxUint16 layer)
 layer set for the object that is drawn using a tool

wxUint16 GetLayer ()
 layer set for new objects.

void SetShowAnotation (bool show)
 when true anotation will be shown, if used inside a tool More...

void SetAnotationFont (const wxFont &font)
 font to use for anotation

void SetCursorType (const wxCursor &cursor)
 Sets cursor which the tool should use when started. More...

void SetBusyCursorType (const wxCursor &cursor)
 Sets cursor which the tool should use when busy. More...

wxCursor GetCursorType ()
 what cursor is used when tool is started

wxCursor GetBusyCursorType ()
 what cursor is used when tool is busy

virtual void SetMode (int mode)
 general integer to set operation modes for a tool (e.g the way it draws) More...

int GetMode ()
 can be used to modify the behaviour of the derived tool. More...

void SetPending (bool pending=true)
 a tool is set pending when it needs to be redrawn.

bool GetPending ()
 return if the tool is set pending for redraw.

a2dToolContrGetToolController ()
 to get the tool controller to which this tool is attached.

a2dDrawingPartGetDrawingPart ()
 Access to the tool controllers drawer.

a2dDrawer2DGetDrawer2D ()
 Access to the tool controllers drawers drawer2d.

wxWindow * GetDisplayWindow ()
 Access to the tool controllers drawers canvas.

a2dDrawingGetDrawing ()
 Returns a pointer to the drawing.

a2dCanvasCommandProcessorGetCanvasCommandProcessor ()
 Returns a pointer to the command processor associated with this document.

double GetHitMargin ()

virtual void OpenCommandGroup (bool restart)
 called when starting an editing operation (e.g. on mouse down) More...

virtual void OpenCommandGroupNamed (const wxString &name)
 called when starting an editing operation with another than the default name

virtual void CloseCommandGroup ()
 called when ending an editing operation (e.g. mouse up)

a2dCommandGroupGetCommandgroup ()
 return the command group that is open else NULL.

wxMenu * GetMousePopupMenu ()
 to get the current mouse menu of the tool More...

void SetMousePopupMenu (wxMenu *mousemenu)
 to set the current mouse menu of the tool More...

a2dCanvasObjectGetParentObject ()
 parent object relative to which the actions take place. More...

void AddEditobject (a2dCanvasObject *object)
 Add an editcopy object to the tool/document.

void RemoveEditobject (a2dCanvasObject *object)
 Remove an editcopy object to the tool/document.

void AddDecorationObject (a2dCanvasObject *object)
 Add a decoration object to be rendered by the tool. More...

void RemoveAllDecorations ()
 remove all object that were added as decorations.

void SetIgnorePendingObjects (bool onoff)
 Switches ignorance of pending objects on and off. More...

bool GetIgnorePendingObjects ()
 get setting of ignore pending objects /sa GetUpdatesPending()

a2dCorridorGetCorridor ()
 get reference to the corridor list

void SetCorridor (const a2dCorridor &corridor)
 set a corridor from a list of objects

void SetContourWidth (double width)

double GetContourWidth () const
 get the Contour width of the shape

void ResetContext ()
 context like corridor and parentobject are reset

virtual bool RotateObject90LeftRight (bool right)
 rotate object of first tool on the stack, when appropriate.

void SetIsEditTool (bool isEditTool)

bool GetIsEditTool ()

void SetInitiatingMenuId (const a2dMenuIdItem &initiatingMenuId)

const a2dMenuIdItemGetInitiatingMenuId ()

- Public Member Functions inherited from a2dObject
bool SearchDynamicEventTable (wxEvent &event)

void Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)

bool Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)

void ProcessConnectedEvent (wxEvent &event)
 wxCHECK_VERSION(2,9,0) More...

void ConnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool DisconnectEventAll (wxEvtHandler *eventSink)
 Remove all dynamic events in classA, going to classB (eventSink) More...

 a2dObject ()
 constructor

virtual ~a2dObject ()
 destructor

void operator= (const a2dObject &other)
 assignment operator

int GetOwnedBy ()
 like it to be protected, but this does not work with wxList macros More...

virtual a2dObjectSetNonDynamic ()
 Call to mark this object as non-dynamic (static/local/auto) More...

void CheckReferences ()
 Check zero reference count and delete if count is 0. More...

a2dObjectClone (CloneOptions options, a2dRefMap *refs=NULL) const
 create an exact copy of this property

 a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)

virtual wxString GetName () const
 Returns the name of this object, if no name is given the internal id will be returned. More...

virtual void SetName (const wxString &name)
 Creates the a2dStringProperty PROPID_Name. More...

virtual bool IsTemporary_DontSave () const
 Check if this is a temporary object, which should not be saved.

void SaveAsDocument (a2dIOHandlerXmlSerOut &out)
 Save this object and all below as an XML document. More...

virtual void Save (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dObjectList *towrite)
 write all needed to an XML type of file called the CVG format More...

void LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
 Load this object and all below from an XML document. More...

virtual void Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
 load object from CVG file More...

wxInt64 GetUniqueSerializationId () const
 return a unique id for this object More...

virtual bool AlwaysWriteSerializationId () const
 If true, always write an id. More...

virtual bool LinkReference (a2dObject *other)
 link a reference in the object to the given value More...

virtual void ResolveInform ()
 inform an object that reference resolution was done More...

void Walker (wxObject *parent, a2dWalkerIOHandler &handler)
 This is used to recursively walk through an object tree.

void SetCheck (bool check)
 general flag use at will. More...

bool GetCheck () const
 general flag use at will.

void SetRelease (bool value)
 set release flag More...

bool GetRelease () const
 get release flag More...

a2dAutoZeroPtr< a2dObject > ** GetAutoZeroPtrList ()
 return the list head pointer for autozero pointers to this object More...

 DECLARE_PROPERTIES ()

a2dNamedPropertyGetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
 get property on this object More...

void SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
 Set the property to the this object. More...

void SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
 Set the property to the this object and if enabled, to all childs and object members. More...

virtual a2dNamedPropertyFindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
 Find a dynamic property with given id in the property list. More...

virtual const a2dNamedPropertyFindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
 Find a dynamic property with given id in the property list. More...

virtual bool HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
 Check if the object has a property with given id and string representation. More...

virtual void OnPropertyChanged (const a2dPropertyId *id)
 This function is called after a property changed. More...

virtual bool EditProperties (const a2dPropertyId *id, bool withUndo=true)
 edit properties of the object More...

void TakeOverProperties (a2dObject *from, a2dPropertyIdList *listOfIds)
 Properties in the id list are taken from the given object, en set to this. More...

wxURI GetURI () const
 quick way to get to PROPID_URI property More...

void SetURI (const wxURI &url)
 quickly set a property PROPID_URI More...

const a2dNamedPropertyListGetPropertyList () const
 Get the Property List. More...

bool HasDynamicProperties () const
 test if there are dynamic properties in the m_propertylist

virtual bool RemoveProperty (const a2dPropertyId *id, bool all=true)
 This function is called by a2dPropertyId to remove a property from the list. More...

void RemoveTemporaryProperties ()
 remove all temporary properties

virtual bool AddProperty (a2dNamedProperty *property)
 This function is called by a2dPropertyId to add a property to the list. More...


Static Public Attributes

static const a2dCommandId COMID_PushTool_Drag
 push this tool on the tools stack

- Static Public Attributes inherited from a2dStTool
static const a2dSignal sig_toolComEventAddObject = wxNewId()

static const a2dSignal sig_toolComEventSetEditObject = wxNewId()

- Static Public Attributes inherited from a2dBaseTool
static const a2dSignal sig_toolPushed = wxNewId()
 sent to new first tool when tool was pushed

static const a2dSignal sig_toolPoped = wxNewId()
 sent to new first tool when last first tool was poped

static const a2dSignal sig_toolBeforePush = wxNewId()

static const a2dSignal sig_toolDoPopBeforePush = wxNewId()
 return id after a sig_toolBeforePush, to tell current tool needs to be poped.

static const a2dSignal sig_toolComEvent = wxNewId()
 not yet used.

static a2dPropertyIdBoolPROPID_Oneshot = NULL

static a2dPropertyIdBoolPROPID_Stop = NULL

static a2dPropertyIdFillPROPID_Fill = NULL

static a2dPropertyIdStrokePROPID_Stroke = NULL

static a2dPropertyIdUint16PROPID_Layer = NULL

- Static Public Attributes inherited from a2dObject
static a2dPropertyIdBoolPROPID_Check = NULL
 used for linking multiple referenced objects when serializing

static a2dPropertyIdUriPROPID_URI = NULL
 attach an URL to the object

static a2dPropertyIdStringPROPID_Name = NULL
 Name property, to return name of this object.

static a2dPropertyIdVoidPtrPROPID_autozeroptrlist = NULL

static const a2dSignal sm_Edit_properties = wxNewId()
 edit properties event, see EditProperties()


Protected Member Functions

void OnChar (wxKeyEvent &event)

void OnMouseEvent (wxMouseEvent &event)

virtual bool EnterBusyMode ()
 starts a new action (e.g drawing something ) in a tool that is already pushed. More...

virtual void FinishBusyMode (bool closeCommandGroup=true)
 Called when the user finishes editing a distinct object */. More...

virtual void AbortBusyMode ()
 Called when the user aborts editing a distinct object */. More...

virtual void DragAbsolute (double x, double y)
 called when dragging is in progress

virtual wxString GetCommandGroupName ()
 return the command group name for commands of a derived class More...

virtual bool CreateToolObjects ()
 Create the editcopy and other tool objects (e.g. decorations) More...

virtual void CleanupToolObjects ()
 Cleanup the editcopy other tool objects (e.g. decorations)

- Protected Member Functions inherited from a2dStTool
void PrepareForRewire (a2dCanvasObjectList &dragList, bool walkWires=true, bool selected=false, bool stopAtSelectedWire=false, bool CreateExtraWires=true, a2dRefMap *=NULL)

void DeselectAll ()

void MouseToToolWorld (int x, int y, double &xWorldLocal, double &yWorldLocal)
 calculate world coordinates from devide coordinates

wxRect GetAbsoluteArea (a2dCanvasObject *object)
 area occupied by this object

void GetTextExtent (const wxString &string, wxCoord *w, wxCoord *h, wxCoord *descent=NULL, wxCoord *externalLeading=NULL)
 return text extends of string

void OnPaint (wxPaintEvent &event)
 handler for paint event

void OnIdle (wxIdleEvent &event)
 handler for idle events

void OnUndoEvent (a2dCommandProcessorEvent &event)
 handler for Undo event

void OnDoEvent (a2dCommandProcessorEvent &event)
 handler for Do event

void OnComEvent (a2dComEvent &event)
 called when a tool has changed (fill stroke layer spline )

virtual void GenerateAnotation ()
 to display a string along with a tool drawing.

void AddAnotationToPendingUpdateArea ()
 after calculating anotation position and string, extend the boundingbox of the tools with it.

void GetKeyIncrement (double *xIncr, double *yIncr)
 get the increments used when moving is done with cursor keys

void OnKeyDown (wxKeyEvent &event)
 called on key down events

void OnKeyUp (wxKeyEvent &event)
 called on key up events

void OnChar (wxKeyEvent &event)
 called on key events

void OnMouseEvent (wxMouseEvent &event)
 called on mouse events

virtual void AdjustRenderOptions ()
 Adjust the rendering options to the needs of this tool.

a2dCanvasObjectFindTaggedObject ()

- Protected Member Functions inherited from a2dBaseTool
void OnComEvent (a2dComEvent &event)
 default handler for a2dComEvent event More...

void OnDoEvent (a2dCommandProcessorEvent &event)

void OnUndoEvent (a2dCommandProcessorEvent &event)

void OnRedoEvent (a2dCommandProcessorEvent &event)

void OnMouseEvent (wxMouseEvent &event)
 called on mouse events

void OnChar (wxKeyEvent &event)
 called on key events

void OnKeyDown (wxKeyEvent &event)
 called on keydown events

void OnKeyUp (wxKeyEvent &event)
 called on keyup events

virtual void DoStopTool (bool abort)
 to do tool specific stuff to stop a tool. Called from StopTool().

- Protected Member Functions inherited from a2dObject
virtual bool DoIgnoreIfNotMember (const a2dPropertyId *id) const
 used to decide if a property shall be ignored, if it is not a member More...

virtual void DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
 iterate over this object and its children More...

virtual void DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)
 Save settings.

virtual void DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)
 Load settings.


Protected Attributes

a2dAffineMatrix m_transform
 old transform

bool m_wasMayConnect
 allow connecting to other obejcts

bool m_lateconnect
 connect when released

bool m_mousecaptured
 is mouse captured during drag

bool m_deleteonoutsidedrop
 if true, the dragged object is deleted, if it is dropped outside of the window

bool m_dropAndDrop

double m_startObjectx
 hold start of drag

double m_startObjecty
 hold start of drag

double m_startMousex
 hold start of drag

double m_startMousey
 hold start of drag

- Protected Attributes inherited from a2dStTool
a2dSnapToWhatMask m_snapSourceFeatures
 set to the a2dSnapToWhat features enabled by the engine for the source object

a2dSnapToWhatMask m_snapTargetFeatures
 set to the a2dSnapToWhat target features enabled by the engine and/or snap source object

wxString m_anotation
 anotation string, which is in general modified by the tools to display position etc.

int m_xanotation
 x position of anotation text

int m_yanotation
 y position of anotation text

int m_prevxanotation

int m_prevyanotation

int m_x
 x of mouse in device

int m_y
 y of mouse in device

int m_xprev
 previous x of mouse in device

int m_yprev
 previous y of mouse in device

double m_xwprev
 x world coordinates old or new value of mouse

double m_ywprev
 y world coordinates old or new value of mouse

int m_dragstartx
 x of mouse in device at start drag

int m_dragstarty
 y of mouse in device at start drag

bool m_dragStarted
 used to indicate that a first drag event has arrived.

a2dCanvasObjectPtr m_canvasobject
 This is the object currently edited. More...

a2dCanvasObjectPtr m_original
 This is the original object selected for editing. More...

a2dStToolContrm_stcontroller
 controller for canvas

a2dConnectionGeneratorm_connectionGenerator
 Use this connection generator for wires and pins.

bool m_renderOriginal
 if yes, the original object is rendered in place

bool m_renderEditcopy
 if yes, the editcopy is rendered in place More...

bool m_renderEditcopyOnTop
 if yes, the editcopy is rendered on top in usual style

bool m_renderEditcopyEdit
 if yes, the editcopy is rendered on top in edit style

bool m_renderEditcopyRectangle
 if yes, the editcopy is rendered on top as bounding box rectangle

bool m_editatend
 when drawing something editing must follow, using the a2dRecursiveEditTool

wxUint8 m_editOpacityFactor
 when using cloned style for editcopy, use this opacity.

a2dOpaqueMode m_useEditOpaque
 when true editcopies are using a half transparent cloned style.

- Protected Attributes inherited from a2dBaseTool
const a2dMenuIdItemm_initiatingMenuId
 command which initiated the tool, used to seperate commands using the tool

wxCursor m_toolcursor
 cursor to use

wxCursor m_toolBusyCursor
 cursor to use when the tool is busy doing something.

a2dToolContrm_controller
 under control of this toolcontroller, to give me events.

bool m_active
 tool is operational

wxUint8 m_bussyStopping
 if > 0, the tool is in the process of stopping, which means it can not be poped yet by controller.

a2dSmrtPtr< a2dObjectm_eventHandler
 when set called before own event handler More...

bool m_ignorePendingObjects
 if set ignore all setting for pendingobjects

a2dCorridor m_corridor

bool m_isEditTool
 if tool does change drawing

- Protected Attributes inherited from a2dObject
a2dNamedPropertyList m_propertylist
 properties

int m_refcount
 how many references to this object do exist

bool m_check: 1
 used for linking multiple referenced objects when serializing

bool m_release: 1
 when set object is treated as being deleted, and wil be deleted in idle time.

bool m_recursion_active: 1
 this is used as a recursion stopper

bool m_pendingDisconnects: 1

unsigned int m_iteratorCount

a2dAutoZeroPtr< a2dObject > * m_autozeroptrlist
 this is a list of all a2dAutoZeroPtr object pointing to this object


Additional Inherited Members

- Public Types inherited from a2dStTool
enum  a2dOpaqueMode { a2dOpaqueMode_Off = 0x00000000, a2dOpaqueMode_Tool = 0x00000001, a2dOpaqueMode_Tool_FixedStyle = 0x00000002, a2dOpaqueMode_Controller = 0x00000004 }
 how editing transparency will be handled More...

- Public Types inherited from a2dObject
enum  CloneOptions {
  clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008,
  clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080,
  clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members | clone_properties | clone_childs
}
 options for cloning More...

typedef a2dAutoZeroPtr< a2dObjectTAutoZeroPtrListClass
 this is needed inside the smart pointer template code

- Public Attributes inherited from a2dBaseTool
bool m_halted
 if a tool is deactivated while m_busy is true, this flag is set

bool m_pending
 set when tool needs an redraw (after a a2dCanvas Repaint etc.) More...

bool m_oneshot
 do it only once

bool m_stop
 stop the tool

a2dFill m_fill
 fill for new object

a2dStroke m_stroke
 stroke for new object

double m_contourwidth
 if != 0 the polygon is contoured at distance m_contourwidth/2

wxUint16 m_layer
 layer for a new object

bool m_canvas_mouseevents_restore
 used to save the a2dCanvas mouse event setting. More...

bool m_anotate
 when true anotation will be shown, if used inside a tool

wxFont m_annotateFont
 font to use for anotation

int m_mode
 general operation mode setting for a tool.

a2dCommandGroupm_commandgroup
 the command group of the command processor

wxMenu * m_mousemenu
 popup menu

a2dCanvasObjectPtr m_parentobject
 ( if needed ) parent a2dCanvasObject relative to which the tool actions take place.

- Protected Types inherited from a2dObject
enum  { refcount_nondynamic = 0x76543210 }
 special refcount value for non-dynamic objects


Detailed Description

Interactive drag an object.

Uses the dragmode set for the controller.

Remarks
Left Click and drag.
Key left right up down to move while draging active (Left Down)
See Also
a2dStToolContr

Definition at line 1012 of file sttool.h.

Member Function Documentation

void a2dDragTool::AbortBusyMode ( )
protectedvirtual

Called when the user aborts editing a distinct object */.

See Also
EnterBusyMode This is supposed to undo aeverything the tool did since entering busy mode

Reimplemented from a2dStTool.

Reimplemented in a2dMovePinTool.

Definition at line 3297 of file sttool.cpp.

bool a2dDragTool::CreateToolObjects ( )
protectedvirtual

Create the editcopy and other tool objects (e.g. decorations)

m_original must be set before this function is called

Reimplemented from a2dStTool.

Reimplemented in a2dCopyTool.

Definition at line 3362 of file sttool.cpp.

bool a2dDragTool::EnterBusyMode ( )
protectedvirtual

starts a new action (e.g drawing something ) in a tool that is already pushed.

Opens a new a2dCommandGroup, which will be closed at the end of an action. This is normally in FinishBusyMode(), but might be delayed when other tools are pushed, like the edit tool to further edit the drawn figure. This should become part of the same command group.

Reimplemented from a2dStTool.

Reimplemented in a2dMovePinTool, a2dCopyTool, and a2dDragNewTool.

Definition at line 3205 of file sttool.cpp.

void a2dDragTool::FinishBusyMode ( bool  closeCommandGroup = true)
protectedvirtual

Called when the user finishes editing a distinct object */.

See Also
EnterBusyMode,
GetActive You should call the base class (this) version at the END of your function

Reimplemented from a2dStTool.

Reimplemented in a2dMovePinTool, a2dCopyTool, and a2dDragNewTool.

Definition at line 3223 of file sttool.cpp.

virtual wxString a2dDragTool::GetCommandGroupName ( )
inlineprotectedvirtual

return the command group name for commands of a derived class

this defaults to the class name

Reimplemented from a2dBaseTool.

Reimplemented in a2dMovePinTool, a2dCopyTool, and a2dDragNewTool.

Definition at line 1061 of file sttool.h.

void a2dDragTool::OnMouseEvent ( wxMouseEvent &  event)
protected

todo skip is needed if object should connect itself, in a2dCanvasObject::Update()

Definition at line 3058 of file sttool.cpp.

void a2dDragTool::Render ( )
virtual

implement rendering

in general is rendering for tools just to draw/render m_canvasobject when set.

Reimplemented from a2dStTool.

Definition at line 3016 of file sttool.cpp.

bool a2dDragTool::ZoomSave ( )
inlinevirtual

Is Zooming while the tool is busy Save.

If so, the active tool will redraw itself in the new Mapping state

Implements a2dBaseTool.

Reimplemented in a2dMovePinTool, a2dCopyTool, and a2dDragNewTool.

Definition at line 1028 of file sttool.h.


The documentation for this class was generated from the following files:
a2dDragTool Class Reference -- Sun Oct 12 2014 17:04:36 -- Sun Oct 12 2014 -- 1.8.5 -- wxArt2D -- . -- Main Page Reference Documentation
