a2dMeasureTool Class Reference

Interactive Selection of an Object. More...

#include <sttoolmes.h>

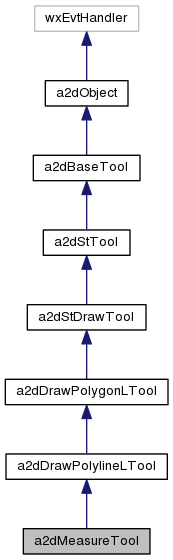

Inheritance diagram for a2dMeasureTool:

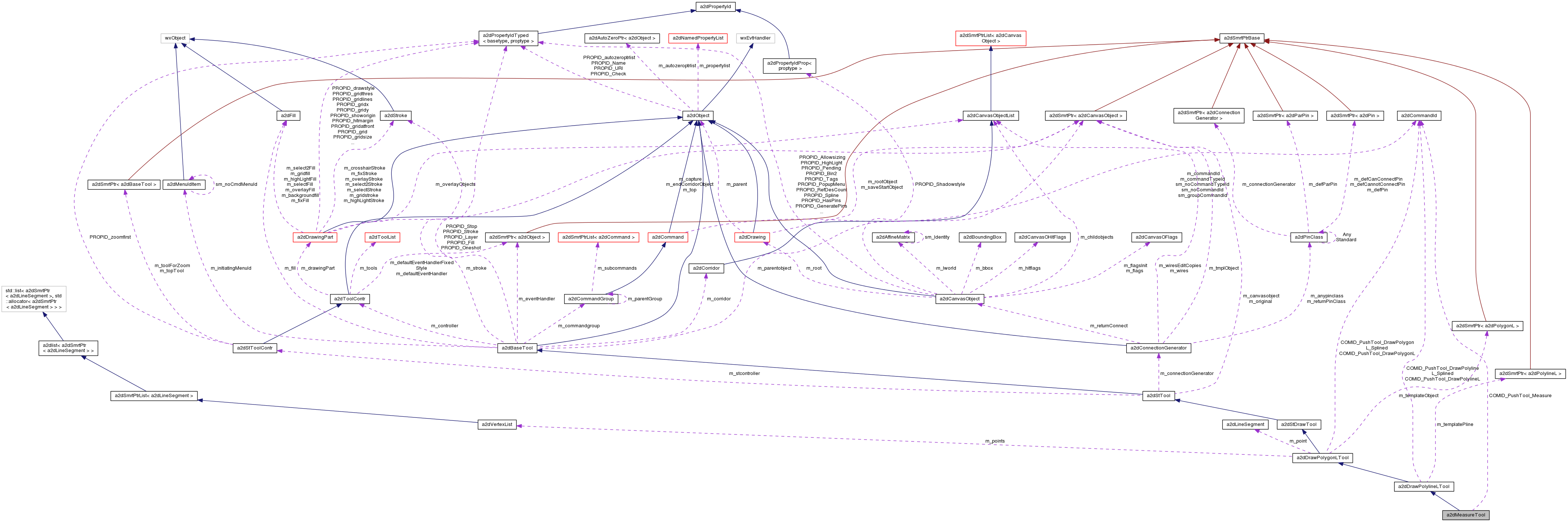

Collaboration diagram for a2dMeasureTool:

Public Member Functions
	a2dMeasureTool (a2dStToolContr *controller)
bool	ZoomSave ()
	save to zoom while drawing
Public Member Functions inherited from a2dDrawPolylineLTool
	a2dDrawPolylineLTool (a2dStToolContr *controller, a2dPolylineL *templateObject=NULL)
	constructor More...
void	SetLineBegin (a2dCanvasObject *begin)
	defines line begin object for line and polyline drawing tools More...
void	SetLineEnd (a2dCanvasObject *end)
	defines line end object for line and polyline drawing tools More...
a2dCanvasObject *	GetLineBegin ()
	get current line begin object for line and polyline drawing tools. More...
a2dCanvasObject *	GetLineEnd ()
	get current line end object for line and polyline drawing tools More...
void	SetEndScaleX (double xs)
	scaling in X for begin and end objects of lines and polylines
void	SetEndScaleY (double ys)
	scaling in Y for begin and end objects of lines and polylines
double	GetEndScaleX ()
	get scaling in X for begin and end objects of lines and polylines
double	GetEndScaleY ()
	get scaling in Y for begin and end objects of lines and polylines
void	SetPathType (a2dPATH_END_TYPE pathtype)
	Set when m_contourwidth != 0 what is the end of the line should be.
a2dPATH_END_TYPE	GetPathType ()
	get when m_contourwidth != 0 what is the end of the line looks like.
Public Member Functions inherited from a2dDrawPolygonLTool
	a2dDrawPolygonLTool (a2dStToolContr *controller, a2dPolygonL *templateObject=NULL)
	constructor More...
void	SetMode (int mode)
	mode of drawing, can be swicthed with Tab key.
void	SetSpline (bool spline)
	certain drawing tools like polygon drawing use this setting More...
bool	GetSpline ()
	certain drawing tools like polygon drawing use this setting
Public Member Functions inherited from a2dStDrawTool
	a2dStDrawTool (a2dStToolContr *controller)
virtual	~a2dStDrawTool ()
	destructor
void	SetAllowModifyTemplate (bool allowModifyTemplate)
	template adepts to style change from outside or not
bool	GetAllowModifyTemplate ()
	template adepts to style change from outside or not
Public Member Functions inherited from a2dStTool
	a2dStTool (a2dStToolContr *controller)
	a2dStTool (const a2dStTool &other, CloneOptions options, a2dRefMap *refs)
	constructor
virtual	~a2dStTool ()
	destructor
virtual bool	OnPushNewTool (a2dBaseTool *newtool)
	halts the tool is busy
virtual void	SetActive (bool active=true)
	set the tool active or inactive. More...
void	AddCurrent (a2dCanvasObject *objectToAdd)
	add the current canvas object to parent as child More...
virtual void	Render ()
	implement rendering More...
void	RenderAnotation ()
	to render the tools its anotation text. More...
a2dStToolContr *	GetStToolContr ()
	return the staacked tool controller More...
a2dObjectEditTool *	StartEditTool (a2dCanvasObject *objecttoedit)
	to start editing tool when wanted
void	SetEditAtEnd (bool editatend)
	flag for setting editing tool after drawing a primitive. More...
bool	GetEditAtEnd ()
	see SetEditAtEnd
void	SetOpacityFactorEditcopy (wxUint8 editOpacity)
	when enabling m_useEditOpaque, this is how transparent the editcopy will be made. More...
void	SetUseOpaqueEditcopy (a2dOpaqueMode editOpaque)
	When set true, instead of using a special style for editcopies, a clone of the. More...
void	SetConnectionGenerator (a2dConnectionGenerator *connectionGenerator)
	Set class for generating new connection objects between object and pins.
a2dConnectionGenerator *	GetConnectionGenerator () const
	Get class for generating new connection objects between object and pins.
a2dCanvasObject *	GetOriginal ()
	object to draw or edit
bool	SetContext (a2dIterC &ic, a2dCanvasObject *startObject=NULL)
	defines the context, relative to which this tools works. More...
void	SetStateString (const wxString &message=wxEmptyString, size_t field=0)
void	SetSnapSourceFeatures (wxUint32 snapSourceFeatures)
void	SetSnapSourceFeature (a2dRestrictionEngine::a2dSnapToWhat snapSourceFeature, bool value=true)
	set one of the snapping features for the source to true or false, leaf others as is
a2dSnapToWhatMask	GetSnapSourceFeatures () const
void	SetSnapTargetFeatures (wxUint32 snapTargetFeatures)
void	SetSnapTargetFeature (a2dRestrictionEngine::a2dSnapToWhat snapTargetFeature, bool value=true)
	set one of the snapping features for targets to true or false, leaf others as is
bool	GetSnapTargetFeature (a2dRestrictionEngine::a2dSnapToWhat snapTargetFeature) const
	return the setting of a specific snapping feature
a2dSnapToWhatMask	GetSnapTargetFeatures () const
a2dCanvasObject *	GetCanvasObject () const
a2dCanvasObject *	GetOriginalObject () const
Public Member Functions inherited from a2dBaseTool
bool	ProcessEvent (wxEvent &event)
	events recieved from controller processed here More...
void	SetEvtHandler (a2dObject *handler)
	to reroute events to this event handler
a2dObject *	GetEventHandler ()
	a2dBaseTool (a2dToolContr *controller, const a2dMenuIdItem &initiatingMenuId=CmdMenu_NoMenu())
	construct a new tool for the given controller.
	a2dBaseTool (const a2dBaseTool &other, CloneOptions options, a2dRefMap *refs)
	constructor initializing partly from other tool
virtual	~a2dBaseTool ()
	destructor
a2dBaseTool *	TClone (CloneOptions options, a2dRefMap *refs=NULL)
virtual wxString	GetToolString () const
virtual bool	StartTool (a2dBaseTool *currenttool)
	called to initiate while pushing tool to toolcontroller More...
void	SetOneShot ()
	Only one action of the tool, after that it will ask the controller to stop this tool.
virtual bool	AllowPop ()
	tells if a tool can be poped from the stack. More...
void	StopTool (bool abort=false)
	call to stop a tool, internal and external. More...
bool	GetStopTool ()
	checked by controller to see if the tool needs to be stopped e.g. after a oneshot. More...
bool	GetActive ()
	is the tool active? More...
bool	GetBusy ()
	Check if the tool is busy editing a distinct object */. More...
virtual bool	EnterBusyModeNoGroup ()
void	SetFill (const a2dFill &fill)
	set fill if used inside a tool
const a2dFill &	GetFill () const
	get the current fill More...
void	SetStroke (const a2dStroke &stroke)
	set stroke if used inside a tool
const a2dStroke &	GetStroke () const
	get the current stroke More...
void	SetLayer (wxUint16 layer)
	layer set for the object that is drawn using a tool
wxUint16	GetLayer ()
	layer set for new objects.
void	SetShowAnotation (bool show)
	when true anotation will be shown, if used inside a tool More...
void	SetAnotationFont (const wxFont &font)
	font to use for anotation
void	SetCursorType (const wxCursor &cursor)
	Sets cursor which the tool should use when started. More...
void	SetBusyCursorType (const wxCursor &cursor)
	Sets cursor which the tool should use when busy. More...
wxCursor	GetCursorType ()
	what cursor is used when tool is started
wxCursor	GetBusyCursorType ()
	what cursor is used when tool is busy
int	GetMode ()
	can be used to modify the behaviour of the derived tool. More...
void	SetPending (bool pending=true)
	a tool is set pending when it needs to be redrawn.
bool	GetPending ()
	return if the tool is set pending for redraw.
a2dToolContr *	GetToolController ()
	to get the tool controller to which this tool is attached.
a2dDrawingPart *	GetDrawingPart ()
	Access to the tool controllers drawer.
a2dDrawer2D *	GetDrawer2D ()
	Access to the tool controllers drawers drawer2d.
wxWindow *	GetDisplayWindow ()
	Access to the tool controllers drawers canvas.
a2dDrawing *	GetDrawing ()
	Returns a pointer to the drawing.
a2dCanvasCommandProcessor *	GetCanvasCommandProcessor ()
	Returns a pointer to the command processor associated with this document.
double	GetHitMargin ()
virtual void	OpenCommandGroup (bool restart)
	called when starting an editing operation (e.g. on mouse down) More...
virtual void	OpenCommandGroupNamed (const wxString &name)
	called when starting an editing operation with another than the default name
virtual void	CloseCommandGroup ()
	called when ending an editing operation (e.g. mouse up)
a2dCommandGroup *	GetCommandgroup ()
	return the command group that is open else NULL.
wxMenu *	GetMousePopupMenu ()
	to get the current mouse menu of the tool More...
void	SetMousePopupMenu (wxMenu *mousemenu)
	to set the current mouse menu of the tool More...
a2dCanvasObject *	GetParentObject ()
	parent object relative to which the actions take place. More...
void	AddEditobject (a2dCanvasObject *object)
	Add an editcopy object to the tool/document.
void	RemoveEditobject (a2dCanvasObject *object)
	Remove an editcopy object to the tool/document.
void	AddDecorationObject (a2dCanvasObject *object)
	Add a decoration object to be rendered by the tool. More...
void	RemoveAllDecorations ()
	remove all object that were added as decorations.
void	SetIgnorePendingObjects (bool onoff)
	Switches ignorance of pending objects on and off. More...
bool	GetIgnorePendingObjects ()
	get setting of ignore pending objects /sa GetUpdatesPending()
a2dCorridor &	GetCorridor ()
	get reference to the corridor list
void	SetCorridor (const a2dCorridor &corridor)
	set a corridor from a list of objects
void	SetContourWidth (double width)
double	GetContourWidth () const
	get the Contour width of the shape
void	ResetContext ()
	context like corridor and parentobject are reset
virtual bool	RotateObject90LeftRight (bool right)
	rotate object of first tool on the stack, when appropriate.
void	SetIsEditTool (bool isEditTool)
bool	GetIsEditTool ()
void	SetInitiatingMenuId (const a2dMenuIdItem &initiatingMenuId)
const a2dMenuIdItem &	GetInitiatingMenuId ()
Public Member Functions inherited from a2dObject
bool	SearchDynamicEventTable (wxEvent &event)
void	Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)
bool	Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)
void	ProcessConnectedEvent (wxEvent &event)
	wxCHECK_VERSION(2,9,0) More...
void	ConnectEvent (wxEventType type, wxEvtHandler *eventSink)
bool	DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)
bool	DisconnectEventAll (wxEvtHandler *eventSink)
	Remove all dynamic events in classA, going to classB (eventSink) More...
	a2dObject ()
	constructor
virtual	~a2dObject ()
	destructor
void	operator= (const a2dObject &other)
	assignment operator
int	GetOwnedBy ()
	like it to be protected, but this does not work with wxList macros More...
virtual a2dObject *	SetNonDynamic ()
	Call to mark this object as non-dynamic (static/local/auto) More...
void	CheckReferences ()
	Check zero reference count and delete if count is 0. More...
a2dObject *	Clone (CloneOptions options, a2dRefMap *refs=NULL) const
	create an exact copy of this property
	a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)
virtual wxString	GetName () const
	Returns the name of this object, if no name is given the internal id will be returned. More...
virtual void	SetName (const wxString &name)
	Creates the a2dStringProperty PROPID_Name. More...
virtual bool	IsTemporary_DontSave () const
	Check if this is a temporary object, which should not be saved.
void	SaveAsDocument (a2dIOHandlerXmlSerOut &out)
	Save this object and all below as an XML document. More...
virtual void	Save (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dObjectList *towrite)
	write all needed to an XML type of file called the CVG format More...
void	LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
	Load this object and all below from an XML document. More...
virtual void	Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
	load object from CVG file More...
wxInt64	GetUniqueSerializationId () const
	return a unique id for this object More...
virtual bool	AlwaysWriteSerializationId () const
	If true, always write an id. More...
virtual bool	LinkReference (a2dObject *other)
	link a reference in the object to the given value More...
virtual void	ResolveInform ()
	inform an object that reference resolution was done More...
void	Walker (wxObject *parent, a2dWalkerIOHandler &handler)
	This is used to recursively walk through an object tree.
void	SetCheck (bool check)
	general flag use at will. More...
bool	GetCheck () const
	general flag use at will.
void	SetRelease (bool value)
	set release flag More...
bool	GetRelease () const
	get release flag More...
a2dAutoZeroPtr< a2dObject > **	GetAutoZeroPtrList ()
	return the list head pointer for autozero pointers to this object More...
	DECLARE_PROPERTIES ()
a2dNamedProperty *	GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	get property on this object More...
void	SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object. More...
void	SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object and if enabled, to all childs and object members. More...
virtual a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
	Find a dynamic property with given id in the property list. More...
virtual const a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	Find a dynamic property with given id in the property list. More...
virtual bool	HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
	Check if the object has a property with given id and string representation. More...
virtual void	OnPropertyChanged (const a2dPropertyId *id)
	This function is called after a property changed. More...
virtual bool	EditProperties (const a2dPropertyId *id, bool withUndo=true)
	edit properties of the object More...
void	TakeOverProperties (a2dObject *from, a2dPropertyIdList *listOfIds)
	Properties in the id list are taken from the given object, en set to this. More...
wxURI	GetURI () const
	quick way to get to PROPID_URI property More...
void	SetURI (const wxURI &url)
	quickly set a property PROPID_URI More...
const a2dNamedPropertyList &	GetPropertyList () const
	Get the Property List. More...
bool	HasDynamicProperties () const
	test if there are dynamic properties in the m_propertylist
virtual bool	RemoveProperty (const a2dPropertyId *id, bool all=true)
	This function is called by a2dPropertyId to remove a property from the list. More...
void	RemoveTemporaryProperties ()
	remove all temporary properties
virtual bool	AddProperty (a2dNamedProperty *property)
	This function is called by a2dPropertyId to add a property to the list. More...

Static Public Attributes
static const a2dCommandId	COMID_PushTool_Measure
	push this tool on the tools stack
Static Public Attributes inherited from a2dDrawPolylineLTool
static const a2dCommandId	COMID_PushTool_DrawPolylineL
	push this tool on the tools stack
static const a2dCommandId	COMID_PushTool_DrawPolylineL_Splined
	push this tool on the tools stack
Static Public Attributes inherited from a2dDrawPolygonLTool
static const a2dCommandId	COMID_PushTool_DrawPolygonL
	push this tool on the tools stack
static const a2dCommandId	COMID_PushTool_DrawPolygonL_Splined
	push this tool on the tools stack
Static Public Attributes inherited from a2dStTool
static const a2dSignal	sig_toolComEventAddObject = wxNewId()
static const a2dSignal	sig_toolComEventSetEditObject = wxNewId()
Static Public Attributes inherited from a2dBaseTool
static const a2dSignal	sig_toolPushed = wxNewId()
	sent to new first tool when tool was pushed
static const a2dSignal	sig_toolPoped = wxNewId()
	sent to new first tool when last first tool was poped
static const a2dSignal	sig_toolBeforePush = wxNewId()
static const a2dSignal	sig_toolDoPopBeforePush = wxNewId()
	return id after a sig_toolBeforePush, to tell current tool needs to be poped.
static const a2dSignal	sig_toolComEvent = wxNewId()
	not yet used.
static a2dPropertyIdBool *	PROPID_Oneshot = NULL
static a2dPropertyIdBool *	PROPID_Stop = NULL
static a2dPropertyIdFill *	PROPID_Fill = NULL
static a2dPropertyIdStroke *	PROPID_Stroke = NULL
static a2dPropertyIdUint16 *	PROPID_Layer = NULL
Static Public Attributes inherited from a2dObject
static a2dPropertyIdBool *	PROPID_Check = NULL
	used for linking multiple referenced objects when serializing
static a2dPropertyIdUri *	PROPID_URI = NULL
	attach an URL to the object
static a2dPropertyIdString *	PROPID_Name = NULL
	Name property, to return name of this object.
static a2dPropertyIdVoidPtr *	PROPID_autozeroptrlist = NULL
static const a2dSignal	sm_Edit_properties = wxNewId()
	edit properties event, see EditProperties()

Protected Member Functions
virtual void	GenerateAnotation ()
	to display a string along with a tool drawing.
void	OnChar (wxKeyEvent &event)
	character handling
void	OnMouseEvent (wxMouseEvent &event)
virtual wxString	GetCommandGroupName ()
	return the command group name for commands of a derived class More...
Protected Member Functions inherited from a2dDrawPolylineLTool
void	OnMouseEvent (wxMouseEvent &event)
void	OnDoEvent (a2dCommandProcessorEvent &event)
void	OnComEvent (a2dComEvent &event)
Protected Member Functions inherited from a2dDrawPolygonLTool
void	OnIdle (wxIdleEvent &event)
void	OnChar (wxKeyEvent &event)
void	OnMouseEvent (wxMouseEvent &event)
void	OnDoEvent (a2dCommandProcessorEvent &event)
void	OnUndoEvent (a2dCommandProcessorEvent &event)
void	OnRedoEvent (a2dCommandProcessorEvent &event)
void	AddPoint (a2dLineSegment *point)
void	BeginPolygon (double x, double y)
void	AddPoint (double x, double y)
Protected Member Functions inherited from a2dStDrawTool
bool	EnterBusyMode ()
	starts a new action (e.g drawing something ) in a tool that is already pushed. More...
virtual void	FinishBusyMode (bool closeCommandGroup=true)
	Called when the user finishes editing a distinct object */. More...
void	AbortBusyMode ()
	Called when the user aborts editing a distinct object */. More...
void	OnKeyDown (wxKeyEvent &event)
	called on key down events
void	OnKeyUp (wxKeyEvent &event)
	called on key up events
void	OnChar (wxKeyEvent &event)
	called on key events
virtual bool	CreateToolObjects ()
	Create the editcopy and other tool objects (e.g. decorations) More...
void	AdjustRenderOptions ()
	Adjust the rendering options to the needs of this tool.
Protected Member Functions inherited from a2dStTool
void	PrepareForRewire (a2dCanvasObjectList &dragList, bool walkWires=true, bool selected=false, bool stopAtSelectedWire=false, bool CreateExtraWires=true, a2dRefMap *=NULL)
void	DeselectAll ()
void	MouseToToolWorld (int x, int y, double &xWorldLocal, double &yWorldLocal)
	calculate world coordinates from devide coordinates
wxRect	GetAbsoluteArea (a2dCanvasObject *object)
	area occupied by this object
void	GetTextExtent (const wxString &string, wxCoord *w, wxCoord *h, wxCoord *descent=NULL, wxCoord *externalLeading=NULL)
	return text extends of string
void	OnPaint (wxPaintEvent &event)
	handler for paint event
void	OnIdle (wxIdleEvent &event)
	handler for idle events
void	OnUndoEvent (a2dCommandProcessorEvent &event)
	handler for Undo event
void	OnDoEvent (a2dCommandProcessorEvent &event)
	handler for Do event
void	OnComEvent (a2dComEvent &event)
	called when a tool has changed (fill stroke layer spline )
void	AddAnotationToPendingUpdateArea ()
	after calculating anotation position and string, extend the boundingbox of the tools with it.
void	GetKeyIncrement (double *xIncr, double *yIncr)
	get the increments used when moving is done with cursor keys
void	OnKeyDown (wxKeyEvent &event)
	called on key down events
void	OnKeyUp (wxKeyEvent &event)
	called on key up events
void	OnChar (wxKeyEvent &event)
	called on key events
void	OnMouseEvent (wxMouseEvent &event)
	called on mouse events
virtual void	CleanupToolObjects ()
	Cleanup the editcopy other tool objects (e.g. decorations)
a2dCanvasObject *	FindTaggedObject ()
Protected Member Functions inherited from a2dBaseTool
void	OnComEvent (a2dComEvent &event)
	default handler for a2dComEvent event More...
void	OnDoEvent (a2dCommandProcessorEvent &event)
void	OnUndoEvent (a2dCommandProcessorEvent &event)
void	OnRedoEvent (a2dCommandProcessorEvent &event)
void	OnMouseEvent (wxMouseEvent &event)
	called on mouse events
void	OnChar (wxKeyEvent &event)
	called on key events
void	OnKeyDown (wxKeyEvent &event)
	called on keydown events
void	OnKeyUp (wxKeyEvent &event)
	called on keyup events
virtual void	DoStopTool (bool abort)
	to do tool specific stuff to stop a tool. Called from StopTool().
Protected Member Functions inherited from a2dObject
virtual bool	DoIgnoreIfNotMember (const a2dPropertyId *id) const
	used to decide if a property shall be ignored, if it is not a member More...
virtual void	DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
	iterate over this object and its children More...
virtual void	DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)
	Save settings.
virtual void	DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)
	Load settings.

Additional Inherited Members
Public Types inherited from a2dStTool
enum	a2dOpaqueMode { a2dOpaqueMode_Off = 0x00000000, a2dOpaqueMode_Tool = 0x00000001, a2dOpaqueMode_Tool_FixedStyle = 0x00000002, a2dOpaqueMode_Controller = 0x00000004 }
	how editing transparency will be handled More...
Public Types inherited from a2dObject
enum	CloneOptions {   clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008,   clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080,   clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members | clone_properties | clone_childs }
	options for cloning More...
typedef a2dAutoZeroPtr< a2dObject >	TAutoZeroPtrListClass
	this is needed inside the smart pointer template code
Public Attributes inherited from a2dBaseTool
bool	m_halted
	if a tool is deactivated while m_busy is true, this flag is set
bool	m_pending
	set when tool needs an redraw (after a a2dCanvas Repaint etc.) More...
bool	m_oneshot
	do it only once
bool	m_stop
	stop the tool
a2dFill	m_fill
	fill for new object
a2dStroke	m_stroke
	stroke for new object
double	m_contourwidth
	if != 0 the polygon is contoured at distance m_contourwidth/2
wxUint16	m_layer
	layer for a new object
bool	m_canvas_mouseevents_restore
	used to save the a2dCanvas mouse event setting. More...
bool	m_anotate
	when true anotation will be shown, if used inside a tool
wxFont	m_annotateFont
	font to use for anotation
int	m_mode
	general operation mode setting for a tool.
a2dCommandGroup *	m_commandgroup
	the command group of the command processor
wxMenu *	m_mousemenu
	popup menu
a2dCanvasObjectPtr	m_parentobject
	( if needed ) parent a2dCanvasObject relative to which the tool actions take place.
Protected Types inherited from a2dObject
enum	{ refcount_nondynamic = 0x76543210 }
	special refcount value for non-dynamic objects
Protected Attributes inherited from a2dDrawPolylineLTool
a2dSmrtPtr< a2dPolylineL >	m_templatePline
Protected Attributes inherited from a2dDrawPolygonLTool
a2dSmrtPtr< a2dPolygonL >	m_templateObject
	object to clone to use as start
double	m_prev_x
	previous x
double	m_prev_y
	previous y
a2dVertexList *	m_points
	points sofar
a2dLineSegment *	m_point
	last point
bool	m_reverse
	end to begin wire.
Protected Attributes inherited from a2dStDrawTool
bool	m_AllowModifyTemplate
Protected Attributes inherited from a2dStTool
a2dSnapToWhatMask	m_snapSourceFeatures
	set to the a2dSnapToWhat features enabled by the engine for the source object
a2dSnapToWhatMask	m_snapTargetFeatures
	set to the a2dSnapToWhat target features enabled by the engine and/or snap source object
wxString	m_anotation
	anotation string, which is in general modified by the tools to display position etc.
int	m_xanotation
	x position of anotation text
int	m_yanotation
	y position of anotation text
int	m_prevxanotation
int	m_prevyanotation
int	m_x
	x of mouse in device
int	m_y
	y of mouse in device
int	m_xprev
	previous x of mouse in device
int	m_yprev
	previous y of mouse in device
double	m_xwprev
	x world coordinates old or new value of mouse
double	m_ywprev
	y world coordinates old or new value of mouse
int	m_dragstartx
	x of mouse in device at start drag
int	m_dragstarty
	y of mouse in device at start drag
bool	m_dragStarted
	used to indicate that a first drag event has arrived.
a2dCanvasObjectPtr	m_canvasobject
	This is the object currently edited. More...
a2dCanvasObjectPtr	m_original
	This is the original object selected for editing. More...
a2dStToolContr *	m_stcontroller
	controller for canvas
a2dConnectionGenerator *	m_connectionGenerator
	Use this connection generator for wires and pins.
bool	m_renderOriginal
	if yes, the original object is rendered in place
bool	m_renderEditcopy
	if yes, the editcopy is rendered in place More...
bool	m_renderEditcopyOnTop
	if yes, the editcopy is rendered on top in usual style
bool	m_renderEditcopyEdit
	if yes, the editcopy is rendered on top in edit style
bool	m_renderEditcopyRectangle
	if yes, the editcopy is rendered on top as bounding box rectangle
bool	m_editatend
	when drawing something editing must follow, using the a2dRecursiveEditTool
wxUint8	m_editOpacityFactor
	when using cloned style for editcopy, use this opacity.
a2dOpaqueMode	m_useEditOpaque
	when true editcopies are using a half transparent cloned style.
Protected Attributes inherited from a2dBaseTool
const a2dMenuIdItem *	m_initiatingMenuId
	command which initiated the tool, used to seperate commands using the tool
wxCursor	m_toolcursor
	cursor to use
wxCursor	m_toolBusyCursor
	cursor to use when the tool is busy doing something.
a2dToolContr *	m_controller
	under control of this toolcontroller, to give me events.
bool	m_active
	tool is operational
wxUint8	m_bussyStopping
	if > 0, the tool is in the process of stopping, which means it can not be poped yet by controller.
a2dSmrtPtr< a2dObject >	m_eventHandler
	when set called before own event handler More...
bool	m_ignorePendingObjects
	if set ignore all setting for pendingobjects
a2dCorridor	m_corridor
bool	m_isEditTool
	if tool does change drawing
Protected Attributes inherited from a2dObject
a2dNamedPropertyList	m_propertylist
	properties
int	m_refcount
	how many references to this object do exist
bool	m_check: 1
	used for linking multiple referenced objects when serializing
bool	m_release: 1
	when set object is treated as being deleted, and wil be deleted in idle time.
bool	m_recursion_active: 1
	this is used as a recursion stopper
bool	m_pendingDisconnects: 1
unsigned int	m_iteratorCount
a2dAutoZeroPtr< a2dObject > *	m_autozeroptrlist
	this is a list of all a2dAutoZeroPtr object pointing to this object

Detailed Description

Interactive Selection of an Object.

Either with just one click or draging a rectangle to select many.

Remarks

Left Click and/or drag.

Shift Down to Un select.

See Also

a2dStToolContr

Definition at line 143 of file sttoolmes.h.

Member Function Documentation

virtual wxString a2dMeasureTool::GetCommandGroupName ( )

inlineprotectedvirtual

return the command group name for commands of a derived class

this defaults to the class name

Reimplemented from a2dDrawPolygonLTool.

Definition at line 166 of file sttoolmes.h.

---

The documentation for this class was generated from the following files:

• sttoolmes.h
• sttoolmes.cpp
