a2dPinClass Class Reference
This is a class/type description for a2dPin's. More...
#include <canprim.h>

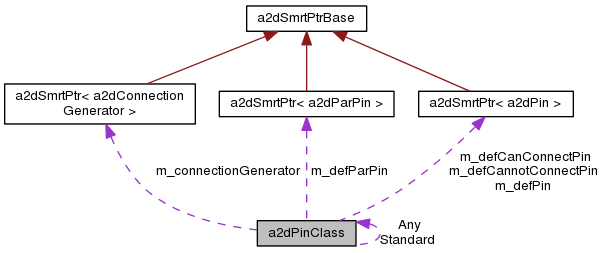

Public Types | |
| enum | a2dPinClassFlags { PC_input = 0x0001, PC_output = 0x0002, PC_angle = 0x0004, PC_ALLSET = 0xFFFFFFFF } |
Public Member Functions | |
| a2dPinClass (const wxString &name, wxUint32 flags=PC_input|PC_output) | |
| constructor | |
| ~a2dPinClass () | |
| destructor | |
| void | AddConnect (a2dPinClass *pinClass) |
| add a connection pinclass, to which this pin can connect | |
| void | RemoveConnect (a2dPinClass *pinClass) |
| remove a connection pinclass | |
| const wxString & | GetName () const |
| bool | IsInputPin () const |
| return true if the pinClass is for pins that accepts input | |
| bool | IsOutputPin () const |
| return true if the pinClass is for pins that accepts input | |
| bool | HasAngleLine () const |
| is there an angle line on the pin | |
| void | SetAngleLine (bool value) |
| is there an angle line on the pin | |
| wxUint32 | GetFlags () |
| get all flags | |
| a2dPinClass * | CanConnectTo (a2dPinClass *other=NULL, wxUint32 flags=PC_input|PC_output) const |
| searches in the connection list for a given pin class | |
| std::list< a2dPinClass * > & | GetConnectList () |
| return list of connectable pin class objects. | |
| a2dPinClass * | CanConnectToAsWire (a2dPinClass *specific=NULL, wxUint32 flags=PC_input|PC_output) const |
| search in m_canConnectTo list for a pin class which can be used for creating connect objects/wires. | |
| a2dPinClass * | CanConnectToAsObject (a2dPinClass *specific=NULL, wxUint32 flags=PC_input|PC_output) const |
| search in m_canConnectTo list for a pin class which can connect to another object which is NOT connect | |
| void | SetConnectObject (a2dCanvasObject *tmplObject) |
| the template object is used as a template for creating new wires between pins. | |
| a2dCanvasObject * | GetConnectObject () const |
| return connect object. | |
| void | SetPin (a2dPin *newpin) |
| set default pin for graph like structure | |
| a2dPin * | GetPin () |
| get default pin for graph like structure | |
| void | SetPinCanConnect (a2dPin *newpin) |
| a2dPin * | GetPinCanConnect () |
| represents the pin styles for pins that can connect right now | |
| void | SetPinCannotConnect (a2dPin *newpin) |
| a2dPin * | GetPinCannotConnect () |
| represents the pin styles for pins that cannot connect right now | |
| void | SetConnectionGenerator (a2dConnectionGenerator *connectionGenerator) |
| Set class for generating new connection objects between object and pins. | |
| a2dConnectionGenerator * | GetConnectionGenerator () const |
| Get class for generating new connection objects between object and pins. | |
| a2dPinClass * | GetPinClassForTask (a2dConnectTask task, a2dCanvasObject *obj) const |
Static Public Member Functions | |
| static void | InitializeStockPinClasses () |
| called to initialize static stockobjects | |
| static void | DeleteStockPinClasses () |
| called to delete all pin class objects | |
| static a2dPinClass * | GetClassByName (const wxString &name) |
| return the name of this pinclass. | |
Static Public Attributes | |
| static std::list< a2dPinClass * > | m_allPinClasses |
| a linked lists of all a2dPinClass'es, so that one can get a class by name | |
| static a2dPinClass * | Any = NULL |
| used to ask for a new default pin on an object. | |
| static a2dPinClass * | Standard = NULL |
| Pins of this class can only connect to pins of the same class. | |
| static a2dPinClass * | Object = NULL |
| Pins of this class can only connect to Wire pins. | |
| static a2dPinClass * | Wire = NULL |
| Pins of this class can only connect to Object pins. | |
| static a2dPinClass * | Input = NULL |
| Pins of this class can only connect to Output pins. | |
| static a2dPinClass * | Output = NULL |
| Pins of this class can only connect to Input pins. | |
| static a2dPinClass * | ObjectInput = NULL |
| Pins of this class can only connect to WireInput pins. | |
| static a2dPinClass * | ObjectOutput = NULL |
| Pins of this class can only connect to WireOutput pins. | |
| static a2dPinClass * | WireInput = NULL |
| Pins of this class can only connect to ObjectInput pins. | |
| static a2dPinClass * | WireOutput = NULL |
| Pins of this class can only connect to ObjectOutput pins. | |
Protected Attributes | |
| wxString | m_name |
| name of pin class | |
| std::list< a2dPinClass * > | m_canConnectTo |
| wxUint32 | m_flags |
| pinclass specific flags | |
| a2dCanvasObjectPtr | m_tmplObject |
| Template for created object which represents a connection. e.g a2dWirePolylineL. | |
| a2dPinPtr | m_defPin |
| a2dPinPtr | m_defCanConnectPin |
| a2dPinPtr | m_defCannotConnectPin |
| a2dConnectionGeneratorPtr | m_connectionGenerator |
| Use this connection generator for wires and pins. | |
Detailed Description
This is a class/type description for a2dPin's.a2dPin's have a pin class which can be used by a2dConnectionGenerator to define to which other pin classes ( of other pins ) it can connect and how. E.g. One class might be input and one class might be output and it is only possible to connect an input to an output, but not two inputs or two outputs. This class mainly has a name and an array of pin classes it is allowed to connect to. How and when a pinclass is connected to another pinclass ( one to one, or with a wire and what type of wire ), is decided by the a2dConnectionGenerator.
As an example: You want pin object on certain layers to only connect to pins on some other layers. For that you give a pin on a layerA a a2dPinClass called PC_layerA. And for pins on layers B C D you do the same. Now to be able to connect a PC_layerA to PC_layerB PC_layerC and NOT PC_layerD. You add to PC_layerA its m_canConnectTo, the pin classes: PC_layerA, PC_layerB, PC_layerC. And to PC_layerB, PC_layerC you add at least PC_layerA. You could also define a pin class called PC_layersABC with in its m_canConnectTo he same PC_layersABC, next you use for pins one layers A,B,C this class. So all pins on those ayesr can connect with each other. As you see what layer a pin is on, is of no importance, it is the pin class which allows pins to connect or not.
Both the class and the m_canConnectTo array are created statically. If not, it is your responsibility to remove the canConnectTo array. The m_canConnectTo array is terminated with a zero pointer. The default class is a2dPinClass::Standard, which can only connect to itself.
Definition at line 582 of file canprim.h.
Member Enumeration Documentation
Constructor & Destructor Documentation
| a2dPinClass::a2dPinClass | ( | const wxString & | name, | |
| wxUint32 | flags = PC_input | PC_output | |||
| ) |
constructor
- Parameters:
-
name name of the pinclass, can be used e.g. for XML saving flags type of pin (in/out etc.)
Definition at line 477 of file canprim.cpp.
Member Function Documentation
| a2dPinClass * a2dPinClass::CanConnectTo | ( | a2dPinClass * | other = NULL, |
|
| wxUint32 | flags = PC_input | PC_output | |||
| ) | const |
searches in the connection list for a given pin class
If the given pin class is found, this means that the pin having that pinclass can connect to the pin having this pinclass.
- Parameters:
-
other pin to test connection flags type of pin needed
Definition at line 584 of file canprim.cpp.
| a2dPinClass * a2dPinClass::CanConnectToAsWire | ( | a2dPinClass * | specific = NULL, |
|
| wxUint32 | flags = PC_input | PC_output | |||
| ) | const |
search in m_canConnectTo list for a pin class which can be used for creating connect objects/wires.
If in the list a pin class has m_isObjectPin set false and m_tmplObject is set, that one is returned.
- Parameters:
-
specific if set, only look for this type of pin class. flags type of pin
- Returns:
- pinclass found or NULL
Definition at line 598 of file canprim.cpp.
| a2dPinClass * a2dPinClass::CanConnectToAsObject | ( | a2dPinClass * | specific = NULL, |
|
| wxUint32 | flags = PC_input | PC_output | |||
| ) | const |
search in m_canConnectTo list for a pin class which can connect to another object which is NOT connect
If in the list a pin class has m_isObjectPin set true is returned.
- Parameters:
-
specific if set, only look for this type of pin class. flags type of pin
- Returns:
- pinclass found or NULL
Definition at line 614 of file canprim.cpp.
| void a2dPinClass::SetConnectObject | ( | a2dCanvasObject * | tmplObject | ) |
the template object is used as a template for creating new wires between pins.
You can use it for other purposes as well if needed.
When m_isObjectPin is false (meaning pin class for wire connections), this is a template for a new wire.
Definition at line 630 of file canprim.cpp.
| void a2dPinClass::SetPinCanConnect | ( | a2dPin * | newpin | ) |
| a2dPin * a2dPinClass::GetPinCanConnect | ( | ) |
represents the pin styles for pins that can connect right now
This pin is usually bigger than the default pin and green
Definition at line 689 of file canprim.cpp.
| void a2dPinClass::SetPinCannotConnect | ( | a2dPin * | newpin | ) |
| a2dPin * a2dPinClass::GetPinCannotConnect | ( | ) |
represents the pin styles for pins that cannot connect right now
This pin is usually smaller than the default pin and red
Definition at line 673 of file canprim.cpp.
Member Data Documentation
std::list< a2dPinClass* > a2dPinClass::m_canConnectTo [protected] |
list of a2dPinClass objects, to which this a2dPinClass object can connect. Each Pin has a a2dPinClass which defines to which that pin can connect to other pins. This is approved based on those other Pins having a a2dPinClass in this array here. Of course another pin which wants to connect, should check the availibility of this pin its pinclass in its own connection list.
a2dPinClass * a2dPinClass::Any = NULL [static] |
The documentation for this class was generated from the following files:
