Restriction engine for editing restrictions like snapping. More...

#include <restrict.h>

Inheritance diagram for a2dRestrictionEngine:

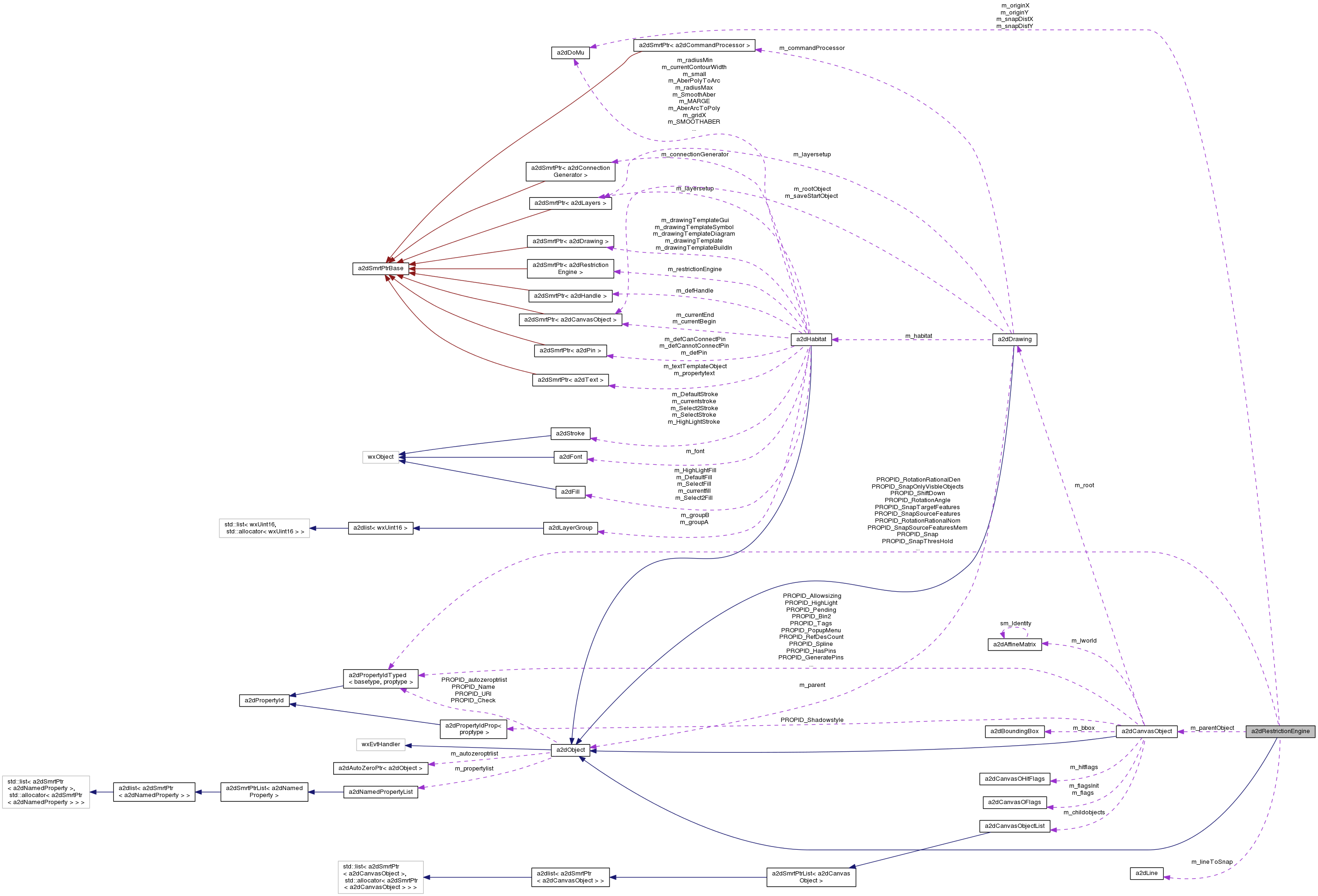

Collaboration diagram for a2dRestrictionEngine:

Public Types
enum	a2dSnapToWhat { snapToNone = 0x00000000, snapToObjectPosX = 0x00000001, snapToObjectPosY = 0x00000002, snapToObjectPos = snapToObjectPosX \| snapToObjectPosY, snapToStart = 0x00000100, snapToEnd = 0x00000200, snapToPins = 0x00000400, snapToPinsUnconnected = 0x00000800, snapToObjectIntersection = 0x00001000, snapToObjectVertexes = 0x00002000, snapToObjectSegmentsMiddle = 0x00004000, snapToObjectSegments = 0x00008000, snapToGridPosX = 0x00010000, snapToGridPosY = 0x00020000, snapToGridPos = snapToGridPosX \| snapToGridPosY, snapToPointPosX = 0x00040000, snapToPointPosY = 0x00080000, snapToPointPosXorY = 0x00100000, snapToPointPosXorYForce = 0x00200000, snapToPointPos = snapToPointPosX \| snapToPointPosY, snapToPointAngleMod = 0x00400000, snapToPointAngleRational = 0x00800000, snapToPointAngle = snapToPointAngleMod \| snapToPointAngleRational, snapToBoundingBox = 0x01000000, snapToObjectSnapVPath = 0x02000000, snapToGridPosForced = 0x04000000, snapToAll = 0xFFFFFFFF }

Public Types inherited from a2dObject
enum	CloneOptions { clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008, clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080, clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members \| clone_properties \| clone_childs }
	options for cloning More...

typedef a2dAutoZeroPtr< a2dObject >	TAutoZeroPtrListClass
	this is needed inside the smart pointer template code

Public Member Functions
	a2dRestrictionEngine ()
	Constructor.

	~a2dRestrictionEngine ()
	Destructor.

void	SetSnapGrid (const a2dDoMu &x, const a2dDoMu &y)
	Set snapping grid (only position)

const a2dDoMu &	GetSnapGridX () const
	Get horizontal center snapping distance (zero if disabled)

const a2dDoMu &	GetSnapGridY () const
	Get vertical center snapping distance (zero if disabled)

void	SetSnapOrigin (const a2dDoMu &x, const a2dDoMu &y)
	Set snapping origin (position grid offest/shift)

void	SetSnapOriginX (const a2dDoMu &x)

void	SetSnapOriginY (const a2dDoMu &y)

const a2dDoMu &	GetSnapOriginX () const
	Get snapping origin X (position grid offset/shift)

const a2dDoMu &	GetSnapOriginY () const
	Get snapping origin Y (position grid offset/shift)

void	SetRotationAngle (double a)
	Set rotation angle raster.

double	GetRotationAngle () const
	Get rotation angle raster.

int	GetSnapThresHold () const
	used to snap vertexes to a pin or point like snapping features in objects.

void	SetSnapThresHold (int thresHold)
	used to snap vertexes to a pin or point like snapping features in objects.

double	GetSnapThresHoldWorld () const
	used to snap vertexes to a pin or point, for snapping features in objects. More...

void	SetSnap (bool snap)
	enable all snapping features or not

bool	GetSnap () const
	enable all snapping features or not

void	SetSnapOnlyVisibleObjects (bool snapOnlyVisbleObjects)
	enable all snapping features for object only for visible object.

bool	GetSnapOnlyVisibleObjects () const
	all snapping features for object only for visible object?

void	SetRotationRational (wxUint32 nomMask, wxUint32 denMask)
	Set rotation rational raster nominator/denominator mask. More...

void	SetSnapSourceFeatures (wxUint32 snapSourceFeatures)

void	SetSnapSourceFeature (a2dSnapToWhat snapSourceFeature, bool value=true)
	set one of the snapping features for the source to true or false, leaf others as is

a2dSnapToWhatMask	GetSnapSourceFeatures () const

void	SetSnapTargetFeatures (wxUint32 snapTargetFeatures)

void	SetSnapTargetFeature (a2dSnapToWhat snapTargetFeature, bool value=true)
	set one of the snapping features for targets to true or false, leaf others as is

bool	GetSnapTargetFeature (a2dSnapToWhat snapTargetFeature) const
	return the setting of a specific snapping feature

a2dSnapToWhatMask	GetSnapTargetFeatures () const

virtual bool	RestrictCanvasObjectAtVertexes (a2dCanvasObject *object, a2dPoint2D &point, double &dx, double &dy, wxUint32 sourceRequired=snapToAll, bool ignoreEngine=false)
	return the clossest vertex which can be snapped if any. More...

virtual bool	RestrictVertexes (a2dVertexArray *segments, a2dPoint2D &point, double &dx, double &dy, wxUint32 sourceRequired=snapToAll, bool ignoreEngine=false)
	return the clossest vertex which can be snapped if any. More...

virtual bool	RestrictVertexes (a2dVertexList *lsegments, a2dPoint2D &point, double &dx, double &dy, wxUint32 sourceRequired=snapToAll, bool ignoreEngine=false)
	return the clossest vertex which can be snapped if any. More...

virtual bool	RestrictPoint (double &x, double &y, wxUint32 sourceRequired=snapToAll, bool ignoreEngine=false)
	Restrict a single point of a line or polyline. More...

virtual bool	RestrictLine (a2dLine &line, wxUint32 sourceRequired=snapToAll, bool ignoreEngine=false)
	Restrict a single line. More...

virtual bool	RestrictAngle (double *ang, wxUint32 sourceRequired=snapToAll, bool ignoreEngine=false)
	Restrict angle. More...

void	SetRestrictPoint (double xSnap, double ySnap)
	sets the point for snapping to More...

const a2dPoint2D &	GetRestrictPoint () const
	to ask engine for the restrict point More...

a2dPoint2D	GetPointToSnap () const
	to ask engine for the point that needs to be snapped to a a2dCanvasObject More...

void	SetPointSnapResult (const a2dPoint2D &p)
	set the point that was snapped to a a2dCanvasObject vertex More...

bool	IsWithInThresHold (const a2dPoint2D &p)
	check if point is within threshold to m_pointToSnap

a2dLine &	GetLineToSnap ()
	to ask engine for the line that needs to be snapped to a a2dCanvasObject More...

void	SetParentSnapObjects (a2dCanvasObject *obj)
	parent object of objects that need to be snapped to More...

a2dCanvasObject *	GetParentSnapObjects () const
	return pointer of the current parent object More...

void	SetShiftKeyDown (bool shiftDown)
	some snapping may depend on shift key being down

bool	GetShiftKeyDown () const
	some snapping may depend on shift key being down

void	SetReleaseSnap (bool releaseSnap)
	do not snap if set

bool	GetReleaseSnap () const
	do not snap if set

Public Member Functions inherited from a2dObject
virtual bool	ProcessEvent (wxEvent &event)

bool	SearchDynamicEventTable (wxEvent &event)

void	Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

bool	Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

void	ProcessConnectedEvent (wxEvent &event)
	wxCHECK_VERSION(2,9,0) More...

void	ConnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEventAll (wxEvtHandler *eventSink)
	Remove all dynamic events in classA, going to classB (eventSink) More...

	a2dObject ()
	constructor

virtual	~a2dObject ()
	destructor

void	operator= (const a2dObject &other)
	assignment operator

int	GetOwnedBy ()
	like it to be protected, but this does not work with wxList macros More...

virtual a2dObject *	SetNonDynamic ()
	Call to mark this object as non-dynamic (static/local/auto) More...

void	CheckReferences ()
	Check zero reference count and delete if count is 0. More...

a2dObject *	Clone (CloneOptions options, a2dRefMap *refs=NULL) const
	create an exact copy of this property

	a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)

virtual wxString	GetName () const
	Returns the name of this object, if no name is given the internal id will be returned. More...

virtual void	SetName (const wxString &name)
	Creates the a2dStringProperty PROPID_Name. More...

virtual bool	IsTemporary_DontSave () const
	Check if this is a temporary object, which should not be saved.

void	SaveAsDocument (a2dIOHandlerXmlSerOut &out)
	Save this object and all below as an XML document. More...

virtual void	Save (wxObject parent, a2dIOHandlerXmlSerOut &out, a2dObjectList towrite)
	write all needed to an XML type of file called the CVG format More...

void	LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
	Load this object and all below from an XML document. More...

virtual void	Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
	load object from CVG file More...

wxInt64	GetUniqueSerializationId () const
	return a unique id for this object More...

virtual bool	AlwaysWriteSerializationId () const
	If true, always write an id. More...

virtual bool	LinkReference (a2dObject *other)
	link a reference in the object to the given value More...

virtual void	ResolveInform ()
	inform an object that reference resolution was done More...

void	Walker (wxObject *parent, a2dWalkerIOHandler &handler)
	This is used to recursively walk through an object tree.

void	SetCheck (bool check)
	general flag use at will. More...

bool	GetCheck () const
	general flag use at will.

void	SetRelease (bool value)
	set release flag More...

bool	GetRelease () const
	get release flag More...

a2dAutoZeroPtr< a2dObject > **	GetAutoZeroPtrList ()
	return the list head pointer for autozero pointers to this object More...

	DECLARE_PROPERTIES ()

a2dNamedProperty *	GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	get property on this object More...

void	SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object. More...

void	SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object and if enabled, to all childs and object members. More...

virtual a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
	Find a dynamic property with given id in the property list. More...

virtual const a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	Find a dynamic property with given id in the property list. More...

virtual bool	HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
	Check if the object has a property with given id and string representation. More...

virtual void	OnPropertyChanged (const a2dPropertyId *id)
	This function is called after a property changed. More...

virtual bool	EditProperties (const a2dPropertyId *id, bool withUndo=true)
	edit properties of the object More...

void	TakeOverProperties (a2dObject from, a2dPropertyIdList listOfIds)
	Properties in the id list are taken from the given object, en set to this. More...

wxURI	GetURI () const
	quick way to get to PROPID_URI property More...

void	SetURI (const wxURI &url)
	quickly set a property PROPID_URI More...

const a2dNamedPropertyList &	GetPropertyList () const
	Get the Property List. More...

bool	HasDynamicProperties () const
	test if there are dynamic properties in the m_propertylist

virtual bool	RemoveProperty (const a2dPropertyId *id, bool all=true)
	This function is called by a2dPropertyId to remove a property from the list. More...

void	RemoveTemporaryProperties ()
	remove all temporary properties

virtual bool	AddProperty (a2dNamedProperty *property)
	This function is called by a2dPropertyId to add a property to the list. More...

Static Public Attributes
static a2dPropertyIdUint32 *	PROPID_SnapSourceFeaturesMem

static a2dPropertyIdUint32 *	PROPID_SnapSourceFeatures

static a2dPropertyIdUint32 *	PROPID_SnapTargetFeatures

static a2dPropertyIdDouble *	PROPID_RotationAngle

static a2dPropertyIdUint32 *	PROPID_RotationRationalNom

static a2dPropertyIdUint32 *	PROPID_RotationRationalDen

static a2dPropertyIdInt32 *	PROPID_SnapThresHold

static a2dPropertyIdPoint2D *	PROPID_PointToSnap

static a2dPropertyIdPoint2D *	PROPID_PointToRestrictTo

static a2dPropertyIdBool *	PROPID_SnapOnlyVisbleObjects

static a2dPropertyIdBool *	PROPID_Snap

static a2dPropertyIdBool *	PROPID_SnapGetSet

static a2dPropertyIdBool *	PROPID_AltDown

static a2dPropertyIdBool *	PROPID_ShiftDown

static const a2dSignal	sig_changed = wxNewId()

Static Public Attributes inherited from a2dObject
static a2dPropertyIdBool *	PROPID_Check = NULL
	used for linking multiple referenced objects when serializing

static a2dPropertyIdUri *	PROPID_URI = NULL
	attach an URL to the object

static a2dPropertyIdString *	PROPID_Name = NULL
	Name property, to return name of this object.

static a2dPropertyIdVoidPtr *	PROPID_autozeroptrlist = NULL

static const a2dSignal	sm_Edit_properties = wxNewId()
	edit properties event, see EditProperties()

Protected Member Functions
void	SignalChange ()

void	SetInternal ()

double	AngleRestrict (double angle)
	Restrict an angle.

void	AngleRestrictVectorRot (double vecx, double vecy)
	Restrict the angle of a vector, keeping the vectors length.

void	AngleRestrictVectorSkew (double vecx, double vecy, double otherx, double othery)
	Restrict the angle of a vector, keeping the vectors projection on the orthogonal of another vector.

double	RationalRestrict (double angle)
	Rational restrict an angle.

void	RationalRestrictVector (double vecx, double vecy)
	Rational restrict the angle of a vector.

Protected Member Functions inherited from a2dObject
virtual bool	DoIgnoreIfNotMember (const a2dPropertyId *id) const
	used to decide if a property shall be ignored, if it is not a member More...

virtual void	DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
	iterate over this object and its children More...

Protected Attributes
a2dSnapToWhatMask	m_snapSourceFeatures
	set to the a2dSnapToWhat features enabled by the engine for the source object

a2dSnapToWhatMask	m_snapTargetFeatures
	set to the a2dSnapToWhat target features enabled by the engine and/or snap source object

a2dDoMu	m_snapDistX
	horizontal position snapping grid distance

a2dDoMu	m_snapDistY
	vertical position snapping grid distance

a2dDoMu	m_originX
	horizontal grid snapping origin vs. coordinate origin

a2dDoMu	m_originY
	vertical grid snapping origins vs. coordinate origin

double	m_rotationAngle
	angle snapping angle in degrees

wxUint32	m_rotationRationalNom
	bit map of possible nominators (bit1->0.. bit32->31) for rational angle snapping

wxUint32	m_rotationRationalDen
	bit map of possible denominators (bit1->0.. bit32->31) for rational angle snapping

double *	m_angleList
	sorted list of allowed rational angles

int	m_nAngleList
	number of allowed rational angles

int	m_snapThresHold
	threshold in pixels towards the snapping point.

a2dPoint2D	m_pointToSnap
	set to point that is currently being snapped.

a2dPoint2D	m_snappedPoint
	set to point that is snapped to m_pointToSnap

a2dPoint2D	m_pointToRestrictTo

a2dLine	m_lineToSnap

bool	m_snapOnlyVisbleObjects
	if true snapping modes for object is only on visible object.

bool	m_snap
	if true snapping modes are enabled, else non.

bool	m_releaseSnap
	to not snap inside snapping engine.

bool	m_shiftDown
	snapping modifier when shift key is pressed

a2dCanvasObject *	m_parentObject
	parent canvas object in a2dCanvasDocument on which snapping needs to be done.

double	m_docSnapDistX

double	m_docSnapDistY

double	m_docOriginX

double	m_docOriginY

Protected Attributes inherited from a2dObject
a2dNamedPropertyList	m_propertylist
	properties

int	m_refcount
	how many references to this object do exist

bool	m_check: 1
	used for linking multiple referenced objects when serializing

bool	m_release: 1
	when set object is treated as being deleted, and wil be deleted in idle time.

bool	m_recursion_active: 1
	this is used as a recursion stopper

bool	m_pendingDisconnects: 1

unsigned int	m_iteratorCount

a2dAutoZeroPtr< a2dObject > *	m_autozeroptrlist
	this is a list of all a2dAutoZeroPtr object pointing to this object

Friends
a2dSnapToWhat	operator\| (a2dSnapToWhat a, a2dSnapToWhat b)

Additional Inherited Members
Protected Types inherited from a2dObject
enum	{ refcount_nondynamic = 0x76543210 }
	special refcount value for non-dynamic objects

Detailed Description

Restriction engine for editing restrictions like snapping.

The restriction engine is used by editing tools to restrict/snap editing of points, handles, pins, segments to the same things in other objects or to a grid on the whole drawing area. We call the object which needs to be snapped the source, while the object and points to which we want to snap the targets. When the source is a single vertex, the is no extra feature to be set. But if the source is a a2dCanvasObject, one can specify which features in it can be snapped to. This set by a2dSnapToWhat flags in m_snapSourceFeatures. For the targets, there are in general more options, set by a2dSnapToWhat flags in m_snapTargetFeatures.

With rational snapping is meant snapping to angles whose tangent is a rational number with a small integer nominatior and denominator. The max nominator/denominator is the snapping parameter. For slanting angles, the absolute slanting angle (that is angle to the coordinate axis) is used, not the slanting angle relative to the rotated coordinate system. With rational snapping, you can solve many problems of slant and angle snapping, where you want to snap also to the horizontal and vertical grid. If we snap to angles with a small rational tangent, the resulting points will also snap to a small fraction of the horizontal or vertical grid.

Each of these snapping modes may be enabled separately.

What snapping features in the targets need to be enabled in this specific case is in several cases set by the parameter called sourceRequired. The member m_snapTargetFeatures contains the default target snapping features which are enabled, and the sourceRequired is indicating what the source object (point, canvasobject), requires to be enabled in that. m_snapSourceFeatures stays the same, and is only indicating what vertexes/features will be snapped, taking them from the input source object (point/canvas object). IOW The source canvas object in e.g the dragtool, can decide/require to which vertexes in the target objects it wants to snap. It does not always make sense to snap to all enabled target features. This way one can enable it central, and a tool use/require it in a local manner.

A same approach could be implemented for the source objects, meaning enabling/disabling m_snapSourceFeatures parts when calling restrict on a source, but sofar there was no need for it.

An example menu handler to enable/disable snapping:

void MyDrawFrm::OnDrawRasterSnap(wxCommandEvent &event)
{
    if( event.IsChecked() )
    {
        a2dRestrictionEngine
            *restrict=new a2dRestrictionEngine();
        restrict->SetSnapGrid(20,20);
        restrict->SetRotationAngle(15);
        restrict->SetSnapTargetFeatures( snapToGridPos |
               snapToObjectPos | snapToPinsUnconnected  |
               snapToObjectVertexes | snapToPointAngleMod );
        a2dCanvasGlobals->SetRestrictionEngine(restrict);
    }
    else
    {
        a2dCanvasGlobals->SetRestrictionEngine(0);
    }
}

Definition at line 88 of file restrict.h.

Member Enumeration Documentation

enum a2dRestrictionEngine::a2dSnapToWhat

Flags for defining to what should be snapped to. To the drawing/snapping grid, and inside other a2dCanvasObject's

Enumerator
snapToNone	no snap to modes specified
snapToObjectPosX	perform x position snapping
snapToObjectPosY	perform y position snapping
snapToStart	snap start point of line
snapToEnd	snap end point of line
snapToPins	snap to pins in other objects
snapToPinsUnconnected	snap to pins in other objects when not connected
snapToObjectIntersection	snap to intersections in other objects
snapToObjectVertexes	snap to other objects its vertexes, which are decided in a2dCanvasObject::RestrictToObject()
snapToObjectSegmentsMiddle	snap segments middle of other objects in a2dCanvasObject::RestrictToObject()
snapToObjectSegments	snap segments of other objects in a2dCanvasObject::RestrictToObject()
snapToGridPosX	perform x grid snapping
snapToGridPosY	perform y grid snapping
snapToPointPosX	perform x position snapping to a specific point
snapToPointPosY	perform y position snapping to a specific point
snapToPointPosXorY	perform snapping to X or Y of a specific point
snapToPointPosXorYForce	perform alligning to X or Y of a specific point
snapToPointAngleMod	perform angle snapping to multiples of m_rotationAngle to a specific point
snapToPointAngleRational	perform rational angle snapping to a specific point
snapToBoundingBox	perform snapping to boundingbox of objects
snapToObjectSnapVPath	perform snapping to snapping vector path returned by a2dCanvasObject::GetSnapVpath()
snapToGridPosForced	If no other snap point was closer, force to grid, even if not within threshold.

Definition at line 101 of file restrict.h.

Member Function Documentation

a2dLine& a2dRestrictionEngine::GetLineToSnap ( )

inline

to ask engine for the line that needs to be snapped to a a2dCanvasObject

When engine is asked to snape a line, the line to snap is set. This can be used by e.g. a2dCanvasObject::RestrictToObject() to snap to other lines, pins etc.

Definition at line 367 of file restrict.h.

a2dCanvasObject* a2dRestrictionEngine::GetParentSnapObjects ( ) const

inline

return pointer of the current parent object

Returns: : pointer to the current parent object.

Definition at line 386 of file restrict.h.

a2dPoint2D a2dRestrictionEngine::GetPointToSnap ( ) const

inline

to ask engine for the point that needs to be snapped to a a2dCanvasObject

When engine is asked to snap a vertex/point, the result point to snap is set. This can be used by e.g. a2dCanvasObject::RestrictToObject() to snap to pins etc.

Definition at line 350 of file restrict.h.

const a2dPoint2D& a2dRestrictionEngine::GetRestrictPoint ( ) const

inline

to ask engine for the restrict point

For snapping modes that restrict to X,Y of the restrict Point.

Definition at line 343 of file restrict.h.

a2dSnapToWhatMask a2dRestrictionEngine::GetSnapSourceFeatures ( ) const

inline

set what snapping features or enabled for the source to snap to. see a2dSnapToWhat for snapping features.

Definition at line 227 of file restrict.h.

a2dSnapToWhatMask a2dRestrictionEngine::GetSnapTargetFeatures ( ) const

inline

set what snapping features or enabled for the target to snap to. see a2dSnapToWhat for snapping features.

Definition at line 249 of file restrict.h.

double a2dRestrictionEngine::GetSnapThresHoldWorld ( ) const

used to snap vertexes to a pin or point, for snapping features in objects.

Calculated from m_snapThresHold, taking into account the active a2dCanvasView.

Definition at line 91 of file restrict.cpp.

bool a2dRestrictionEngine::RestrictAngle	(	double *	ang,
		wxUint32	sourceRequired = `snapToAll`,
		bool	ignoreEngine = `false`
	)

virtual

Restrict angle.

Parameters

ang	input angle and output angle after restriction
sourceRequired	what the caller wants the (x,y) to restrict to. ( is ANDed with m_snapTargetFeatures )
ignoreEngine	set to ignore engine its own snap modes.

Returns: true if the point was restricted

Definition at line 485 of file restrict.cpp.

bool a2dRestrictionEngine::RestrictCanvasObjectAtVertexes	(	a2dCanvasObject *	object,
		a2dPoint2D &	point,
		double &	dx,
		double &	dy,
		wxUint32	sourceRequired = `snapToAll`,
		bool	ignoreEngine = `false`
	)

virtual

return the clossest vertex which can be snapped if any.

The source a2dCanvasObject is asked for its snapping features/vertexes via a2dCanvasObject::GetSnapVpath(), but only those ementioned in m_snapSourceFeatures. All the features returned will be tried to snap to neighbouring canvas objects, and eventually the grid. e.g. It calls for each vertex in the snapping path the function RestrictPoint(), and the clossest snapped point will be snapped to.

Parameters

object	object to be snapped to other snapping targets
point	if a point to snap is found, it is stored here.
dx	x distance from the returned point to the snapping point.
dy	y distance from the returned point to the snapping point.
sourceRequired	what the caller wants the snapping points in the object to restrict to. ( is ANDed with m_snapTargetFeatures )
ignoreEngine	set to ignore engine its own snap modes.

Definition at line 685 of file restrict.cpp.

bool a2dRestrictionEngine::RestrictLine	(	a2dLine &	line,
		wxUint32	sourceRequired = `snapToAll`,
		bool	ignoreEngine = `false`
	)

virtual

Restrict a single line.

Parameters

line	the line to restrict
sourceRequired	what the caller wants the (x,y) to restrict to. ( is ANDed with m_snapTargetFeatures )
ignoreEngine	set to ignore engine its own snap modes.

Returns: true if the point was restricted

Definition at line 480 of file restrict.cpp.

bool a2dRestrictionEngine::RestrictPoint	(	double &	x,
		double &	y,
		wxUint32	sourceRequired = `snapToAll`,
		bool	ignoreEngine = `false`
	)

virtual

Restrict a single point of a line or polyline.

The input point( x,y ) is snapped to the targets, being:

all child canvasobjects of m_parentObject by pins (connected or not).
all child canvasobjects of m_parentObject object vertexes.
all child canvasobjects of m_parentObject using a snap vector path, returned by object.
snap to grid Which features in the tragets can be snapped to, depends on sourceRequired.

Parameters

x	input x and output x after restriction
y	input y and output y after restriction
sourceRequired	what the caller wants the (x,y) to restrict to inside the targets. ( is ANDed with m_snapTargetFeatures )
ignoreEngine	set to ignore engine its own snap modes.

Returns: true if the point was restricted

Definition at line 227 of file restrict.cpp.

bool a2dRestrictionEngine::RestrictVertexes	(	a2dVertexArray *	segments,
		a2dPoint2D &	point,
		double &	dx,
		double &	dy,
		wxUint32	sourceRequired = `snapToAll`,
		bool	ignoreEngine = `false`
	)

virtual

return the clossest vertex which can be snapped if any.

Parameters

segments	segments to be snapped to other snapping targets
point	if a point to snap is found, it is stored here.
dx	x distance from the returned point to the snapping point.
dy	y distance from the returned point to the snapping point.
sourceRequired	what the caller wants the snapping points to restrict to. ( is ANDed with m_snapTargetFeatures )
ignoreEngine	set to ignore engine its own snap modes.

Definition at line 747 of file restrict.cpp.

bool a2dRestrictionEngine::RestrictVertexes	(	a2dVertexList *	lsegments,
		a2dPoint2D &	point,
		double &	dx,
		double &	dy,
		wxUint32	sourceRequired = `snapToAll`,
		bool	ignoreEngine = `false`
	)

virtual

return the clossest vertex which can be snapped if any.

Parameters

lsegments	segments to be snapped to other snapping targets
point	if a point to snap is found, it is stored here.
dx	x distance from the returned point to the snapping point.
dy	y distance from the returned point to the snapping point.
sourceRequired	what the caller wants the snapping points to restrict to. ( is ANDed with m_snapTargetFeatures )
ignoreEngine	set to ignore engine its own snap modes.

Definition at line 774 of file restrict.cpp.

void a2dRestrictionEngine::SetParentSnapObjects ( a2dCanvasObject * obj )

inline

parent object of objects that need to be snapped to

For snapping features where canvas objects are involved, this needs to be set to the parent object of the objects which can be snaped or can be snapped to. For example when needing to snap a vertex/point to the objects in a a2dcanvasView, set this parent object to the a2dcanvasView::GetShowObject().

Remarks: when using the restriction engine, you much make sure this is set right each time.

Parameters

obj,: pointer to object to set as parent

Definition at line 380 of file restrict.h.

void a2dRestrictionEngine::SetPointSnapResult ( const a2dPoint2D & p )

set the point that was snapped to a a2dCanvasObject vertex

When engine is asked to snap a vertex/point, the result point is set here. This is used e.g. a2dCanvasObject::RestrictToObject() to snap to pins etc.

Definition at line 212 of file restrict.cpp.

void a2dRestrictionEngine::SetRestrictPoint	(	double	xSnap,
		double	ySnap
	)

inline

sets the point for snapping to

In modes:

a2dSnapToWhat::snapToPointPos
a2dSnapToWhat::snapToPointPosX
a2dSnapToWhat::snapToPointPosY
a2dSnapToWhat::snapToPointPos
a2dSnapToWhat::snapToPointPosXorY

Definition at line 337 of file restrict.h.

void a2dRestrictionEngine::SetRotationRational	(	wxUint32	nomMask,
		wxUint32	denMask
	)

inline

Set rotation rational raster nominator/denominator mask.

nomMask bitX / denMask bit Y present an angle in radians to which can be snapped. e.g. if bit 2 is set in nomMask, and bit 6 is set in denMask, we will have 1/5 snap to 2*PI/5

Parameters

nomMask	each bit set here presents a number (bit1 number 0 until bit32 number 31)
denMask	each bit set here presents a number (bit1 number 0 until bit32 number 31)

Definition at line 208 of file restrict.h.

void a2dRestrictionEngine::SetSnapSourceFeatures ( wxUint32 snapSourceFeatures )

inline

set what snapping features or enabled for the source to snap to. see a2dSnapToWhat for snapping features.

Definition at line 215 of file restrict.h.

void a2dRestrictionEngine::SetSnapTargetFeatures ( wxUint32 snapTargetFeatures )

inline

set what snapping features or enabled for the target to snap to. see a2dSnapToWhat for snapping features.

Definition at line 231 of file restrict.h.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Member Function Documentation
