DEPRECATED Restriction engine for editing restrictions like snapping. More...

#include <restrict.h>

Inheritance diagram for a2dRestrictionEngineOld:

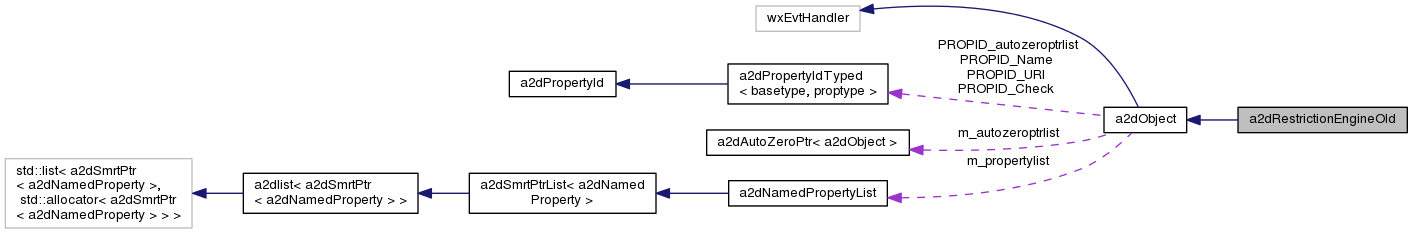

Collaboration diagram for a2dRestrictionEngineOld:

Classes
struct	SnapObjectInfo
	Structure to descripe snapping properties of an object. More...

Public Types
enum	EPositionSnapModes { posCenter = 0x00000001, posTopLeft = 0x00000002, posTop = 0x00000004, posTopRight = 0x00000008, posRight = 0x00000010, posBottomRight = 0x00000020, posBottom = 0x00000040, posBottomLeft = 0x00000080, posLeft = 0x00000100, posLineTop = 0x00000200, posLineHCenter = 0x00000400, posLineBottom = 0x00000800, posLineLeft = 0x00001000, posLineVCenter = 0x00002000, posLineRight = 0x00004000, posOther = 0x00008000, posSngl = 0x00010000, posEqual = 0x80000000, posNone = 0x00000000, pos6L = posLineTop \| posLineHCenter \| posLineBottom \| posLineLeft \| posLineVCenter \| posLineRight, pos1P = posCenter, pos2P = posCenter \| posTopLeft, pos3P = posCenter \| posTopLeft \| posBottomRight, pos5P = posCenter \| posTopLeft \| posTopRight \| posBottomRight \| posBottomLeft, pos9P = posCenter \| posTopLeft \| posTop \| posTopRight \| posRight \| posBottomRight \| posBottom \| posBottomLeft \| posLeft, posAny = pos9P \| pos6L \| posSngl, pos1P6L = posCenter \| pos6L }
	Position snap modes/flags (once for x any y) More...

enum	ESizeSnapModes { sizeLength = 0x00000001, sizeProject = 0x00000002, sizeMajor = 0x00000004, sizeAxis = 0x00000008, sizePos = 0x00000010, sizeMin = 0x00000020, sizeMax = 0x00000040, sizeEqual = 0x80000000, sizeNone = 0x00000000, sizeAny = 0x0000007F }
	Size snap modes/flags (once for x and y) More...

enum	ERotationSnapModes { rotVectorAngleX = 0x00000001, rotVectorRationalX = 0x00000002, rotVectorAngleY = 0x00000004, rotVectorRationalY = 0x00000008, rotPureRotations = 0x00000010, rotPureSlanting = 0x00000020, rotEndpointAngle = 0x00000040, rotEndpointRational = 0x00000080, rotEndpointUntrans = 0x00000100, rotNone = 0x00000000, rotAllAngle = rotVectorAngleX \| rotVectorAngleY \| rotEndpointAngle, rotAllRational = rotVectorRationalX \| rotVectorRationalY \| rotEndpointRational, rotAll = 0x000001FF }
	Rotation/Slanting snap modes/flags. More...

enum	ESnapWhat { snapPosX = 0x00000001, snapPosY = 0x00000002, snapSizeX = 0x00000004, snapSizeY = 0x00000008, snapRot = 0x00000010, snapSkew = 0x00000020, snapWH = 0x00000040, snapEndAngle = 0x00000080, snapStart = 0x00000100, snapEnd = 0x00000200, snapPointI = 0x80000000, snapPos = snapPosX \| snapPosY, snapSize = snapSizeX \| snapSizeY, snapPosSize = snapPos \| snapSize, snapSizeWH = snapSize \| snapWH }
	Flags for what to touch during a restriction. More...

Public Types inherited from a2dObject
enum	CloneOptions { clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008, clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080, clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members \| clone_properties \| clone_childs }
	options for cloning More...

typedef a2dAutoZeroPtr< a2dObject >	TAutoZeroPtrListClass
	this is needed inside the smart pointer template code

Public Member Functions
	a2dRestrictionEngineOld ()
	Constructor.

	~a2dRestrictionEngineOld ()
	Destructor.

void	SetPosModes (EPositionSnapModes modeX, EPositionSnapModes modeY=posEqual)
	Set position snap modes (ored EPositionSnapModes)

EPositionSnapModes	GetPosModesX ()
	Get position snap modes (ored EPositionSnapModes)

EPositionSnapModes	GetPosModesY ()

void	SetSizeModes (ESizeSnapModes modeX, ESizeSnapModes modeY=sizeEqual)
	Set size snap modes (ored ESizeSnapModes)

ESizeSnapModes	GetSizeModesX ()
	Get size snap modes (ored ESizeSnapModes)

ESizeSnapModes	GetSizeModesY ()

void	SetRotationModes (ERotationSnapModes mode)
	Set rotation/slanting snap modes (ored ERotationSnapModes)

ERotationSnapModes	GetRotationModes ()
	Get rotation/slanting snap modes (ored ERotationSnapModes)

void	SetSnapGrid (double x, double y)
	Set snapping grid (position and size)

void	SetPosGrid (double x, double y)
	Set snapping grid (only position)

void	SetSizeGrid (double x, double y)
	Set snapping grid (only size)

void	SetSnapOrigin (double x, double y)
	Set snapping origin (position grid offest/shift)

void	SetMinSize (double x, double y)
	Set minimum size.

void	SetMaxSize (double x, double y)
	Set maximum size.

void	SetRotationAngle (double a)
	Set rotation angle raster.

void	SetRotationRational (wxUint32 nomMask, wxUint32 denMask)
	Set rotation rational raster nominator/denominator mask.

void	RestrictAffine (a2dAffineMatrix mNew, const a2dAffineMatrix mOld, ESnapWhat snapWhat, SnapObjectInfo info, double w=0, double *h=0)
	Restrict an affine transformation. More...

void	RestrictEndpointAngle (double *angle, const a2dAffineMatrix &matrix, ESnapWhat snapWhat)

void	RestrictPoint (double x, double y)
	Restrict a single point of a line or polyline.

double	GetCenterSnapX ()
	Get horizontal center snapping distance (zero if disabled)

double	GetCenterSnapY ()
	Get vertical center snapping distance (zero if disabled)

Public Member Functions inherited from a2dObject
virtual bool	ProcessEvent (wxEvent &event)

bool	SearchDynamicEventTable (wxEvent &event)

void	Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

bool	Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

void	ProcessConnectedEvent (wxEvent &event)
	wxCHECK_VERSION(2,9,0) More...

void	ConnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEventAll (wxEvtHandler *eventSink)
	Remove all dynamic events in classA, going to classB (eventSink) More...

	a2dObject ()
	constructor

virtual	~a2dObject ()
	destructor

void	operator= (const a2dObject &other)
	assignment operator

int	GetOwnedBy ()
	like it to be protected, but this does not work with wxList macros More...

virtual a2dObject *	SetNonDynamic ()
	Call to mark this object as non-dynamic (static/local/auto) More...

void	CheckReferences ()
	Check zero reference count and delete if count is 0. More...

a2dObject *	Clone (CloneOptions options, a2dRefMap *refs=NULL) const
	create an exact copy of this property

	a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)

virtual wxString	GetName () const
	Returns the name of this object, if no name is given the internal id will be returned. More...

virtual void	SetName (const wxString &name)
	Creates the a2dStringProperty PROPID_Name. More...

virtual bool	IsTemporary_DontSave () const
	Check if this is a temporary object, which should not be saved.

void	SaveAsDocument (a2dIOHandlerXmlSerOut &out)
	Save this object and all below as an XML document. More...

virtual void	Save (wxObject parent, a2dIOHandlerXmlSerOut &out, a2dObjectList towrite)
	write all needed to an XML type of file called the CVG format More...

void	LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
	Load this object and all below from an XML document. More...

virtual void	Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
	load object from CVG file More...

wxInt64	GetUniqueSerializationId () const
	return a unique id for this object More...

virtual bool	AlwaysWriteSerializationId () const
	If true, always write an id. More...

virtual bool	LinkReference (a2dObject *other)
	link a reference in the object to the given value More...

virtual void	ResolveInform ()
	inform an object that reference resolution was done More...

void	Walker (wxObject *parent, a2dWalkerIOHandler &handler)
	This is used to recursively walk through an object tree.

void	SetCheck (bool check)
	general flag use at will. More...

bool	GetCheck () const
	general flag use at will.

void	SetRelease (bool value)
	set release flag More...

bool	GetRelease () const
	get release flag More...

a2dAutoZeroPtr< a2dObject > **	GetAutoZeroPtrList ()
	return the list head pointer for autozero pointers to this object More...

	DECLARE_PROPERTIES ()

a2dNamedProperty *	GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	get property on this object More...

void	SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object. More...

void	SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object and if enabled, to all childs and object members. More...

virtual a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
	Find a dynamic property with given id in the property list. More...

virtual const a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	Find a dynamic property with given id in the property list. More...

virtual bool	HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
	Check if the object has a property with given id and string representation. More...

virtual void	OnPropertyChanged (const a2dPropertyId *id)
	This function is called after a property changed. More...

virtual bool	EditProperties (const a2dPropertyId *id, bool withUndo=true)
	edit properties of the object More...

void	TakeOverProperties (a2dObject from, a2dPropertyIdList listOfIds)
	Properties in the id list are taken from the given object, en set to this. More...

wxURI	GetURI () const
	quick way to get to PROPID_URI property More...

void	SetURI (const wxURI &url)
	quickly set a property PROPID_URI More...

const a2dNamedPropertyList &	GetPropertyList () const
	Get the Property List. More...

bool	HasDynamicProperties () const
	test if there are dynamic properties in the m_propertylist

virtual bool	RemoveProperty (const a2dPropertyId *id, bool all=true)
	This function is called by a2dPropertyId to remove a property from the list. More...

void	RemoveTemporaryProperties ()
	remove all temporary properties

virtual bool	AddProperty (a2dNamedProperty *property)
	This function is called by a2dPropertyId to add a property to the list. More...

Protected Member Functions
double	AngleRestrict (double angle)
	Restrict an angle.

void	AngleRestrictVectorRot (double vecx, double vecy)
	Restrict the angle of a vector, keeping the vectors length.

void	AngleRestrictVectorSkew (double vecx, double vecy, double otherx, double othery)
	Restrict the angle of a vector, keeping the vectors projection on the orthogonal of another vector.

double	RationalRestrict (double angle)
	Rational restrict an angle.

void	RationalRestrictVector (double vecx, double vecy)
	Rational restrict the angle of a vector.

Protected Member Functions inherited from a2dObject
virtual bool	DoIgnoreIfNotMember (const a2dPropertyId *id) const
	used to decide if a property shall be ignored, if it is not a member More...

virtual a2dObject *	DoClone (CloneOptions options, a2dRefMap *refs) const =0

virtual void	DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
	iterate over this object and its children More...

Protected Attributes
EPositionSnapModes	m_posModesX
	ored EPositionSnapModes of enabled modes for x

EPositionSnapModes	m_posModesY
	ored EPositionSnapModes of enabled modes for y

ESizeSnapModes	m_sizeModesX
	ored ESizeSnapModes of enabled modes for x

ESizeSnapModes	m_sizeModesY
	ored ESizeSnapModes of enabled modes for y

ERotationSnapModes	m_rotModes
	ored ERotationSnapModes of enabled modes

double	m_snapDistX
	horizontal position snapping grid distance

double	m_snapDistY
	vertical position snapping grid distance

double	m_originX
	horizontal grid snapping origin vs. coordinate origin

double	m_originY
	vertical grid snapping origins vs. coordinate origin

double	m_sizeX
	horizontal size snapping grid distance

double	m_sizeY
	vertical size snapping grid distance

double	m_minSizeX
	minimal horiontal size

double	m_minSizeY
	minimal vertical size

double	m_maxSizeX
	maximal horiontal size

double	m_maxSizeY
	maximal vertical size

double	m_rotationAngle
	angle snapping angle in degrees

wxUint32	m_rotationRationalNom
	bit map of possible nominators (0..31) for rational angle snapping

wxUint32	m_rotationRationalDen
	bit map of possible denominators (0..31) for rational angle snapping

double *	m_angleList
	sorted list of allowed rational angles

int	m_nAngleList
	number of allowed rational angles

double	m_docSnapDistX

double	m_docSnapDistY

double	m_docOriginX

double	m_docOriginY

Protected Attributes inherited from a2dObject
a2dNamedPropertyList	m_propertylist
	properties

int	m_refcount
	how many references to this object do exist

bool	m_check: 1
	used for linking multiple referenced objects when serializing

bool	m_release: 1
	when set object is treated as being deleted, and wil be deleted in idle time.

bool	m_recursion_active: 1
	this is used as a recursion stopper

bool	m_pendingDisconnects: 1

unsigned int	m_iteratorCount

a2dAutoZeroPtr< a2dObject > *	m_autozeroptrlist
	this is a list of all a2dAutoZeroPtr object pointing to this object

Friends
EPositionSnapModes	operator\| (EPositionSnapModes a, EPositionSnapModes b)

ESizeSnapModes	operator\| (ESizeSnapModes a, ESizeSnapModes b)

ERotationSnapModes	operator\| (ERotationSnapModes a, ERotationSnapModes b)

ESnapWhat	operator\| (ESnapWhat a, ESnapWhat b)

Additional Inherited Members
Static Public Attributes inherited from a2dObject
static a2dPropertyIdBool *	PROPID_Check = NULL
	used for linking multiple referenced objects when serializing

static a2dPropertyIdUri *	PROPID_URI = NULL
	attach an URL to the object

static a2dPropertyIdString *	PROPID_Name = NULL
	Name property, to return name of this object.

static a2dPropertyIdVoidPtr *	PROPID_autozeroptrlist = NULL

static const a2dSignal	sm_Edit_properties = wxNewId()
	edit properties event, see EditProperties()

Protected Types inherited from a2dObject
enum	{ refcount_nondynamic = 0x76543210 }
	special refcount value for non-dynamic objects

Detailed Description

DEPRECATED Restriction engine for editing restrictions like snapping.

The restriction engine is used by editing tools to restrict editing of points and affine transformations.

For affine transformations, the following restrictions are implemented
1. Snapping of position
2. Snapping of the size
3. Snapping of the rotation in frations of a full rotation or rational snapping.
4. Snapping of the slanting angles in fractions of a full rotation or rational snapping
5. Minimum and maximum size
With rational snapping i mean snapping to angles whose tangent is a rational number with a small integer nominatior and denominator. The max nominator/denominator is the snapping parameter. For slanting angles, the absolute slanting angle (that is angle to the coordinate axis) is used, not the slanting angle relative to the rotated coordinate system. With rational snapping, you can solve many problems of slant and angle snapping, where you want to snap also to the horizontal and vertical grid. If we snap to angles with a small rational tan, the resulting points will also snap to a small fraction of the horiontal or vertical grid.
For position snapping of affine transformations, any of the 4 corner, 4 midline or the center point can snap to a grid. Each point can be enabled separately. Snapping of the non-center points can also be enabled only in the case, that they are connected to a vertical or horizontal border line.
For size snapping of affine transformations assume that the affine transformation transformes the origin and two unity length coordinate axis vectors to a different origin with different axis orientation and length. This way, the transformation consits of three vectors, the origin vector, the x-axis vector and the y-axis vector. The x-size can be one of the following:
1. the length of the transformed x-axis vector
2. the projection of the transformed x-axis vector on a line perpendicular to the transformed y-axis
3. the larger component of the x-axis vector
4. the first (horizontal) component of the x-axis vector.
Each of these snapping modes may be enabled separately.
Points and lines are simply snapped to a grid.
An example menu handler to enable/disable snapping:

void MyDrawFrm::OnDrawRasterSnap(wxCommandEvent &event)
{
    if( event.IsChecked() )
    {
        a2dRestrictionEngineOld
            *restrict=new a2dRestrictionEngineOld();
        restrict->SetSnapGrid(20,20);
        restrict->SetPosModes(a2dRestrictionEngineOld::pos3P|a2dRestrictionEngineOld::posSngl|a2dRestrictionEngineOld::posOther);
        restrict->SetSizeModes(a2dRestrictionEngineOld::sizeLength|a2dRestrictionEngineOld::sizeMin);
        restrict->SetRotationModes(a2dRestrictionEngineOld::rotAllAngle);
        restrict->SetRotationAngle(15);
        a2dCanvasGlobals->SetRestrictionEngine(restrict);
    }
    else
    {
        a2dCanvasGlobals->SetRestrictionEngine(0);
    }
}

Todo:: Implement angle snapping for lines with length snapping or snapping of the endpoints to vertical or horizontal grodlines.

Definition at line 583 of file restrict.h.

Member Enumeration Documentation

enum a2dRestrictionEngineOld::EPositionSnapModes

Position snap modes/flags (once for x any y)

Enumerator
posCenter	enable position snapping of object center to grid
posTopLeft	enable position snapping of object top left to grid
posTop	enable position snapping of object top to grid
posTopRight	enable position snapping of object top right to grid
posRight	enable position snapping of object right to grid
posBottomRight	enable position snapping of object bottom right to grid
posBottom	enable position snapping of object bottom to grid
posBottomLeft	enable position snapping of object bottom left to grid
posLeft	enable position snapping of object left to grid
posLineTop	enable position snapping of object top line to grid, if x axis parallel to main axis
posLineHCenter	enable position snapping of object h-center line to grid, if x axis parallel to main axis
posLineBottom	enable position snapping of object bottom line to grid, if x axis parallel to main axis
posLineLeft	enable position snapping of object left line to grid, if y axis parallel to main axis
posLineVCenter	enable position snapping of object v-center line to grid, if y axis parallel to main axis
posLineRight	enable position snapping of object right line to grid, if y axis parallel to main axis
posOther	enable position snapping of object other points to grid (e.g. triangle corner)
posSngl	enable restriction of single points (e.g. of polylines)
posEqual	used internally
posNone	disable all posizion restriction modes
pos6L	enable all 6 line snapping modes
pos1P	enable center point snapping modes
pos2P	enable center + top left point snapping modes
pos3P	enable center + top left + bottom right point snapping modes
pos5P	enable all center + 4 corner point snapping modes
pos9P	enable all 9 point snapping modes
posAny	enable all position restriction modes, except other point modes
pos1P6L	enable center point and all 6 line snapping modes

Definition at line 593 of file restrict.h.

enum a2dRestrictionEngineOld::ERotationSnapModes

Rotation/Slanting snap modes/flags.

Enumerator
rotVectorAngleX	enable angle snapping for rotation of first coordinate vektor
rotVectorRationalX	enable rational snapping for rotations of first coordinate vektor
rotVectorAngleY	enable angle snapping for rotations of second coordinate vektor
rotVectorRationalY	enable rational snapping for rotations of second coordinate vektor
rotPureRotations	allow only pure rotations, no slanting
rotPureSlanting	allow only pure one axis slanting
rotEndpointAngle	enable snapping of arc endpoint angles
rotEndpointRational	enable snapping of arc endpoint angles (rational)
rotEndpointUntrans	enable snapping of arc ednpoints in untransformed coordinate system
rotNone	disable all rotation restriction modes

Definition at line 652 of file restrict.h.

enum a2dRestrictionEngineOld::ESizeSnapModes

Size snap modes/flags (once for x and y)

Enumerator
sizeLength	enable size snapping of transformed axis vector length
sizeProject	enable snapping of projection of transformed axis vector length to orthogonal of other axis vector
sizeMajor	enable size snapping of transformed axis major component
sizeAxis	enable size snapping of projection to untronsformed axis
sizePos	snap size by snapping individual points
sizeMin	enable minimum size restriction
sizeMax	enable maximum size restriction
sizeEqual	used internally
sizeNone	disable all size restriction modes
sizeAny	enable all size restriction modes

Definition at line 636 of file restrict.h.

enum a2dRestrictionEngineOld::ESnapWhat

Flags for what to touch during a restriction.

Enumerator
snapPosX	perform x position snapping
snapPosY	perform y position snapping
snapSizeX	perform x size snapping
snapSizeY	perform y size snapping
snapRot	perform rotation snapping
snapSkew	perform skew snapping
snapWH	during size snapping, change w/h rather than transform
snapEndAngle	snap angle of endpoints or arcs
snapStart	snap start point of line
snapEnd	snap end point of line
snapPointI	snap point i of polygon (ored with i, other flags are invalid)

Definition at line 675 of file restrict.h.

Member Function Documentation

void a2dRestrictionEngineOld::RestrictAffine	(	a2dAffineMatrix *	mNew,
		const a2dAffineMatrix *	mOld,
		ESnapWhat	snapWhat,
		SnapObjectInfo *	info,
		double *	w = `0`,
		double *	h = `0`
	)

Restrict an affine transformation.

Parameters

mNew	the edited tranformation matrix, that will be restricted
mOld	the tranformation matrix as it was prior to editing
snapWhat	enable various snapping options
info	snapping info
w	if (snapWhat & snapWH) the w parameter reflects the width, rather than the matrix
h	if (snapWhat & snapWH) the h parameter reflects the height, rather than the matrix

Definition at line 844 of file restrict.cpp.

void a2dRestrictionEngineOld::RestrictEndpointAngle	(	double *	angle,
		const a2dAffineMatrix &	matrix,
		ESnapWhat	snapWhat
	)

Restrict a starting /ending angle of e.g. an elliptic arc The angle is in degrees The matrix is required for e.g. untransformed snapping

Definition at line 1509 of file restrict.cpp.
