drawer.h File Reference

the a2dCanvasView is a a2dView specially designed for displaying parts of a a2dCanvasDocument. It uses a a2dDrawer2D to actually redraw things from the document, by giving that a2dDrawer2D as drawing context to the document, and telling the document to redraw a certain rectangular area. At that last is what this class is for. It optimizes the areas to be redrawn after object in the document were changed. To do that it combines redraw areas to a minimal set of redrawing areas. All the administration for this and the way things will be redrawn is from this view. More...

#include "wx/wx.h"
#include "wx/image.h"
#include "wx/geometry.h"
#include "wx/prntbase.h"
#include "wx/docview/docviewref.h"
#include "wx/artbase/drawer2d.h"
#include "wx/canvas/candefs.h"
#include "wx/canvas/tools.h"
#include <vector>
#include <wx/listimpl.cpp>

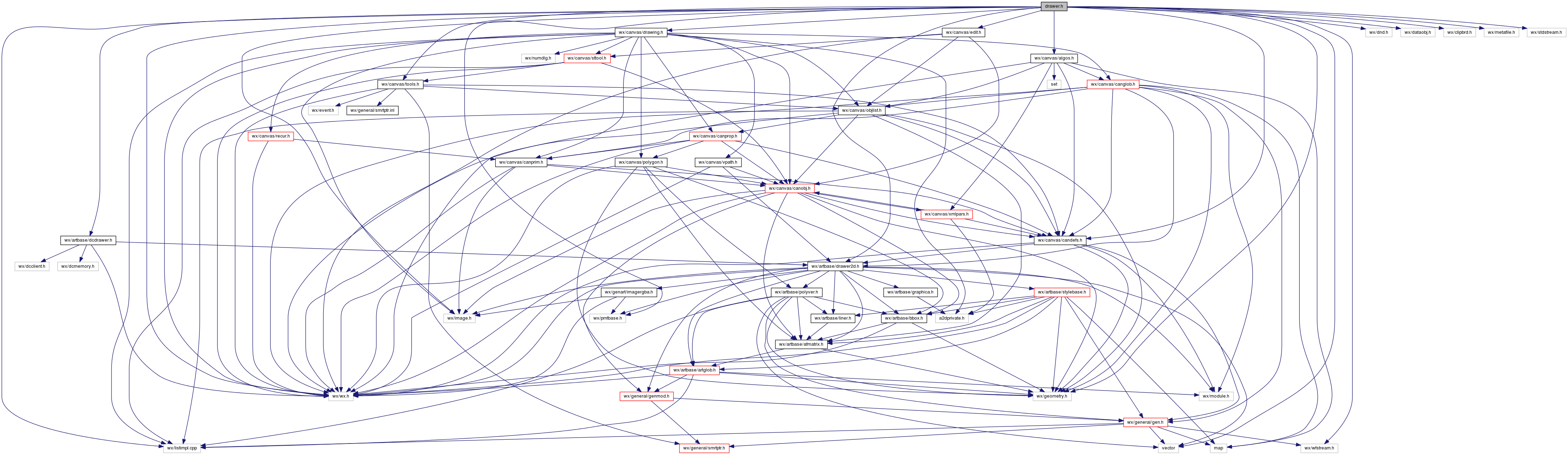

Include dependency graph for drawer.h:

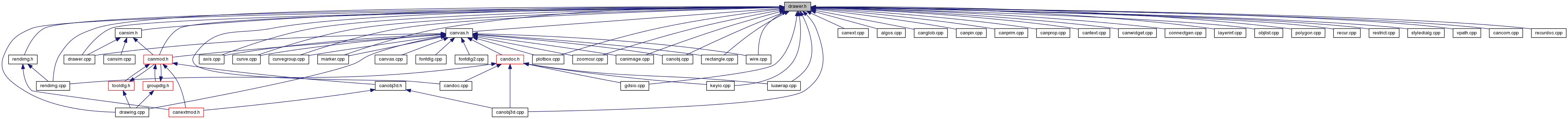

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	a2dCursorStack
class	a2dUpdateArea
	record in update list of a2dCanvasView. More...
class	a2dUpdateList
	maintains a list of areas on a view to be redrawn. More...
class	a2dTileBox
	a2dTileBox is a subarea of a tile. More...
class	a2dTiles
	a storage for a a tiled area More...
class	a2dViewPrintout
	to print what is displayed on a a2dCanvasView or the whole document as seen from the showobject of the drawer. More...
class	a2dLayerView
	Used by a2dCanvasView to decide what layers are to be rendered. More...
class	a2dCanvasView
	View on a a2dCanvasDocument, in which a2dCanvasObjects are shown. More...
class	a2dZoomedView
	view to display the size of a2dCanvasView compared to the whole of the a2dCanvasDocument that is viewed. More...
Enumerations
enum	a2dCanViewUpdateFlags {   a2dCANVIEW_UPDATE_OLDNEW = 0x0001, a2dCANVIEW_UPDATE_PENDING = 0x0002, a2dCANVIEW_UPDATE_ALL = a2dVIEW_UPDATE_ALL, a2dCANVIEW_UPDATE_AREAS = 0x0008,   a2dCANVIEW_UPDATE_AREAS_NOBLIT = 0x0010, a2dCANVIEW_UPDATE_BLIT = 0x0020, a2dCANVIEW_UPDATE_VIEWDEPENDENT = 0x0040, a2dCANVIEW_UPDATE_VIEWDEPENDENT_RIGHTNOW = 0x0080,   a2dCANVIEW_UPDATE_SYNC_DRAWERS = a2dCANVIEW_UPDATE_OLDNEW |a2dCANVIEW_UPDATE_AREAS | a2dCANVIEW_UPDATE_BLIT }
	mask flags for a2dCanvasView::OnUpdate More...
Functions
	WX_DECLARE_LIST_WITH_DECL (a2dUpdateArea, a2dUpdateListBase, class)
	Holds all updateareas within a a2dCanvasView.

---

Detailed Description

the a2dCanvasView is a a2dView specially designed for displaying parts of a a2dCanvasDocument. It uses a a2dDrawer2D to actually redraw things from the document, by giving that a2dDrawer2D as drawing context to the document, and telling the document to redraw a certain rectangular area. At that last is what this class is for. It optimizes the areas to be redrawn after object in the document were changed. To do that it combines redraw areas to a minimal set of redrawing areas. All the administration for this and the way things will be redrawn is from this view.

Author:

Klaas Holwerda

Copyright: 2000-2004 (c) Klaas Holwerda

Licence: wxWidgets Licence

RCS-ID:

Id

drawer.h,v 1.49 2008/10/21 21:48:30 titato Exp

Definition in file drawer.h.
