Normal straight line segment in a2dVpath. More...

#include <polyver.h>

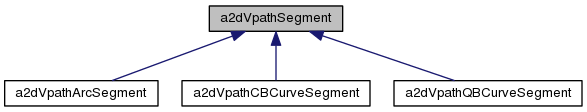

Inheritance diagram for a2dVpathSegment:

Public Member Functions
	a2dVpathSegment (double x, double y, a2dPATHSEG type=a2dPATHSEG_LINETO, a2dPATHSEG_END close=a2dPATHSEG_END_OPEN)
	constructor More...

	a2dVpathSegment (const a2dVpathSegment &other)
	constructor

virtual	~a2dVpathSegment ()
	destructor

virtual a2dVpathSegment *	Clone ()
	create exact copy

a2dPATHSEG	GetType () const
	easy way to test type of segment

bool	GetBin () const
	used in processing

void	SetBin (bool bin)
	used in processing

a2dPATHSEG_END	GetClose () const
	is this segment the closing a part since the last move

void	SetClose (a2dPATHSEG_END close)
	set this segment is closing a part since the last move

virtual double	Length (a2dSmrtPtr< a2dVpathSegment > prev)
	calculate length

Public Attributes
double	m_x1
	x endpoint of line

double	m_y1
	y endpoint of line

bool	m_bin: 1
	Marker for walking over the segments.

a2dPATHSEG	m_type: 5
	easy way to test type of segment

a2dPATHSEG_END	m_close: 3
	is the path closing here or not

Friends
class	a2dSmrtPtrBase

Detailed Description

Normal straight line segment in a2dVpath.

baseclass for segments in a a2dVpath

Every segment type in a a2dVpath has this class as Baseclass. It has/maintains the end position of a segment. But for the first point it is a2dVpathSegment to give the begin point too.

Definition at line 878 of file polyver.h.

Constructor & Destructor Documentation

a2dVpathSegment::a2dVpathSegment	(	double	x,
		double	y,
		a2dPATHSEG	type = `a2dPATHSEG_LINETO`,
		a2dPATHSEG_END	close = `a2dPATHSEG_END_OPEN`
	)

constructor

Parameters

x	endpoint of line
y	endpoint of line
type	line type ( e.g line to, move to, no stroking )
close	endpoint closes the shape.

Definition at line 3531 of file polyver.cpp.

The documentation for this class was generated from the following files:
