#include <strucdlg.h>
Inheritance diagram for a2dCanvasObjectsChooseDialog:

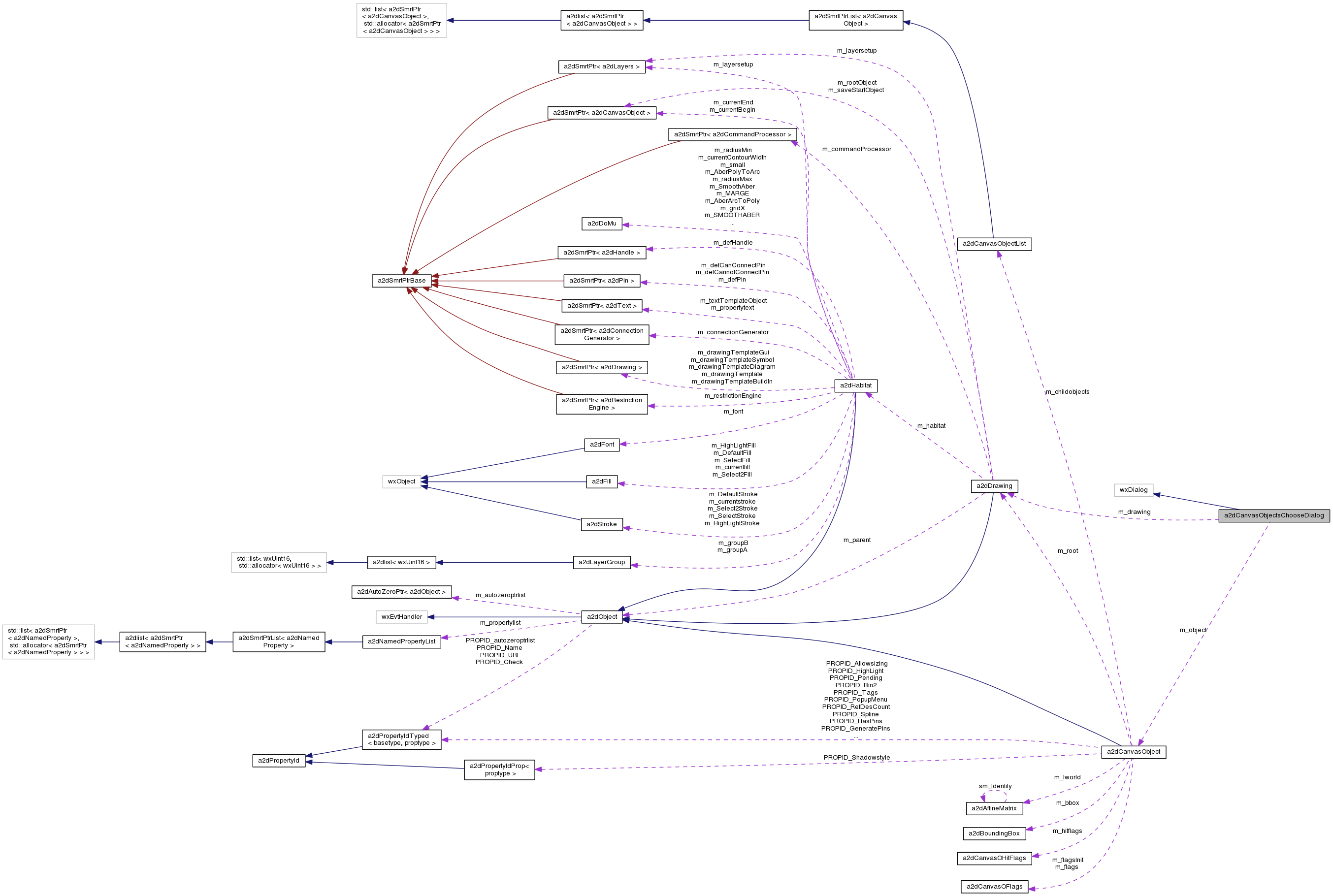

Collaboration diagram for a2dCanvasObjectsChooseDialog:
Public Member Functions | |
| a2dCanvasObjectsChooseDialog (wxWindow *parent, a2dDrawing *drawing, bool structOnly=true, long style=SYMBOL_A2DCHOOSE_STYLE, wxWindowID id=SYMBOL_A2DCHOOSE_IDNAME, const wxString &caption=SYMBOL_A2DCHOOSE_TITLE, const wxPoint &pos=SYMBOL_A2DCHOOSE_POSITION, const wxSize &size=SYMBOL_A2DCANVASOBJECTSDIALOG_SIZE) | |
| a2dCanvasObjectsChooseDialog (wxWindow *parent, a2dCanvasObjectList *total, const wxString &appearancename, long style=SYMBOL_A2DCHOOSE_STYLE, wxWindowID id=SYMBOL_A2DCHOOSE_IDNAME, const wxString &caption=SYMBOL_A2DCHOOSE_TITLE, const wxPoint &pos=SYMBOL_A2DCHOOSE_POSITION, const wxSize &size=SYMBOL_A2DCANVASOBJECTSDIALOG_SIZE) | |
| a2dCanvasObjectsChooseDialog (wxWindow *parent, a2dCanvasObjectList *total, long style=SYMBOL_A2DCHOOSE_STYLE, wxWindowID id=SYMBOL_A2DCHOOSE_IDNAME, const wxString &caption=SYMBOL_A2DCHOOSE_TITLE, const wxPoint &pos=SYMBOL_A2DCHOOSE_POSITION, const wxSize &size=SYMBOL_A2DCHOOSE_SIZE) | |
| constructor with a specific list of objects | |
| bool | Create (wxWindow *parent, wxWindowID id=SYMBOL_A2DCHOOSE_IDNAME, const wxString &caption=SYMBOL_A2DCHOOSE_TITLE, const wxPoint &pos=SYMBOL_A2DCHOOSE_POSITION, const wxSize &size=SYMBOL_A2DCHOOSE_SIZE, long style=SYMBOL_A2DCHOOSE_STYLE) |
| Creation. | |
| a2dCanvasObject * | GetCanvasObject () |
| Pointer to object selected. | |
| void | Init (a2dCanvasObjectList *objects) |
| take over object to show from objects | |
| void | Init (a2dDrawing *drawing) |
| void | InitCameleons (a2dCanvasObjectList *total, const wxString &appearanceClassName) |
Protected Member Functions | |
| void | CreateControls () |
| Creates the controls and sizers. | |
| void | OnCloseWindow (wxCloseEvent &event) |
| wxEVT_CLOSE_WINDOW event handler for ID_DIALOG | |
| void | OnStructIdListboxSelected (wxCommandEvent &event) |
| wxEVT_COMMAND_LISTBOX_SELECTED event handler for CHOOSE_ID_LISTBOX | |
| void | OnStructIdListboxDoubleClicked (wxCommandEvent &event) |
| wxEVT_COMMAND_LISTBOX_DOUBLECLICKED event handler for CHOOSE_ID_LISTBOX | |
| void | OnStructIdHideClick (wxCommandEvent &event) |
| wxEVT_COMMAND_BUTTON_CLICKED event handler for CHOOSE_ID_HIDE | |
| void | OnStructIdApplyClick (wxCommandEvent &event) |
| wxEVT_COMMAND_BUTTON_CLICKED event handler for CHOOSE_ID_APPLY | |
| void | OnComEvent (a2dComEvent &event) |
| document changed | |
| void | OnDoEvent (a2dCommandProcessorEvent &event) |
| void | CmApply () |
Static Protected Member Functions | |
| static bool | ShowToolTips () |
| Should we show tooltips? | |
Protected Attributes | |
| bool | m_modal |
| wxListBox * | m_listbox |
| wxButton * | m_hide |
| wxButton * | m_Apply |
| wxStaticText * | m_numberObjects |
| a2dCanvasObjectsSet | m_structureSet |
| Pointer to object list. | |
| a2dCanvasObject * | m_object |
| Pointer to the choosen object. | |
| a2dDrawing * | m_drawing |
Detailed Description
Class a2dCanvasObjectsDialog. This class is used to show a dialog containing objects.
Definition at line 131 of file strucdlg.h.
The documentation for this class was generated from the following files:
