Creates and Connect a wxEditorFrame + a2dCanvas with a view. More...
#include <canedit.h>

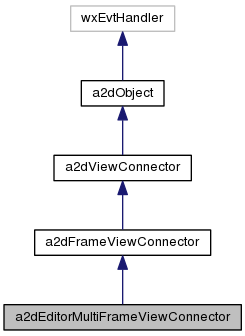

Inheritance diagram for a2dEditorMultiFrameViewConnector:

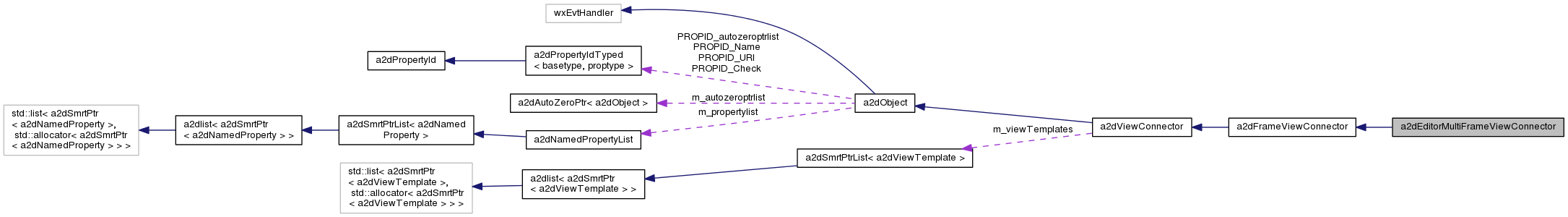

Collaboration diagram for a2dEditorMultiFrameViewConnector:
Public Member Functions | |
| a2dEditorMultiFrameViewConnector (wxClassInfo *EditorClassInfo=(wxClassInfo *) NULL) | |
| void | OnPostCreateDocument (a2dTemplateEvent &event) |
| void | OnPostCreateView (a2dTemplateEvent &event) |
| Creates a a2dEditorFrame and sets its its a2dCanvas as the DisplayWindow for the view. | |
 Public Member Functions inherited from a2dFrameViewConnector | |
| a2dFrameViewConnector () | |
| Constructor. | |
| virtual | ~a2dFrameViewConnector () |
| destructor | |
| a2dFrameViewConnector (const a2dFrameViewConnector &other) | |
| void | Init (wxFrame *docframe, bool createChildframe=true) |
| The pointer m_docframe will be initialized. More... | |
| wxFrame * | GetFrame () |
| get the frame | |
| void | SetFrame (wxFrame *docframe) |
| set the frame More... | |
| void | SetCreateChild (bool createChildframe) |
| bool | GetCreateChild () |
| Public Member Functions inherited from a2dViewConnector | |
| a2dViewConnector () | |
| Constructor. | |
| virtual | ~a2dViewConnector ()=0 |
| destructor | |
| a2dViewConnector (const a2dViewConnector &other) | |
| void | SetInitialPosition (const wxPoint &position) |
| set position to use for new created views or frames or windows | |
| void | SetInitialSize (const wxSize &size) |
| set size to use for new created views or frames or windows | |
| void | SetInitialStyle (long style) |
| set style to use for new created frames or windows | |
| wxPoint & | GetInitialPosition () |
| Get position used for new created views or frames or windows. | |
| wxSize & | GetInitialSize () |
| GGet size used for new created views or frames or windows. | |
| long | GetInitialStyle () |
| Get style used for new created a2dDocumentFrame. | |
| a2dViewTemplateList & | GetViewTemplates () |
| void | AssociateViewTemplate (a2dViewTemplate *temp) |
| add a reference to a a2dViewTemplate to the wxViewTemplateReflist More... | |
| void | DisassociateViewTemplate (a2dViewTemplate *temp) |
| remove a reference to a a2dViewTemplate from the wxViewTemplateReflist | |
| void | DisassociateViewTemplates () |
| remove All references to a a2dViewTemplate from the wxViewTemplateReflist | |
| virtual a2dView * | CreateView (a2dDocument *doc, const wxString &viewTypeName=wxT(""), a2dDocumentFlagMask flags=a2dREFDOC_NON, a2dTemplateFlagMask mask=a2dTemplateFlag::DEFAULT) |
| create a new view from a list of a2dViewTemplate's More... | |
| void | OnDisConnectView (a2dTemplateEvent &event) |
| handler for ::wxEVT_DISCONNECT_VIEW More... | |
| void | SetOnlyDisconnect (bool OnlyDisconnect) |
| bool | GetOnlyDisconnect () |
| When true, a2dView::OnDisConnectView() only disconnects view from document, and does not close it. | |
| Public Member Functions inherited from a2dObject | |
| virtual bool | ProcessEvent (wxEvent &event) |
| bool | SearchDynamicEventTable (wxEvent &event) |
| void | Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL) |
| bool | Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL) |
| void | ProcessConnectedEvent (wxEvent &event) |
| wxCHECK_VERSION(2,9,0) More... | |
| void | ConnectEvent (wxEventType type, wxEvtHandler *eventSink) |
| bool | DisconnectEvent (wxEventType type, wxEvtHandler *eventSink) |
| bool | DisconnectEventAll (wxEvtHandler *eventSink) |
| Remove all dynamic events in classA, going to classB (eventSink) More... | |
| a2dObject () | |
| constructor | |
| virtual | ~a2dObject () |
| destructor | |
| void | operator= (const a2dObject &other) |
| assignment operator | |
| int | GetOwnedBy () |
| like it to be protected, but this does not work with wxList macros More... | |
| virtual a2dObject * | SetNonDynamic () |
| Call to mark this object as non-dynamic (static/local/auto) More... | |
| void | CheckReferences () |
| Check zero reference count and delete if count is 0. More... | |
| a2dObject * | Clone (CloneOptions options, a2dRefMap *refs=NULL) const |
| create an exact copy of this property | |
| a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs) | |
| virtual wxString | GetName () const |
| Returns the name of this object, if no name is given the internal id will be returned. More... | |
| virtual void | SetName (const wxString &name) |
| Creates the a2dStringProperty PROPID_Name. More... | |
| virtual bool | IsTemporary_DontSave () const |
| Check if this is a temporary object, which should not be saved. | |
| void | SaveAsDocument (a2dIOHandlerXmlSerOut &out) |
| Save this object and all below as an XML document. More... | |
| virtual void | Save (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dObjectList *towrite) |
| write all needed to an XML type of file called the CVG format More... | |
| void | LoadFromDocument (a2dIOHandlerXmlSerIn &parser) |
| Load this object and all below from an XML document. More... | |
| virtual void | Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser) |
| load object from CVG file More... | |
| wxInt64 | GetUniqueSerializationId () const |
| return a unique id for this object More... | |
| virtual bool | AlwaysWriteSerializationId () const |
| If true, always write an id. More... | |
| virtual bool | LinkReference (a2dObject *other) |
| link a reference in the object to the given value More... | |
| virtual void | ResolveInform () |
| inform an object that reference resolution was done More... | |
| void | Walker (wxObject *parent, a2dWalkerIOHandler &handler) |
| This is used to recursively walk through an object tree. | |
| void | SetCheck (bool check) |
| general flag use at will. More... | |
| bool | GetCheck () const |
| general flag use at will. | |
| void | SetRelease (bool value) |
| set release flag More... | |
| bool | GetRelease () const |
| get release flag More... | |
| a2dAutoZeroPtr< a2dObject > ** | GetAutoZeroPtrList () |
| return the list head pointer for autozero pointers to this object More... | |
| DECLARE_PROPERTIES () | |
| a2dNamedProperty * | GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const |
| get property on this object More... | |
| void | SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none) |
| Set the property to the this object. More... | |
| void | SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none) |
| Set the property to the this object and if enabled, to all childs and object members. More... | |
| virtual a2dNamedProperty * | FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) |
| Find a dynamic property with given id in the property list. More... | |
| virtual const a2dNamedProperty * | FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const |
| Find a dynamic property with given id in the property list. More... | |
| virtual bool | HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const |
| Check if the object has a property with given id and string representation. More... | |
| virtual void | OnPropertyChanged (const a2dPropertyId *id) |
| This function is called after a property changed. More... | |
| virtual bool | EditProperties (const a2dPropertyId *id, bool withUndo=true) |
| edit properties of the object More... | |
| void | TakeOverProperties (a2dObject *from, a2dPropertyIdList *listOfIds) |
| Properties in the id list are taken from the given object, en set to this. More... | |
| wxURI | GetURI () const |
| quick way to get to PROPID_URI property More... | |
| void | SetURI (const wxURI &url) |
| quickly set a property PROPID_URI More... | |
| const a2dNamedPropertyList & | GetPropertyList () const |
| Get the Property List. More... | |
| bool | HasDynamicProperties () const |
| test if there are dynamic properties in the m_propertylist | |
| virtual bool | RemoveProperty (const a2dPropertyId *id, bool all=true) |
| This function is called by a2dPropertyId to remove a property from the list. More... | |
| void | RemoveTemporaryProperties () |
| remove all temporary properties | |
| virtual bool | AddProperty (a2dNamedProperty *property) |
| This function is called by a2dPropertyId to add a property to the list. More... | |
Public Attributes | |
| wxClassInfo * | m_editorClassInfo |
| For dynamic creation of appropriate instances. | |
Additional Inherited Members | |
| Public Types inherited from a2dObject | |
| enum | CloneOptions { clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008, clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080, clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members | clone_properties | clone_childs } |
| options for cloning More... | |
| typedef a2dAutoZeroPtr< a2dObject > | TAutoZeroPtrListClass |
| this is needed inside the smart pointer template code | |
| Static Public Attributes inherited from a2dObject | |
| static a2dPropertyIdBool * | PROPID_Check = NULL |
| used for linking multiple referenced objects when serializing | |
| static a2dPropertyIdUri * | PROPID_URI = NULL |
| attach an URL to the object | |
| static a2dPropertyIdString * | PROPID_Name = NULL |
| Name property, to return name of this object. | |
| static a2dPropertyIdVoidPtr * | PROPID_autozeroptrlist = NULL |
| static const a2dSignal | sm_Edit_properties = wxNewId() |
| edit properties event, see EditProperties() | |
| Protected Types inherited from a2dObject | |
| enum | { refcount_nondynamic = 0x76543210 } |
| special refcount value for non-dynamic objects | |
| Protected Member Functions inherited from a2dViewConnector | |
| a2dObject * | DoClone (a2dObject::CloneOptions options, a2dRefMap *refs) const |
| Protected Member Functions inherited from a2dObject | |
| virtual bool | DoIgnoreIfNotMember (const a2dPropertyId *id) const |
| used to decide if a property shall be ignored, if it is not a member More... | |
| virtual void | DoWalker (wxObject *parent, a2dWalkerIOHandler &handler) |
| iterate over this object and its children More... | |
| virtual void | DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite) |
| Save settings. | |
| virtual void | DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts) |
| Load settings. | |
| Protected Attributes inherited from a2dFrameViewConnector | |
| wxFrame * | m_docframe |
| the frame which receives events and often redirect those to the document manager. | |
| bool | m_createChildframe |
| Protected Attributes inherited from a2dViewConnector | |
| wxPoint | m_initialPos |
| position for new frames | |
| wxSize | m_initialSize |
| size for new frames | |
| long | m_initialStyle |
| style for new frames | |
| a2dViewTemplateList | m_viewTemplates |
| templates for views | |
| bool | m_OnlyDisconnect |
| see SetOnlyDisconnect() | |
| Protected Attributes inherited from a2dObject | |
| a2dNamedPropertyList | m_propertylist |
| properties | |
| int | m_refcount |
| how many references to this object do exist | |
| bool | m_check: 1 |
| used for linking multiple referenced objects when serializing | |
| bool | m_release: 1 |
| when set object is treated as being deleted, and wil be deleted in idle time. | |
| bool | m_recursion_active: 1 |
| this is used as a recursion stopper | |
| bool | m_pendingDisconnects: 1 |
| unsigned int | m_iteratorCount |
| a2dAutoZeroPtr< a2dObject > * | m_autozeroptrlist |
| this is a list of all a2dAutoZeroPtr object pointing to this object | |
Detailed Description
Creates and Connect a wxEditorFrame + a2dCanvas with a view.
The documentation for this class was generated from the following files:
