Class for rerouting wires. More...
#include <route.h>
Inheritance diagram for a2dRouteData:

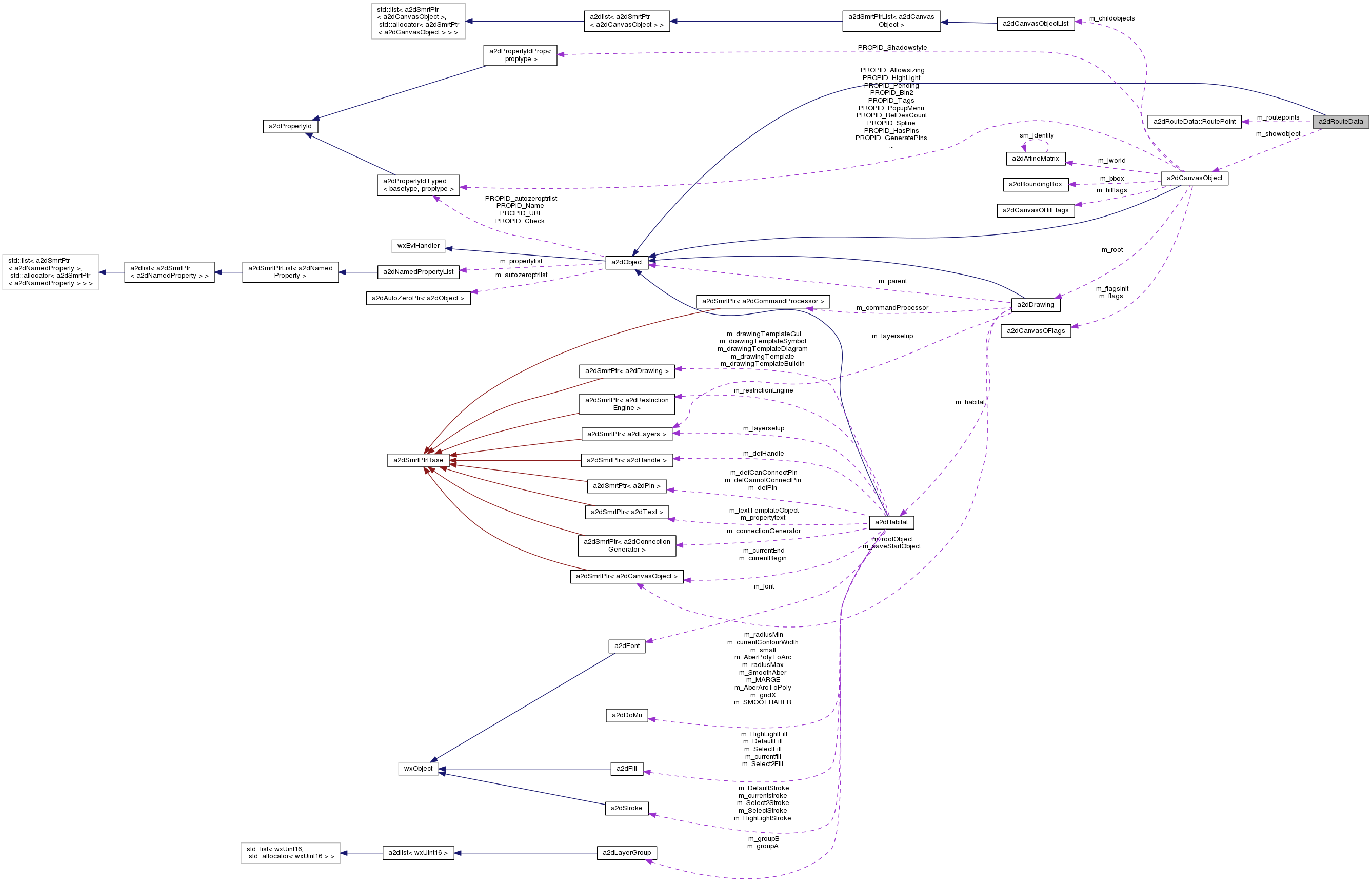

Collaboration diagram for a2dRouteData:
Classes | |
| struct | BorderPoint |
| An entry in the border queue. More... | |
| class | BorderQueue |
| This is a priority queue for border points. More... | |
| struct | RoutePoint |
| the data structure holding the per point information More... | |
Public Types | |
| enum | RoutePointFlag { flag_original = 0x01, flag_targetwire = 0x02, flag_targetpin = 0x04, flag_targetapprox = 0x08, flag_reachable = 0x10, flag_final = 0x20 } |
| flags for RoutePoint | |
| enum | RoutePointDirection { dir_xminus = 0, dir_xplus = 1, dir_yminus = 2, dir_yplus = 3, dir_start = 4, dir_min = 0, dir_max = 3, dir_count = 4, dir_invxor = 1 } |
| directions for RoutePoint More... | |
 Public Types inherited from a2dObject | |
| enum | CloneOptions { clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008, clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080, clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members | clone_properties | clone_childs } |
| options for cloning More... | |
| typedef a2dAutoZeroPtr< a2dObject > | TAutoZeroPtrListClass |
| this is needed inside the smart pointer template code | |
Public Member Functions | |
| a2dRouteData (a2dCanvasObject *showobject, bool final) | |
| Standard constructor takes the show object under which is routed. More... | |
| ~a2dRouteData () | |
| Destructor. | |
| bool | RerouteWire (a2dWirePolylineL *wire, a2dPin *dispin, a2dPin *startpin, bool startisbegin, bool final) |
| Reroute a wire. More... | |
| Public Member Functions inherited from a2dObject | |
| virtual bool | ProcessEvent (wxEvent &event) |
| bool | SearchDynamicEventTable (wxEvent &event) |
| void | Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL) |
| bool | Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL) |
| void | ProcessConnectedEvent (wxEvent &event) |
| wxCHECK_VERSION(2,9,0) More... | |
| void | ConnectEvent (wxEventType type, wxEvtHandler *eventSink) |
| bool | DisconnectEvent (wxEventType type, wxEvtHandler *eventSink) |
| bool | DisconnectEventAll (wxEvtHandler *eventSink) |
| Remove all dynamic events in classA, going to classB (eventSink) More... | |
| a2dObject () | |
| constructor | |
| virtual | ~a2dObject () |
| destructor | |
| void | operator= (const a2dObject &other) |
| assignment operator | |
| int | GetOwnedBy () |
| like it to be protected, but this does not work with wxList macros More... | |
| virtual a2dObject * | SetNonDynamic () |
| Call to mark this object as non-dynamic (static/local/auto) More... | |
| void | CheckReferences () |
| Check zero reference count and delete if count is 0. More... | |
| a2dObject * | Clone (CloneOptions options, a2dRefMap *refs=NULL) const |
| create an exact copy of this property | |
| a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs) | |
| virtual wxString | GetName () const |
| Returns the name of this object, if no name is given the internal id will be returned. More... | |
| virtual void | SetName (const wxString &name) |
| Creates the a2dStringProperty PROPID_Name. More... | |
| virtual bool | IsTemporary_DontSave () const |
| Check if this is a temporary object, which should not be saved. | |
| void | SaveAsDocument (a2dIOHandlerXmlSerOut &out) |
| Save this object and all below as an XML document. More... | |
| virtual void | Save (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dObjectList *towrite) |
| write all needed to an XML type of file called the CVG format More... | |
| void | LoadFromDocument (a2dIOHandlerXmlSerIn &parser) |
| Load this object and all below from an XML document. More... | |
| virtual void | Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser) |
| load object from CVG file More... | |
| wxInt64 | GetUniqueSerializationId () const |
| return a unique id for this object More... | |
| virtual bool | AlwaysWriteSerializationId () const |
| If true, always write an id. More... | |
| virtual bool | LinkReference (a2dObject *other) |
| link a reference in the object to the given value More... | |
| virtual void | ResolveInform () |
| inform an object that reference resolution was done More... | |
| void | Walker (wxObject *parent, a2dWalkerIOHandler &handler) |
| This is used to recursively walk through an object tree. | |
| void | SetCheck (bool check) |
| general flag use at will. More... | |
| bool | GetCheck () const |
| general flag use at will. | |
| void | SetRelease (bool value) |
| set release flag More... | |
| bool | GetRelease () const |
| get release flag More... | |
| a2dAutoZeroPtr< a2dObject > ** | GetAutoZeroPtrList () |
| return the list head pointer for autozero pointers to this object More... | |
| DECLARE_PROPERTIES () | |
| a2dNamedProperty * | GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const |
| get property on this object More... | |
| void | SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none) |
| Set the property to the this object. More... | |
| void | SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none) |
| Set the property to the this object and if enabled, to all childs and object members. More... | |
| virtual a2dNamedProperty * | FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) |
| Find a dynamic property with given id in the property list. More... | |
| virtual const a2dNamedProperty * | FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const |
| Find a dynamic property with given id in the property list. More... | |
| virtual bool | HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const |
| Check if the object has a property with given id and string representation. More... | |
| virtual void | OnPropertyChanged (const a2dPropertyId *id) |
| This function is called after a property changed. More... | |
| virtual bool | EditProperties (const a2dPropertyId *id, bool withUndo=true) |
| edit properties of the object More... | |
| void | TakeOverProperties (a2dObject *from, a2dPropertyIdList *listOfIds) |
| Properties in the id list are taken from the given object, en set to this. More... | |
| wxURI | GetURI () const |
| quick way to get to PROPID_URI property More... | |
| void | SetURI (const wxURI &url) |
| quickly set a property PROPID_URI More... | |
| const a2dNamedPropertyList & | GetPropertyList () const |
| Get the Property List. More... | |
| bool | HasDynamicProperties () const |
| test if there are dynamic properties in the m_propertylist | |
| virtual bool | RemoveProperty (const a2dPropertyId *id, bool all=true) |
| This function is called by a2dPropertyId to remove a property from the list. More... | |
| void | RemoveTemporaryProperties () |
| remove all temporary properties | |
| virtual bool | AddProperty (a2dNamedProperty *property) |
| This function is called by a2dPropertyId to add a property to the list. More... | |
Static Public Member Functions | |
| static void | SetRaster (double raster) |
| the size of the raster | |
Protected Member Functions | |
| unsigned short & | GetVerticalOccupation (int x, int y) |
| Get an element of the vertical occupation array. | |
| unsigned short & | GetHorizontalOccupation (int x, int y) |
| Get an element of the horizontal occupation array. | |
| bool | IsVerticalOccupied (int x, int y) |
| Is an element of the vertical occupation array. | |
| bool | IsHorizontalOccupied (int x, int y) |
| Is an element of the horizontal occupation array. | |
| RoutePoint & | GetRoutePoint (int x, int y, int dir) |
| Get an element of the route point array. | |
| void | AddOccupationRect (const a2dBoundingBox &bbox, short incr) |
| add a bounding box to the occupied area More... | |
| void | AddOccupationPolyline (const a2dVertexList *points, const a2dAffineMatrix &trns, short incr) |
| add a polyline to the occupation area More... | |
| void | SetFlagRect (const a2dBoundingBox &bbox, RoutePointFlag flag) |
| Set a RoutePoint flag in a rectangle. | |
| void | SetFlagPolyline (const a2dVertexList *points, const a2dAffineMatrix &trns, RoutePointFlag flag) |
| Set a RoutePoint flag along a polyline. More... | |
| void | SetFlagRoutePointAllDirs (int x, int y, RoutePointFlag flag) |
| Set a flag in the route points for all directions. | |
| void | AddBorderPoint (BorderQueue *queue, RoutePoint *current, int nextx, int nexty, int dir, int prevdir) |
| Add a new point on the route. More... | |
| a2dBoundingBox | CalculateRoutingBbox (a2dCanvasObject *object) |
| Calculates the routing relevant bounding box of an object. More... | |
| void | DumpOccupation (FILE *file) |
| Dump the occupation arrays. | |
| void | DumpCost () |
| void | DumpVertexList (a2dVertexList *list) |
| virtual a2dObject * | DoClone (CloneOptions options, a2dRefMap *refs) const |
| File for debug dumps. More... | |
| virtual void | DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite) |
| Save settings. | |
| virtual void | DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts) |
| Load settings. | |
| Protected Member Functions inherited from a2dObject | |
| virtual bool | DoIgnoreIfNotMember (const a2dPropertyId *id) const |
| used to decide if a property shall be ignored, if it is not a member More... | |
| virtual void | DoWalker (wxObject *parent, a2dWalkerIOHandler &handler) |
| iterate over this object and its children More... | |
Protected Attributes | |
| bool | m_ok |
| if true, the raster is initialized | |
| a2dCanvasObject * | m_showobject |
| the show object given in the constructor | |
| int | m_width |
| width of the routing raster array | |
| int | m_widthp1 |
| width of the routing raster array + 1 | |
| int | m_height |
| height of the routing raster array | |
| int | m_heightp1 |
| height of the routing raster array + 1 | |
| double | m_rasterinv |
| the inverse size of the raster | |
| int | m_rasterminx |
| the limits of the raster area | |
| int | m_rastermaxx |
| int | m_rasterminy |
| int | m_rastermaxy |
| double | m_rasterborder |
| an extra border in the raster area around the bounding box | |
| unsigned short * | m_verticaloccupation |
| occupation counts for vertical edges ( a 2d array ) | |
| unsigned short * | m_horizontaloccupation |
| occupation counts for horizontal edges ( a 2d array ) | |
| RoutePoint * | m_routepoints |
| Routing points. | |
| Protected Attributes inherited from a2dObject | |
| a2dNamedPropertyList | m_propertylist |
| properties | |
| int | m_refcount |
| how many references to this object do exist | |
| bool | m_check: 1 |
| used for linking multiple referenced objects when serializing | |
| bool | m_release: 1 |
| when set object is treated as being deleted, and wil be deleted in idle time. | |
| bool | m_recursion_active: 1 |
| this is used as a recursion stopper | |
| bool | m_pendingDisconnects: 1 |
| unsigned int | m_iteratorCount |
| a2dAutoZeroPtr< a2dObject > * | m_autozeroptrlist |
| this is a list of all a2dAutoZeroPtr object pointing to this object | |
Static Protected Attributes | |
| static double | m_raster = 4 |
| the size of the raster | |
Additional Inherited Members | |
| Static Public Attributes inherited from a2dObject | |
| static a2dPropertyIdBool * | PROPID_Check = NULL |
| used for linking multiple referenced objects when serializing | |
| static a2dPropertyIdUri * | PROPID_URI = NULL |
| attach an URL to the object | |
| static a2dPropertyIdString * | PROPID_Name = NULL |
| Name property, to return name of this object. | |
| static a2dPropertyIdVoidPtr * | PROPID_autozeroptrlist = NULL |
| static const a2dSignal | sm_Edit_properties = wxNewId() |
| edit properties event, see EditProperties() | |
| Protected Types inherited from a2dObject | |
| enum | { refcount_nondynamic = 0x76543210 } |
| special refcount value for non-dynamic objects | |
Detailed Description
Class for rerouting wires.
This class implements a usual Lee router. The one special thing is, that there are penalties for corners. This makes routing a bit complicated, because the lowest cost to reach one point might not be the best for succeeding from this point, as the following example shows:
0-1 0- 3 | | 1-14 16 | | 2-15 19 | | 3-16 22 | | 29 25
The numbers are cost. 0 is the routing start point. The points with cost 1..3 are lying on the original line and have a low cost for this reason. The destination is the point with a cost of 29/25. The important point is, that the target can be reached via the right path with higher intermediate cost with lower final cost.
To get true least cost routing, the cost is stored for every raster point for the four incomming directions.
Member Enumeration Documentation
directions for RoutePoint
Constructor & Destructor Documentation
| a2dRouteData::a2dRouteData | ( | a2dCanvasObject * | showobject, |
| bool | final | ||
| ) |
Standard constructor takes the show object under which is routed.
The boundingbox of the child objects in showobject is taken as the area in which to route
a wire. This with a certain margin added, in order to route around the outer objects too. Temporary tool objects are skipped from this boundingbox. The boundingbox is divided into a rectangular grid, each grid of size m_raster. The grid points are points where a routed wire can be routed onto. Buffers are allocated to maintain information on the grid points, e.g. which grid points are occupied by objects, and therefore a wire can not be routed there. a2dWirePolylineL objects marked with property PROPID_rerouteadded, indicates a wire to be rerouted, and will not be added to the occupation area. Only polylines are currently added accurate to the occuption area. Meaning the right grid points are disabled for routing. For the other objects currently the boundingbox is used.
Member Function Documentation
|
inlineprotected |
Add a new point on the route.
Based on the point where we are and a next point and direction, a new border point is added (unless already reached). The cost for the new point is calculated based on:
- if is on the orginal wire +1
- not on original wire +3
- corner compared to current point direction +10
- crossing occupied area +10 (in case of diagonal lines?)
This is a large function, but it is inlined for speed
|
protected |
|
protected |
|
protected |
|
inlineprotectedvirtual |
| bool a2dRouteData::RerouteWire | ( | a2dWirePolylineL * | wire, |
| a2dPin * | dispin, | ||
| a2dPin * | startpin, | ||
| bool | startisbegin, | ||
| bool | final | ||
| ) |
Reroute a wire.
Reroute the given wire, between a start and end pin. The start or end pin is used as a start for producing a border wave, which sets route points to a cost to reach that route point. At the same time the wave itself is expanded at the point with the best cost first. If that point is already reached through another part of the border wave, that point is removed from the wave, else based on the current border point a new point a new border point is created, followed by removing the current best border point. In the end the target pin or wire will be reached and the border wave will be empty. While the border wave is working itself like this through the routing points, the best route is via pointer in the route points.
- Parameters
-
wire on input this is the wire in its original (edited but unadjusted) state dispin the pin that became disconnected startpin the pin where routing starts startisbegin the pin where routing starts is the begin point of the wire final last route to destination
- Returns
- true if wire was changed
|
protected |
Set a RoutePoint flag along a polyline.
Vertical and horizontal segments result in a set in the routepoints which the cover. That is for all directions in a routepoint.
The documentation for this class was generated from the following files:
