polyver.h File Reference

general vertexlist and array and vector path functions and classes. More...

#include "wx/geometry.h"
#include "wx/general/gen.h"
#include "wx/artbase/artglob.h"
#include "wx/artbase/afmatrix.h"
#include "wx/artbase/liner.h"
#include "wx/artbase/bbox.h"
#include <vector>
#include <wx/listimpl.cpp>

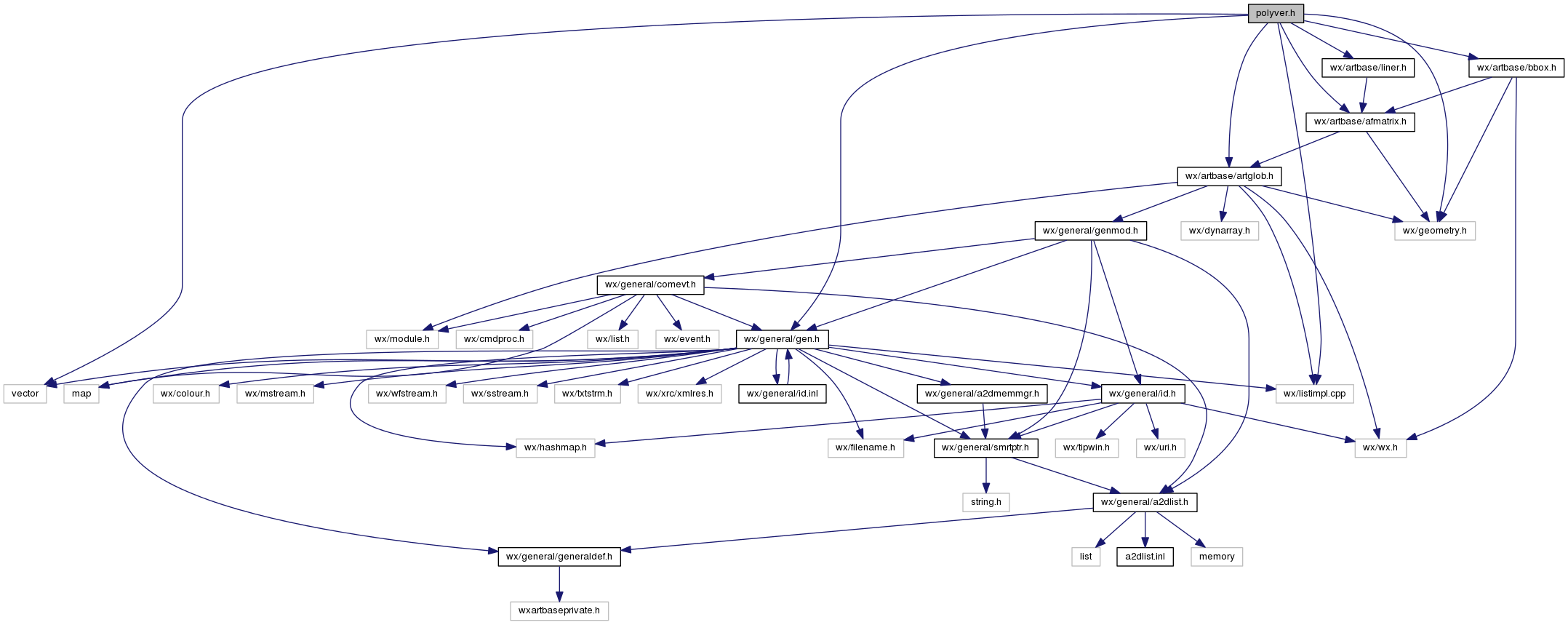

Include dependency graph for polyver.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	a2dHit
	struct for how a single object on one layer was hit More...
class	a2dLineSegment
	Normal straight line segment in a2dVertexList and a2dVertexArray. More...
class	a2dArcSegment
	Arc Segment in a2dVertexList. More...
class	a2dVertexArray
	vertex array of line and arc segments. More...
class	a2dVertexList
	vertex list of line and arc segments. More...
class	a2dVpathSegment
	Normal straight line segment in a2dVpath. More...
class	a2dVpathQBCurveSegment
	Quadratic Bezier curve. More...
class	a2dVpathCBCurveSegment
	Cubic Bezier curve. More...
class	a2dVpathArcSegment
	Arc Segment. More...
class	a2dVpath
	Vector Path. More...

Typedefs
typedef a2dSmrtPtr < a2dLineSegment >	a2dLineSegmentPtr
	smart pointer to line segment
typedef a2dSmrtPtr< a2dVertexList >	a2dVertexListPtr
typedef a2dVertexList::iterator	a2dVertexListIter
typedef a2dSmrtPtrList < a2dVertexList >	a2dListOfa2dVertexList
typedef a2dSmrtPtr < a2dVpathSegment >	a2dVpathSegmentPtr
	smart pointer to path segment

Enumerations
enum	a2dPATH_END_TYPE { a2dPATH_END_SQAURE, a2dPATH_END_ROUND, a2dPATH_END_SQAURE_EXT }
	defines the way a polyline with a contour width is ended.
enum	a2dSegType { a2dNORMAL_SEG = 0x0000, a2dLINK_SEG = 0x0001, a2dHOLE_SEG = 0x0002 }
	defines the type of a segment in a a2dLineSegment More...
enum	a2dPATHSEG {   a2dPATHSEG_MOVETO, a2dPATHSEG_LINETO, a2dPATHSEG_LINETO_NOSTROKE, a2dPATHSEG_QBCURVETO,   a2dPATHSEG_QBCURVETO_NOSTROKE, a2dPATHSEG_CBCURVETO, a2dPATHSEG_CBCURVETO_NOSTROKE, a2dPATHSEG_ARCTO,   a2dPATHSEG_ARCTO_NOSTROKE }
	how do we move to the point of the segment More...
enum	a2dPATHSEG_END { a2dPATHSEG_END_OPEN, a2dPATHSEG_END_CLOSED, a2dPATHSEG_END_CLOSED_NOSTROKE }
	end of a segment type More...

Functions
bool	InArc (double angle, double start, double end, bool clockwise)
double	ClclDistSqrPntPnt (const a2dPoint2D &a, const a2dPoint2D &b)
	Calculate the square distance between two points.
double	ClclDistSqrPntLine (const a2dPoint2D &p, const a2dPoint2D &p1, const a2dPoint2D &p2)
	Calculate the square distance between a point and a line. More...
bool	CalcR (double begin_x, double begin_y, double middle_x, double middle_y, double end_x, double end_y, double &radius, a2dPoint2D &center_p)
	Calculation of center for the Arc. More...
bool	CalcR (double begin_x, double begin_y, double middle_x, double middle_y, double end_x, double end_y, double &radius, double &center_x, double &center_y, double &beginrad, double &midrad, double &endrad, double &phit)
	Calculation of center for the Arc. More...

Detailed Description

general vertexlist and array and vector path functions and classes.

All ways to have polygons and polylines stored and drawn by a drawing context are placed here. Polygon or polylines can be list based or array based. The vector path is the structure which can be used to drawn almost anything. Basic primtives can always be converted to a vector path, and drawn that way.

Author

Klaas Holwerda, Michael Sögtrop, Faust Nijhuis

Date

Created 01/09/04

Copyright: 2001-2004 (C) Klaas Holwerda, Michael Sögtrop

Licence: wxWidgets licence

RCS-ID:

Id:

polyver.h,v 1.37 2009/09/30 18:38:56 titato Exp

Definition in file polyver.h.

Enumeration Type Documentation

enum a2dSegType

defines the type of a segment in a a2dLineSegment

Enumerator
a2dNORMAL_SEG	not specific or part of outer contour
a2dLINK_SEG	links an outside contour with a hole
a2dHOLE_SEG	this segmnet is part of a hole

Definition at line 145 of file polyver.h.

Function Documentation

bool CalcR	(	double	begin_x,
		double	begin_y,
		double	middle_x,
		double	middle_y,
		double	end_x,
		double	end_y,
		double &	radius,
		a2dPoint2D &	center_p
	)

Calculation of center for the Arc.

Parameters

begin_x	x start point of arc.
begin_y	y start point of arc.
middle_x	x middle point of arc.
middle_y	y middle point of arc.
end_x	x end point of arc.
end_y	y end point of arc.
radius	radius of the circle calculated
center_p	the center calculated

Returns

true if the arc is indeed an Arc if a straight line return false.

Definition at line 4786 of file polyver.cpp.

bool CalcR	(	double	begin_x,
		double	begin_y,
		double	middle_x,
		double	middle_y,
		double	end_x,
		double	end_y,
		double &	radius,
		double &	center_x,
		double &	center_y,
		double &	beginrad,
		double &	midrad,
		double &	endrad,
		double &	phit
	)

Calculation of center for the Arc.

Parameters

begin_x	x start point of arc.
begin_y	y start point of arc.
middle_x	x middle point of arc.
middle_y	y middle point of arc.
end_x	x end point of arc.
end_y	y end point of arc.
radius	radius of the circle calculated
center_x	x of the center calculated
center_y	y of the center calculated
beginrad	calculated starting angle in radians
midrad	calculated middle angle in radians
endrad	calculated end angle in radians
phit	total calculated in radians (AntiClockwise positif, else negatif )

Returns

true if the arc is indeed an Arc if a straight line return false.

Definition at line 4797 of file polyver.cpp.

double ClclDistSqrPntLine	(	const a2dPoint2D &	p,
		const a2dPoint2D &	p1,
		const a2dPoint2D &	p2
	)

Calculate the square distance between a point and a line.

This returns DBL_MAX if the point is beyond the edges

Definition at line 103 of file polyver.cpp.

bool InArc	(	double	angle,
		double	start,
		double	end,
		bool	clockwise
	)

is the angle within the arc segment taking into account drawing from start to end in clockwise or anti clocwise direction.

Definition at line 148 of file polyver.cpp.
