general canvas module declarations and classes More...

#include "wx/wx.h"
#include <map>
#include "wx/geometry.h"
#include <wx/module.h>
#include <wx/general/gen.h>
#include <wx/artbase/drawer2d.h>
#include "wx/canvas/candefs.h"
#include "wx/canvas/restrict.h"
#include "wx/canvas/canprim.h"
#include "wx/canvas/layerinf.h"
#include "wx/canvas/cantext.h"
#include "wx/canvas/objlist.h"
#include "wx/paper.h"
#include "wx/print.h"

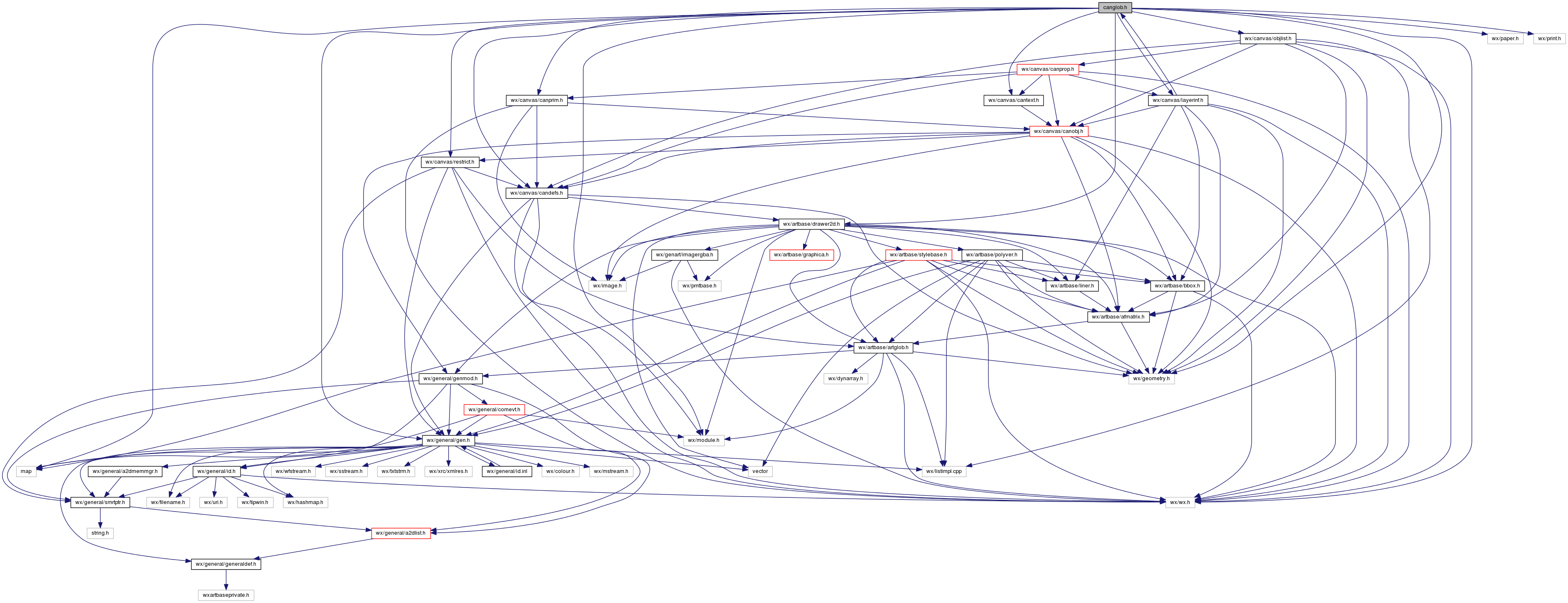

Include dependency graph for canglob.h:

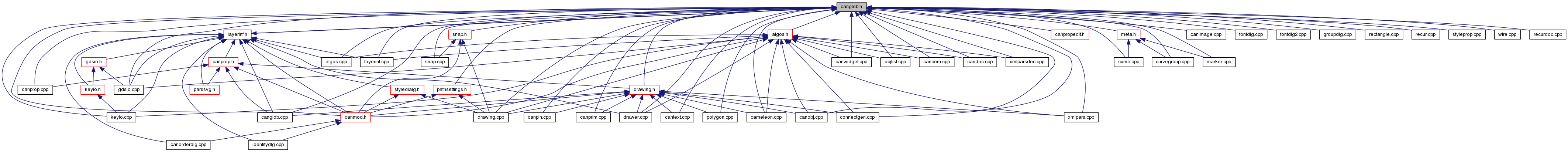

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	a2dLayerGroup
	holds a list of layers numbers More...

class	a2dCanvasModule
	initiation module for the wxArt2D library More...

class	a2dCanvasObjectEvent
	see a2dCanvasObjectMouseEvent More...

class	a2dCanvasObjectMouseEvent
	mouse event sent from a2dCanvasObject to itself More...

class	a2dHandleMouseEvent
	general event sent from a2dHandle to its parent a2dCanvasObject More...

class	a2dArtProvider
	provide cursors etc. More...

class	a2dHabitat
	defines common settinsg for a habitat for a set of a2dCameleons. More...

class	a2dCanvasGlobal
	contains global settings for the a2dCanvas library More...

class	a2dTimer
	wxArt2D specific a2dTimer which notifies a2dCanvasObject's More...

Macros
#define	EVT_CANVASOBJECT_MOUSE_EVENT(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASOBJECT_MOUSE_EVENT, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasObjectMouseEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dCanvasObject mouse event

#define	EVT_CANVASOBJECT_ENTER_EVENT(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASOBJECT_ENTER_EVENT, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasObjectMouseEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dCanvasObject mouse enter event

#define	EVT_CANVASOBJECT_LEAVE_EVENT(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASOBJECT_LEAVE_EVENT, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasObjectMouseEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dCanvasObject mouse leave event

#define	EVT_CANVASHANDLE_MOUSE_EVENT(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASHANDLE_MOUSE_EVENT, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasHandleMouseEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dHandle mouse event

#define	EVT_CANVASHANDLE_MOUSE_EVENT_ENTER(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASHANDLE_MOUSE_EVENT_ENTER, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasHandleMouseEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dHandle mouse enter event

#define	EVT_CANVASHANDLE_MOUSE_EVENT_LEAVE(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASHANDLE_MOUSE_EVENT_LEAVE, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasHandleMouseEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dHandle mouse leave event

#define	EVT_CANVASOBJECT_POPUPMENU_EVENT(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASOBJECT_POPUPMENU_EVENT, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasObjectMouseEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dCanvasObject mouse Right Down event

#define	EVT_CANVASOBJECT_RESIZE_EVENT(func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_CANVASOBJECT_RESIZE_EVENT, wxID_ANY, wxID_ANY, (wxObjectEventFunction) static_cast < a2dCanvasObjectEventFunction > ( & func ), (wxObject *) NULL ),
	static event table macro for a2dCanvasObject resize event

#define	EVT_CANVASOBJECT_TIMER(timerid, func) DECLARE_EVENT_TABLE_ENTRY( wxEVT_TIMER, timerid, -1, (wxObjectEventFunction) wxStaticCastEvent( wxCanvasObjectTimerEventFunction, & func ), NULL),
	timer event for a2dCanvasObject from a2dTimer

Typedefs
typedef void(wxEvtHandler::*	a2dCanvasObjectEventFunction )(a2dCanvasObjectEvent &)
	event function for a2dCanvasObjectEvent

typedef void(wxEvtHandler::*	a2dCanvasHandleMouseEventFunction )(a2dHandleMouseEvent &)
	event function for a2dHandleMouseEvent

typedef void(wxEvtHandler::*	a2dCanvasObjectMouseEventFunction )(a2dCanvasObjectMouseEvent &)
	event function for a2dCanvasObjectMouseEvent

typedef unsigned int	a2dCursorId

typedef unsigned int	a2dImageId

typedef a2dSmrtPtr< a2dHabitat >	a2dHabitatPtr

typedef void(wxEvtHandler::*	wxCanvasObjectTimerEventFunction )(wxTimerEvent &)
	a2dEvtHandler event function for wxTimerEvent

Enumerations
enum	a2dNextSeg { WIREEND_STRAIGHT, WIREEND_MANHATTAN_X, WIREEND_MANHATTAN_Y }

Functions
a2dDocumentRenderStyle	operator\| (a2dDocumentRenderStyle a, a2dDocumentRenderStyle b)
	OR-ing a2dDocumentRenderStyle is allowed.

Variables
class A2DGENERALDLLEXP	a2dWalkerIOHandler

const a2dCursorId	a2dCURSOR_NONE

const a2dCursorId	a2dCURSOR_ARROW

const a2dCursorId	a2dCURSOR_RIGHT_ARROW

const a2dCursorId	a2dCURSOR_BULLSEYE

const a2dCursorId	a2dCURSOR_CHAR

const a2dCursorId	a2dCURSOR_CROSS

const a2dCursorId	a2dCURSOR_HAND

const a2dCursorId	a2dCURSOR_IBEAM

const a2dCursorId	a2dCURSOR_LEFT_BUTTON

const a2dCursorId	a2dCURSOR_MAGNIFIER

const a2dCursorId	a2dCURSOR_MIDDLE_BUTTON

const a2dCursorId	a2dCURSOR_NO_ENTRY

const a2dCursorId	a2dCURSOR_PAINT_BRUSH

const a2dCursorId	a2dCURSOR_PENCIL

const a2dCursorId	a2dCURSOR_POINT_LEFT

const a2dCursorId	a2dCURSOR_POINT_RIGHT

const a2dCursorId	a2dCURSOR_QUESTION_ARROW

const a2dCursorId	a2dCURSOR_RIGHT_BUTTON

const a2dCursorId	a2dCURSOR_SIZENESW

const a2dCursorId	a2dCURSOR_SIZENS

const a2dCursorId	a2dCURSOR_SIZENWSE

const a2dCursorId	a2dCURSOR_SIZEWE

const a2dCursorId	a2dCURSOR_SIZING

const a2dCursorId	a2dCURSOR_SPRAYCAN

const a2dCursorId	a2dCURSOR_WAIT

const a2dCursorId	a2dCURSOR_WATCH

const a2dCursorId	a2dCURSOR_BLANK

const a2dCursorId	a2dCURSOR_ARROWWAIT

const a2dCursorId	a2dCURSOR_Select

const a2dCursorId	a2dCURSOR_Select2

const a2dCursorId	a2dCURSOR_Zoom

const a2dCursorId	a2dCURSOR_Drag

const a2dCursorId	a2dCURSOR_Move

const a2dCursorId	a2dCURSOR_Copy

const a2dCursorId	a2dCURSOR_DrawWire

const a2dCursorId	a2dCURSOR_EditWire

const a2dCursorId	a2dCURSOR_EditWireVertex

const a2dCursorId	a2dCURSOR_EditWireDeleteVertex

const a2dCursorId	a2dCURSOR_EditWireSegment

const a2dCursorId	a2dCURSOR_EditWireSegmentHorizontal

const a2dCursorId	a2dCURSOR_EditWireSegmentVertical

const a2dCursorId	a2dCURSOR_WireSegmentInsert

const a2dCursorId	a2dCURSOR_Edit

const a2dCursorId	a2dCURSOR_EditVertex

const a2dCursorId	a2dCURSOR_EditDeleteVertex

const a2dCursorId	a2dCURSOR_EditSegment

const a2dCursorId	a2dCURSOR_EditSegmentHorizontal

const a2dCursorId	a2dCURSOR_EditSegmentVertical

const a2dCursorId	a2dCURSOR_SegmentInsert

const a2dCursorId	a2dCURSOR_HandleLeftDown

const a2dCursorId	a2dCURSOR_HandleMove

const a2dCursorId	a2dCURSOR_HandleDrag

const a2dCursorId	a2dCURSOR_HandleEnter

const a2dCursorId	a2dCURSOR_HandleLeave

const a2dCursorId	a2dCURSOR_CanvasObjectHit

const a2dCursorId	a2dCURSOR_CanvasObjectEnter

const a2dCursorId	a2dCURSOR_CanvasObjectLeave

const a2dImageId	a2dBitmap_EditRectangleFill

a2dCanvasGlobal *	a2dCanvasGlobals
	global a2dCanvasGlobal to have easy access to global settings

Detailed Description

general canvas module declarations and classes

The event classes for an a2dCanvasObject are here. And a2dCanvasGlobal holds settings for the canvas module. Storing layers settings as a template for layer settings of new documents is a typical use of wxCanvasGlobals.

a2dTimer, is a wxTimes special for a2dCanvasObject

Author: Klaas Holwerda

Licence: wxWidgets Licence

Classes, functions and enumration for use in all othere files, are located here.

RCS-ID:

Id:: canglob.h,v 1.58 2009/09/03 20:09:53 titato Exp

Definition in file canglob.h.
