Input handler for the XML format. More...

#include <genxmlpars.h>

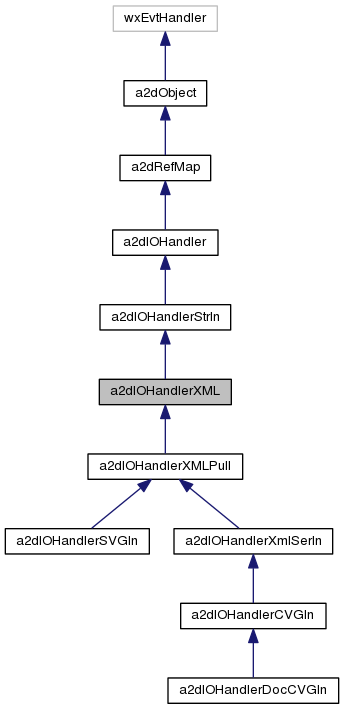

Inheritance diagram for a2dIOHandlerXML:

Collaboration diagram for a2dIOHandlerXML:

Public Member Functions
	a2dIOHandlerXML ()
	Constructor. More...

	~a2dIOHandlerXML ()
	Destructor.

virtual void	InitializeLoad ()
	Inits the handler for reading. More...

virtual void	ResetLoad ()
	Reset the object after loading.

XML_Parser &	GetXMLParser ()
	Returns the XML parser.

virtual int	GetCurrentColumnNumber ()
	Returns the current column no. More...

virtual int	GetCurrentLineNumber ()
	Returns the current line no. More...

wxString	GetErrorString ()
	Returns last error as string.

double	ParseDouble (const wxString &buffer, unsigned int &position)

void	SkipCommaSpaces (const wxString &buffer, unsigned int &position)

void	SkipSpaces (const wxString &buffer, unsigned int &position)

Public Member Functions inherited from a2dIOHandlerStrIn
	a2dIOHandlerStrIn (wxMBConv &conv=wxConvUTF8)
	constructor

	~a2dIOHandlerStrIn ()
	destructor

virtual bool	CanLoad (a2dDocumentInputStream &stream, const wxObject obj=NULL, wxClassInfo docClassInfo=NULL)=0
	Should return true if the handler can read from the stream. More...

virtual bool	Load (a2dDocumentInputStream &stream, wxObject *obj)=0
	override to read the stream and store (part of) the contents in to a specific a2dDocument or othere object. More...

wxClassInfo *	GetDocumentClassInfo () const
	class info for the (document) class this handler reads data into.

void	SetDocumentClassInfo (wxClassInfo *docClassInfo)
	class info for the (document) class this handler reads data into.

void	SetFileName (const wxFileName &filename)

const wxFileName &	GetFileName () const

Public Member Functions inherited from a2dIOHandler
	a2dIOHandler ()
	constructor

	~a2dIOHandler ()
	destructor

virtual wxObject *	CreateObject (const wxString &symbolicName)
	Creates an specific object by name. More...

Public Member Functions inherited from a2dRefMap
	a2dRefMap ()
	constructor

	~a2dRefMap ()
	destructor

virtual void	Initialize ()
	initialize mapping tables

a2dHashMapIntToObject &	GetObjectHashMap ()
	This is used to find multiple referenced objects by id.

a2dHashMapCreateObject &	GetObjectCreateHashMap ()
	has to map symbolic names to real classnames.

a2dResolveIdList &	GetResolveIdList ()
	list of not resolved objects

bool	ResolveOrAdd (a2dSmrtPtr< a2dObject > *storedHere, const wxString &id=wxT(""))
	try to resolve the object that is in storedHere when it is a reference. More...

bool	ResolveOrAdd (a2dAutoZeroPtr< a2dObject > *storedHere, const wxString &id=wxT(""))
	try to resolve the object that is in storedHere when it is a reference.

bool	ResolveOrAddLink (a2dObject *obj, const wxString &id=wxT(""))
	try to resolve an object referenced by obj using the LinkReference function

void	ResolveInform (a2dObject *obj)
	call the objects LinkReference function (ptr=0) to inform it that links are done

void	SetLastObjectLoadedId (const wxString &lastid)
	set by RefObject when finding a reference id during loading.

virtual bool	LinkReferences (bool ignoreNonResolved=false)
	link references to their destination More...

bool	RemoveReference (const wxString &idToRemove)
	remove given reference if from reference map.

a2dError	GetLastError () const
	get last error encountered

void	SetLastError (a2dError error)
	set last error encountered

Public Member Functions inherited from a2dObject
virtual bool	ProcessEvent (wxEvent &event)

bool	SearchDynamicEventTable (wxEvent &event)

void	Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

bool	Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject userData=(wxObject ) NULL, wxEvtHandler eventSink=(wxEvtHandler ) NULL)

void	ProcessConnectedEvent (wxEvent &event)
	wxCHECK_VERSION(2,9,0) More...

void	ConnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)

bool	DisconnectEventAll (wxEvtHandler *eventSink)
	Remove all dynamic events in classA, going to classB (eventSink) More...

	a2dObject ()
	constructor

virtual	~a2dObject ()
	destructor

void	operator= (const a2dObject &other)
	assignment operator

int	GetOwnedBy ()
	like it to be protected, but this does not work with wxList macros More...

virtual a2dObject *	SetNonDynamic ()
	Call to mark this object as non-dynamic (static/local/auto) More...

void	CheckReferences ()
	Check zero reference count and delete if count is 0. More...

a2dObject *	Clone (CloneOptions options, a2dRefMap *refs=NULL) const
	create an exact copy of this property

	a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)

virtual wxString	GetName () const
	Returns the name of this object, if no name is given the internal id will be returned. More...

virtual void	SetName (const wxString &name)
	Creates the a2dStringProperty PROPID_Name. More...

virtual bool	IsTemporary_DontSave () const
	Check if this is a temporary object, which should not be saved.

void	SaveAsDocument (a2dIOHandlerXmlSerOut &out)
	Save this object and all below as an XML document. More...

virtual void	Save (wxObject parent, a2dIOHandlerXmlSerOut &out, a2dObjectList towrite)
	write all needed to an XML type of file called the CVG format More...

void	LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
	Load this object and all below from an XML document. More...

virtual void	Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
	load object from CVG file More...

wxInt64	GetUniqueSerializationId () const
	return a unique id for this object More...

virtual bool	AlwaysWriteSerializationId () const
	If true, always write an id. More...

virtual bool	LinkReference (a2dObject *other)
	link a reference in the object to the given value More...

virtual void	ResolveInform ()
	inform an object that reference resolution was done More...

void	Walker (wxObject *parent, a2dWalkerIOHandler &handler)
	This is used to recursively walk through an object tree.

void	SetCheck (bool check)
	general flag use at will. More...

bool	GetCheck () const
	general flag use at will.

void	SetRelease (bool value)
	set release flag More...

bool	GetRelease () const
	get release flag More...

a2dAutoZeroPtr< a2dObject > **	GetAutoZeroPtrList ()
	return the list head pointer for autozero pointers to this object More...

	DECLARE_PROPERTIES ()

a2dNamedProperty *	GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	get property on this object More...

void	SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object. More...

void	SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object and if enabled, to all childs and object members. More...

virtual a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
	Find a dynamic property with given id in the property list. More...

virtual const a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	Find a dynamic property with given id in the property list. More...

virtual bool	HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
	Check if the object has a property with given id and string representation. More...

virtual void	OnPropertyChanged (const a2dPropertyId *id)
	This function is called after a property changed. More...

virtual bool	EditProperties (const a2dPropertyId *id, bool withUndo=true)
	edit properties of the object More...

void	TakeOverProperties (a2dObject from, a2dPropertyIdList listOfIds)
	Properties in the id list are taken from the given object, en set to this. More...

wxURI	GetURI () const
	quick way to get to PROPID_URI property More...

void	SetURI (const wxURI &url)
	quickly set a property PROPID_URI More...

const a2dNamedPropertyList &	GetPropertyList () const
	Get the Property List. More...

bool	HasDynamicProperties () const
	test if there are dynamic properties in the m_propertylist

virtual bool	RemoveProperty (const a2dPropertyId *id, bool all=true)
	This function is called by a2dPropertyId to remove a property from the list. More...

void	RemoveTemporaryProperties ()
	remove all temporary properties

virtual bool	AddProperty (a2dNamedProperty *property)
	This function is called by a2dPropertyId to add a property to the list. More...

Protected Member Functions
virtual void	StartElementHnd (a2dXMLTag *tag)

virtual void	EndElementHnd (const wxString &name)

virtual void	CharacterDataHnd (const wxString &text)

virtual void	CommentHnd (const wxString &comment)

virtual void	DefaultHnd (const wxString &def)

Protected Member Functions inherited from a2dIOHandlerStrIn
void	SetMode (wxEOL mode=wxEOL_NATIVE)
	define the line end mode for textual files

wxEOL	GetMode ()
	get line end mode for textual files

char	Peek ()

char	GetC ()

a2dIOHandlerStrIn &	SeekI (wxFileOffset pos)
	set stream at a position

bool	Eof () const

bool	IsOk () const

size_t	Read (char *buffer, size_t size)

Protected Member Functions inherited from a2dObject
virtual bool	DoIgnoreIfNotMember (const a2dPropertyId *id) const
	used to decide if a property shall be ignored, if it is not a member More...

virtual void	DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
	iterate over this object and its children More...

Static Protected Member Functions
static void	BaseStartElementHnd (void userData, const char name, const char **atts)

static void	BaseEndElementHnd (void userData, const char name)

static void	BaseCharacterDataHnd (void userData, const char s, int len)

static void	BaseCommentHnd (void userData, const char data)

static void	BaseDefaultHnd (void userData, const char s, int len)

Protected Attributes
XML_Parser	m_parser
	expat parser

char *	m_buffer
	buffer used for passing part of the input stream

bool	m_done
	true if reached end of document

Protected Attributes inherited from a2dIOHandlerStrIn
wxFileName	m_filename

wxMBConv &	m_conv
	unicode conversion

a2dDocumentInputStream *	m_streami
	file or other string stream containing the format to parse.

wxClassInfo *	m_docClassInfo
	Run-time class information that allows document instances to be constructed dynamically.

wxEOL	m_mode
	end of line mode

Protected Attributes inherited from a2dRefMap
a2dHashMapIntToObject	m_objecthashmap
	This is used to find multiple referenced objects by id.

a2dHashMapCreateObject	m_objectCreate
	This is used to find a classname using a symbolic name.

a2dResolveIdList	m_toResolve
	refernces to object which have not bin resolved yet ( e.g not read yet, but already referenced )

wxString	m_lastObjectId

a2dError	m_lastError
	set to last error found when parsing

Protected Attributes inherited from a2dObject
a2dNamedPropertyList	m_propertylist
	properties

int	m_refcount
	how many references to this object do exist

bool	m_check: 1
	used for linking multiple referenced objects when serializing

bool	m_release: 1
	when set object is treated as being deleted, and wil be deleted in idle time.

bool	m_recursion_active: 1
	this is used as a recursion stopper

bool	m_pendingDisconnects: 1

unsigned int	m_iteratorCount

a2dAutoZeroPtr< a2dObject > *	m_autozeroptrlist
	this is a list of all a2dAutoZeroPtr object pointing to this object

Static Protected Attributes
static wxString	m_encoding = wxT( "UTF-8" )

static wxString	m_version = wxT( "1.0" )

Additional Inherited Members
Public Types inherited from a2dObject
enum	CloneOptions { clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008, clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080, clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members \| clone_properties \| clone_childs }
	options for cloning More...

typedef a2dAutoZeroPtr< a2dObject >	TAutoZeroPtrListClass
	this is needed inside the smart pointer template code

Static Public Attributes inherited from a2dObject
static a2dPropertyIdBool *	PROPID_Check = NULL
	used for linking multiple referenced objects when serializing

static a2dPropertyIdUri *	PROPID_URI = NULL
	attach an URL to the object

static a2dPropertyIdString *	PROPID_Name = NULL
	Name property, to return name of this object.

static a2dPropertyIdVoidPtr *	PROPID_autozeroptrlist = NULL

static const a2dSignal	sm_Edit_properties = wxNewId()
	edit properties event, see EditProperties()

Protected Types inherited from a2dObject
enum	{ refcount_nondynamic = 0x76543210 }
	special refcount value for non-dynamic objects

Detailed Description

Input handler for the XML format.

The a2dIOHandlerXML uses a fast, lightweight, event-driven XML parser (expat).

Remarks: It's only a input handler, the a2dIOHandlerXML is not able to write XML data. Use a2dIOHandlerXMLPull to read and write data. a2dIOHandlerXMLPull also has an comfortable API to read / write data, so there's no need to use the a2dIOHandlerXML class directly if you want to create your own XML fileformat.

See Also: a2dIOHandlerXMLPull

Definition at line 197 of file genxmlpars.h.

Constructor & Destructor Documentation

a2dIOHandlerXML::a2dIOHandlerXML ( )

Constructor.

Remarks: Before you can use this object you've to call the InitializeLoad() or InitializeSave() method; The standard IO handlers of wxArt2d (i.e. wxDocviewIOHandlerXmlSer) call the Initialize method in the Load... methods, an extra call to Initialize is not necessary.
