a2dWalker_SetViewDependent Class Reference
[Algorithms on hierarchy in a2dDocument]

set the a2dCanvasObject's view dependent More...

#include <algos.h>

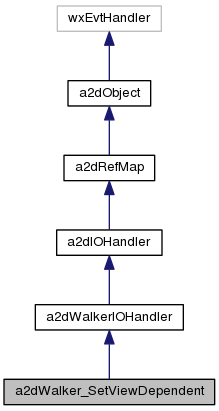

Inheritance diagram for a2dWalker_SetViewDependent:

[legend]

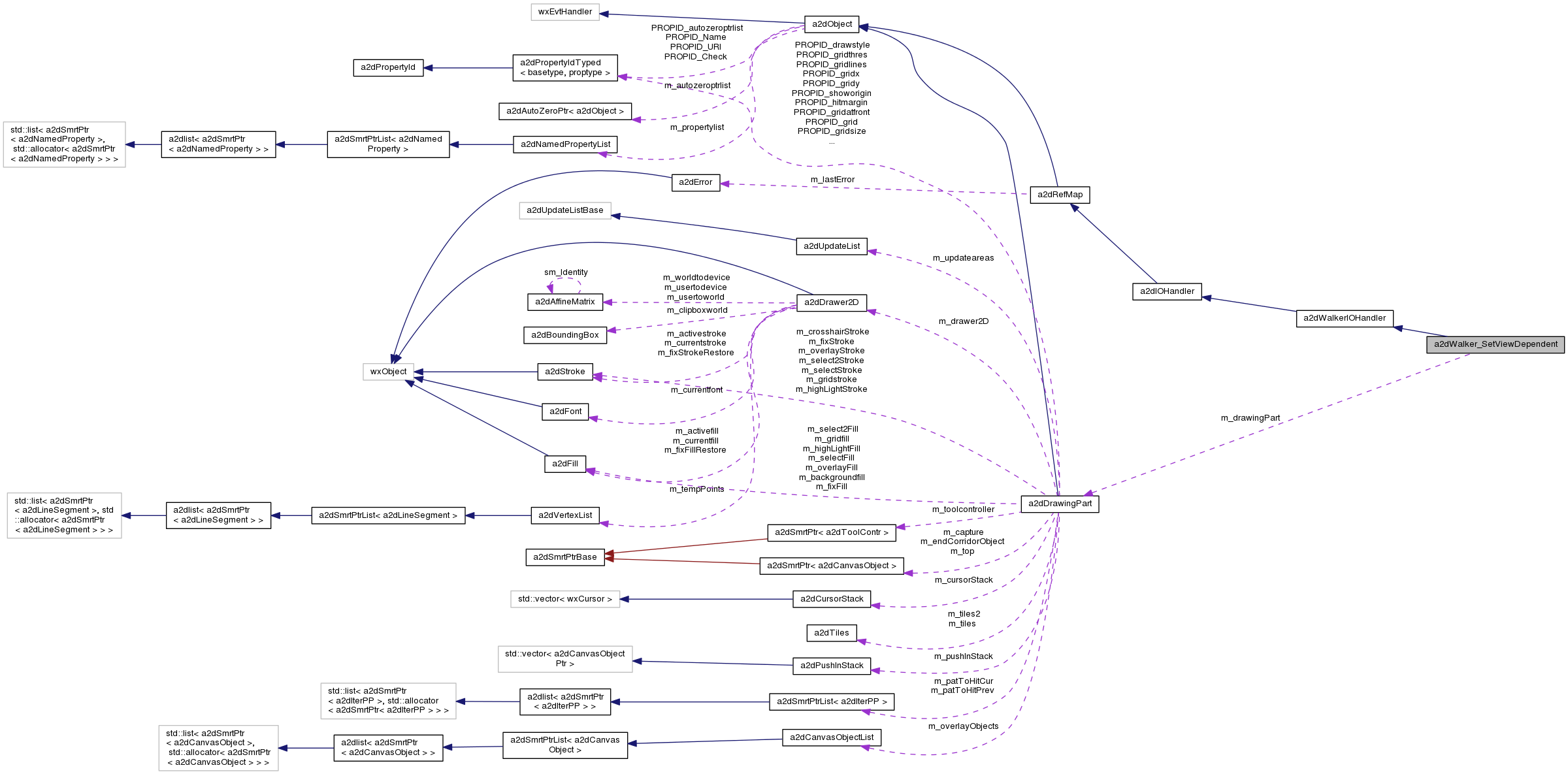

Collaboration diagram for a2dWalker_SetViewDependent:

[legend]

List of all members.

Public Member Functions
	a2dWalker_SetViewDependent (a2dCanvasView *aView, bool viewdependent, bool viewspecific=false, bool onlyinternalarea=false)
	constructor
	~a2dWalker_SetViewDependent ()
	destructor
bool	Start (a2dCanvasObject *object)
void	Initialize ()
	to initialize a walker class, default does nothing.
virtual bool	WalkTask (wxObject *parent, wxObject *object, a2dWalkEvent event)
	called from within a2dDocument
Public Attributes
a2dCanvasView *	m_aView
	which view to set view dependent
bool	m_viewdependent
	on/off for view dependent updating
bool	m_viewspecific
	set only visible for this view
bool	m_onlyinternalarea
	transform without scale for children

---

Detailed Description

set the a2dCanvasObject's view dependent

Definition at line 571 of file algos.h.

---

Constructor & Destructor Documentation

a2dWalker_SetViewDependent::a2dWalker_SetViewDependent	(	a2dCanvasView *	aView,
		bool	viewdependent,
		bool	viewspecific = false,
		bool	onlyinternalarea = false
	)

constructor

Parameters:

	aView	view for adding next properties on this object and maybe its children.
	viewdependent	if true then to add property 'PROPID_viewDependent' to objects that are depend on 'aView' view when it comes to size. Else to remove this property.
	viewspecific	if true then to add property 'PROPID_viewSpecific' to objects that are only visible on 'aView' view. Else to remove this property to make visible on all views.
	onlyinternalarea	Remove scale in matrix for children objects.

Definition at line 743 of file algos.cpp.

---

The documentation for this class was generated from the following files:

• algos.h
• algos.cpp
