a2dIOHandlerXMLWrite Class Reference

for writing XML files. More...

#include <genxmlpars.h>

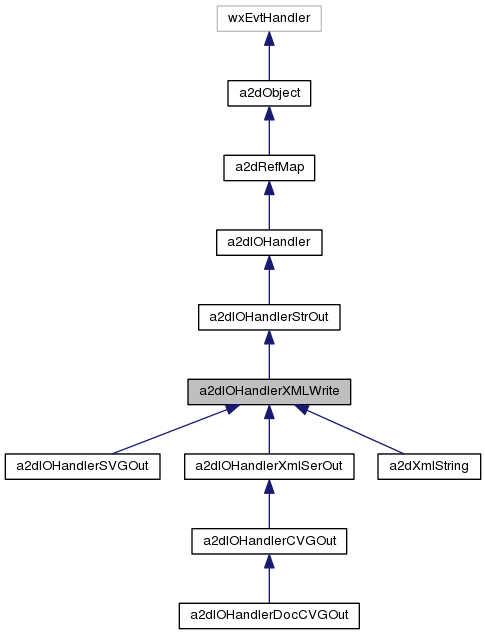

Inheritance diagram for a2dIOHandlerXMLWrite:

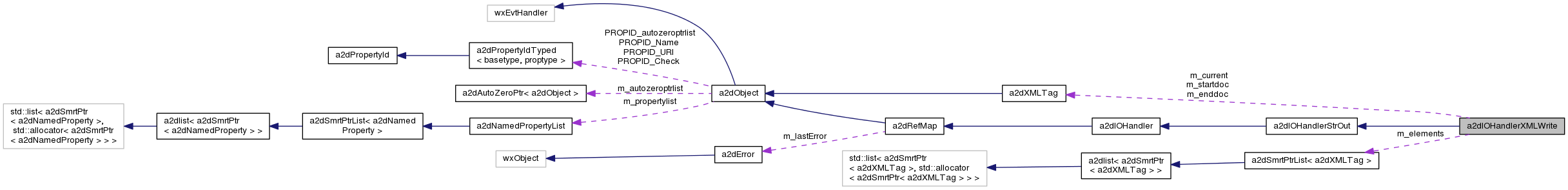

Collaboration diagram for a2dIOHandlerXMLWrite:

Public Member Functions
	a2dIOHandlerXMLWrite ()
	Constructor.
	~a2dIOHandlerXMLWrite ()
	Destructor.
virtual void	InitializeSave ()
	Inits the IO handler for writing. More...
virtual void	ResetSave ()
	Reset the object after saving.
int	GetDepth ()
	Returns depth.
void	EndlWriteString (const wxString &string)
	Writes a userdefined string into document. More...
void	WriteStartDocument (const wxString &version, const wxString &encoding, bool standalone)
	Writes the XML header declaration. More...
void	WriteEndDocument ()
	Checks if all open tags are closed. More...
void	WriteStartElement (const wxString &name, bool newLine=true)
	Writes start tag which has no attributes. More...
void	WriteStartElementAttributes (const wxString &name, bool newLine=true)
	Writes start tag which has attributes. More...
void	WriteStartElement (const a2dXMLTag &tag, bool newLine=true)
	Writes start tag.
void	WriteElement (const wxString &name, const wxString &content=wxT(""), bool newLine=true)
	Writes start and end tag. More...
template<typename w_TypeRef >
void	WriteAttribute (const wxString &name, const w_TypeRef &value)
void	WriteAttribute (const wxString &name, const size_t &value)
void	WriteAttributeEnt (const wxString &name, const wxString &value)
void	WriteAttribute (const wxString &name, bool value, bool onlyIfTrue=false)
	Writes an attribute with boolean value. More...
void	WriteAttribute (const a2dNamedProperty &attribute)
	Writes an a2dXMLAttribute.
void	WriteEndAttributes (bool close=false)
	"Closes" the start tag after writing all attributes (writes the ">" or "/>" bracket). More...
void	WriteEndElement (bool newLine=true)
	Writes correspondending end tag for the current start tag. More...
void	WriteContent (const wxString &content)
	Writes content between start and end tag. More...
void	WriteNewLine ()
	Writes a new line and takes care of indentation.
void	SetIndentSize (int size)
	number of spaces in one indentation
virtual int	GetCurrentColumnNumber ()
virtual int	GetCurrentLineNumber ()
void	XmlEncodeStringToStream (const wxChar *string, size_t len=wxString::npos)
void	SetFormat (const wxString &format)
	set the format for double to be this
virtual void	WriteDouble (double d)
	write a double number.
void	WriteStringEnt (const wxString &string)
a2dIOHandlerXMLWrite &	operator<< (const wxInt16 &c)
a2dIOHandlerXMLWrite &	operator<< (const wxInt32 &c)
a2dIOHandlerXMLWrite &	operator<< (const wxInt64 &c)
a2dIOHandlerXMLWrite &	operator<< (const wxUint16 &c)
a2dIOHandlerXMLWrite &	operator<< (const wxUint32 &c)
a2dIOHandlerXMLWrite &	operator<< (const wxUint64 &c)
a2dIOHandlerXMLWrite &	operator<< (const double &f)
a2dIOHandlerXMLWrite &	operator<< (const float &f)
a2dIOHandlerXMLWrite &	operator<< (const wxChar *string)
a2dIOHandlerXMLWrite &	operator<< (const wxString &string)
a2dIOHandlerXMLWrite &	operator<< (char c)
void	SetScale (double scale)
double	GetScale ()
	See GetScale()
void	SetIndent (int indent)
int	GetIndent ()
Public Member Functions inherited from a2dIOHandlerStrOut
	a2dIOHandlerStrOut (wxMBConv &conv=wxConvUTF8)
	constructor
	~a2dIOHandlerStrOut ()
	destructor
virtual bool	CanSave (const wxObject *obj=NULL)=0
	Should return true if the handler can write this document to a stream. More...
virtual bool	Save (a2dDocumentOutputStream &stream, const wxObject *obj)=0
	Override to write to the stream and store (part of) of the document contents in the stream. More...
void	SetFileName (const wxFileName &filename)
const wxFileName &	GetFileName () const
Public Member Functions inherited from a2dIOHandler
	a2dIOHandler ()
	constructor
	~a2dIOHandler ()
	destructor
virtual wxObject *	CreateObject (const wxString &symbolicName)
	Creates an specific object by name. More...
Public Member Functions inherited from a2dRefMap
	a2dRefMap ()
	constructor
	~a2dRefMap ()
	destructor
virtual void	Initialize ()
	initialize mapping tables
a2dHashMapIntToObject &	GetObjectHashMap ()
	This is used to find multiple referenced objects by id.
a2dHashMapCreateObject &	GetObjectCreateHashMap ()
	has to map symbolic names to real classnames.
a2dResolveIdList &	GetResolveIdList ()
	list of not resolved objects
bool	ResolveOrAdd (a2dSmrtPtr< a2dObject > *storedHere, const wxString &id=wxT(""))
	try to resolve the object that is in storedHere when it is a reference. More...
bool	ResolveOrAdd (a2dAutoZeroPtr< a2dObject > *storedHere, const wxString &id=wxT(""))
	try to resolve the object that is in storedHere when it is a reference.
bool	ResolveOrAddLink (a2dObject *obj, const wxString &id=wxT(""))
	try to resolve an object referenced by obj using the LinkReference function
void	ResolveInform (a2dObject *obj)
	call the objects LinkReference function (ptr=0) to inform it that links are done
void	SetLastObjectLoadedId (const wxString &lastid)
	set by RefObject when finding a reference id during loading.
virtual bool	LinkReferences (bool ignoreNonResolved=false)
	link references to their destination More...
bool	RemoveReference (const wxString &idToRemove)
	remove given reference if from reference map.
a2dError	GetLastError () const
	get last error encountered
void	SetLastError (a2dError error)
	set last error encountered
Public Member Functions inherited from a2dObject
virtual bool	ProcessEvent (wxEvent &event)
bool	SearchDynamicEventTable (wxEvent &event)
void	Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)
bool	Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL)
void	ProcessConnectedEvent (wxEvent &event)
	wxCHECK_VERSION(2,9,0) More...
void	ConnectEvent (wxEventType type, wxEvtHandler *eventSink)
bool	DisconnectEvent (wxEventType type, wxEvtHandler *eventSink)
bool	DisconnectEventAll (wxEvtHandler *eventSink)
	Remove all dynamic events in classA, going to classB (eventSink) More...
	a2dObject ()
	constructor
virtual	~a2dObject ()
	destructor
void	operator= (const a2dObject &other)
	assignment operator
int	GetOwnedBy ()
	like it to be protected, but this does not work with wxList macros More...
virtual a2dObject *	SetNonDynamic ()
	Call to mark this object as non-dynamic (static/local/auto) More...
void	CheckReferences ()
	Check zero reference count and delete if count is 0. More...
a2dObject *	Clone (CloneOptions options, a2dRefMap *refs=NULL) const
	create an exact copy of this property
	a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs)
virtual wxString	GetName () const
	Returns the name of this object, if no name is given the internal id will be returned. More...
virtual void	SetName (const wxString &name)
	Creates the a2dStringProperty PROPID_Name. More...
virtual bool	IsTemporary_DontSave () const
	Check if this is a temporary object, which should not be saved.
void	SaveAsDocument (a2dIOHandlerXmlSerOut &out)
	Save this object and all below as an XML document. More...
virtual void	Save (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dObjectList *towrite)
	write all needed to an XML type of file called the CVG format More...
void	LoadFromDocument (a2dIOHandlerXmlSerIn &parser)
	Load this object and all below from an XML document. More...
virtual void	Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser)
	load object from CVG file More...
wxInt64	GetUniqueSerializationId () const
	return a unique id for this object More...
virtual bool	AlwaysWriteSerializationId () const
	If true, always write an id. More...
virtual bool	LinkReference (a2dObject *other)
	link a reference in the object to the given value More...
virtual void	ResolveInform ()
	inform an object that reference resolution was done More...
void	Walker (wxObject *parent, a2dWalkerIOHandler &handler)
	This is used to recursively walk through an object tree.
void	SetCheck (bool check)
	general flag use at will. More...
bool	GetCheck () const
	general flag use at will.
void	SetRelease (bool value)
	set release flag More...
bool	GetRelease () const
	get release flag More...
a2dAutoZeroPtr< a2dObject > **	GetAutoZeroPtrList ()
	return the list head pointer for autozero pointers to this object More...
	DECLARE_PROPERTIES ()
a2dNamedProperty *	GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	get property on this object More...
void	SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object. More...
void	SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none)
	Set the property to the this object and if enabled, to all childs and object members. More...
virtual a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none)
	Find a dynamic property with given id in the property list. More...
virtual const a2dNamedProperty *	FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const
	Find a dynamic property with given id in the property list. More...
virtual bool	HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const
	Check if the object has a property with given id and string representation. More...
virtual void	OnPropertyChanged (const a2dPropertyId *id)
	This function is called after a property changed. More...
virtual bool	EditProperties (const a2dPropertyId *id, bool withUndo=true)
	edit properties of the object More...
void	TakeOverProperties (a2dObject *from, a2dPropertyIdList *listOfIds)
	Properties in the id list are taken from the given object, en set to this. More...
wxURI	GetURI () const
	quick way to get to PROPID_URI property More...
void	SetURI (const wxURI &url)
	quickly set a property PROPID_URI More...
const a2dNamedPropertyList &	GetPropertyList () const
	Get the Property List. More...
bool	HasDynamicProperties () const
	test if there are dynamic properties in the m_propertylist
virtual bool	RemoveProperty (const a2dPropertyId *id, bool all=true)
	This function is called by a2dPropertyId to remove a property from the list. More...
void	RemoveTemporaryProperties ()
	remove all temporary properties
virtual bool	AddProperty (a2dNamedProperty *property)
	This function is called by a2dPropertyId to add a property to the list. More...

Protected Member Functions
void	WriteIndent ()
Protected Member Functions inherited from a2dIOHandlerStrOut
void	SetMode (wxEOL mode=wxEOL_NATIVE)
	define the line end mode for textual files
wxEOL	GetMode ()
	get line end mode for textual files
void	Write32 (wxUint32 i)
	write a 32 bits integer
void	Write16 (wxUint16 i)
	write a 16 bits integer
void	Write8 (wxUint8 i)
	write a 8 bits integer
virtual void	WriteString (const wxString &string)
	write a string
bool	IsOk () const
	is the stream Oke to write
a2dIOHandlerStrOut &	PutChar (wxChar c)
	write on character
Protected Member Functions inherited from a2dObject
virtual bool	DoIgnoreIfNotMember (const a2dPropertyId *id) const
	used to decide if a property shall be ignored, if it is not a member More...
virtual void	DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
	iterate over this object and its children More...

Protected Attributes
wxString	m_format
int	m_indent
int	m_indentSize
int	m_depth
double	m_scale
a2dSmrtPtrList< a2dXMLTag >	m_elements
	queue of begin and end elements tags not yet processed
a2dXMLTag *	m_startdoc
a2dXMLTag *	m_enddoc
a2dXMLTag *	m_current
	current XML tag
Protected Attributes inherited from a2dIOHandlerStrOut
wxFileName	m_filename
wxMBConv &	m_conv
	unicode conversion
a2dDocumentOutputStream *	m_streamo
	file or other string stream containing the format to output to.
wxEOL	m_mode
	end of line mode
Protected Attributes inherited from a2dRefMap
a2dHashMapIntToObject	m_objecthashmap
	This is used to find multiple referenced objects by id.
a2dHashMapCreateObject	m_objectCreate
	This is used to find a classname using a symbolic name.
a2dResolveIdList	m_toResolve
	refernces to object which have not bin resolved yet ( e.g not read yet, but already referenced )
wxString	m_lastObjectId
a2dError	m_lastError
	set to last error found when parsing
Protected Attributes inherited from a2dObject
a2dNamedPropertyList	m_propertylist
	properties
int	m_refcount
	how many references to this object do exist
bool	m_check: 1
	used for linking multiple referenced objects when serializing
bool	m_release: 1
	when set object is treated as being deleted, and wil be deleted in idle time.
bool	m_recursion_active: 1
	this is used as a recursion stopper
bool	m_pendingDisconnects: 1
unsigned int	m_iteratorCount
a2dAutoZeroPtr< a2dObject > *	m_autozeroptrlist
	this is a list of all a2dAutoZeroPtr object pointing to this object

Additional Inherited Members
Public Types inherited from a2dObject
enum	CloneOptions {   clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008,   clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080,   clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members | clone_properties | clone_childs }
	options for cloning More...
typedef a2dAutoZeroPtr< a2dObject >	TAutoZeroPtrListClass
	this is needed inside the smart pointer template code
Static Public Attributes inherited from a2dObject
static a2dPropertyIdBool *	PROPID_Check = NULL
	used for linking multiple referenced objects when serializing
static a2dPropertyIdUri *	PROPID_URI = NULL
	attach an URL to the object
static a2dPropertyIdString *	PROPID_Name = NULL
	Name property, to return name of this object.
static a2dPropertyIdVoidPtr *	PROPID_autozeroptrlist = NULL
static const a2dSignal	sm_Edit_properties = wxNewId()
	edit properties event, see EditProperties()
Protected Types inherited from a2dObject
enum	{ refcount_nondynamic = 0x76543210 }
	special refcount value for non-dynamic objects

Detailed Description

for writing XML files.

basic function for writing tags and attributes to a stream.

Definition at line 576 of file genxmlpars.h.

Member Function Documentation

void a2dIOHandlerXMLWrite::EndlWriteString

(

const wxString &

string

)

Writes a userdefined string into document.

The string might be a comment or a DTD declaration.

Remarks

There's no check if it's a valid XML-syntax conform string. Use this method with care.

Parameters

string

the string to write

newLine is a line break before string

Definition at line 908 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::InitializeSave ( )

virtual

Inits the IO handler for writing.

See Also

a2dIOHandlerXML::InitializeSave for description and remarks

Reimplemented from a2dIOHandlerStrOut.

Definition at line 695 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::SetScale ( double  scale )

inline

Scale factor to scale output numbers (int double etc. ) with this. This can be used by a derived IO handler to scale output numbers.

Definition at line 781 of file genxmlpars.h.

void a2dIOHandlerXMLWrite::WriteAttribute	(	const wxString &	name,
		bool	value,
		bool	onlyIfTrue = false
	)

Writes an attribute with boolean value.

The boolean value will be written lower-case ("true" / "false")

See Also

WriteStartElementAttributes

Parameters

name	the attribute name
value	the attribute value
onlyIfTrue	if true the attribute is only written when value is true.

Definition at line 806 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteContent

(

const wxString &

content

)

Writes content between start and end tag.

Parameters

content

the content of the current tag

Definition at line 884 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteElement	(	const wxString &	name,
		const wxString &	content = wxT( "" ),
		bool	newLine = true
	)

Writes start and end tag.

This method writes a complete set of tags

Parameters

name	the tag name
content	the content between the start an end tag
newLine	true if there should be a line break before the tag, else false

Definition at line 794 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteEndAttributes

(

bool

close = false

)

"Closes" the start tag after writing all attributes (writes the ">" or "/>" bracket).

Parameters

close

If set to true a "/>" (short tag) will be written, else ">"

See Also

WriteStartElementAttributes

Definition at line 837 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteEndDocument

(

)

Checks if all open tags are closed.

This method does not write anything, but checks if there're open tags with no close tag and gives an ASSERT msg.

This method is very useful for debuging proposes and should be called.

Definition at line 730 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteEndElement

(

bool

newLine = true

)

Writes correspondending end tag for the current start tag.

Parameters

newLine

true if there should be a line break before the tag, else false

Definition at line 862 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteStartDocument	(	const wxString &	version,
		const wxString &	encoding,
		bool	standalone
	)

Writes the XML header declaration.

Each XML document should begin with a XML header / prolog, which informes about the XML version and the document encoding.

Remarks

It's highly recommended, that you write this header, otherwise you might run into troubles.

Parameters

version	the XML version (currently only "1.0" is valid)
encoding	the encoding of the document
standalone	true if it's a standalone xml doc, else false to indicate that it has an external DTD

Definition at line 723 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteStartElement	(	const wxString &	name,
		bool	newLine = true
	)

Writes start tag which has no attributes.

Remarks

If the start tag should have attributes, you've to call WriteStartElementAttributes.

See Also

WriteStartElementAttributes

Parameters

name	the tag name
newLine	true if there should be a line break before the tag, else false

Definition at line 738 of file genxmlpars.cpp.

void a2dIOHandlerXMLWrite::WriteStartElementAttributes	(	const wxString &	name,
		bool	newLine = true
	)

Writes start tag which has attributes.

Remarks

Don't forget to call WriteEndAttributes when you've written all attributes.

See Also

WriteEndAttributes

Parameters

name	the tag name
newLine	true if there should be a line break before the tag, else false

Definition at line 757 of file genxmlpars.cpp.

---

The documentation for this class was generated from the following files:

• genxmlpars.h
• genxmlpars.cpp
