a2dCommand_SetCanvasProperty Class Reference

used to change a property on objects More...

#include <cancom.h>

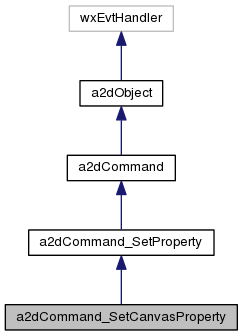

Inheritance diagram for a2dCommand_SetCanvasProperty:

[legend]

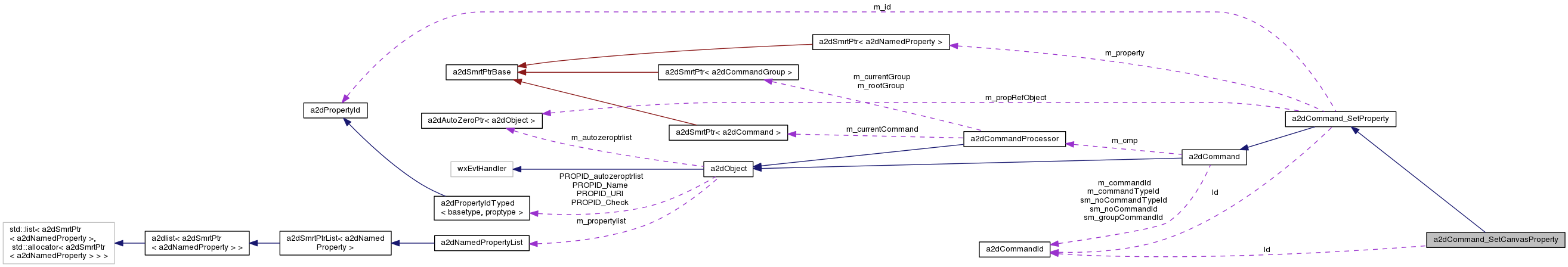

Collaboration diagram for a2dCommand_SetCanvasProperty:

[legend]

List of all members.

Public Member Functions
	a2dCommand_SetCanvasProperty (a2dPropObject *object, a2dNamedProperty *property)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdRefObject *id, a2dObject *value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdString *id, const wxString &value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdBool *id, bool value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdInt16 *id, wxInt16 value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdUint16 *id, wxUint16 value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdInt32 *id, wxInt32 value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdUint32 *id, wxUint32 value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdDouble *id, double value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdCanvasObject *id, a2dCanvasObject *value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdMatrix *id, const a2dAffineMatrix &value)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdPoint2D *id, const a2dPoint2D &point, int index=-1, bool afterinversion=true)
	Set property on object.
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdFill *id, const a2dFill &fill=*a2dNullFILL)
	a2dCommand_SetCanvasProperty (a2dPropObject *object, const a2dPropertyIdStroke *id, const a2dStroke &stroke=*a2dNullSTROKE)
virtual a2dCommand *	CloneAndBind (a2dPropObject *object)
	Copy and instantiate the command.
bool	Do ()
bool	Undo ()
a2dCanvasCommandProcessor *	GetCanvasCmp ()
Static Public Attributes
static const a2dCommandId	Id

---

Detailed Description

used to change a property on objects

A a2dObject property is set on the a2dPropObject, and the first property on the a2dPropObject with the same name is used for undo. If the property was not yet set for the object, in Undo the new property is just removed, else the old value is restored.

Definition at line 1451 of file cancom.h.

---

Constructor & Destructor Documentation

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		a2dNamedProperty *	property
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	property	the property to set

Definition at line 1470 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdRefObject *	id,
		a2dObject *	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1481 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdString *	id,
		const wxString &	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1493 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdBool *	id,
		bool	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1505 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdInt16 *	id,
		wxInt16	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1517 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdUint16 *	id,
		wxUint16	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1529 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdInt32 *	id,
		wxInt32	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1541 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdUint32 *	id,
		wxUint32	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1553 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdDouble *	id,
		double	value
	)			[inline]

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	object	the canvas object to set the property on.
	id	the name of the property to set.
	value	the value to set the property to.

Definition at line 1565 of file cancom.h.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdCanvasObject *	id,
		a2dCanvasObject *	value
	)

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	id	the name of the property to set.
	value	the value to set the property to.
	object	the canvas object to set the property on.

Definition at line 3245 of file cancom.cpp.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdMatrix *	id,
		const a2dAffineMatrix &	value
	)

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	id	the name of the property to set.
	value	the value to set the property to.
	object	the canvas object to set the property on.

Definition at line 3257 of file cancom.cpp.

a2dCommand_SetCanvasProperty::a2dCommand_SetCanvasProperty	(	a2dPropObject *	object,
		const a2dPropertyIdPoint2D *	id,
		const a2dPoint2D &	point,
		int	index = -1,
		bool	afterinversion = true
	)

Set property on object.

The property its name is used for undo, and restore the old value if available.

Parameters:

	id	the name of the property to set.
	point	the point for the internal a2dPoint2DProperty
	index	the index for the internal a2dPoint2DProperty
	afterinversion	the afterinversion for the internal a2dPoint2DProperty
	object	the canvas object to set the property on.

Definition at line 3269 of file cancom.cpp.

---

Member Function Documentation

a2dCommand * a2dCommand_SetCanvasProperty::CloneAndBind

(

a2dPropObject *

object

)

[virtual]

Copy and instantiate the command.

This is usefull for commands that are used as command templates in widgets. The widget owns a command template, that is not bound to an object. This function clones the command object and binds it to the given object.

\param object for which the command is to be generated.

Reimplemented from a2dCommand.

Definition at line 3299 of file cancom.cpp.

---

The documentation for this class was generated from the following files:

• cancom.h
• cancom.cpp
