a2dIOHandlerKeyIn Class Reference
[File IO]
Input driver for KEY format files.
More...
#include <keyio.h>

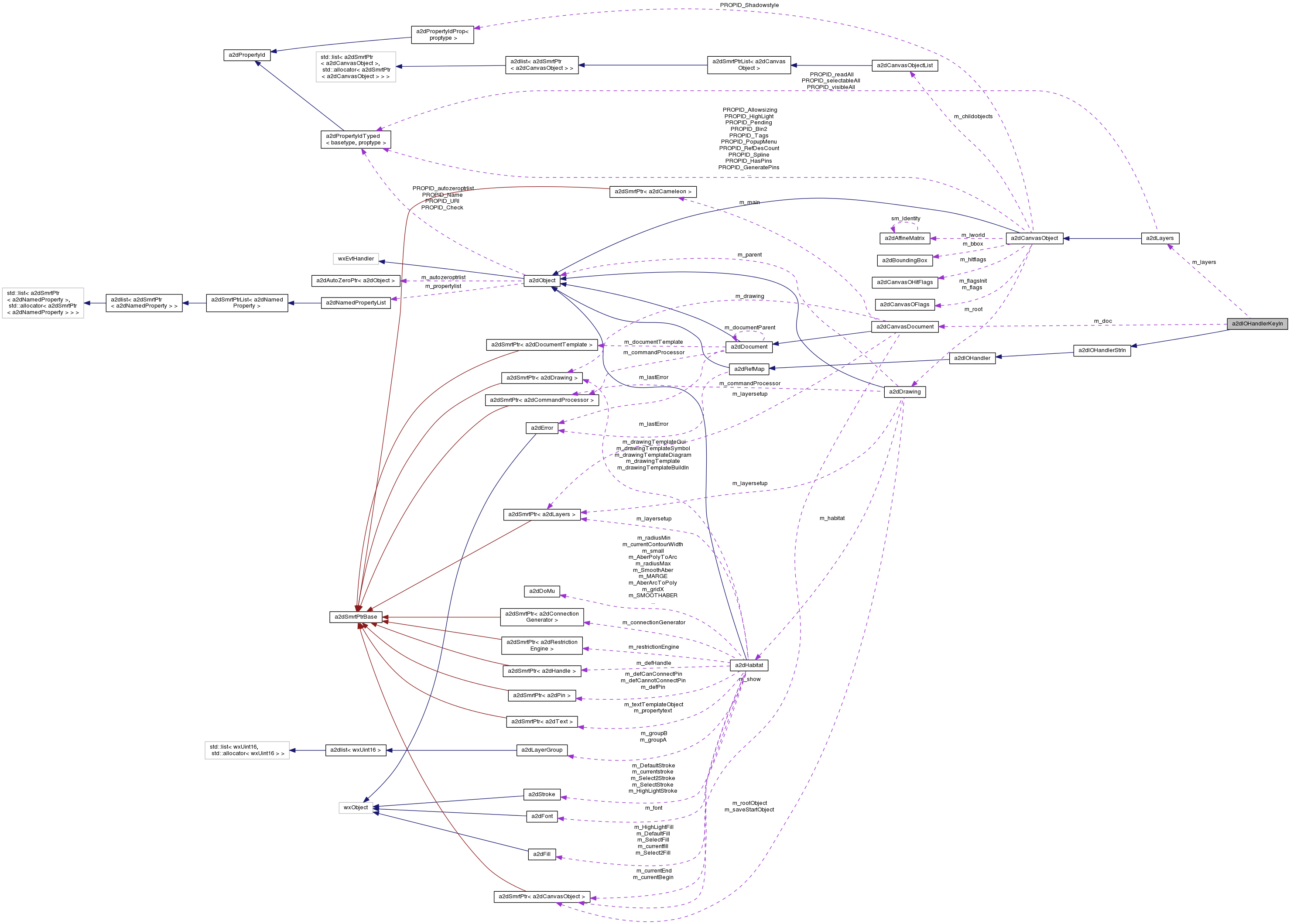

Public Member Functions | |
| bool | LinkReferences () |
| link references to their destination | |
| wxChar | PeekNextC () |
| void | IncC () |
| virtual bool | CanLoad (a2dDocumentInputStream &stream, const wxObject *obj=NULL, wxClassInfo *docClassInfo=NULL) |
| Should return true if the handler can read from the stream. | |
| virtual bool | Load (a2dDocumentInputStream &stream, wxObject *doc) |
| override to read the stream and store (part of) the contents in to a specific a2dDocument or othere object. | |
| virtual void | InitializeLoad () |
| Inits the handler for reading. | |
| virtual void | ResetLoad () |
| Reset the handler after loading. | |
Protected Member Functions | |
| bool | GetCommand () |
| bool | NormalWord () |
| bool | QuotedString () |
| bool | BracedString () |
| bool | Comment () |
| bool | Blanks () |
| bool | Word () |
| bool | ReadItem (const wxString &type) |
| bool | SkipXYData () |
| double | ReadDouble () |
| void | SetDataTypeProperty (a2dCanvasObject *toobject, wxUint16 type) |
| set datatype of elements as a property | |
| void | ReadKey () |
| bool | ReadBgnlib () |
| bool | ReadProperties (a2dCanvasObject *parent) |
| bool | ReadBoundary (a2dCanvasObject *parent) |
| bool | ReadSurface (a2dCanvasObject *parent) |
| bool | ReadPath (a2dCanvasObject *parent) |
| bool | ReadText (a2dCanvasObject *parent) |
| bool | ReadStructureReference (a2dCanvasObject *parent) |
| bool | ReadArrayReference (a2dCanvasObject *parent) |
| bool | ReadNode (a2dCanvasObject *parent) |
| bool | ReadBox (a2dCanvasObject *parent) |
| bool | ReadCircle (a2dCanvasObject *parent) |
| bool | ReadArc (a2dCanvasObject *parent) |
| bool | ReadLine (a2dCanvasObject *parent) |
| bool | ReadImage (a2dCanvasObject *parent) |
| bool | ReadElflags (a2dCanvasObject *object) |
| bool | ReadGdsHeader () |
| bool | ReadLayer (a2dCanvasObject *object) |
| bool | ReadLibrarySettings () |
| bool | Read (a2dPoint2D &_Point) |
| bool | ReadStrans (Strans &_Strans) |
| bool | ReadStructure (a2dCanvasObject *parent) |
| bool | ReadElement (a2dCanvasObject *parent) |
| bool | ReadTextBody () |
| bool | ReadPolygon (a2dVertexList *segments) |
| bool | ReadPolyline (a2dVertexList *segments) |
| void | SetFlags (a2dCanvasObject *Element) |
Protected Attributes | |
| bool | m_back |
| last read record is stored | |
| wxString | m_keyword |
| keyword for record in KEY data | |
| wxString | m_value |
| value for record in KEY data | |
| int | m_recordtype |
| type of the record in KEY data | |
| wxUint32 | m_linenumber |
| last read line in DATA | |
| wxChar | a |
| wxString | m_error_mes |
| wxString | m_b |
| TWO_G_BYTE_UNSIGNED_INTEGER | m_recordsize |
| size of the last read record | |
| int | m_mapping [wxMAXLAYER] |
| mapping of GDSII layers to internal layers | |
| a2dCanvasDocument * | m_doc |
| the document to store/load the data found into | |
| double | m_scale_in |
| double | m_userunits_out |
| int | m_objectFlags |
| wxUint16 | m_lastElementLayer |
Detailed Description
Input driver for KEY format files.Every record in the KEY file is read/mapped into the right internal structure The KEY file is parsed according to the BNF of the KEY format. Info on the different record types that are read can be found in the KEY format manual All basic data types are read using a specialized function that now how those types are stored in KEY. For layers settings this handler checks for a file with the same name as the document that is loaded, but with extension ".cvg", if it does exist it will be used to read layers (in CVG format).
Definition at line 43 of file keyio.h.
Member Function Documentation
| bool a2dIOHandlerKeyIn::LinkReferences | ( | ) | [virtual] |
link references to their destination
Override this to define input format specific needs for linking references in a certain format. In the default situation the parser uses m_objecthashmap to store object to which references can be made, while m_lastObjectId is used to store unresolved references. Here those to are resolved.
In the CVG format one can store multiple refrences to one and the same object. The object that is referenced is only written once, for the other references only the object with refid or specific id attributes are written to the CVG file. When loading a file in CVG, such references are resolved and removed from the document. So in the end the old reference is restored. When loading an object, it is created, but its contents will be empty, after resolving, this one will be replaced by the real referenced object. The reason behind all this, is that the actual object might need to be read yet, when a reference is encountered in the CVG file, and therefore the link can not be directly created. In other formats references are used in a simular manner, and to resolve them the same mechanism is used.
Some input/ouput formats are organized in a list of grouped objects, the hierarchy is created after the whole file is read into memory. All non referenced objects are direct childs of the rootobject. In the GDSII format these are called top structures.
- Returns:
- true if all references were resolved.
Reimplemented from a2dIOHandler.
| bool a2dIOHandlerKeyIn::CanLoad | ( | a2dDocumentInputStream & | stream, | |
| const wxObject * | obj = NULL, |
|||
| wxClassInfo * | docClassInfo = NULL | |||
| ) | [virtual] |
Should return true if the handler can read from the stream.
A typical implementation is to read the first part of the file, to see if the contents is right for this handler. Then it resets the file pointer to the beginning again.
In general a handler is written with a certain type of document in mind, since that is where the information will be stored. The document view framework, uses document templates to get to input handlers. The last 2 parameters can be checked if set. Use SetDocumentClassInfo() to set the right classinfo, in case of a derived document object, which still can be read with the this handler. Like:
a2dIOHandlerKeyIn* keyhin = new a2dIOHandlerKeyIn(); keyhin->SetDocumentClassInfo( &MyDocument::ms_classInfo );
- Parameters:
-
stream the open stream which its header can be tested obj to check and load the data into, needs to be casted to the right one internal. docClassInfo to check if the inout handler is indeed able to read document of m_docClassInfo.
Implements a2dIOHandlerStrIn.
| bool a2dIOHandlerKeyIn::Load | ( | a2dDocumentInputStream & | stream, | |
| wxObject * | obj | |||
| ) | [virtual] |
override to read the stream and store (part of) the contents in to a specific a2dDocument or othere object.
Understand that a a2dDocument itself is useless for storing data, so it needs to be casted internal.
- Parameters:
-
stream the open stream to load from obj to load the data into, needs to be casted to the right one internal.
Implements a2dIOHandlerStrIn.
The documentation for this class was generated from the following files:
