Output driver for GDSII files. More...
#include <gdsio.h>

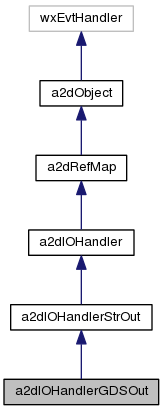

Inheritance diagram for a2dIOHandlerGDSOut:

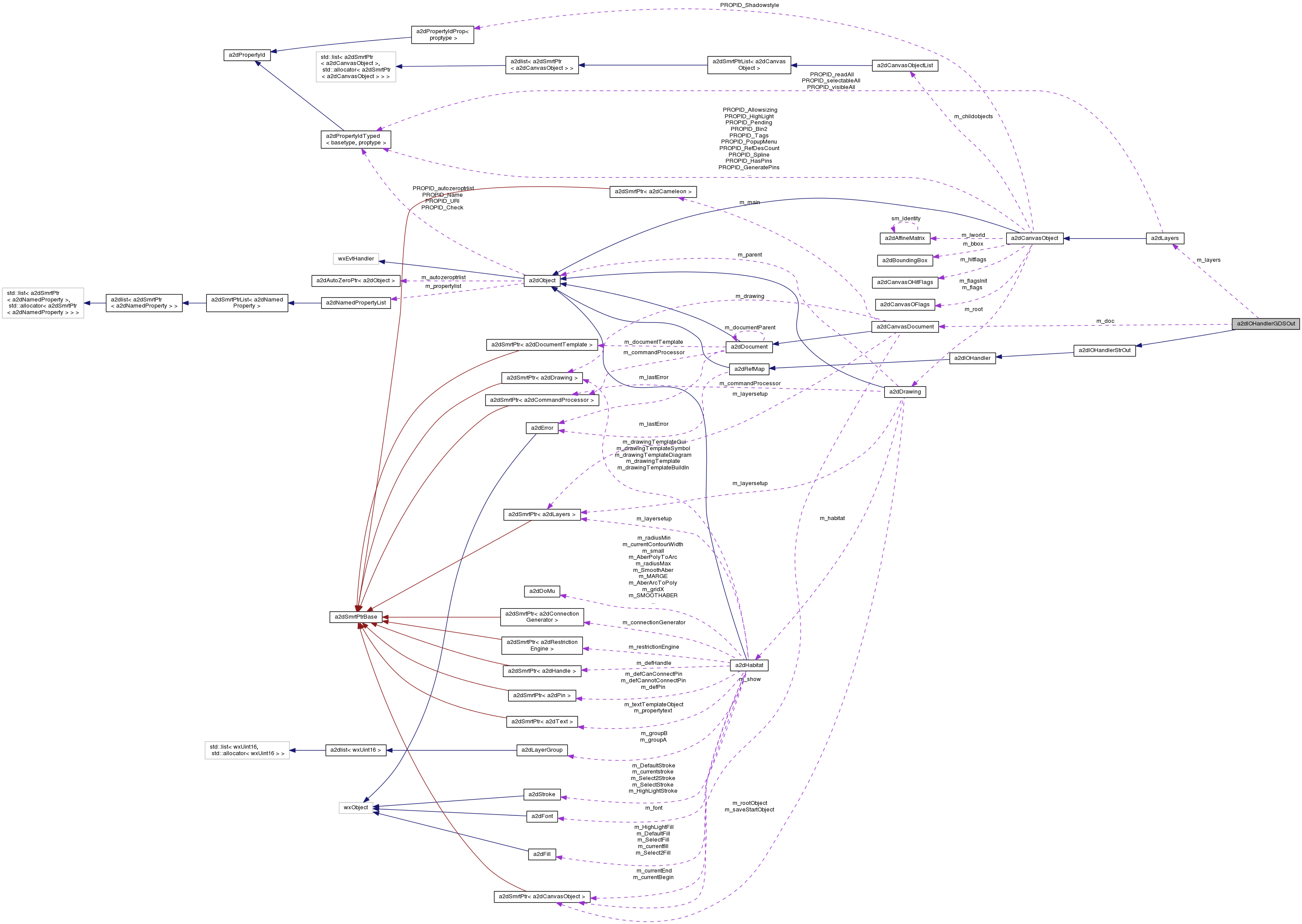

Collaboration diagram for a2dIOHandlerGDSOut:
Public Member Functions | |
| bool | CanSave (const wxObject *obj=NULL) |
| Should return true if the handler can write this document to a stream. More... | |
| virtual bool | Save (a2dDocumentOutputStream &stream, const wxObject *doc) |
| Override to write to the stream and store (part of) of the document contents in the stream. More... | |
| virtual void | InitializeSave () |
| Inits the handler for writing. | |
| virtual void | ResetSave () |
| Reset the object after saving. | |
| void | SetReadAsCameleon (bool asCameleons) |
| bool | GetReadAsCameleon () |
| void | SetSaveTextAsVpath (bool textAsPath) |
| if set text will be converted to a vectorpath, and as polygons and polylines. | |
| bool | GetSaveTextAsVpath () |
| /see SetSaveTextAsVpath() | |
| void | SetFromViewAsTop (bool fromViewAsTop) |
| if set, the current view its ShowObject will be saved top down. | |
| bool | GetFromViewAsTop () |
| /see SetFromViewAsTop() | |
 Public Member Functions inherited from a2dIOHandlerStrOut | |
| a2dIOHandlerStrOut (wxMBConv &conv=wxConvUTF8) | |
| constructor | |
| ~a2dIOHandlerStrOut () | |
| destructor | |
| void | SetFileName (const wxFileName &filename) |
| const wxFileName & | GetFileName () const |
| Public Member Functions inherited from a2dIOHandler | |
| a2dIOHandler () | |
| constructor | |
| ~a2dIOHandler () | |
| destructor | |
| virtual wxObject * | CreateObject (const wxString &symbolicName) |
| Creates an specific object by name. More... | |
| Public Member Functions inherited from a2dRefMap | |
| a2dRefMap () | |
| constructor | |
| ~a2dRefMap () | |
| destructor | |
| virtual void | Initialize () |
| initialize mapping tables | |
| a2dHashMapIntToObject & | GetObjectHashMap () |
| This is used to find multiple referenced objects by id. | |
| a2dHashMapCreateObject & | GetObjectCreateHashMap () |
| has to map symbolic names to real classnames. | |
| a2dResolveIdList & | GetResolveIdList () |
| list of not resolved objects | |
| bool | ResolveOrAdd (a2dSmrtPtr< a2dObject > *storedHere, const wxString &id=wxT("")) |
| try to resolve the object that is in storedHere when it is a reference. More... | |
| bool | ResolveOrAdd (a2dAutoZeroPtr< a2dObject > *storedHere, const wxString &id=wxT("")) |
| try to resolve the object that is in storedHere when it is a reference. | |
| bool | ResolveOrAddLink (a2dObject *obj, const wxString &id=wxT("")) |
| try to resolve an object referenced by obj using the LinkReference function | |
| void | ResolveInform (a2dObject *obj) |
| call the objects LinkReference function (ptr=0) to inform it that links are done | |
| void | SetLastObjectLoadedId (const wxString &lastid) |
| set by RefObject when finding a reference id during loading. | |
| virtual bool | LinkReferences (bool ignoreNonResolved=false) |
| link references to their destination More... | |
| bool | RemoveReference (const wxString &idToRemove) |
| remove given reference if from reference map. | |
| a2dError | GetLastError () const |
| get last error encountered | |
| void | SetLastError (a2dError error) |
| set last error encountered | |
| Public Member Functions inherited from a2dObject | |
| virtual bool | ProcessEvent (wxEvent &event) |
| bool | SearchDynamicEventTable (wxEvent &event) |
| void | Connect (int winid, int lastId, int eventType, wxObjectEventFunction func, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL) |
| bool | Disconnect (int winid, int lastId, wxEventType eventType, wxObjectEventFunction func=NULL, wxObject *userData=(wxObject *) NULL, wxEvtHandler *eventSink=(wxEvtHandler *) NULL) |
| void | ProcessConnectedEvent (wxEvent &event) |
| wxCHECK_VERSION(2,9,0) More... | |
| void | ConnectEvent (wxEventType type, wxEvtHandler *eventSink) |
| bool | DisconnectEvent (wxEventType type, wxEvtHandler *eventSink) |
| bool | DisconnectEventAll (wxEvtHandler *eventSink) |
| Remove all dynamic events in classA, going to classB (eventSink) More... | |
| a2dObject () | |
| constructor | |
| virtual | ~a2dObject () |
| destructor | |
| void | operator= (const a2dObject &other) |
| assignment operator | |
| int | GetOwnedBy () |
| like it to be protected, but this does not work with wxList macros More... | |
| virtual a2dObject * | SetNonDynamic () |
| Call to mark this object as non-dynamic (static/local/auto) More... | |
| void | CheckReferences () |
| Check zero reference count and delete if count is 0. More... | |
| a2dObject * | Clone (CloneOptions options, a2dRefMap *refs=NULL) const |
| create an exact copy of this property | |
| a2dObject (const a2dObject &other, CloneOptions options, a2dRefMap *refs) | |
| virtual wxString | GetName () const |
| Returns the name of this object, if no name is given the internal id will be returned. More... | |
| virtual void | SetName (const wxString &name) |
| Creates the a2dStringProperty PROPID_Name. More... | |
| virtual bool | IsTemporary_DontSave () const |
| Check if this is a temporary object, which should not be saved. | |
| void | SaveAsDocument (a2dIOHandlerXmlSerOut &out) |
| Save this object and all below as an XML document. More... | |
| virtual void | Save (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dObjectList *towrite) |
| write all needed to an XML type of file called the CVG format More... | |
| void | LoadFromDocument (a2dIOHandlerXmlSerIn &parser) |
| Load this object and all below from an XML document. More... | |
| virtual void | Load (wxObject *parent, a2dIOHandlerXmlSerIn &parser) |
| load object from CVG file More... | |
| wxInt64 | GetUniqueSerializationId () const |
| return a unique id for this object More... | |
| virtual bool | AlwaysWriteSerializationId () const |
| If true, always write an id. More... | |
| virtual bool | LinkReference (a2dObject *other) |
| link a reference in the object to the given value More... | |
| virtual void | ResolveInform () |
| inform an object that reference resolution was done More... | |
| void | Walker (wxObject *parent, a2dWalkerIOHandler &handler) |
| This is used to recursively walk through an object tree. | |
| void | SetCheck (bool check) |
| general flag use at will. More... | |
| bool | GetCheck () const |
| general flag use at will. | |
| void | SetRelease (bool value) |
| set release flag More... | |
| bool | GetRelease () const |
| get release flag More... | |
| a2dAutoZeroPtr< a2dObject > ** | GetAutoZeroPtrList () |
| return the list head pointer for autozero pointers to this object More... | |
| DECLARE_PROPERTIES () | |
| a2dNamedProperty * | GetProperty (const a2dPropertyId *propertyId, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const |
| get property on this object More... | |
| void | SetProperty (a2dNamedProperty *propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none) |
| Set the property to the this object. More... | |
| void | SetProperty (const a2dNamedProperty &propertyHolder, a2dPropertyId::SetFlags flags=a2dPropertyId::set_none) |
| Set the property to the this object and if enabled, to all childs and object members. More... | |
| virtual a2dNamedProperty * | FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) |
| Find a dynamic property with given id in the property list. More... | |
| virtual const a2dNamedProperty * | FindProperty (const a2dPropertyId *id, a2dPropertyId::Flags flags=a2dPropertyId::flag_none) const |
| Find a dynamic property with given id in the property list. More... | |
| virtual bool | HasProperty (const a2dPropertyId *id, const wxString &stringvalue=wxEmptyString) const |
| Check if the object has a property with given id and string representation. More... | |
| virtual void | OnPropertyChanged (const a2dPropertyId *id) |
| This function is called after a property changed. More... | |
| virtual bool | EditProperties (const a2dPropertyId *id, bool withUndo=true) |
| edit properties of the object More... | |
| void | TakeOverProperties (a2dObject *from, a2dPropertyIdList *listOfIds) |
| Properties in the id list are taken from the given object, en set to this. More... | |
| wxURI | GetURI () const |
| quick way to get to PROPID_URI property More... | |
| void | SetURI (const wxURI &url) |
| quickly set a property PROPID_URI More... | |
| const a2dNamedPropertyList & | GetPropertyList () const |
| Get the Property List. More... | |
| bool | HasDynamicProperties () const |
| test if there are dynamic properties in the m_propertylist | |
| virtual bool | RemoveProperty (const a2dPropertyId *id, bool all=true) |
| This function is called by a2dPropertyId to remove a property from the list. More... | |
| void | RemoveTemporaryProperties () |
| remove all temporary properties | |
| virtual bool | AddProperty (a2dNamedProperty *property) |
| This function is called by a2dPropertyId to add a property to the list. More... | |
Protected Member Functions | |
| unsigned int | ReadUnsignedInt () |
| int | ReadInt () |
| long | ReadLong () |
| float | ReadFloat () |
| double | ReadDouble () |
| void | WriteByte (G_BYTE ch) |
| void | WriteUnsignedInt (TWO_G_BYTE_UNSIGNED_INTEGER i) |
| void | WriteInt (TWO_G_BYTE_SIGNED_INTEGER i) |
| void | WriteLong (FOUR_G_BYTE_SIGNED_INTEGER i) |
| void | WriteFloat (FOUR_G_BYTE_REAL i) |
| void | WriteDouble (EIGHT_G_BYTE_REAL i) |
| void | Write (Strans *Strans) |
| void | WriteHeader (TWO_G_BYTE_UNSIGNED_INTEGER nw_recordsize, G_BYTE nw_datatype, G_BYTE nw_recordtype) |
| void | WriteString (const wxString &a_string) |
| write a string | |
| void | SetFlags (a2dCanvasObject *Element) |
| void | WritePoint (double xi, double yi) |
| void | WriteVpath (const a2dAffineMatrix &lworld, const a2dVpath *path, int layer, int datatype, int pathtype, double width) |
| void | WritePath (const a2dAffineMatrix &lworld, a2dVertexArray *points, int layer, int datatype, int pathtype, double width) |
| void | WritePath (const a2dAffineMatrix &lworld, a2dVertexList *points, int layer, int datatype, int pathtype, double width) |
| void | WriteBoundary (const a2dAffineMatrix &lworld, a2dVertexArray *points, int layer, int datatype) |
| void | WriteBoundary (const a2dAffineMatrix &lworld, a2dVertexList *points, int layer, int datatype, bool spline=false) |
| void | SaveStructure (a2dCanvasObject *object, a2dCanvasObjectList *towrite) |
| void | Save (a2dCanvasObject *object, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dPolylineL *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dPolygonL *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dVectorPath *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dText *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dTextGDS *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dCanvasObjectReference *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dCameleonInst *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dCameleon *obj, a2dCanvasObjectList *towrite) |
| void | DoSave (a2dCanvasObjectArrayReference *obj, a2dCanvasObjectList *towrite) |
| void | double2gds (unsigned char fb[]) |
| convert a machine real to a gdsii real More... | |
| Protected Member Functions inherited from a2dIOHandlerStrOut | |
| void | SetMode (wxEOL mode=wxEOL_NATIVE) |
| define the line end mode for textual files | |
| wxEOL | GetMode () |
| get line end mode for textual files | |
| void | Write32 (wxUint32 i) |
| write a 32 bits integer | |
| void | Write16 (wxUint16 i) |
| write a 16 bits integer | |
| void | Write8 (wxUint8 i) |
| write a 8 bits integer | |
| virtual void | WriteDouble (double d) |
| write a double | |
| bool | IsOk () const |
| is the stream Oke to write | |
| a2dIOHandlerStrOut & | PutChar (wxChar c) |
| write on character | |
| Protected Member Functions inherited from a2dObject | |
| virtual bool | DoIgnoreIfNotMember (const a2dPropertyId *id) const |
| used to decide if a property shall be ignored, if it is not a member More... | |
| virtual void | DoWalker (wxObject *parent, a2dWalkerIOHandler &handler) |
| iterate over this object and its children More... | |
Protected Attributes | |
| bool | m_back |
| last read record is stored | |
| TWO_G_BYTE_UNSIGNED_INTEGER | m_recordsize |
| size of the last read record | |
| G_BYTE | m_recordtype |
| recordtype of last read record | |
| G_BYTE | m_datatype |
| the type of the data in the last read record | |
| std::vector< int > | m_mapping |
| mapping of GDSII layers to internal layers | |
| a2dCanvasDocument * | m_doc |
| the document to store/load the data found into | |
| double | m_scale_out |
| double | m_userunits_out |
| int | m_objectFlags |
| bool | m_textAsPath |
| if true, convert text to a2dVpath | |
| bool | m_fromViewAsTop |
| a2dLayers * | m_layers |
| bool | m_asCameleons |
| Protected Attributes inherited from a2dIOHandlerStrOut | |
| wxFileName | m_filename |
| wxMBConv & | m_conv |
| unicode conversion | |
| a2dDocumentOutputStream * | m_streamo |
| file or other string stream containing the format to output to. | |
| wxEOL | m_mode |
| end of line mode | |
| Protected Attributes inherited from a2dRefMap | |
| a2dHashMapIntToObject | m_objecthashmap |
| This is used to find multiple referenced objects by id. | |
| a2dHashMapCreateObject | m_objectCreate |
| This is used to find a classname using a symbolic name. | |
| a2dResolveIdList | m_toResolve |
| refernces to object which have not bin resolved yet ( e.g not read yet, but already referenced ) | |
| wxString | m_lastObjectId |
| a2dError | m_lastError |
| set to last error found when parsing | |
| Protected Attributes inherited from a2dObject | |
| a2dNamedPropertyList | m_propertylist |
| properties | |
| int | m_refcount |
| how many references to this object do exist | |
| bool | m_check: 1 |
| used for linking multiple referenced objects when serializing | |
| bool | m_release: 1 |
| when set object is treated as being deleted, and wil be deleted in idle time. | |
| bool | m_recursion_active: 1 |
| this is used as a recursion stopper | |
| bool | m_pendingDisconnects: 1 |
| unsigned int | m_iteratorCount |
| a2dAutoZeroPtr< a2dObject > * | m_autozeroptrlist |
| this is a list of all a2dAutoZeroPtr object pointing to this object | |
Additional Inherited Members | |
| Public Types inherited from a2dObject | |
| enum | CloneOptions { clone_members = 0x00000001, clone_properties = 0x00000002, clone_childs = 0x00000004, clone_unused = 0x00000008, clone_setoriginal = 0x00000010, clone_seteditcopy = 0x00000020, clone_noReference = 0x00000040, clone_noCameleonRef = 0x00000080, clone_toDrag = 0x00000100, clone_flat = 0x00000000, clone_deep = clone_members | clone_properties | clone_childs } |
| options for cloning More... | |
| typedef a2dAutoZeroPtr< a2dObject > | TAutoZeroPtrListClass |
| this is needed inside the smart pointer template code | |
| Static Public Attributes inherited from a2dObject | |
| static a2dPropertyIdBool * | PROPID_Check = NULL |
| used for linking multiple referenced objects when serializing | |
| static a2dPropertyIdUri * | PROPID_URI = NULL |
| attach an URL to the object | |
| static a2dPropertyIdString * | PROPID_Name = NULL |
| Name property, to return name of this object. | |
| static a2dPropertyIdVoidPtr * | PROPID_autozeroptrlist = NULL |
| static const a2dSignal | sm_Edit_properties = wxNewId() |
| edit properties event, see EditProperties() | |
| Protected Types inherited from a2dObject | |
| enum | { refcount_nondynamic = 0x76543210 } |
| special refcount value for non-dynamic objects | |
Detailed Description
Output driver for GDSII files.
Every record in the GDSII file is read/mapped into the right gds file structure Info on the different record types that are read can be found in the GDSII format manual
Member Function Documentation
|
virtual |
Should return true if the handler can write this document to a stream.
Mostly implemented by simply returning true if the handler can indeed do this job. Understand that a a2dDocument itself is useless for storing data, so it needs to be casted internal to a specific a2dDocument.
- Parameters
-
obj pointer to object to save, normally a document.
Implements a2dIOHandlerStrOut.
|
protected |
convert a machine real to a gdsii real
convert a machine double to gds double usage: void double2gds( fb ) input arguments : unsigned char fb[] 8byte array with machine double output arguments : unsigned char fb[] 8byte array with gds double
Important note: The number of mantissa bit in VAX representation is one less than the number of mantissa bits in GDSII representation. This routine is not able to generate the last 2 bits of the GDSII representation exactly. There does not exist a general solution for this problem!! In order to overcome the single problem that we are aware of, the UNITs record that is sometimes compared to a UNITs record, the solution is hard coded in this routine. The last 8 bits of a number representing 1E-9 result in 53, but should produce 51 (See GDSII documentation of UNIT record and the given example of it).
!! The same story holds for APOLLO and wxBIG_ENDIAN, but even worse. 1E-3 results in F0 for the last 8 bits instead of EF. Also corrected.
|
virtual |
Override to write to the stream and store (part of) of the document contents in the stream.
Understand that a a2dDocument itself is useless for storing data, so it needs to be casted internal to a specific a2dDocument.
- Parameters
-
stream the open stream to which the object needs to be saved obj object to save into stream, needs to be casted to the right one internal.
Implements a2dIOHandlerStrOut.
The documentation for this class was generated from the following files:
