a2dIOHandlerKeyOut Class Reference
[File IO]

Output driver for KEY files. More...

#include <keyio.h>

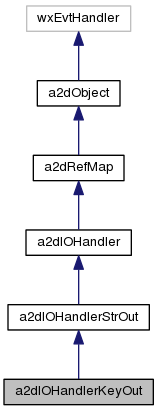

Inheritance diagram for a2dIOHandlerKeyOut:

[legend]

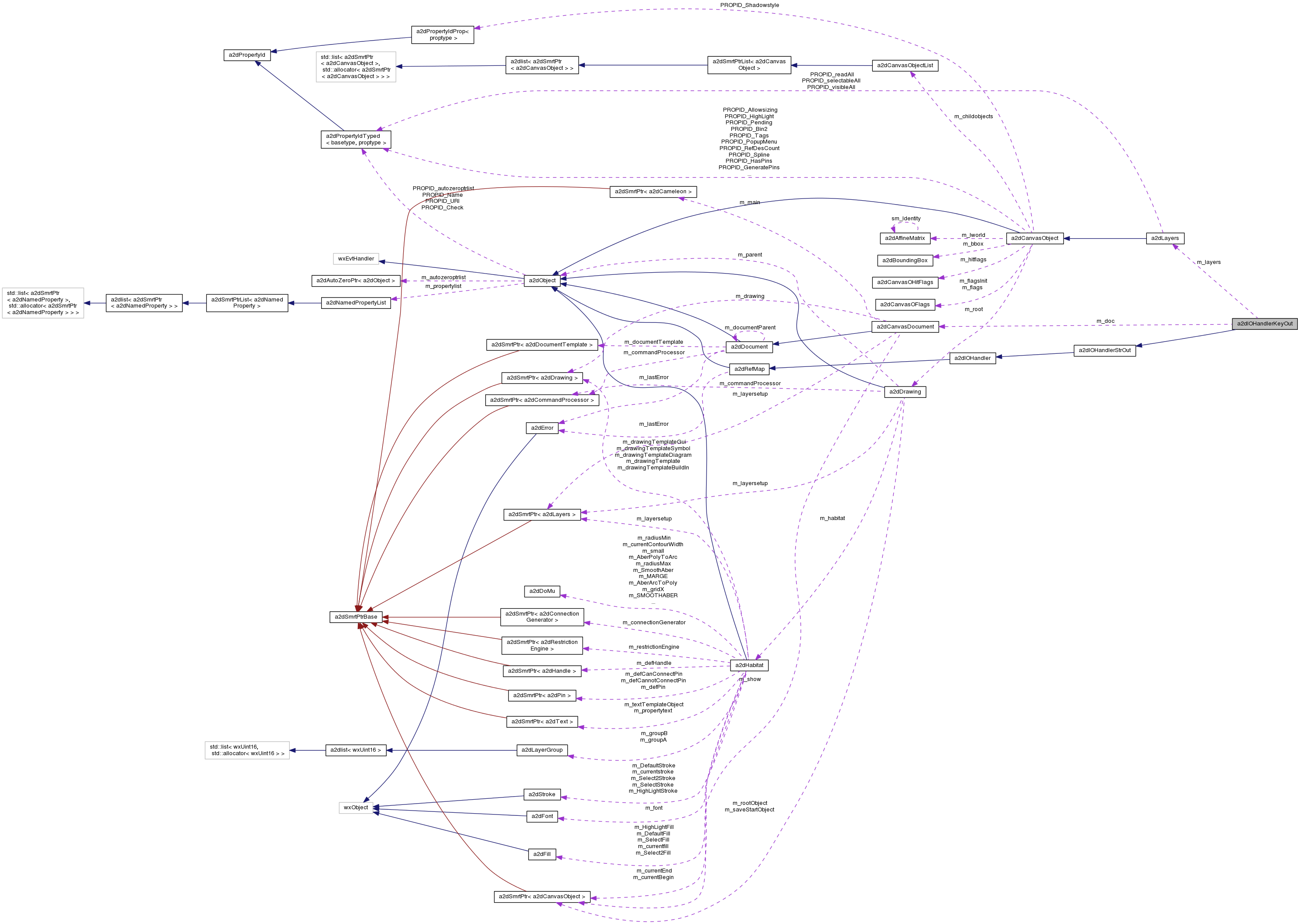

Collaboration diagram for a2dIOHandlerKeyOut:

[legend]

List of all members.

Public Member Functions
bool	LinkReferences ()
	link references to their destination
bool	CanSave (const wxObject *obj=NULL)
	Should return true if the handler can write this document to a stream.
virtual bool	Save (a2dDocumentOutputStream &stream, const wxObject *doc)
	Override to write to the stream and store (part of) of the document contents in the stream.
virtual void	InitializeSave ()
	Inits the handler for writing.
virtual void	ResetSave ()
	Reset the object after saving.
void	SetSaveTextAsVpath (bool textAsPath)
	if set text will be converted to a vectorpath, and as polygons and polylines.
bool	GetSaveTextAsVpath ()
	/see SetSaveTextAsVpath()
void	SetFormat (const wxString &format)
	set the format for double to be this
void	SetFromViewAsTop (bool fromViewAsTop)
	if set, the current view its ShowObject will be saved top down.
bool	GetFromViewAsTop ()
	/see SetFromViewAsTop()
Protected Member Functions
virtual void	WriteDouble (double d)
	write a double number.
a2dIOHandlerKeyOut &	operator<< (const wxChar *string)
a2dIOHandlerKeyOut &	operator<< (const wxString &string)
a2dIOHandlerKeyOut &	operator<< (char c)
a2dIOHandlerKeyOut &	operator<< (wxInt16 c)
a2dIOHandlerKeyOut &	operator<< (wxInt32 c)
a2dIOHandlerKeyOut &	operator<< (wxUint16 c)
a2dIOHandlerKeyOut &	operator<< (wxUint32 c)
a2dIOHandlerKeyOut &	operator<< (double f)
a2dIOHandlerKeyOut &	operator<< (float f)
const wxChar	Endl ()
void	WriteProperties (const a2dNamedPropertyList &props)
void	WriteFlags (int i)
void	Write (Strans *Strans)
void	SetFlags (a2dCanvasObject *Element)
void	WritePoint (double xi, double yi)
void	WriteSegment (const a2dAffineMatrix &lworld, a2dLineSegment *prevSegment, a2dLineSegment *Segment)
void	WriteVpath (const a2dAffineMatrix &lworld, const a2dVpath *path, int layer, int datatype, int pathtype, double width)
void	WritePoly (const a2dAffineMatrix &lworld, a2dVertexList *vlist, bool close)
void	WriteVertexArrayPolyline (const a2dAffineMatrix &lworld, a2dVertexArray *points, int layer, int datatype, int pathtype, double width, bool spline=false, bool close=true)
void	WriteVertexListPolyline (const a2dAffineMatrix &lworld, a2dVertexList *points, int layer, int datatype, int pathtype, double width, bool spline=false, bool close=true)
void	WriteVertexArrayPolygon (const a2dAffineMatrix &lworld, a2dVertexArray *points, int layer, int datatype, double width, bool spline=false, bool close=true)
void	WriteVertexListPolygon (const a2dAffineMatrix &lworld, a2dVertexList *points, int layer, int datatype, double width, bool spline=false, bool close=true)
void	SaveStructure (a2dCanvasObject *object, a2dCanvasObjectList *towrite)
void	Save (a2dCanvasObject *object, a2dCanvasObjectList *towrite)
void	DoSave (a2dPolylineL *obj, a2dCanvasObjectList *towrite)
void	DoSave (a2dPolygonL *obj, a2dCanvasObjectList *towrite)
void	DoSave (a2dSurface *surface, a2dCanvasObjectList *towrite)
void	DoSave (a2dText *obj, a2dCanvasObjectList *towrite)
void	DoSave (a2dTextGDS *obj, a2dCanvasObjectList *towrite)
void	DoSave (a2dCanvasObjectReference *obj, a2dCanvasObjectList *towrite)
void	DoSave (a2dCanvasObjectArrayReference *obj, a2dCanvasObjectList *towrite)
void	DoSave (a2dCircle *Circle, a2dCanvasObjectList *towrite)
Protected Attributes
int	m_mapping [wxMAXLAYER]
	mapping of GDSII layers to internal layers
a2dCanvasDocument *	m_doc
	the document to store/load the data found into
double	m_scale_out
double	m_userunits_out
int	m_objectFlags
unsigned int	m_points_written
wxUint16	m_lastElementLayer
bool	m_textAsPath
	if true, vonvert text to a2dVpath
bool	m_fromViewAsTop

---

Detailed Description

Output driver for KEY files.

Every object in the document is written into the right KEY file structure Info on the different record types that are read can be found in the KEY format manual

Definition at line 161 of file keyio.h.

---

Member Function Documentation

bool a2dIOHandlerKeyOut::LinkReferences

(

)

[virtual]

link references to their destination

Override this to define input format specific needs for linking references in a certain format. In the default situation the parser uses m_objecthashmap to store object to which references can be made, while m_lastObjectId is used to store unresolved references. Here those to are resolved.

In the CVG format one can store multiple refrences to one and the same object. The object that is referenced is only written once, for the other references only the object with refid or specific id attributes are written to the CVG file. When loading a file in CVG, such references are resolved and removed from the document. So in the end the old reference is restored. When loading an object, it is created, but its contents will be empty, after resolving, this one will be replaced by the real referenced object. The reason behind all this, is that the actual object might need to be read yet, when a reference is encountered in the CVG file, and therefore the link can not be directly created. In other formats references are used in a simular manner, and to resolve them the same mechanism is used.

Some input/ouput formats are organized in a list of grouped objects, the hierarchy is created after the whole file is read into memory. All non referenced objects are direct childs of the rootobject. In the GDSII format these are called top structures.

Returns:

true if all references were resolved.

Reimplemented from a2dIOHandler.

Definition at line 2045 of file keyio.cpp.

bool a2dIOHandlerKeyOut::CanSave

(

const wxObject *

obj = NULL

)

[virtual]

Should return true if the handler can write this document to a stream.

Mostly implemented by simply returning true if the handler can indeed do this job. Understand that a a2dDocument itself is useless for storing data, so it needs to be casted internal to a specific a2dDocument.

Parameters:

obj

pointer to object to save, normally a document.

Implements a2dIOHandlerStrOut.

Definition at line 2025 of file keyio.cpp.

bool a2dIOHandlerKeyOut::Save	(	a2dDocumentOutputStream &	stream,
		const wxObject *	obj
	)			[virtual]

Override to write to the stream and store (part of) of the document contents in the stream.

Understand that a a2dDocument itself is useless for storing data, so it needs to be casted internal to a specific a2dDocument.

Parameters:

	stream	the open stream to which the object needs to be saved
	obj	object to save into stream, needs to be casted to the right one internal.

Implements a2dIOHandlerStrOut.

Definition at line 2065 of file keyio.cpp.

---

The documentation for this class was generated from the following files:

• keyio.h
• keyio.cpp
