a2dWalker_DetectSmall Class Reference
detection of small objects. More...
#include <algos.h>

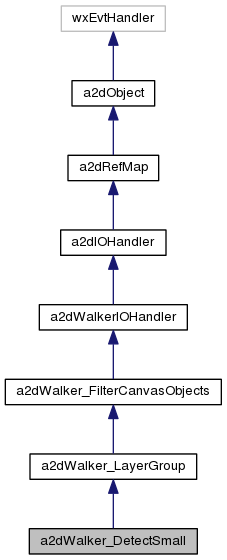

Inheritance diagram for a2dWalker_DetectSmall:
Collaboration diagram for a2dWalker_DetectSmall:
Public Member Functions | |
| a2dWalker_DetectSmall (a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::ALL) | |
| constructor with no a2dPropertyId added yet. For that use AddPropertyId() | |
| a2dWalker_DetectSmall (const a2dPropertyId *id, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::ALL) | |
| constructor with a2dPropertyId added to the propertyIsList to search for. | |
| a2dWalker_DetectSmall (const a2dPropertyIdList &idList, a2dCanvasObjectFlagsMask mask=a2dCanvasOFlags::ALL) | |
| constructor with the propertyIdList to search for as input | |
| ~a2dWalker_DetectSmall () | |
| destructor | |
| void | Initialize () |
| used from constructor | |
| void | SetSmall (double smallest) |
| set what is seen as small. | |
| void | SetAsString (bool asString) |
| set asString | |
| bool | GetAsString () |
| get asString | |
| bool | Start (a2dCanvasObject *object) |
| start at this object | |
| virtual bool | WalkTask (wxObject *parent, wxObject *object, a2dWalkEvent event) |
| called from within a2dCanvasDocument | |
| const wxString | GetString () const |
Protected Attributes | |
| a2dIOHandlerCVGOut | m_CVGwriter |
| a2dDocumentStringOutputStream | m_strstream |
| bool | m_asString |
| double | m_small |
Detailed Description
detection of small objects.Detect objects, which are smaller than a certain size. The report is generated as a string containing the CVG output, which can be written to a file.
Definition at line 891 of file algos.h.
The documentation for this class was generated from the following files:
