sttool.h File Reference

stack based tools controller and tools for drawing and editing. More...

#include "wx/wx.h"
#include <wx/listimpl.cpp>
#include "wx/canvas/canobj.h"
#include "wx/canvas/tools.h"
#include "wx/canvas/restrict.h"

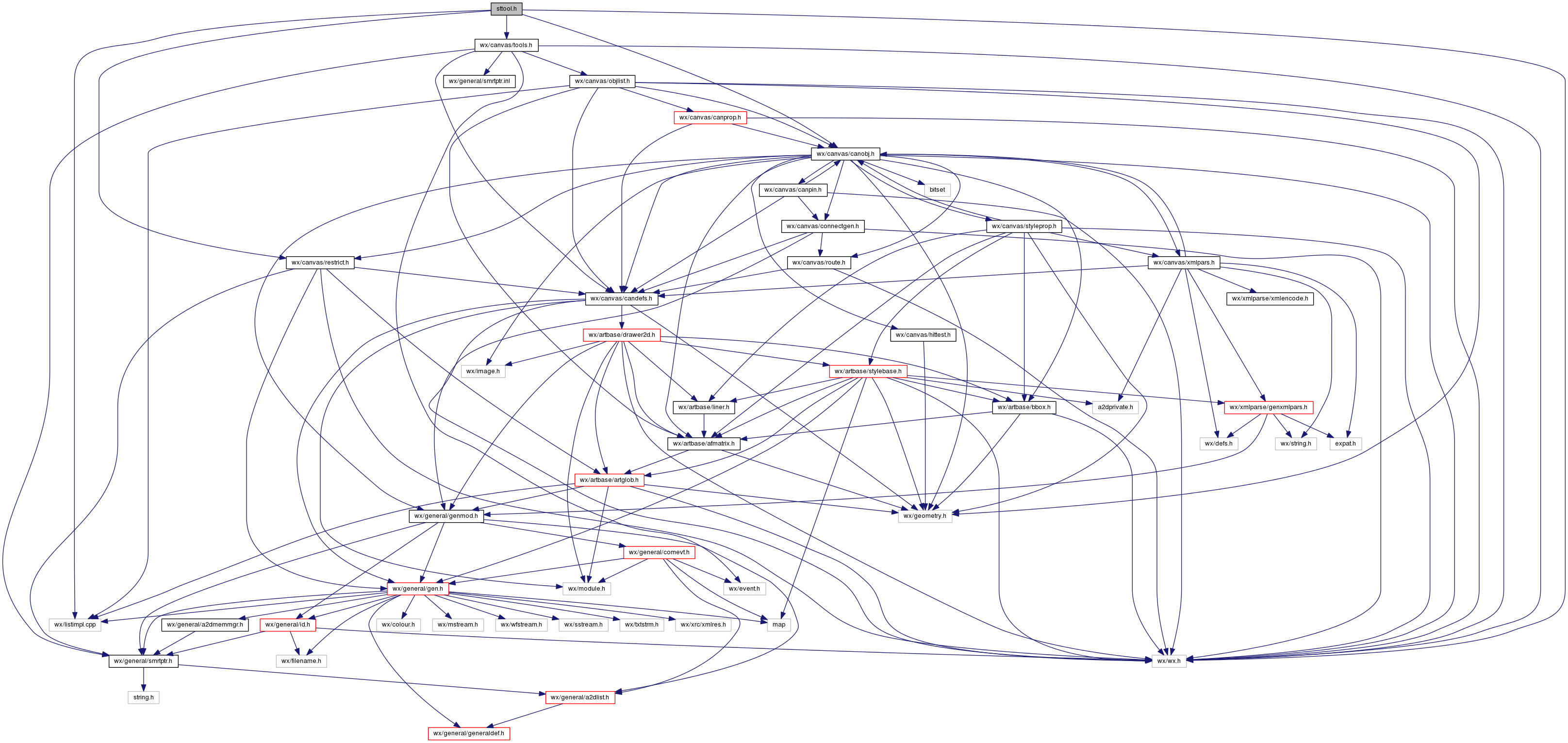

Include dependency graph for sttool.h:

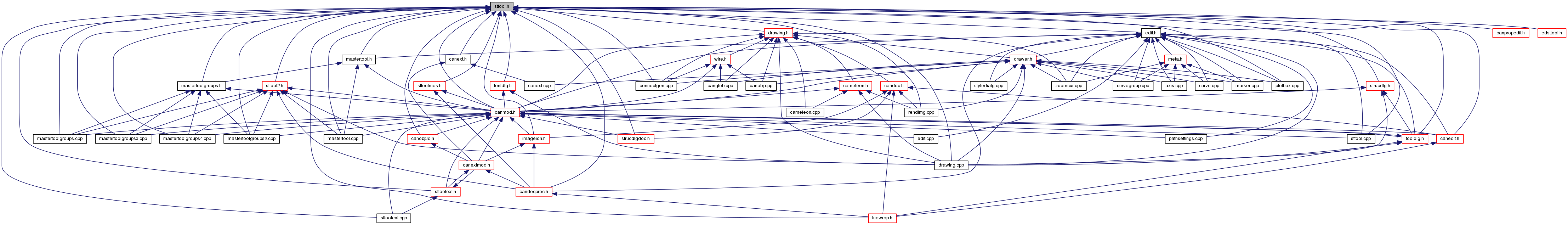

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	a2dStTool
	The a2dStTool is used to derive tools from. More...
class	a2dStDrawTool
	base for tools that draw and are stack based. More...
class	a2dStToolContr
	The a2dStToolContr is a Tool Controller specialized for working with a2dCanvasView. More...
class	a2dDrawRectangleTool
	Interactive drawing of a Rectangle. More...
class	a2dZoomTool
	Interactive Zooming. More...
class	a2dSelectTool
	Interactive Selection of an Object. More...
class	a2dImageTool
	Interactive Insertion of an a2dImage Object. More...
class	a2dDragTool
	Interactive drag an object. More...
class	a2dDragOrgTool
class	a2dDragNewTool
	Interactive drag a new object into a drawing. More...
class	a2dCopyTool
	Interactive copy an object. More...
class	a2dRotateTool
	Interactive rotate an object. More...
class	a2dDeleteTool
	Interactive delete an object. More...
class	a2dDrawCircleTool
	Interactive drawing of a Circle. More...
class	a2dDrawLineTool
	Interactive drawing of a EllipticArc. More...
class	a2dDrawEllipseTool
	Interactive drawing of a Ellipse. More...
class	a2dDrawEllipticArcTool
	Interactive drawing of a EllipticArc. More...
class	a2dDrawArcTool
	Interactive drawing of a circular arc. More...
class	a2dDrawPolygonLTool
	Interactive drawing of a polygon. More...
class	a2dDrawPolylineLTool
	Interactive drawing of a polyline. More...
class	a2dDrawWirePolylineLTool
	Interactive drawing of a polyline wire. More...
class	a2dDragMultiTool
	Drag Selected canvasObjects. More...
class	a2dDragMultiNewTool
class	a2dCopyMultiTool
	Drag and Copy Selected canvasObjects. More...
class	a2dDrawTextTool
	Interactive drawing a text object. More...
class	a2dPropertyTool
	Interactive edit properties of an object. More...
class	a2dStToolEvtHandler
	behaviour model of a2dStTool tools More...
class	a2dStToolFixedToolStyleEvtHandler
	makes a tool fixed in style. More...
class	a2dDrawVPathTool
	Interactive drawing of a polygon. More...
class	a2dFollowLink
	Interactive follow link. More...
class	a2dMovePinTool
	Interactive drag a a2dPin on a wire. More...

Enumerations
enum	a2dSTAT_ID {   STAT_Xd_Yd, STAT_Xw_Yw, STAT_ToolString, STAT_toolHelp = 3,   STAT_Feedback = 10, STAT_Feedback2 }
enum	DRAGMODE { wxDRAW_RECTANGLE, wxDRAW_ONTOP, wxDRAW_REDRAW, wxDRAW_COPY }
enum	wxTC_BEHAVIOR {   wxTC_DefaultBehavior = 0x00000000, wxTC_NoDefaultKeys = 0x00000001, wxTC_NoContextMenu = 0x00000002, wxTC_NoDefaultMouseActions = 0x00000004,   wxTC_NoAll = 0xFFFFFFFF }
enum	a2dWiringMode {   a2d_BasedOnClassStartPin, a2d_BasedOnWireClassRequired, a2d_BasedOnObjectClassRequired, a2d_BasedOnClassEndPin,   a2d_StartGenerateSearchFinish }
	the way a new wire is created More...

Functions
	WX_DECLARE_LIST_WITH_DECL (a2dBoundingBox, wxZoomList, class)
a2dStToolEvtHandler::options	operator| (a2dStToolEvtHandler::options a, a2dStToolEvtHandler::options b)
	OR-ing a2dHitOption is allowed.

Variables
const long	TC_UNDO
	zoom menu
const long	TC_REDO
const long	TC_ENDTOOL
const long	TC_ZOOMIN
const long	TC_ZOOMOUT
const long	TC_ZOOMBACK
const long	TC_ZOOMOUT2
const long	TC_ZOOMIN2
const long	TC_ZOOMPANXY
const long	TC_PROPERTY_XY

Detailed Description

stack based tools controller and tools for drawing and editing.

This is a whole set of tools and controller which work closely together, such that they can function well inside one application. The controller uses a stack of tools, where the first one is always active.

Author

Klaas Holwerda

Copyright: 2001-2004 (c) Klaas Holwerda

Licence: wxWidgets Licence

RCS-ID:

Id:

sttool.h,v 1.48 2009/10/01 19:22:35 titato Exp

Definition in file sttool.h.

Enumeration Type Documentation

enum a2dWiringMode

the way a new wire is created

Enumerator
a2d_BasedOnClassStartPin	the pin which is clicked as start pin for the wire, its pinclass is used to find a connecting pinclass in the wire beginpin. Only usefull if there is only one type of wire possible for that pinclass.
a2d_BasedOnWireClassRequired	the tool provides a starting wire pinclass, only pins which can connect to his wirepin its pinclass, will be clickable. Use this to only draw specific wires from this tool.
a2d_BasedOnClassEndPin	the wire will be decided when the end pin for the wire is hit, based on the start pin and endpin. use this if more then on type of wire can start from a certain pinclass, and it depends on the end pin what type of wire it will be.

Definition at line 1882 of file sttool.h.
