a2dDrawVPathTool Class Reference
[Objects used for interactive manipulation.]
Interactive drawing of a polygon.
More...
#include <sttool.h>

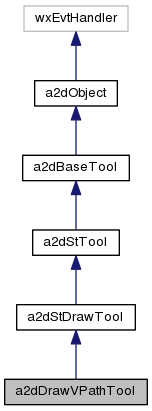

Inheritance diagram for a2dDrawVPathTool:

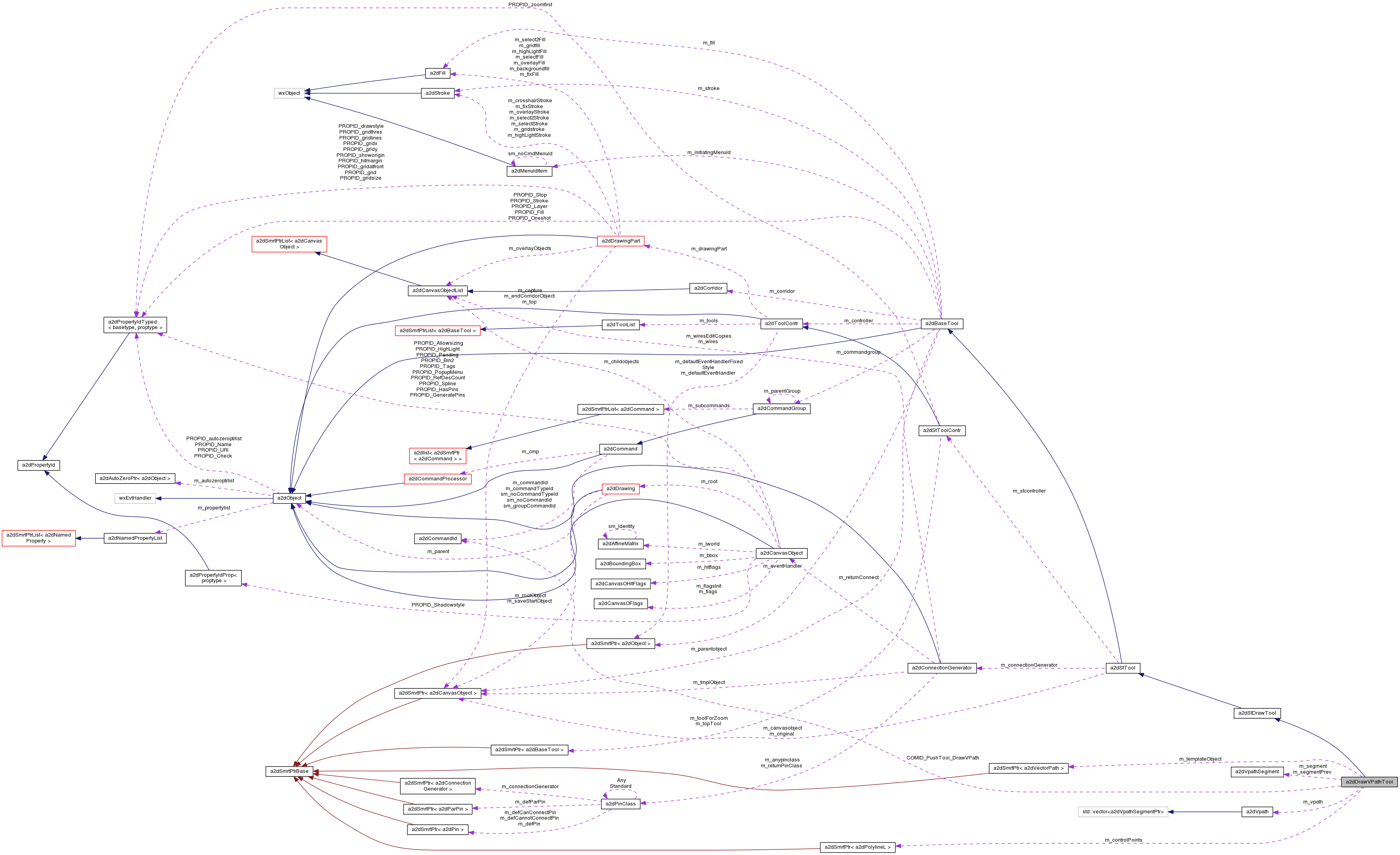

Collaboration diagram for a2dDrawVPathTool:
Public Member Functions | |
| a2dDrawVPathTool (a2dStToolContr *controller, a2dVectorPath *templateObject=NULL) | |
| constructor | |
| bool | ZoomSave () |
| save to zoom while drawing | |
| void | SetMode (int mode) |
| mode of drawing, can be swicthed with Tab key. | |
Static Public Attributes | |
| static const a2dCommandId | COMID_PushTool_DrawVPath |
| push this tool on the tools stack | |
Protected Member Functions | |
| void | OnIdle (wxIdleEvent &event) |
| handler for idle events | |
| void | OnChar (wxKeyEvent &event) |
| called on key events | |
| void | OnMouseEvent (wxMouseEvent &event) |
| called on mouse events | |
| void | OnUndoEvent (a2dCommandProcessorEvent &event) |
| handler for Undo event | |
| void | OnRedoEvent (a2dCommandProcessorEvent &event) |
| void | AddSegment (a2dVpathSegment *segment) |
| virtual wxString | GetCommandGroupName () |
| return the command group name for commands of a derived class | |
Protected Attributes | |
| a2dSmrtPtr< a2dVectorPath > | m_templateObject |
| object to clone to use as start | |
| a2dSmrtPtr< a2dPolylineL > | m_controlPoints |
| double | m_prev_x |
| previous x | |
| double | m_prev_y |
| previous y | |
| double | m_contrmid_x |
| previous x | |
| double | m_contrmid_y |
| previous y | |
| bool | m_controlSet |
| bool | m_endSegment |
| bool | m_bezier |
| a2dVpath * | m_vpath |
| points sofar | |
| a2dVpathSegment * | m_segment |
| last point | |
| a2dVpathSegment * | m_segmentPrev |
| bool | m_reverse |
| end to begin wire. | |
Detailed Description
Interactive drawing of a polygon.
- Remarks:
- Left Click to add points.
Space bar or Double click to end drawing.
Cursor keys to shift object.
Cursor keys + control to shift point.
Right Click to zoom.
- See also:
- a2dStToolContr
Definition at line 2184 of file sttool.h.
Constructor & Destructor Documentation
| a2dDrawVPathTool::a2dDrawVPathTool | ( | a2dStToolContr * | controller, | |
| a2dVectorPath * | templateObject = NULL | |||
| ) |
constructor
- Parameters:
-
controller tool controller one which this tool is pushed. templateObject when not NULL, this object is cloned and used for the new drawn object.
Definition at line 7262 of file sttool.cpp.
Member Function Documentation
| virtual wxString a2dDrawVPathTool::GetCommandGroupName | ( | ) | [inline, protected, virtual] |
return the command group name for commands of a derived class
this defaults to the class name
Reimplemented from a2dBaseTool.
