a2dDrawPolylineLTool Class Reference
[Objects used for interactive manipulation.]
Interactive drawing of a polyline.
More...
#include <sttool.h>

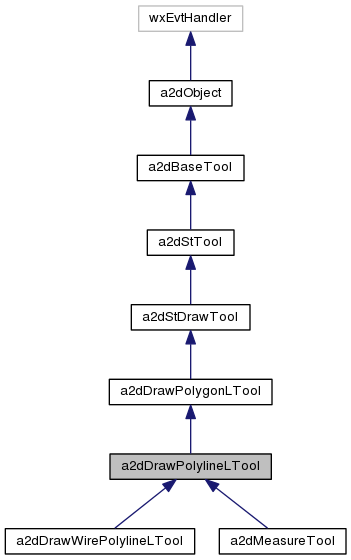

Inheritance diagram for a2dDrawPolylineLTool:

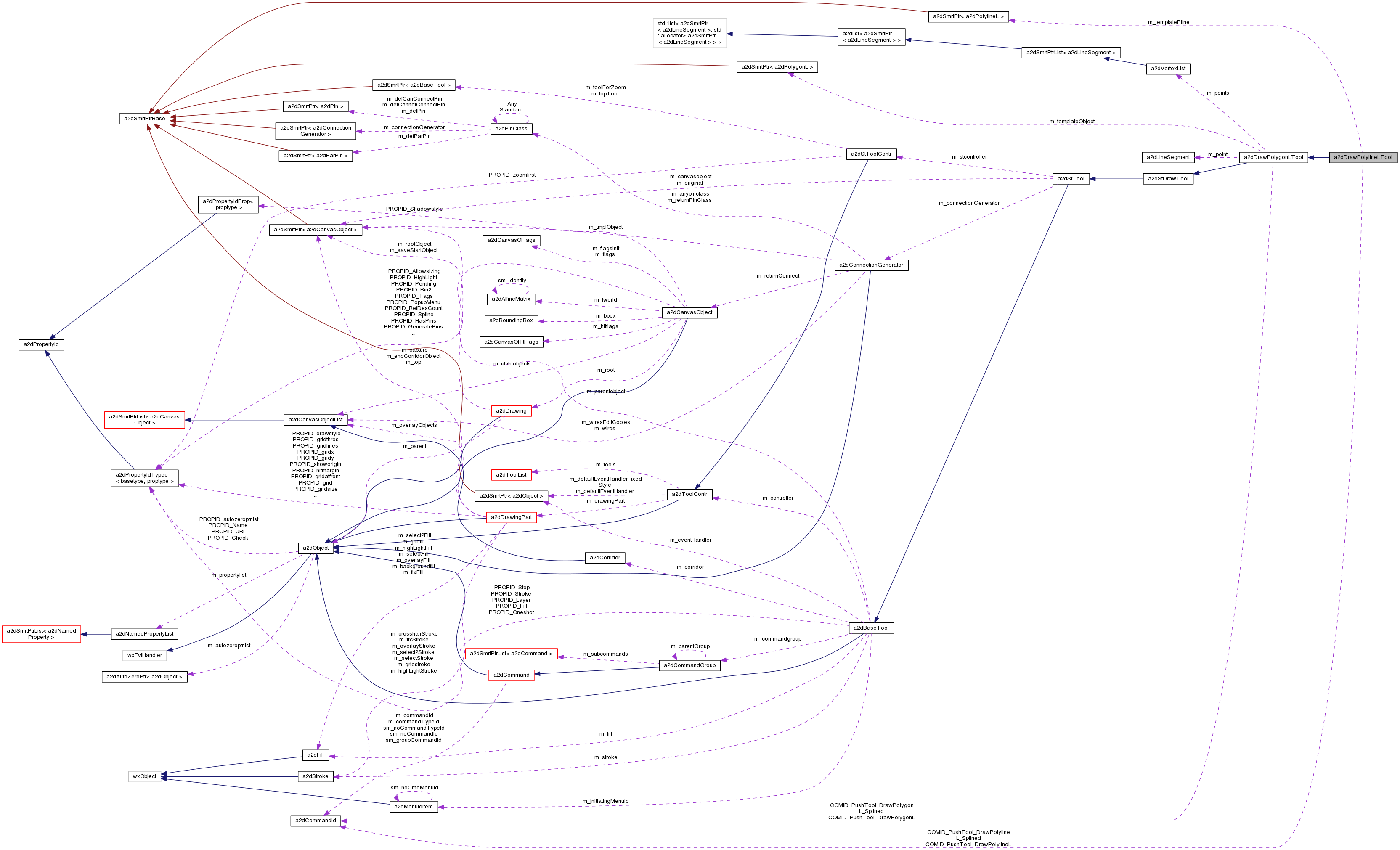

Collaboration diagram for a2dDrawPolylineLTool:
Public Member Functions | |
| a2dDrawPolylineLTool (a2dStToolContr *controller, a2dPolylineL *templateObject=NULL) | |
| constructor | |
| void | SetLineBegin (a2dCanvasObject *begin) |
| defines line begin object for line and polyline drawing tools | |
| void | SetLineEnd (a2dCanvasObject *end) |
| defines line end object for line and polyline drawing tools | |
| a2dCanvasObject * | GetLineBegin () |
| get current line begin object for line and polyline drawing tools. | |
| a2dCanvasObject * | GetLineEnd () |
| get current line end object for line and polyline drawing tools | |
| void | SetEndScaleX (double xs) |
| scaling in X for begin and end objects of lines and polylines | |
| void | SetEndScaleY (double ys) |
| scaling in Y for begin and end objects of lines and polylines | |
| double | GetEndScaleX () |
| get scaling in X for begin and end objects of lines and polylines | |
| double | GetEndScaleY () |
| get scaling in Y for begin and end objects of lines and polylines | |
| void | SetPathType (a2dPATH_END_TYPE pathtype) |
| Set when m_contourwidth != 0 what is the end of the line should be. | |
| a2dPATH_END_TYPE | GetPathType () |
| get when m_contourwidth != 0 what is the end of the line looks like. | |
Static Public Attributes | |
| static const a2dCommandId | COMID_PushTool_DrawPolylineL |
| push this tool on the tools stack | |
| static const a2dCommandId | COMID_PushTool_DrawPolylineL_Splined |
| push this tool on the tools stack | |
Protected Member Functions | |
| void | OnMouseEvent (wxMouseEvent &event) |
| called on mouse events | |
| void | OnDoEvent (a2dCommandProcessorEvent &event) |
| handler for Do event | |
Protected Attributes | |
| a2dSmrtPtr< a2dPolylineL > | m_templatePline |
Detailed Description
Interactive drawing of a polyline.
- Remarks:
- Left Click to add points.
Space bar or Double click to end drawing.
Cursor keys to shift object.
Cursor keys + control to shift point.
Right Click to zoom.
- See also:
- a2dStToolContr
Definition at line 1662 of file sttool.h.
Constructor & Destructor Documentation
| a2dDrawPolylineLTool::a2dDrawPolylineLTool | ( | a2dStToolContr * | controller, | |
| a2dPolylineL * | templateObject = NULL | |||
| ) |
constructor
- Parameters:
-
controller tool controller one which this tool is pushed. templateObject when not NULL, this object is cloned and used for the new drawn object.
Definition at line 4043 of file sttool.cpp.
Member Function Documentation
| void a2dDrawPolylineLTool::SetLineBegin | ( | a2dCanvasObject * | begin | ) |
defines line begin object for line and polyline drawing tools
You might want to reset m_newObjectsGetCommandProcStyle also. Otherwise the command processor will overwrite what you set here
Definition at line 4087 of file sttool.cpp.
| void a2dDrawPolylineLTool::SetLineEnd | ( | a2dCanvasObject * | end | ) |
defines line end object for line and polyline drawing tools
You might want to reset m_newObjectsGetCommandProcStyle also. Otherwise the command processor will overwrite what you set here
Definition at line 4092 of file sttool.cpp.
| a2dCanvasObject* a2dDrawPolylineLTool::GetLineBegin | ( | ) | [inline] |
| a2dCanvasObject* a2dDrawPolylineLTool::GetLineEnd | ( | ) | [inline] |
The documentation for this class was generated from the following files:
