a2dDrawPolygonLTool Class Reference
[Objects used for interactive manipulation.]
Interactive drawing of a polygon.
More...
#include <sttool.h>

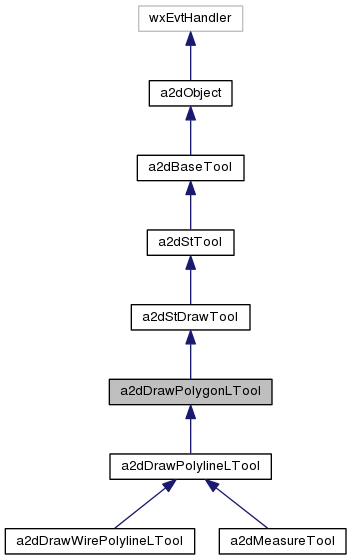

Inheritance diagram for a2dDrawPolygonLTool:

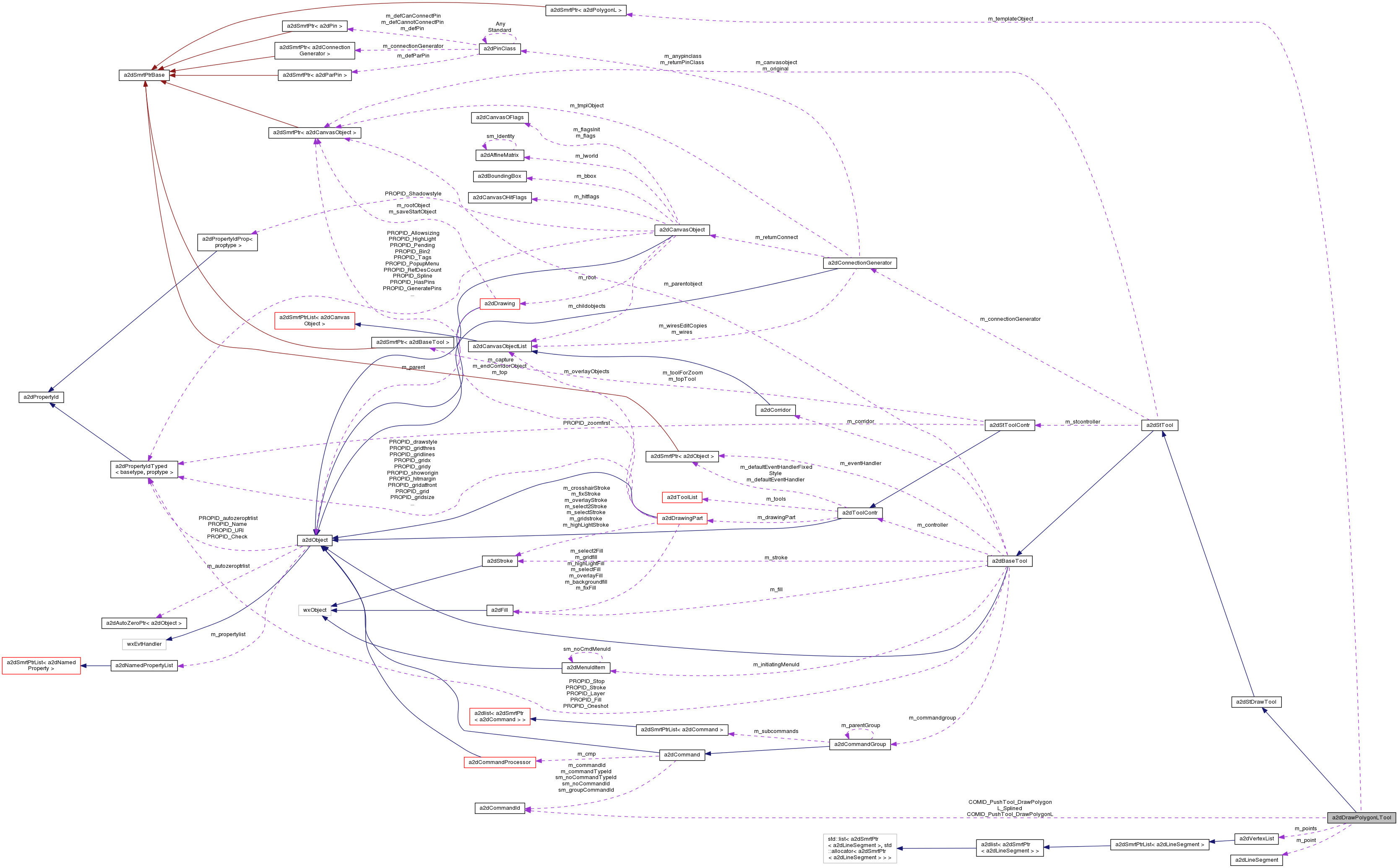

Collaboration diagram for a2dDrawPolygonLTool:
Public Member Functions | |
| a2dDrawPolygonLTool (a2dStToolContr *controller, a2dPolygonL *templateObject=NULL) | |
| constructor | |
| bool | ZoomSave () |
| save to zoom while drawing | |
| void | SetMode (int mode) |
| mode of drawing, can be swicthed with Tab key. | |
| void | SetSpline (bool spline) |
| certain drawing tools like polygon drawing use this setting | |
| bool | GetSpline () |
| certain drawing tools like polygon drawing use this setting | |
Static Public Attributes | |
| static const a2dCommandId | COMID_PushTool_DrawPolygonL |
| push this tool on the tools stack | |
| static const a2dCommandId | COMID_PushTool_DrawPolygonL_Splined |
| push this tool on the tools stack | |
Protected Member Functions | |
| void | OnIdle (wxIdleEvent &event) |
| handler for idle events | |
| void | OnChar (wxKeyEvent &event) |
| called on key events | |
| void | OnMouseEvent (wxMouseEvent &event) |
| called on mouse events | |
| void | OnUndoEvent (a2dCommandProcessorEvent &event) |
| handler for Undo event | |
| void | OnRedoEvent (a2dCommandProcessorEvent &event) |
| void | AddPoint (a2dLineSegment *point) |
| virtual wxString | GetCommandGroupName () |
| return the command group name for commands of a derived class | |
Protected Attributes | |
| a2dSmrtPtr< a2dPolygonL > | m_templateObject |
| object to clone to use as start | |
| double | m_prev_x |
| previous x | |
| double | m_prev_y |
| previous y | |
| a2dVertexList * | m_points |
| points sofar | |
| a2dLineSegment * | m_point |
| last point | |
| bool | m_reverse |
| end to begin wire. | |
Detailed Description
Interactive drawing of a polygon.
- Remarks:
- Left Click to add points.
Space bar or Double click to end drawing.
Cursor keys to shift object.
Cursor keys + control to shift point.
Right Click to zoom.
- See also:
- a2dStToolContr
Definition at line 1575 of file sttool.h.
Constructor & Destructor Documentation
| a2dDrawPolygonLTool::a2dDrawPolygonLTool | ( | a2dStToolContr * | controller, | |
| a2dPolygonL * | templateObject = NULL | |||
| ) |
constructor
- Parameters:
-
controller tool controller one which this tool is pushed. templateObject when not NULL, this object is cloned and used for the new drawn object.
Definition at line 3731 of file sttool.cpp.
Member Function Documentation
| void a2dDrawPolygonLTool::SetSpline | ( | bool | spline | ) |
certain drawing tools like polygon drawing use this setting
You might want to reset m_newObjectsGetCommandProcStyle also. Otherwise the command processor will overwrite what you set here
Definition at line 3763 of file sttool.cpp.
| virtual wxString a2dDrawPolygonLTool::GetCommandGroupName | ( | ) | [inline, protected, virtual] |
return the command group name for commands of a derived class
this defaults to the class name
Reimplemented from a2dBaseTool.
Reimplemented in a2dDrawWirePolylineLTool, and a2dMeasureTool.
The documentation for this class was generated from the following files:
