a2dDrawTextTool Class Reference
[Objects used for interactive manipulation.]
Interactive drawing a text object.
More...
#include <sttool.h>

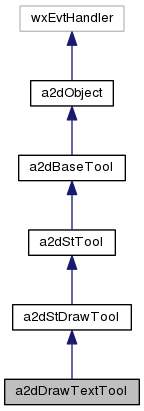

Inheritance diagram for a2dDrawTextTool:

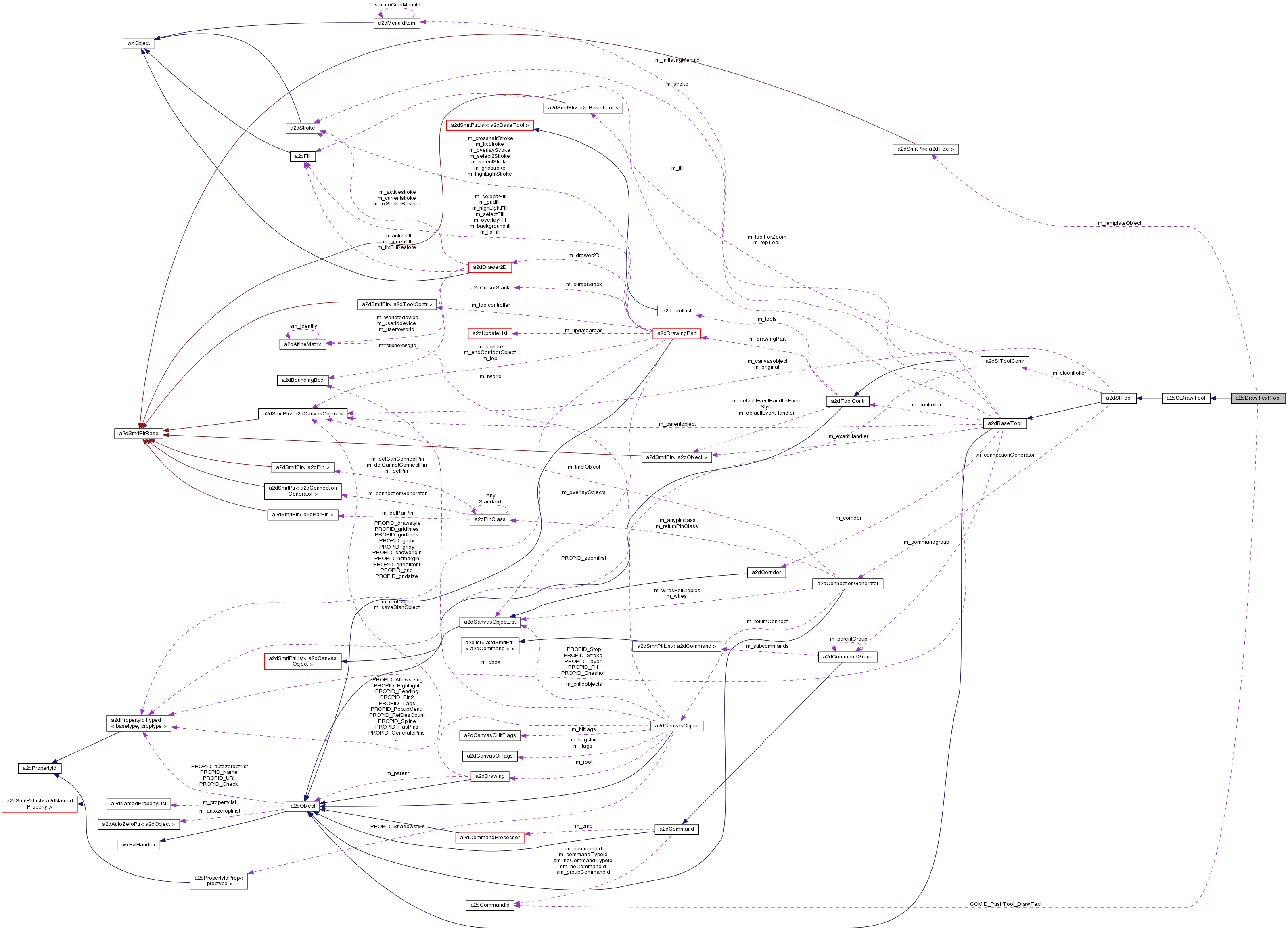

Collaboration diagram for a2dDrawTextTool:
Public Member Functions | |
| a2dDrawTextTool (a2dStToolContr *controller) | |
| bool | ZoomSave () |
| Is Zooming while the tool is busy Save. | |
| void | SetLineSpacing (double linespace) |
| line spacing for text object | |
| void | SetFont (const a2dFont &font) |
| font to use | |
| const a2dFont & | GetFont () |
| return used font | |
| void | SetNextLineDirection (bool up) |
| next line up or down | |
Static Public Attributes | |
| static const a2dCommandId | COMID_PushTool_DrawText |
| push this tool on the tools stack | |
| static a2dPropertyIdFont * | PROPID_Font = NULL |
Protected Member Functions | |
| const a2dFont & | MX_GetFont () const |
| void | MX_SetFont (const a2dFont &value) |
| void | OnMouseEvent (wxMouseEvent &event) |
| called on mouse events | |
Protected Attributes | |
| a2dFont | m_font |
| used font | |
| double | m_linespace |
| line spacing for text object | |
| int | m_caret |
| where is the cursor. | |
| bool | m_up |
| next line up or down | |
Detailed Description
Interactive drawing a text object.
- Remarks:
- Cursor keys to navigate through text
Home & End (goto begin or end of line)
control + Home & End (goto begin or end of text object)
altdown + Cursor keys to shift text object
controldown + Cursor keys (default canvas behaviour)
- See also:
- a2dStToolContr
Definition at line 1938 of file sttool.h.
Member Function Documentation
| bool a2dDrawTextTool::ZoomSave | ( | ) | [inline, virtual] |
Is Zooming while the tool is busy Save.
If so, the active tool will redraw itself in the new Mapping state
Implements a2dBaseTool.
The documentation for this class was generated from the following files:
