a2dDrawEllipticArcTool Class Reference
[Objects used for interactive manipulation.]
Interactive drawing of a EllipticArc.
More...
#include <sttool.h>

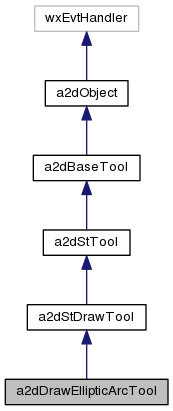

Inheritance diagram for a2dDrawEllipticArcTool:

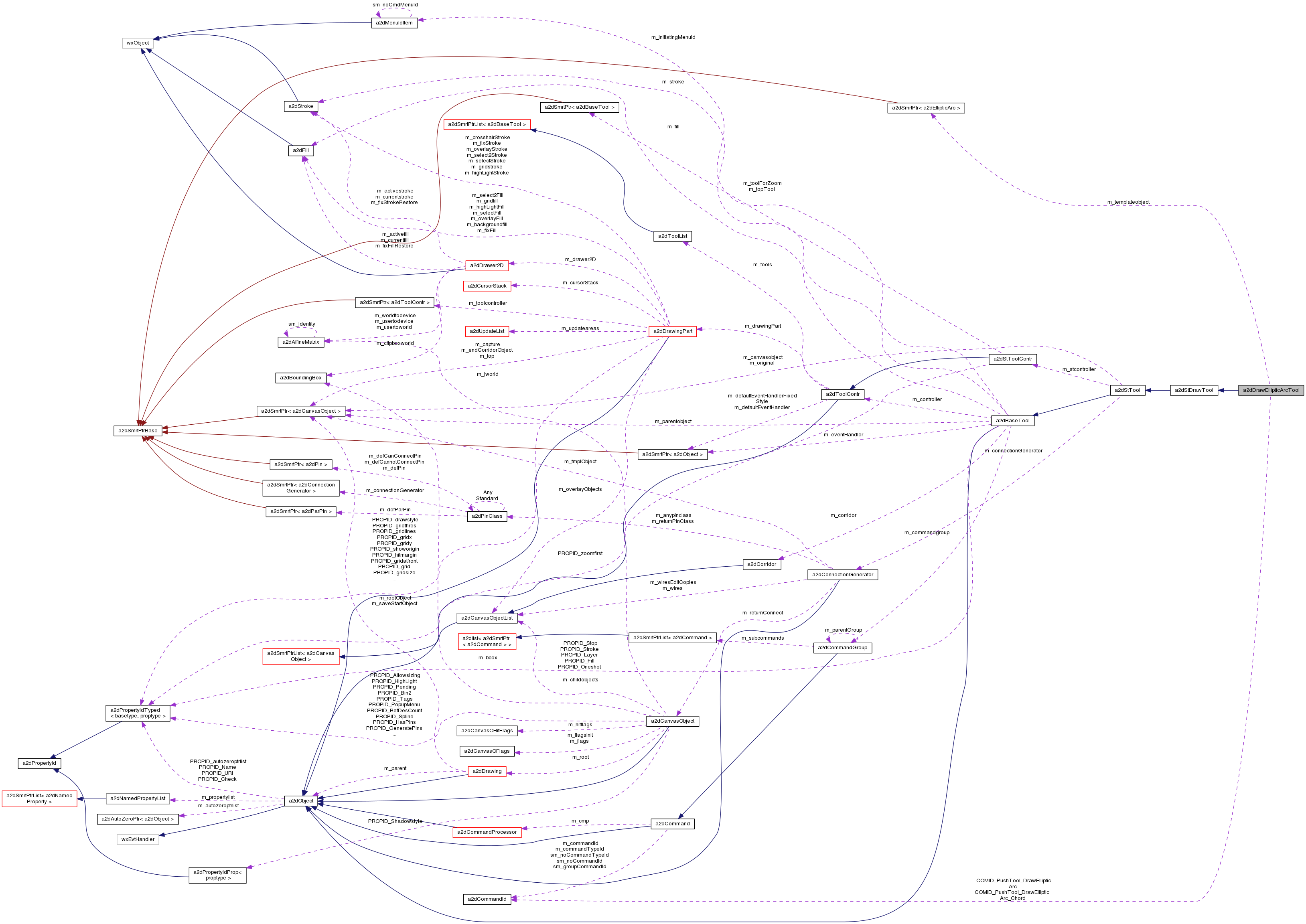

Collaboration diagram for a2dDrawEllipticArcTool:
Public Member Functions | |
| a2dDrawEllipticArcTool (a2dStToolContr *controller, a2dEllipticArc *templateObject=NULL) | |
| bool | ZoomSave () |
| Is Zooming while the tool is busy Save. | |
| void | SetMode (int mode) |
| general integer to set operation modes for a tool (e.g the way it draws) | |
| void | SetMode2 (int mode) |
| change mode of drawing | |
| void | SetChord (bool chord) |
Static Public Attributes | |
| static const a2dCommandId | COMID_PushTool_DrawEllipticArc |
| push this tool on the tools stack | |
| static const a2dCommandId | COMID_PushTool_DrawEllipticArc_Chord |
| push this tool on the tools stack | |
Protected Member Functions | |
| void | OnIdle (wxIdleEvent &event) |
| handler for idle events | |
| void | OnChar (wxKeyEvent &event) |
| called on key events | |
| void | OnMouseEvent (wxMouseEvent &event) |
| called on mouse events | |
| virtual void | GenerateAnotation () |
| to display a string along with a tool drawing. | |
Protected Attributes | |
| a2dSmrtPtr< a2dEllipticArc > | m_templateobject |
| object to clone to use as start | |
| double | m_arcstart |
| start arc | |
| double | m_arcend |
| end arc | |
| double | m_start_x |
| start x | |
| double | m_start_y |
| start y | |
| bool | m_chord |
| draw just a cord object, not filled. | |
| int | m_mode2 |
| mode to change what is drawn | |
Detailed Description
Interactive drawing of a EllipticArc.
- Remarks:
- Left Click and drag/move.
Left Click again Or Spacebar to end arc drawing.
Return/Enter to cycle through drawing mode2 for changing start and end angle.
Cursor keys to shift object.
Shift drag/move to change start angle.
- See also:
- a2dStToolContr
Definition at line 1433 of file sttool.h.
Member Function Documentation
| bool a2dDrawEllipticArcTool::ZoomSave | ( | ) | [inline, virtual] |
Is Zooming while the tool is busy Save.
If so, the active tool will redraw itself in the new Mapping state
Implements a2dBaseTool.
| void a2dDrawEllipticArcTool::SetMode | ( | int | mode | ) | [virtual] |
general integer to set operation modes for a tool (e.g the way it draws)
tools most check the mode and handle in accordance In general Tab should be used to tab/switch/circle between modes understood by a tool.
Reimplemented from a2dBaseTool.
Definition at line 4914 of file sttool.cpp.
