a2dEllipticArc Class Reference
[a2dCanvasObject related objects]

#include <canprim.h>

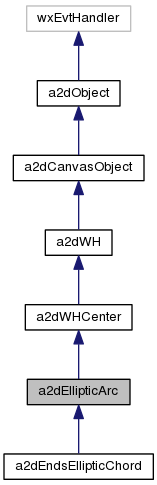

Inheritance diagram for a2dEllipticArc:

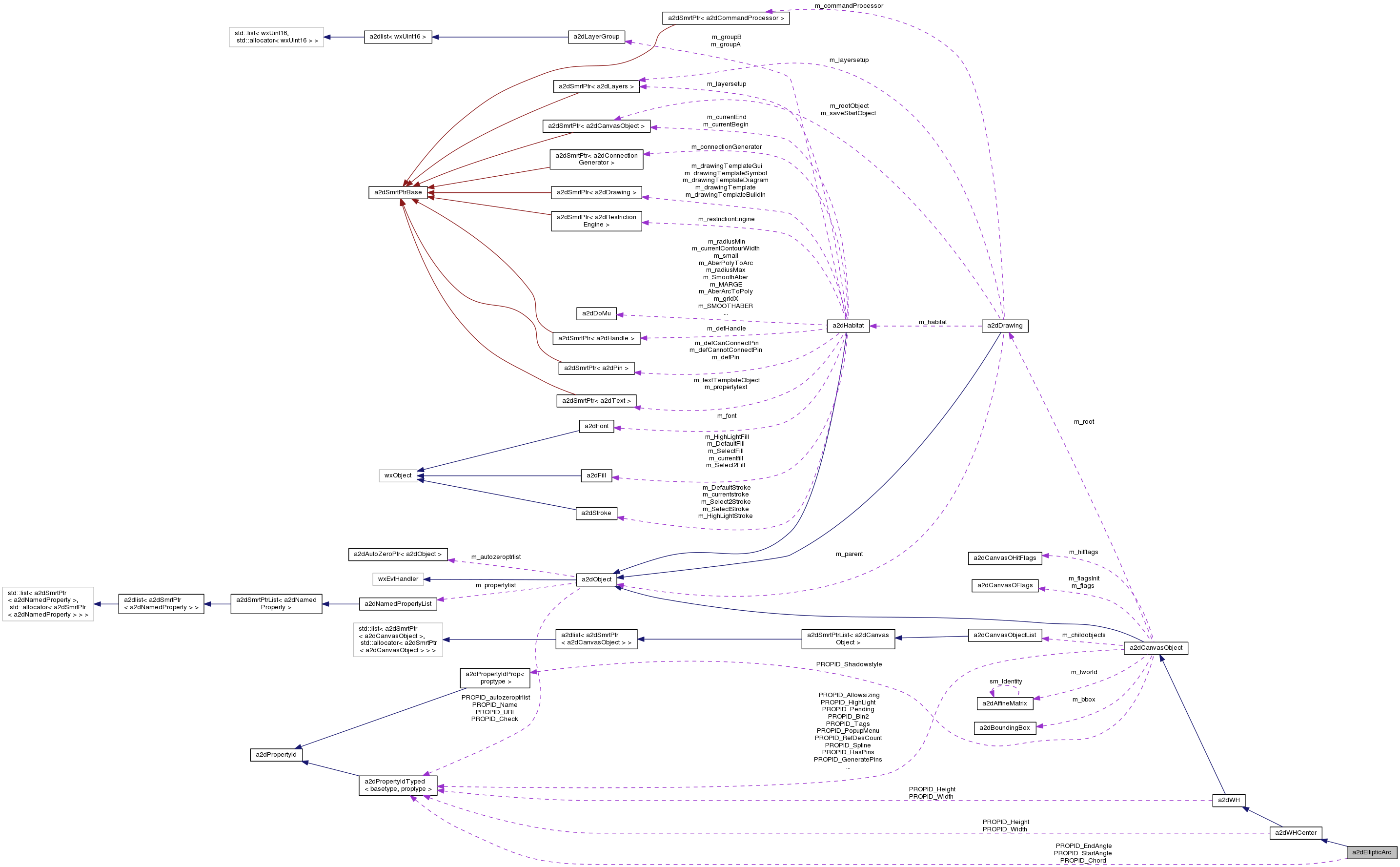

Collaboration diagram for a2dEllipticArc:

List of all members.

Public Member Functions

a2dEllipticArc ()

constructor

a2dEllipticArc (double xc, double yc, double width, double height, double start, double end, bool chord=false, double contourwidth=0)

Constructor.

a2dEllipticArc (const a2dEllipticArc &ori, CloneOptions options)

constructor for cloning

~a2dEllipticArc ()

destructor

virtual a2dObject * Clone (CloneOptions options) const

This is here so that this class cannot be used directly.

void SetStart (double start)

set start angle

double GetStart ()

return start angle

void SetEnd (double end)

set end angle

double GetEnd ()

return end angle

void SetChord (bool chord)

if true draw as a chord ( no fill end no lines to center )

bool GetChord ()

get chord setting

virtual void DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)

write object specific CVGL data

void DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)

load object specific CVG data

a2dVertexList * GetAsPolygon ()

a2dCanvasObjectList * GetAsCanvasVpaths (bool transform=true)

when implemented the object without its children, is converted to

void SetContourWidth (double width)

set the Contour width of the shape

double GetContourWidth () const

get the Contour width of the shape

Static Public Attributes

static a2dPropertyIdDouble * PROPID_StartAngle = NULL

static a2dPropertyIdDouble * PROPID_EndAngle = NULL

static a2dPropertyIdBool * PROPID_Chord = NULL

Protected Member Functions

virtual bool DoStartEdit (wxUint16 editmode, wxEditStyle editstyle)

only used for editable objects and under control of a editing tool.

void OnChar (wxKeyEvent &event)

default handler for character events

void OnHandleEvent (a2dHandleMouseEvent &event)

called if a mouse event occured on a child object, that is a handle

void DoRender (a2dIterC &ic, OVERLAP clipparent)

render derived object

bool DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)

Does hit test on the object (exclusif child objects).

a2dBoundingBox DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const

bool DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)

Update derived Object specific things ( mainly boundingbox).

Protected Attributes

bool m_chord

drawn as a chord ( no fill end no lines to center )

double m_start

start angle

double m_end

end angle

double m_contourwidth

if != 0 you get a contour around the rectangle ( donut like ).

Detailed Description

a2dEllipticArc centered at x,y

Definition at line 1381 of file canprim.h.

Constructor & Destructor Documentation

a2dEllipticArc::a2dEllipticArc	(	double	xc,
		double	yc,
		double	width,
		double	height,
		double	start,
		double	end,
		bool	chord = `false`,
		double	contourwidth = `0`
	)

Constructor.

Parameters:

	xc,:	x center
	yc,:	y center
	width,:	Width of Arc
	height,:	Heigth of Arc
	start,:	Start Angle degrees
	end,:	End Angle in degrees
	chord	if true only show outline.
	contourwidth	to give a width to the cord

Definition at line 3646 of file canprim.cpp.

Member Function Documentation

void a2dEllipticArc::SetStart ( double start ) [inline]

set start angle

Remarks:: As side-effect the ellipse is set pending for redraw

Parameters:

start

start angle in degrees

Definition at line 1416 of file canprim.h.

void a2dEllipticArc::SetEnd ( double end ) [inline]

set end angle

Remarks:: As side-effect the ellipse is set pending for redraw

Parameters:

end

end angle in degrees

Definition at line 1426 of file canprim.h.

void a2dEllipticArc::DoLoad	(	wxObject *	parent,
		a2dIOHandlerXmlSerIn &	parser,
		a2dXmlSer_flag	xmlparts
	)			`[virtual]`

load object specific CVG data

todo ignore until this down here is fully converted.

Reimplemented from a2dWH.

Reimplemented in a2dEndsEllipticChord.

Definition at line 3923 of file canprim.cpp.

a2dCanvasObjectList * a2dEllipticArc::GetAsCanvasVpaths ( bool transform = true ) [virtual]

when implemented the object without its children, is converted to

to a list of a2dVectorPath's. Else wxNullCanvasObjectList is returned.

Reimplemented from a2dWH.

Definition at line 3700 of file canprim.cpp.

bool a2dEllipticArc::DoStartEdit	(	wxUint16	editmode,
		wxEditStyle	editstyle
	)			`[protected, virtual]`

only used for editable objects and under control of a editing tool.

If object is editable this function is used to initialize the object for editing. In general this means adding editing handles to the child list. In the event handling of the object those handles are hit and moved, the object itself is changed accordingly.

Returns:: true is this object can be edited and is initialized for that.

Todo:: edit of bbox ( children or not included )

Reimplemented from a2dWH.

Definition at line 4007 of file canprim.cpp.

void a2dEllipticArc::DoRender	(	a2dIterC &	ic,
		OVERLAP	clipparent
	)			`[protected, virtual]`

render derived object

if the object has sub objects (apart from the childobject which are handled here), those subobject most rendered by iterating on layer when needed/wanted, simular to child objects. We do not iterate here, since that is only needed if indeed there or subobjects. This will be know in a "wxDerivedCanvasObject DoRender".

SO parent objects that call this function, must:

1- clip object against area to redraw.
2- iterate on layers when needed.

A a2dCanvasObject is rendered as a + (plus sign) when there or no children.

Reimplemented from a2dCanvasObject.

Reimplemented in a2dEndsEllipticChord.

Definition at line 3875 of file canprim.cpp.

bool a2dEllipticArc::DoIsHitWorld	(	a2dIterC &	ic,
		a2dHitEvent &	hitEvent
	)			`[protected, virtual]`

Does hit test on the object (exclusif child objects).

DoIsHitWorld() should return the way the object is hit by filling a2dHitEvent::m_how with the correct info.

Parameters:

	ic	iterative context ( e.g. current transform WITH the local transform applied )
	hitEvent	stores hit information

Returns:: true if hit

Reimplemented from a2dWH.

Reimplemented in a2dEndsEllipticChord.

Definition at line 3939 of file canprim.cpp.

bool a2dEllipticArc::DoUpdate	(	UpdateMode	mode,
		const a2dBoundingBox &	childbox,
		const a2dBoundingBox &	clipbox,
		const a2dBoundingBox &	propbox
	)			`[protected, virtual]`

Update derived Object specific things ( mainly boundingbox).

Calculates the boundingbox of the object (exclusif base class child objects but with other nested objects).

Parameters:

	mode	way to update the objects
	childbox	size of children boundingbox
	clipbox	clip to this
	propbox	size of properties boundingbox

Remarks:: in a derived class this function can also be used to update object specific cache data.
force may or may not have direct influence on the object itself, if this function is called directly for some reason (e.g from derived objects), you must invalidate the boudingbox yourself. GetDrawerBox()->SetValid( false );

Reimplemented from a2dWH.

Reimplemented in a2dEndsEllipticChord.

Definition at line 3797 of file canprim.cpp.

The documentation for this class was generated from the following files:


Public Member Functions
	a2dEllipticArc ()
	constructor
	a2dEllipticArc (double xc, double yc, double width, double height, double start, double end, bool chord=false, double contourwidth=0)
	Constructor.
	a2dEllipticArc (const a2dEllipticArc &ori, CloneOptions options)
	constructor for cloning
	~a2dEllipticArc ()
	destructor
virtual a2dObject *	Clone (CloneOptions options) const
	This is here so that this class cannot be used directly.
void	SetStart (double start)
	set start angle
double	GetStart ()
	return start angle
void	SetEnd (double end)
	set end angle
double	GetEnd ()
	return end angle
void	SetChord (bool chord)
	if true draw as a chord ( no fill end no lines to center )
bool	GetChord ()
	get chord setting
virtual void	DoSave (wxObject parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList towrite)
	write object specific CVGL data
void	DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)
	load object specific CVG data
a2dVertexList *	GetAsPolygon ()
a2dCanvasObjectList *	GetAsCanvasVpaths (bool transform=true)
	when implemented the object without its children, is converted to
void	SetContourWidth (double width)
	set the Contour width of the shape
double	GetContourWidth () const
	get the Contour width of the shape
Static Public Attributes
static a2dPropertyIdDouble *	PROPID_StartAngle = NULL
static a2dPropertyIdDouble *	PROPID_EndAngle = NULL
static a2dPropertyIdBool *	PROPID_Chord = NULL
Protected Member Functions
virtual bool	DoStartEdit (wxUint16 editmode, wxEditStyle editstyle)
	only used for editable objects and under control of a editing tool.
void	OnChar (wxKeyEvent &event)
	default handler for character events
void	OnHandleEvent (a2dHandleMouseEvent &event)
	called if a mouse event occured on a child object, that is a handle
void	DoRender (a2dIterC &ic, OVERLAP clipparent)
	render derived object
bool	DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)
	Does hit test on the object (exclusif child objects).
a2dBoundingBox	DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const
bool	DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)
	Update derived Object specific things ( mainly boundingbox).
Protected Attributes
bool	m_chord
	drawn as a chord ( no fill end no lines to center )
double	m_start
	start angle
double	m_end
	end angle
double	m_contourwidth
	if != 0 you get a contour around the rectangle ( donut like ).
