drawing.h File Reference

Contains a2dDrawing Class to hold a drawing. More...

#include "wx/wx.h"
#include "wx/image.h"
#include <wx/numdlg.h>
#include "a2dprivate.h"
#include "wx/canvas/canobj.h"
#include "wx/canvas/vpath.h"
#include "wx/canvas/canprim.h"
#include "wx/canvas/polygon.h"
#include "wx/canvas/objlist.h"
#include "wx/canvas/recur.h"
#include "wx/canvas/canglob.h"
#include "wx/canvas/canprop.h"
#include "wx/canvas/sttool.h"
#include <wx/listimpl.cpp>

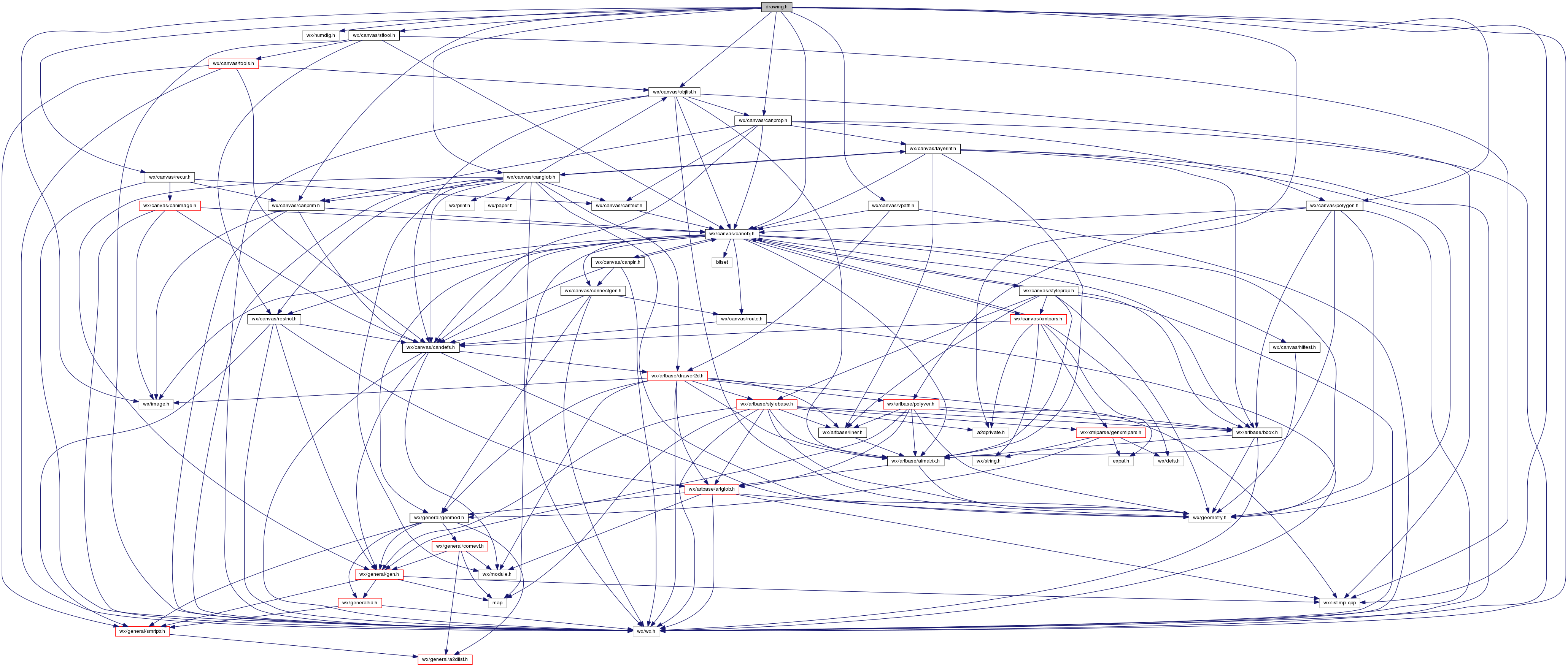

Include dependency graph for drawing.h:

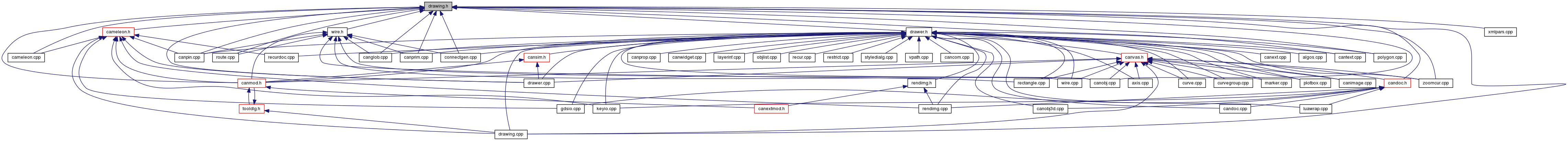

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	wxDoubleNumberEntryDialog
	wxDoubleNumberEntryDialog: a dialog with spin control, [ok] and [cancel] buttons More...
class	a2dDrawing
	Contain one drawing as hierarchical tree of a2dCanvasObject's. More...
class	a2dDrawingEvent
	see a2dDrawingEvent More...
class	a2dCanvasCommandProcessor
	a command processor specially designed to work with a a2dCanvasDocument More...
class	a2dCommand_AddObject
	used to add object to a a2dCanvasDocument in the current parent More...
class	a2dCommand_ReleaseObject
	used to release object from a a2dCanvasDocument in the current parent More...
class	a2dCommand_MoveObject
	move object within a a2dDrawing More...
class	a2dCommand_ReplaceObject
	used to replace an object in a a2dCanvasDocument in the current parent More...
class	a2dCommand_SetFlags
	for changing boolean values inside a rectangle of the current parent object. More...
class	a2dCommand_SetFlag
	for changing boolean values inside canvas objects More...
class	a2dCommand_SetPinFlags
	for changing boolean flag values inside pins More...
class	a2dCommandMasked
class	a2dCommand_SetSelectFlag
	for changing boolean select flag values inside canvas objects More...
class	a2dCommand_SetSelect2Flag
	for changing boolean select2 flag values inside canvas objects More...
class	a2dCommandMatrixData
class	a2dCommand_TransformMask
	for changing only the matrix of objects for which a certain mask was set More...
class	a2dCommand_RotateMask
	for changing only the matrix of objects for which a certain mask was set More...
class	a2dCommand_AlignMask
	for changing only the alignment of objects for which a certain mask was set More...
class	a2dCommand_AddPoint
	used to add points to polygon objects More...
class	a2dCommand_MoveSegment
	used to move points in polygon objects More...
class	a2dCommand_MoveMidSegment
	used to move points in polygon objects More...
class	a2dCommand_RemoveSegment
	used to remove points from polygon objects More...
class	a2dCommand_SetSegments
	used to set the complete Segment list/array of polygons More...
class	a2dCommand_MovePoint
	used to move start or end point in line objects More...
class	a2dCommand_ChangeText
	used to change text and caret of canvas text objects in a a2dCanvasDocument More...
class	a2dCommand_ChangeCanvasObjectStyle
	used to change style of canvas objects in a a2dCanvasDocument More...
class	a2dCommand_SetCanvasProperty
	used to change a property on objects More...
class	a2dCommand_ConnectPins
	used to connect two pins More...
class	a2dCommand_DisConnectPins
	used to disconnect two pins More...
class	a2dCommand_Select
	command on selected objects More...
class	a2dCommand_Select::Args
struct	a2dCommand_Select::Args::argValue
struct	a2dCommand_Select::Args::argSet
class	a2dCommand_GroupAB
	command on selected objects More...
class	a2dCommand_GroupAB::Args
struct	a2dCommand_GroupAB::Args::argValue
struct	a2dCommand_GroupAB::Args::argSet
class	a2dCommand_NewGroup
	create new group at x,y More...
class	a2dCommand_NewGroup::Args
struct	a2dCommand_NewGroup::Args::argValue
struct	a2dCommand_NewGroup::Args::argSet
class	a2dCommand_NewPin
	create new group at x,y More...
class	a2dCommand_NewPin::Args
struct	a2dCommand_NewPin::Args::argValue
struct	a2dCommand_NewPin::Args::argSet
class	a2dCommand_SetLayerMask
	set layer of objects which fit the mask More...
class	a2dCommand_DeleteMask
	delete objects which fit the mask More...
class	a2dCommand_ToTopMask
	objects which fit the mask to top in parent (rendered last) More...
class	a2dCommand_ToBackMask
	objects which fit the mask to bottom in parent (rendered first) More...
class	a2dCommand_CopyMask
	objects which fit the mask are copied to target and translated More...
class	a2dCommand_MoveMask
	objects which fit the mask are moved to target and translated More...
class	a2dCommand_GroupMask
	objects which fit the mask are grouped into a new object More...
class	a2dCommand_UnGroupMask
	objects which fit the mask are grouped into a new object More...
class	a2dCommand_MergeMask
	objects which fit the mask are merge into one new object More...
class	a2dCommand_OffsetMask
	objects which fit the mask are offset corrected More...
class	a2dCommand_PolygonToSurfaceMask
	objects which fit the mask are offset corrected More...
class	a2dCommand_SurfaceToPolygonMask
	objects which fit the mask are offset corrected More...
class	a2dCommand_UrlOnMask
	objects which fit the mask are given an Url property More...
class	a2dCommand_SetFillStrokeMask
	objects which fit the mask are given a new fill and stroke style More...
class	a2dCommand_SetFillStrokeExtMask
	objects which fit the mask are given a new fill and stroke style More...
class	a2dCommand_SetTextChangesMask
	objects which fit the mask are given a new font and other text properties More...
class	a2dCommand_ImagesToRectMask
	objects which fit the mask are converted to rectangles More...
class	a2dCommand_SetLayersProperty
	set all layers visible or not More...
class	a2dCommand_ConvertMask
	objects which fit the mask are converted to polygons or vector paths More...
class	a2dCommand_ConvertMask::Args
struct	a2dCommand_ConvertMask::Args::argValue
struct	a2dCommand_ConvertMask::Args::argSet
class	a2dCommand_SetShowObject
class	a2dCommand_SetShowObject::Args
struct	a2dCommand_SetShowObject::Args::argValue
struct	a2dCommand_SetShowObject::Args::argSet
class	a2dCommand_PushInto
class	a2dCommand_PushInto::Args
struct	a2dCommand_PushInto::Args::argValue
struct	a2dCommand_PushInto::Args::argSet
class	a2dCommand_SetLayerGroup
	layer group A and B commands More...
class	a2dCommand_SetLayerGroup::Args
struct	a2dCommand_SetLayerGroup::Args::argValue
struct	a2dCommand_SetLayerGroup::Args::argSet
class	a2dCommand_SetStroke
	set More...
class	a2dCommand_SetFill
	set More...
class	a2dCommand_SetStrokeColour
class	a2dCommand_SetFillColour
class	a2dCommand_SetCursor
	set cursor More...
class	a2dCommand_SetCursor::Args
struct	a2dCommand_SetCursor::Args::argValue
struct	a2dCommand_SetCursor::Args::argSet
class	a2dCommand_AddObjects
	used to add objects to a a2dCanvasDocument in the current parent More...

Macros
#define	a2dDrawingEventHandler(func)   (wxObjectEventFunction)(wxEventFunction)wxStaticCastEvent(a2dDrawingEventFunction, &func)
#define	EVT_UPDATE_DRAWING(func)   wx__DECLARE_EVT0( wxEVT_UPDATE_DRAWING, a2dDrawingEventHandler( func ))
	event from a drawing when updated
#define	EVT_CHANGEDMODIFY_DRAWING(func)   wx__DECLARE_EVT0( wxEVT_CHANGEDMODIFY_DRAWING, a2dDrawingEventHandler( func ))
	event from a drawing when changed by commands
#define	DECLARE_CMH_HABITAT()

Typedefs
typedef wxUint16	a2dDrawingId
typedef a2dSmrtPtr< a2dDrawing >	a2dDrawingPtr
typedef void(wxEvtHandler::*	a2dDrawingEventFunction )(a2dDrawingEvent &)
typedef a2dlist < a2dCommandMatrixData >	a2dObjectMatrixList

Functions
double	wxGetDoubleNumberFromUser (const wxString &message, const wxString &prompt, const wxString &caption, double value=0, double min=0, double max=100, wxWindow *parent=(wxWindow *) NULL, const wxPoint &pos=wxDefaultPosition)
	get Double from user

Variables
const a2dPrintWhat	a2dPRINT_PrintDrawing
	print a2dDrawing
const a2dPrintWhat	a2dPRINT_PreviewDrawing
	preview print a2dDrawing
const a2dPrintWhat	a2dPRINT_PrintDrawingPart
	print a2dDrawing Part
const a2dPrintWhat	a2dPRINT_PreviewDrawingPart
	preview print a2dDrawing Part

Detailed Description

Contains a2dDrawing Class to hold a drawing.

a2dDrawing is the class where a hierarchy of a2dCanvasObject's is stored. Updating pending/changed objects and drawing a2dDrawing and a2dCanvasView is all from this class.

Author

Klaas Holwerda

Copyright: 2000-2004 (c) Klaas Holwerda

Licence: wxWidgets Licence

RCS-ID:

Id:

drawing.h,v 1.31 2009/07/10 19:23:13 titato Exp

Definition in file drawing.h.

Macro Definition Documentation

#define DECLARE_CMH_HABITAT

(

)

Value:

\
    inline a2dCanvasCommandProcessor* GetCanvasCmp() { return wxStaticCast( m_cmp, a2dCanvasCommandProcessor ); } \
    a2dHabitat* GetDrawHabitat() \
    { \
        assert( GetCanvasCmp() ); \
        assert( GetCanvasCmp()->m_drawing ); \
        return GetCanvasCmp()->m_drawing->GetHabitat(); \
    } \

Definition at line 1027 of file drawing.h.
