a2dStDrawToolFast Class Reference
base for tools that draw and are stack based. More...
#include <sttool2.h>

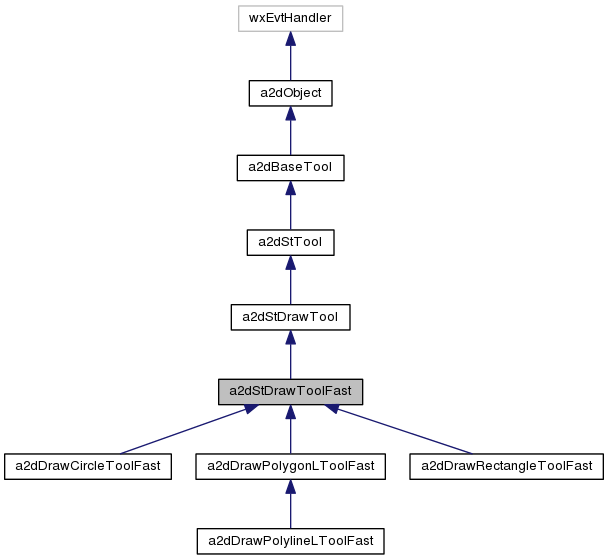

Inheritance diagram for a2dStDrawToolFast:

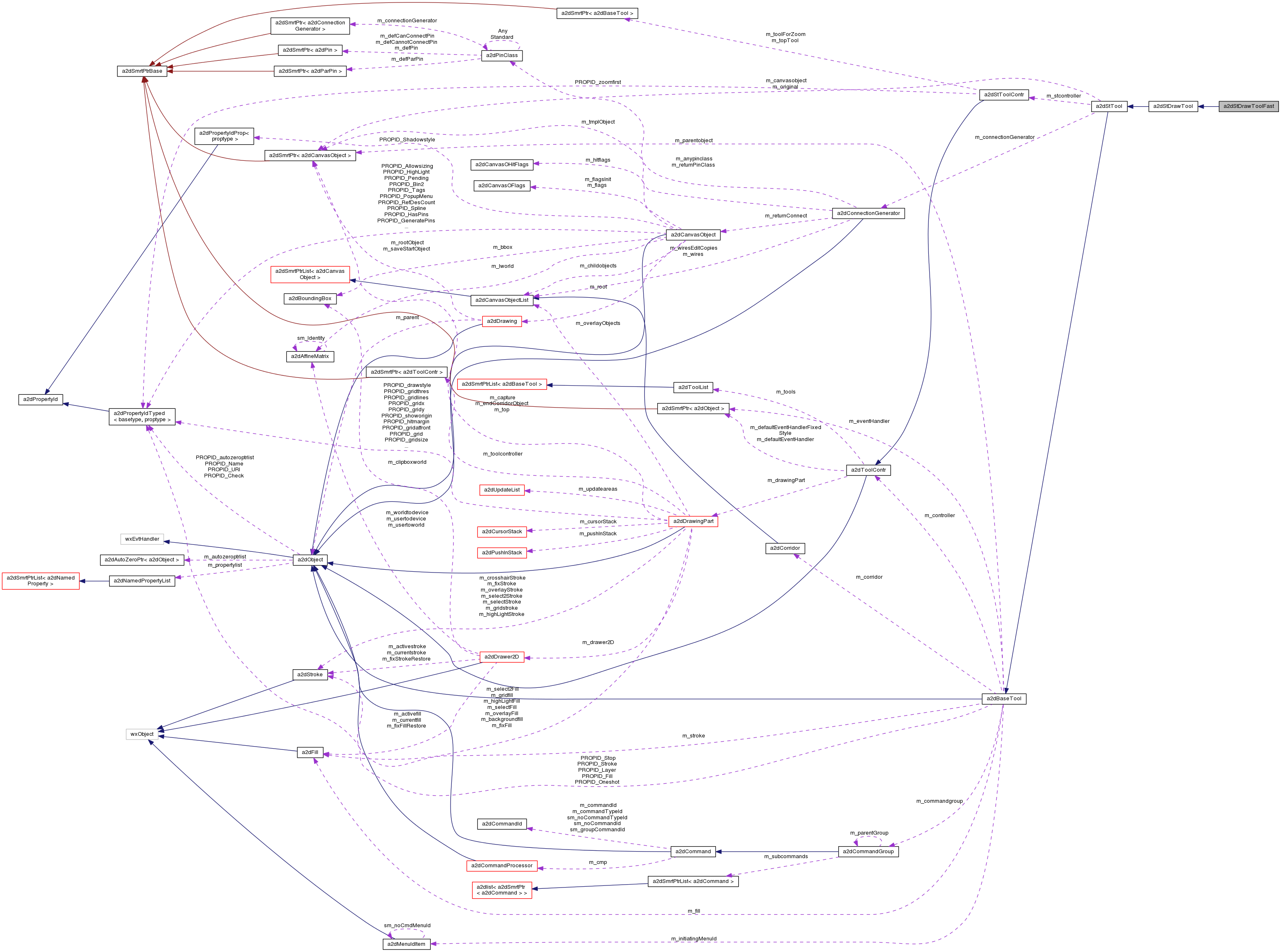

Collaboration diagram for a2dStDrawToolFast:
Public Member Functions | |
| a2dStDrawToolFast (a2dStToolContr *controller) | |
| virtual | ~a2dStDrawToolFast () |
| destructor | |
| void | SetAllowModifyTemplate (bool allowModifyTemplate) |
| template adepts to style change from outside or not | |
| bool | GetAllowModifyTemplate () |
| template adepts to style change from outside or not | |
Protected Member Functions | |
| virtual bool | CreateToolObjects () |
| Create the editcopy and other tool objects (e.g. decorations). | |
| virtual void | CleanupToolObjects () |
| Cleanup the editcopy other tool objects (e.g. decorations). | |
| void | Render () |
| implement rendering | |
Detailed Description
base for tools that draw and are stack based.Definition at line 28 of file sttool2.h.
Constructor & Destructor Documentation
| a2dStDrawToolFast::a2dStDrawToolFast | ( | a2dStToolContr * | controller | ) |
- Parameters:
-
controller Pointer to a a2dStToolContr controller.
Definition at line 51 of file sttool2.cpp.
Member Function Documentation
| bool a2dStDrawToolFast::CreateToolObjects | ( | ) | [protected, virtual] |
Create the editcopy and other tool objects (e.g. decorations).
m_original must be set before this function is called
Reimplemented from a2dStDrawTool.
Reimplemented in a2dDrawRectangleToolFast, a2dDrawCircleToolFast, a2dDrawPolygonLToolFast, and a2dDrawPolylineLToolFast.
Definition at line 64 of file sttool2.cpp.
| void a2dStDrawToolFast::Render | ( | ) | [protected, virtual] |
implement rendering
in general is rendering for tools just to draw/render m_canvasobject when set.
Reimplemented from a2dStTool.
Definition at line 102 of file sttool2.cpp.
The documentation for this class was generated from the following files:
