a2dWindowMM Class Reference
[a2dCanvasObject related objects]

a2dWindowMM More...

#include <rectangle.h>

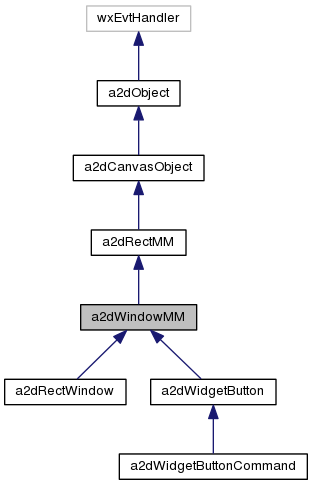

Inheritance diagram for a2dWindowMM:

[legend]

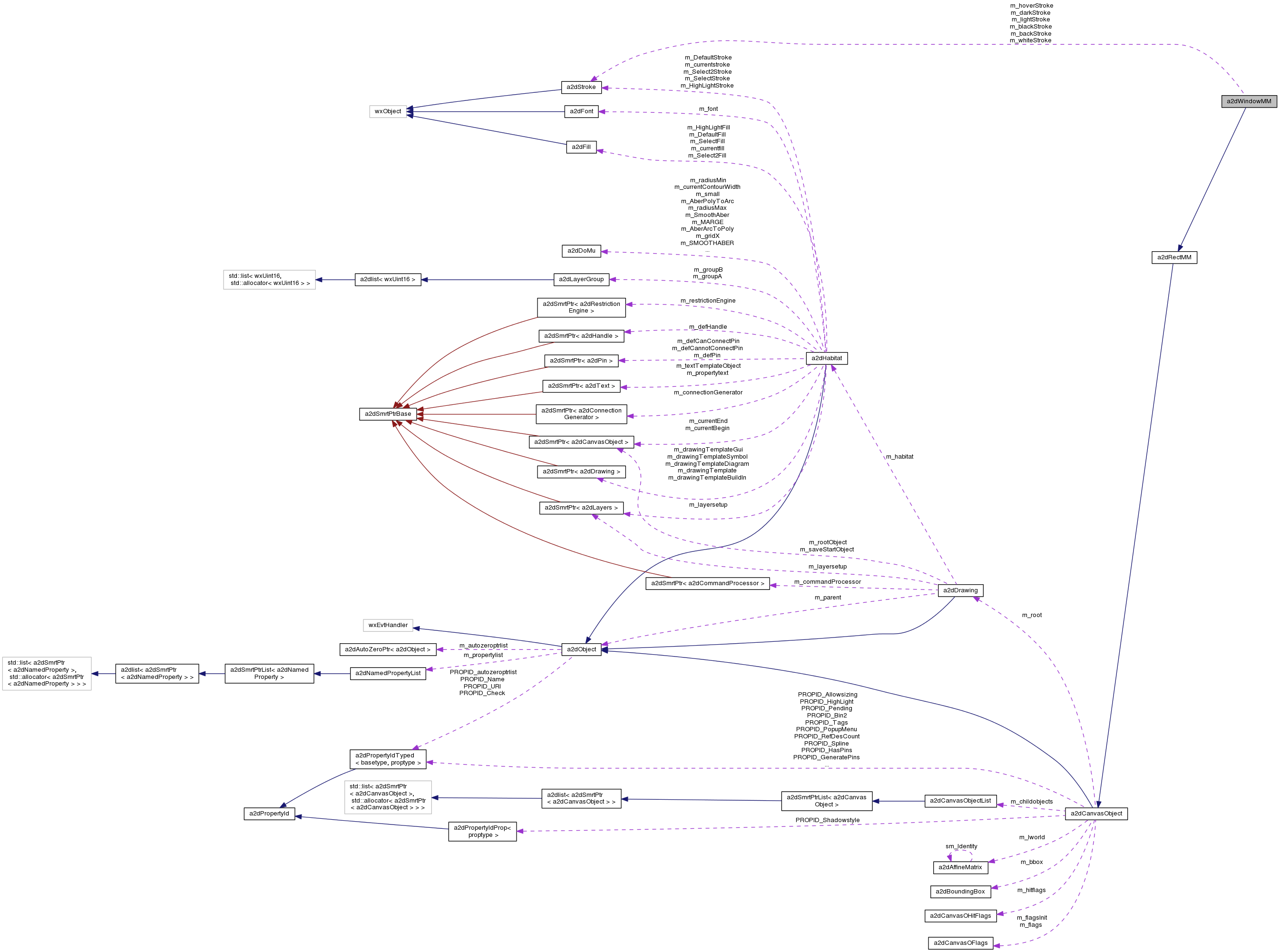

Collaboration diagram for a2dWindowMM:

[legend]

List of all members.

Public Types
enum	a2dWindowMMStyle { SUNKEN = 0x0001, RAISED = 0x0002 }
enum	a2dWindowMMState {   NON = 0x0000, DISABLED = 0x0001, SELECTED = 0x0002, FOCUS = 0x0004,   HOVER = 0x0008, ALL = 0xFFFF }
Public Member Functions
	a2dWindowMM (double x, double y, double w, double h)
	constructor
	a2dWindowMM (const a2dPoint2D &p1, const a2dPoint2D &p2)
	constructor
	a2dWindowMM (const a2dBoundingBox &bbox)
	constructor
	a2dWindowMM (const a2dWindowMM &rec, CloneOptions options)
void	SetStyle (long style)
	Set drawing style for window see a2dWindowMMStyle.
long	GetStyle ()
	Get drawing style for window see a2dWindowMMStyle.
void	Init ()
	initialize
virtual a2dObject *	Clone (CloneOptions options) const
	Clone this object and return a pointer to the new object.
virtual void	DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)
	write object specific CVGL data
void	DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)
	load object specific CVG data
bool	DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)
	Update derived Object specific things ( mainly boundingbox).
Protected Member Functions
void	OnEnterObject (a2dCanvasObjectMouseEvent &event)
	called when the mouse enters the object
void	OnLeaveObject (a2dCanvasObjectMouseEvent &event)
	called when the mouse leaves the object
void	DoRender (a2dIterC &ic, OVERLAP clipparent)
	render derived object
Protected Attributes
long	m_style
long	m_state
a2dStroke	m_backStroke
a2dStroke	m_darkStroke
a2dStroke	m_lightStroke
a2dStroke	m_whiteStroke
a2dStroke	m_blackStroke
a2dStroke	m_hoverStroke

---

Detailed Description

a2dWindowMM

Rectangular Window with Min and Max coordinates.

Definition at line 189 of file rectangle.h.

---

Constructor & Destructor Documentation

a2dWindowMM::a2dWindowMM	(	double	x,
		double	y,
		double	w,
		double	h
	)

constructor

Parameters:

	x,:	x minimum
	y,:	y minimum
	w,:	Width of rectangle.
	h,:	Heigth of rectangle

Definition at line 691 of file rectangle.cpp.

a2dWindowMM::a2dWindowMM	(	const a2dPoint2D &	p1,
		const a2dPoint2D &	p2
	)

constructor

Parameters:

	p1	one point of rectangle
	p2	second point on diagonal

Definition at line 697 of file rectangle.cpp.

a2dWindowMM::a2dWindowMM

(

const a2dBoundingBox &

bbox

)

constructor

Parameters:

bbox

used for size of rectangle

Definition at line 703 of file rectangle.cpp.

---

Member Function Documentation

void a2dWindowMM::DoLoad	(	wxObject *	parent,
		a2dIOHandlerXmlSerIn &	parser,
		a2dXmlSer_flag	xmlparts
	)			[virtual]

load object specific CVG data

todo ignore until this down here is fully converted.

Reimplemented from a2dRectMM.

Definition at line 877 of file rectangle.cpp.

bool a2dWindowMM::DoUpdate	(	UpdateMode	mode,
		const a2dBoundingBox &	childbox,
		const a2dBoundingBox &	clipbox,
		const a2dBoundingBox &	propbox
	)			[virtual]

Update derived Object specific things ( mainly boundingbox).

Calculates the boundingbox of the object (exclusif base class child objects but with other nested objects).

Parameters:

	mode	way to update the objects
	childbox	size of children boundingbox
	clipbox	clip to this
	propbox	size of properties boundingbox

Remarks:

in a derived class this function can also be used to update object specific cache data.

force may or may not have direct influence on the object itself, if this function is called directly for some reason (e.g from derived objects), you must invalidate the boudingbox yourself. GetDrawerBox()->SetValid( false );

Reimplemented from a2dRectMM.

Reimplemented in a2dWidgetButton.

Definition at line 889 of file rectangle.cpp.

void a2dWindowMM::DoRender	(	a2dIterC &	ic,
		OVERLAP	clipparent
	)			[protected, virtual]

render derived object

if the object has sub objects (apart from the childobject which are handled here), those subobject most rendered by iterating on layer when needed/wanted, simular to child objects. We do not iterate here, since that is only needed if indeed there or subobjects. This will be know in a "wxDerivedCanvasObject DoRender".

SO parent objects that call this function, must:

• 1- clip object against area to redraw.
• 2- iterate on layers when needed.

A a2dCanvasObject is rendered as a + (plus sign) when there or no children.

Reimplemented from a2dRectMM.

Reimplemented in a2dWidgetButton.

Definition at line 760 of file rectangle.cpp.

---

The documentation for this class was generated from the following files:

• rectangle.h
• rectangle.cpp
