a2dBandCurve Class Reference
[a2dCanvasObject related objects, complex canvasobject's, complex canvasobject's for drawing sets of curves]

Curve represented by a number of vertexes. More...

#include <curve.h>

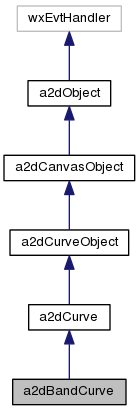

Inheritance diagram for a2dBandCurve:

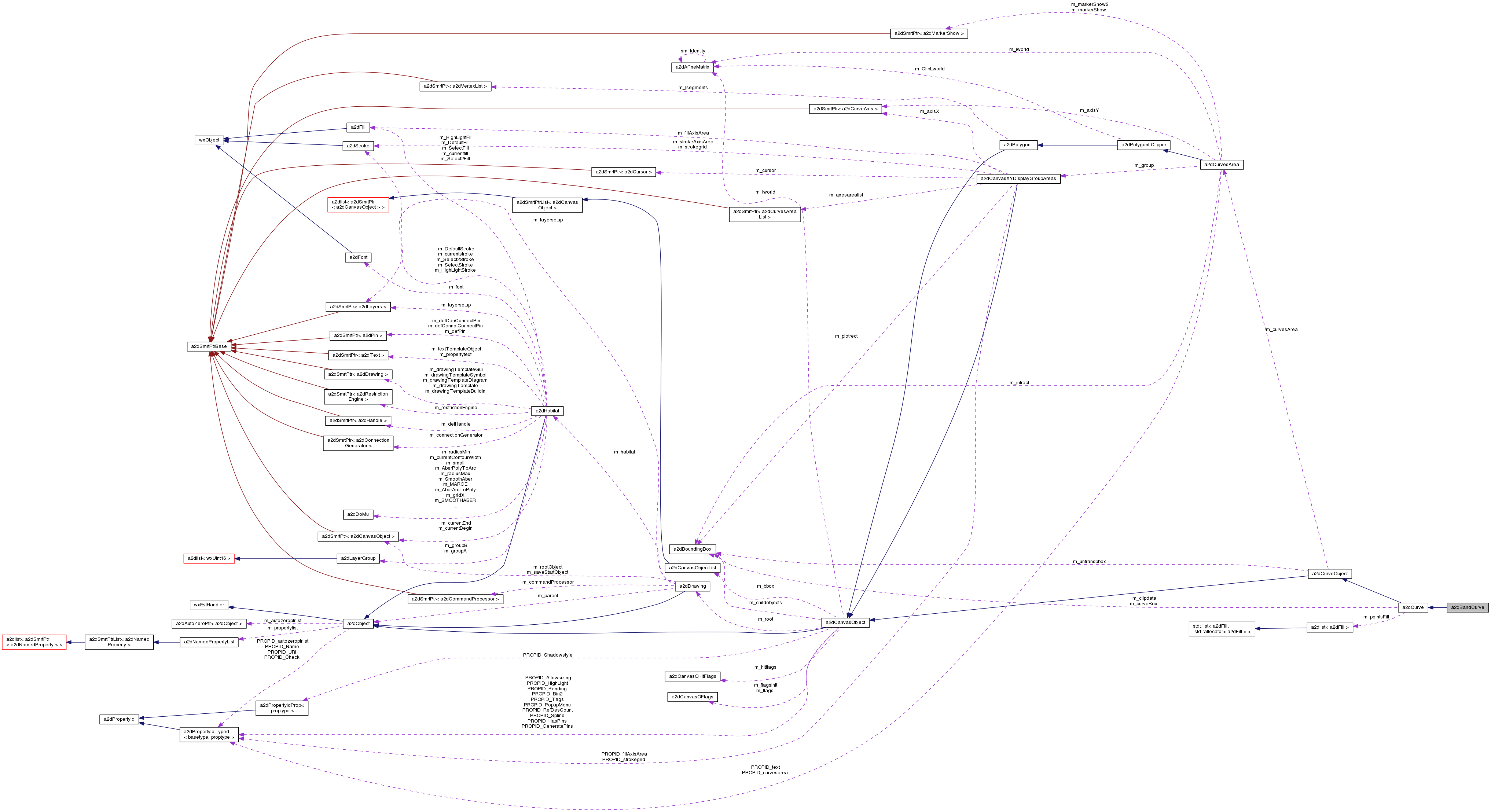

Collaboration diagram for a2dBandCurve:

List of all members.

Public Member Functions

a2dBandCurve (a2dSweepPointArray *points)

a2dBandCurve (const a2dBandCurve &other, CloneOptions options)

virtual a2dObject * Clone (CloneOptions options) const

This is here so that this class cannot be used directly.

virtual bool GetXyAtSweep (double sweepValue, a2dPoint2D &point) const

calculate Y at X

a2dSweepPointArray * GetPoints ()

return the array of points.

int GetNumberOfPoints ()

return the number of point in the curve

void SetMarkerUpLow (bool markerUpLow)

return of GetXyAtSweep() is upper side of curve if true, else low

void SetPosXYPoint (int index, double sweep, double y, bool upper)

modify point at index to x,y

void GetPosXYPoint (int index, double &sweep, double &y, bool upper)

get point x and y at index

void GetPosXYPointWorld (int index, double &sweep, double &y, bool upper, bool transform)

get point x and y at index in world coordinates

void RemovePoint (double &sweep, double &y, bool upper, int index=-1)

removes point at index

void RemovePointWorld (double &sweep, double &y, bool upper, int index=-1, bool transformed=true)

removes point at index

bool EliminateMatrix ()

reduce matrix to identity without replacing object

void SetSpline (bool on)

set to true, the polygon will be drawn as a spline

bool GetSpline ()

Get the polygon spline setting.

void AddPoint (double sweep, const a2dPoint2D &P)

Append a new point in curve coordinates.

void AddPoint (double sweep, double x, double y)

Append a new point in curve coordinates.

void Alloc (size_t count)

Preallocates memory for a given number of array elements.

void Clear ()

This function does the same as Empty() and additionally frees the memory allocated to the array.

a2dSweepPoint * Detach (size_t index)

void Empty ()

void Insert (a2dSweepPoint *item, size_t n)

bool IsEmpty () const

Returns true if the array is empty, false otherwise.

a2dSweepPoint * operator[] (size_t index) const

get i'th point

a2dSweepPoint * Item (size_t index) const

a2dSweepPoint * Last () const

void RemoveAt (size_t index)

void Shrink ()

Frees all memory unused by the array.

bool PointOnCurve (const a2dPoint2D &P, double marge)

test if a point is on the curve.

void SetRenderMode (wxUint32 rendermode)

sets which parts or how the curve is rendered

int GetRenderMode ()

get which parts or how the curve is rendered

void SetEditMode (wxUint32 editmode)

sets how the curve is edited

int GetEditMode ()

get how the curve is edited

Protected Member Functions

bool DoStartEdit (wxUint16 editmode, wxEditStyle editstyle)

only used for editable objects and under control of a editing tool.

void SyncHandlesWithLineSegments ()

void OnHandleEvent (a2dHandleMouseEvent &event)

called if a mouse event occured on a child object, that is a handle

void OnEnterObject (a2dCanvasObjectMouseEvent &event)

called when the mouse enters the object

void OnLeaveObject (a2dCanvasObjectMouseEvent &event)

called when the mouse leaves the object

void OnCanvasObjectMouseEvent (a2dCanvasObjectMouseEvent &event)

default handler for mouse events, sent to the object from the a2dCanvasView.

virtual void DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)

write object specific CVGL data

void DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)

load object specific CVG data

a2dBoundingBox DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const

bool DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)

Update derived Object specific things ( mainly boundingbox).

void DoRender (a2dIterC &ic, OVERLAP clipparent)

render derived object

bool DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)

Does hit test on the object (exclusif child objects).

Protected Attributes

bool m_spline

wxUint32 m_rendermode

wxUint32 m_editmode

a2dSweepPointArray * m_points

bool m_markerUpLow

return of GetXyAtSweep() is upper side of curve if true, else low

Detailed Description

Curve represented by a number of vertexes.

Definition at line 704 of file curve.h.

Member Function Documentation

void a2dBandCurve::SetPosXYPoint	(	int	index,
		double	sweep,
		double	y,
		bool	upper
	)

modify point at index to x,y

Set the coordinates of the point at index to x,y.

Parameters:

	index	the index of the point to change
	sweep	new sweep for the point in curve coordinates
	y	new y for the point in curve coordinates

Remarks:: afterinversion = true should be used if you have x,y relative to the polygon object, while afterinversion = false should be used when x,y are relative to the point in the polygon.

Definition at line 2235 of file curve.cpp.

void a2dBandCurve::GetPosXYPoint	(	int	index,
		double &	sweep,
		double &	y,
		bool	upper
	)

get point x and y at index

Parameters:

	index	the index of the point to change
	sweep	new sweep for the point in curve coordinates
	y	new y for the point in curve coordinates

Definition at line 2295 of file curve.cpp.

void a2dBandCurve::GetPosXYPointWorld	(	int	index,
		double &	sweep,
		double &	y,
		bool	upper,
		bool	transform
	)

get point x and y at index in world coordinates

Parameters:

	index	the index of the point to change
	sweep	new sweep for the point in world coordinates
	y	new y for the point in world coordinates
	transform	if true return x y transformed with local matrix

Definition at line 2307 of file curve.cpp.

void a2dBandCurve::RemovePoint	(	double &	sweep,
		double &	y,
		bool	upper,
		int	index = `-1`
	)

removes point at index

Parameters:

	sweep	sweep value of removed point in curve coordinates
	y	y value of removed point in curve coordinates
	index	index of point to remove (-1 means last point)

Definition at line 2246 of file curve.cpp.

void a2dBandCurve::RemovePointWorld	(	double &	sweep,
		double &	y,
		bool	upper,
		int	index = `-1`,
		bool	transformed = `true`
	)

removes point at index

Parameters:

	sweep	sweep value of removed point in world coordinates
	y	y value of removed point in world coordinates
	index	index of point to remove (-1 means last point)
	transformed	if true returned values x,y are transformed with local matrix

Definition at line 2260 of file curve.cpp.

void a2dBandCurve::Alloc ( size_t count ) [inline]

Preallocates memory for a given number of array elements.

It is worth calling when the number of items which are going to be added to the array is known in advance because it will save unneeded memory reallocation. If the array already has enough memory for the given number of items, nothing happens.

Definition at line 799 of file curve.h.

a2dSweepPoint* a2dBandCurve::Detach ( size_t index ) [inline]

Removes the element from the array, but, unlike, Remove() doesn't delete it. The function returns the pointer to the removed element.

Definition at line 806 of file curve.h.

void a2dBandCurve::Empty ( ) [inline]

Empties the array. For wxObjArray classes, this destroys all of the array elements. this function does not free the allocated memory, use Clear() for this.

Definition at line 810 of file curve.h.

void a2dBandCurve::Insert	(	a2dSweepPoint *	item,
		size_t	n
	)			`[inline]`

Insert a new point into the array before the point n - thus, Insert(something, 0u) will insert a point in such way that it will become the first array element.

Definition at line 814 of file curve.h.

a2dSweepPoint* a2dBandCurve::Item ( size_t index ) const [inline]

Returns the point pointer at the given position in the array. If index is out of bounds, an assert failure is raised in the debug builds but nothing special is done in the release build.

Definition at line 825 of file curve.h.

a2dSweepPoint* a2dBandCurve::Last ( ) const [inline]

Returns the last element in the array, i.e. is the same as Item(GetCount() - 1). An assert failure is raised in the debug mode if the array is empty.

Definition at line 829 of file curve.h.

void a2dBandCurve::RemoveAt ( size_t index ) [inline]

Removes a point from the array by index. When a point is removed it is deleted - use Detach() if you don't want this to happen.

Definition at line 833 of file curve.h.

void a2dBandCurve::Shrink ( ) [inline]

Frees all memory unused by the array.

If the program knows that no new items will be added to the array it may call Shrink() to reduce its memory usage. However, if a new item is added to the array, some extra memory will be allocated again.

Definition at line 840 of file curve.h.

void a2dBandCurve::SetRenderMode ( wxUint32 rendermode ) [inline]

sets which parts or how the curve is rendered

See wxCurveRenderFlags for flags in the mask.

Definition at line 849 of file curve.h.

void a2dBandCurve::SetEditMode ( wxUint32 editmode ) [inline]

sets how the curve is edited

See wxCurveEditFlags for flags in the mask.

Definition at line 858 of file curve.h.

bool a2dBandCurve::DoStartEdit	(	wxUint16	editmode,
		wxEditStyle	editstyle
	)			`[protected, virtual]`

only used for editable objects and under control of a editing tool.

If object is editable this function is used to initialize the object for editing. In general this means adding editing handles to the child list. In the event handling of the object those handles are hit and moved, the object itself is changed accordingly.

Returns:: true is this object can be edited and is initialized for that.

Todo:: edit of bbox ( children or not included )

Reimplemented from a2dCanvasObject.

Definition at line 2325 of file curve.cpp.

void a2dBandCurve::OnCanvasObjectMouseEvent ( a2dCanvasObjectMouseEvent & event ) [protected]

default handler for mouse events, sent to the object from the a2dCanvasView.

Mouse events are sent to the object when the mouse pointer is hiting the object. The default is used when the object is in edit mode. Else it will detect if the special object tip property named __OBJECTTIP__ is available, and switch it on or off when the mouse eneter or leaves the object.

&& m_flags.m_subEditAsChild )

Reimplemented from a2dCanvasObject.

Definition at line 2861 of file curve.cpp.

void a2dBandCurve::DoLoad	(	wxObject *	parent,
		a2dIOHandlerXmlSerIn &	parser,
		a2dXmlSer_flag	xmlparts
	)			`[protected, virtual]`

load object specific CVG data

todo ignore until this down here is fully converted.

Reimplemented from a2dCurve.

Definition at line 2745 of file curve.cpp.

bool a2dBandCurve::DoUpdate	(	UpdateMode	mode,
		const a2dBoundingBox &	childbox,
		const a2dBoundingBox &	clipbox,
		const a2dBoundingBox &	propbox
	)			`[protected, virtual]`

Update derived Object specific things ( mainly boundingbox).

Calculates the boundingbox of the object (exclusif base class child objects but with other nested objects).

Parameters:

	mode	way to update the objects
	childbox	size of children boundingbox
	clipbox	clip to this
	propbox	size of properties boundingbox

Remarks:: in a derived class this function can also be used to update object specific cache data.
force may or may not have direct influence on the object itself, if this function is called directly for some reason (e.g from derived objects), you must invalidate the boudingbox yourself. GetDrawerBox()->SetValid( false );

Reimplemented from a2dCurveObject.

Definition at line 2558 of file curve.cpp.

void a2dBandCurve::DoRender	(	a2dIterC &	ic,
		OVERLAP	clipparent
	)			`[protected, virtual]`

render derived object

if the object has sub objects (apart from the childobject which are handled here), those subobject most rendered by iterating on layer when needed/wanted, simular to child objects. We do not iterate here, since that is only needed if indeed there or subobjects. This will be know in a "wxDerivedCanvasObject DoRender".

SO parent objects that call this function, must:

1- clip object against area to redraw.
2- iterate on layers when needed.

A a2dCanvasObject is rendered as a + (plus sign) when there or no children.

Reimplemented from a2dCanvasObject.

Definition at line 2589 of file curve.cpp.

bool a2dBandCurve::DoIsHitWorld	(	a2dIterC &	ic,
		a2dHitEvent &	hitEvent
	)			`[protected, virtual]`

Does hit test on the object (exclusif child objects).

DoIsHitWorld() should return the way the object is hit by filling a2dHitEvent::m_how with the correct info.

Parameters:

	ic	iterative context ( e.g. current transform WITH the local transform applied )
	hitEvent	stores hit information

Returns:: true if hit

Reimplemented from a2dCanvasObject.

Definition at line 2772 of file curve.cpp.

The documentation for this class was generated from the following files:


Public Member Functions
	a2dBandCurve (a2dSweepPointArray *points)
	a2dBandCurve (const a2dBandCurve &other, CloneOptions options)
virtual a2dObject *	Clone (CloneOptions options) const
	This is here so that this class cannot be used directly.
virtual bool	GetXyAtSweep (double sweepValue, a2dPoint2D &point) const
	calculate Y at X
a2dSweepPointArray *	GetPoints ()
	return the array of points.
int	GetNumberOfPoints ()
	return the number of point in the curve
void	SetMarkerUpLow (bool markerUpLow)
	return of GetXyAtSweep() is upper side of curve if true, else low
void	SetPosXYPoint (int index, double sweep, double y, bool upper)
	modify point at index to x,y
void	GetPosXYPoint (int index, double &sweep, double &y, bool upper)
	get point x and y at index
void	GetPosXYPointWorld (int index, double &sweep, double &y, bool upper, bool transform)
	get point x and y at index in world coordinates
void	RemovePoint (double &sweep, double &y, bool upper, int index=-1)
	removes point at index
void	RemovePointWorld (double &sweep, double &y, bool upper, int index=-1, bool transformed=true)
	removes point at index
bool	EliminateMatrix ()
	reduce matrix to identity without replacing object
void	SetSpline (bool on)
	set to true, the polygon will be drawn as a spline
bool	GetSpline ()
	Get the polygon spline setting.
void	AddPoint (double sweep, const a2dPoint2D &P)
	Append a new point in curve coordinates.
void	AddPoint (double sweep, double x, double y)
	Append a new point in curve coordinates.
void	Alloc (size_t count)
	Preallocates memory for a given number of array elements.
void	Clear ()
	This function does the same as Empty() and additionally frees the memory allocated to the array.
a2dSweepPoint *	Detach (size_t index)
void	Empty ()
void	Insert (a2dSweepPoint *item, size_t n)
bool	IsEmpty () const
	Returns true if the array is empty, false otherwise.
a2dSweepPoint *	operator[] (size_t index) const
	get i'th point
a2dSweepPoint *	Item (size_t index) const
a2dSweepPoint *	Last () const
void	RemoveAt (size_t index)
void	Shrink ()
	Frees all memory unused by the array.
bool	PointOnCurve (const a2dPoint2D &P, double marge)
	test if a point is on the curve.
void	SetRenderMode (wxUint32 rendermode)
	sets which parts or how the curve is rendered
int	GetRenderMode ()
	get which parts or how the curve is rendered
void	SetEditMode (wxUint32 editmode)
	sets how the curve is edited
int	GetEditMode ()
	get how the curve is edited
Protected Member Functions
bool	DoStartEdit (wxUint16 editmode, wxEditStyle editstyle)
	only used for editable objects and under control of a editing tool.
void	SyncHandlesWithLineSegments ()
void	OnHandleEvent (a2dHandleMouseEvent &event)
	called if a mouse event occured on a child object, that is a handle
void	OnEnterObject (a2dCanvasObjectMouseEvent &event)
	called when the mouse enters the object
void	OnLeaveObject (a2dCanvasObjectMouseEvent &event)
	called when the mouse leaves the object
void	OnCanvasObjectMouseEvent (a2dCanvasObjectMouseEvent &event)
	default handler for mouse events, sent to the object from the a2dCanvasView.
virtual void	DoSave (wxObject parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList towrite)
	write object specific CVGL data
void	DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)
	load object specific CVG data
a2dBoundingBox	DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const
bool	DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)
	Update derived Object specific things ( mainly boundingbox).
void	DoRender (a2dIterC &ic, OVERLAP clipparent)
	render derived object
bool	DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)
	Does hit test on the object (exclusif child objects).
Protected Attributes
bool	m_spline
wxUint32	m_rendermode
wxUint32	m_editmode
a2dSweepPointArray *	m_points
bool	m_markerUpLow
	return of GetXyAtSweep() is upper side of curve if true, else low

a2dBandCurve Class Reference [a2dCanvasObject related objects, complex canvasobject's, complex canvasobject's for drawing sets of curves]

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

a2dBandCurve Class Reference
[a2dCanvasObject related objects, complex canvasobject's, complex canvasobject's for drawing sets of curves]
