a2dEllipse Class Reference
[a2dCanvasObject related objects]

#include <canprim.h>

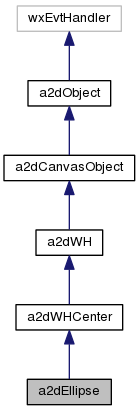

Inheritance diagram for a2dEllipse:

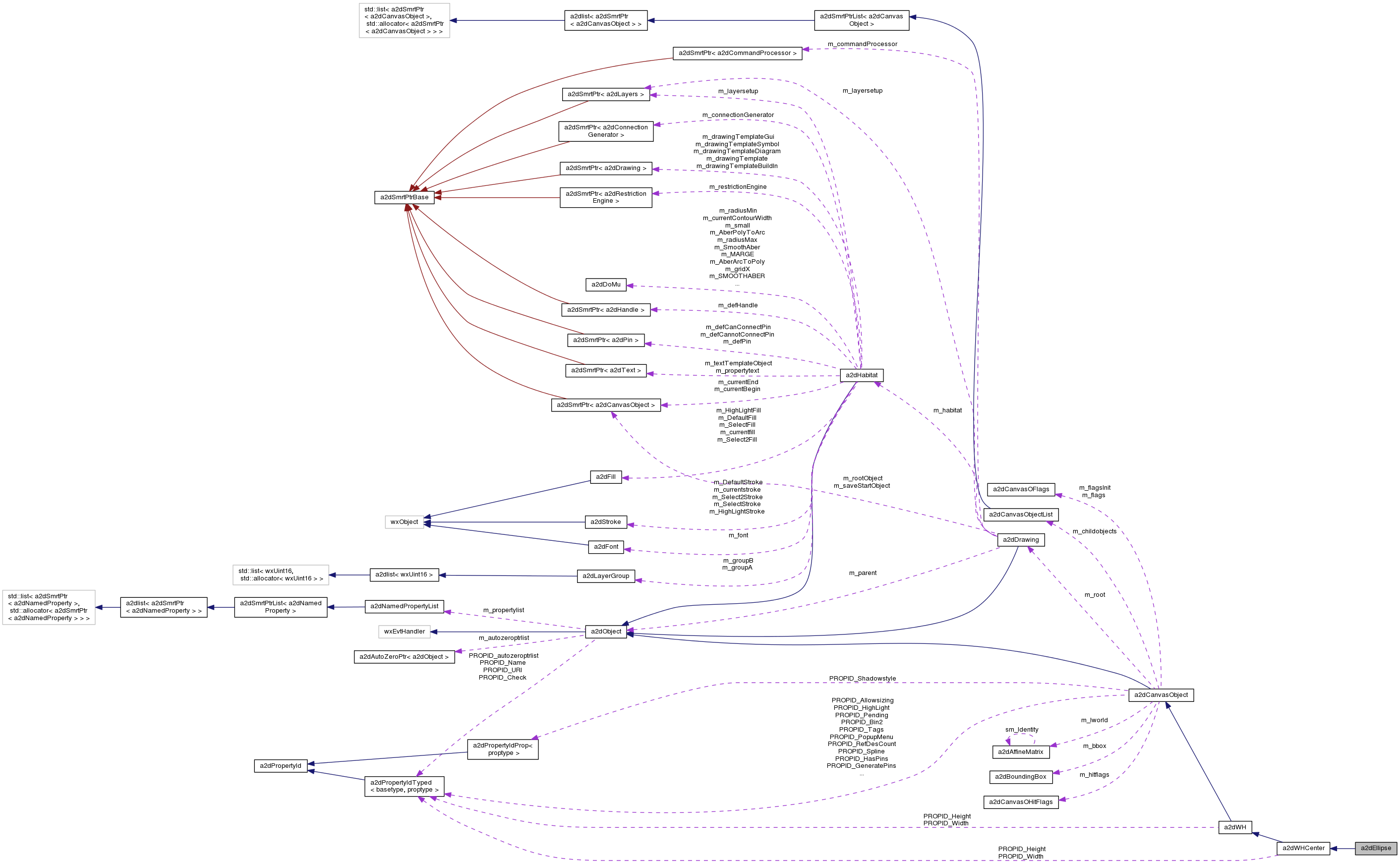

Collaboration diagram for a2dEllipse:

List of all members.

Public Member Functions

a2dEllipse (double xc, double yc, double width, double height, double contourwidth=0)

constructor for ellipse

a2dEllipse (const a2dEllipse &ori, CloneOptions options)

virtual a2dObject * Clone (CloneOptions options) const

This is here so that this class cannot be used directly.

virtual void DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)

write object specific CVGL data

void DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)

load object specific CVG data

a2dVertexList * GetAsPolygon ()

a2dCanvasObjectList * GetAsCanvasVpaths (bool transform=true)

when implemented the object without its children, is converted to

void SetContourWidth (double width)

set the Contour width of the shape

double GetContourWidth () const

get the Contour width of the shape

bool GeneratePins (a2dPinClass *toConnectTo, a2dConnectTask task, double x, double y)

create pins in derived objects.

Protected Member Functions

virtual bool DoStartEdit (wxUint16 editmode, wxEditStyle editstyle)

only used for editable objects and under control of a editing tool.

void DoRender (a2dIterC &ic, OVERLAP clipparent)

render derived object

bool DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)

Does hit test on the object (exclusif child objects).

a2dBoundingBox DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const

bool DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)

Update derived Object specific things ( mainly boundingbox).

Detailed Description

a2dEllipse centered at x,y.

Definition at line 1319 of file canprim.h.

Constructor & Destructor Documentation

a2dEllipse::a2dEllipse	(	double	xc,
		double	yc,
		double	width,
		double	height,
		double	contourwidth = `0`
	)

constructor for ellipse

Parameters:

	xc	x center
	yc	y center
	width	Width of ellipse.
	height	Heigth of ellipse.
	contourwidth	contour around rectangle.

Definition at line 3344 of file canprim.cpp.

Member Function Documentation

void a2dEllipse::DoLoad	(	wxObject *	parent,
		a2dIOHandlerXmlSerIn &	parser,
		a2dXmlSer_flag	xmlparts
	)			`[virtual]`

load object specific CVG data

todo ignore until this down here is fully converted.

Reimplemented from a2dWH.

Definition at line 3500 of file canprim.cpp.

a2dCanvasObjectList * a2dEllipse::GetAsCanvasVpaths ( bool transform = true ) [virtual]

when implemented the object without its children, is converted to

to a list of a2dVectorPath's. Else wxNullCanvasObjectList is returned.

Reimplemented from a2dWH.

Definition at line 3386 of file canprim.cpp.

bool a2dEllipse::GeneratePins	(	a2dPinClass *	toConnectTo,
		a2dConnectTask	task,
		double	x,
		double	y
	)			`[virtual]`

create pins in derived objects.

When wanting to connect to shapes which at construction have no pins, but still make sence to connect too, this function generates pins for the object, when connection is asked for by a tool. This is via EditFeedBack()

The idea is to generate temporary pins for the tools, so the user sees where connection are possible.

Parameters:

	toConnectTo	the pinClass to which the generated pin must be able to connect.
	task	what/how to connect
	x	x position of mouse or pin which wants/needs connection
	y	y position of mouse or pin which wants/needs connection

Reimplemented from a2dCanvasObject.

Definition at line 3570 of file canprim.cpp.

bool a2dEllipse::DoStartEdit	(	wxUint16	editmode,
		wxEditStyle	editstyle
	)			`[protected, virtual]`

only used for editable objects and under control of a editing tool.

If object is editable this function is used to initialize the object for editing. In general this means adding editing handles to the child list. In the event handling of the object those handles are hit and moved, the object itself is changed accordingly.

Returns:: true is this object can be edited and is initialized for that.

Todo:: edit of bbox ( children or not included )

Reimplemented from a2dWH.

Definition at line 3559 of file canprim.cpp.

void a2dEllipse::DoRender	(	a2dIterC &	ic,
		OVERLAP	clipparent
	)			`[protected, virtual]`

render derived object

if the object has sub objects (apart from the childobject which are handled here), those subobject most rendered by iterating on layer when needed/wanted, simular to child objects. We do not iterate here, since that is only needed if indeed there or subobjects. This will be know in a "wxDerivedCanvasObject DoRender".

SO parent objects that call this function, must:

1- clip object against area to redraw.
2- iterate on layers when needed.

A a2dCanvasObject is rendered as a + (plus sign) when there or no children.

Reimplemented from a2dCanvasObject.

Definition at line 3470 of file canprim.cpp.

bool a2dEllipse::DoIsHitWorld	(	a2dIterC &	ic,
		a2dHitEvent &	hitEvent
	)			`[protected, virtual]`

Does hit test on the object (exclusif child objects).

DoIsHitWorld() should return the way the object is hit by filling a2dHitEvent::m_how with the correct info.

Parameters:

	ic	iterative context ( e.g. current transform WITH the local transform applied )
	hitEvent	stores hit information

Returns:: true if hit

Reimplemented from a2dWH.

Definition at line 3513 of file canprim.cpp.

bool a2dEllipse::DoUpdate	(	UpdateMode	mode,
		const a2dBoundingBox &	childbox,
		const a2dBoundingBox &	clipbox,
		const a2dBoundingBox &	propbox
	)			`[protected, virtual]`

Update derived Object specific things ( mainly boundingbox).

Calculates the boundingbox of the object (exclusif base class child objects but with other nested objects).

Parameters:

	mode	way to update the objects
	childbox	size of children boundingbox
	clipbox	clip to this
	propbox	size of properties boundingbox

Remarks:: in a derived class this function can also be used to update object specific cache data.
force may or may not have direct influence on the object itself, if this function is called directly for some reason (e.g from derived objects), you must invalidate the boudingbox yourself. GetDrawerBox()->SetValid( false );

Reimplemented from a2dWH.

Definition at line 3442 of file canprim.cpp.
