a2dRect Class Reference
[a2dCanvasObject related objects]

#include <canprim.h>

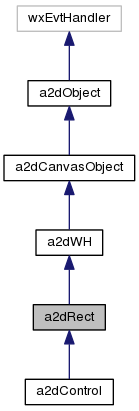

Inheritance diagram for a2dRect:

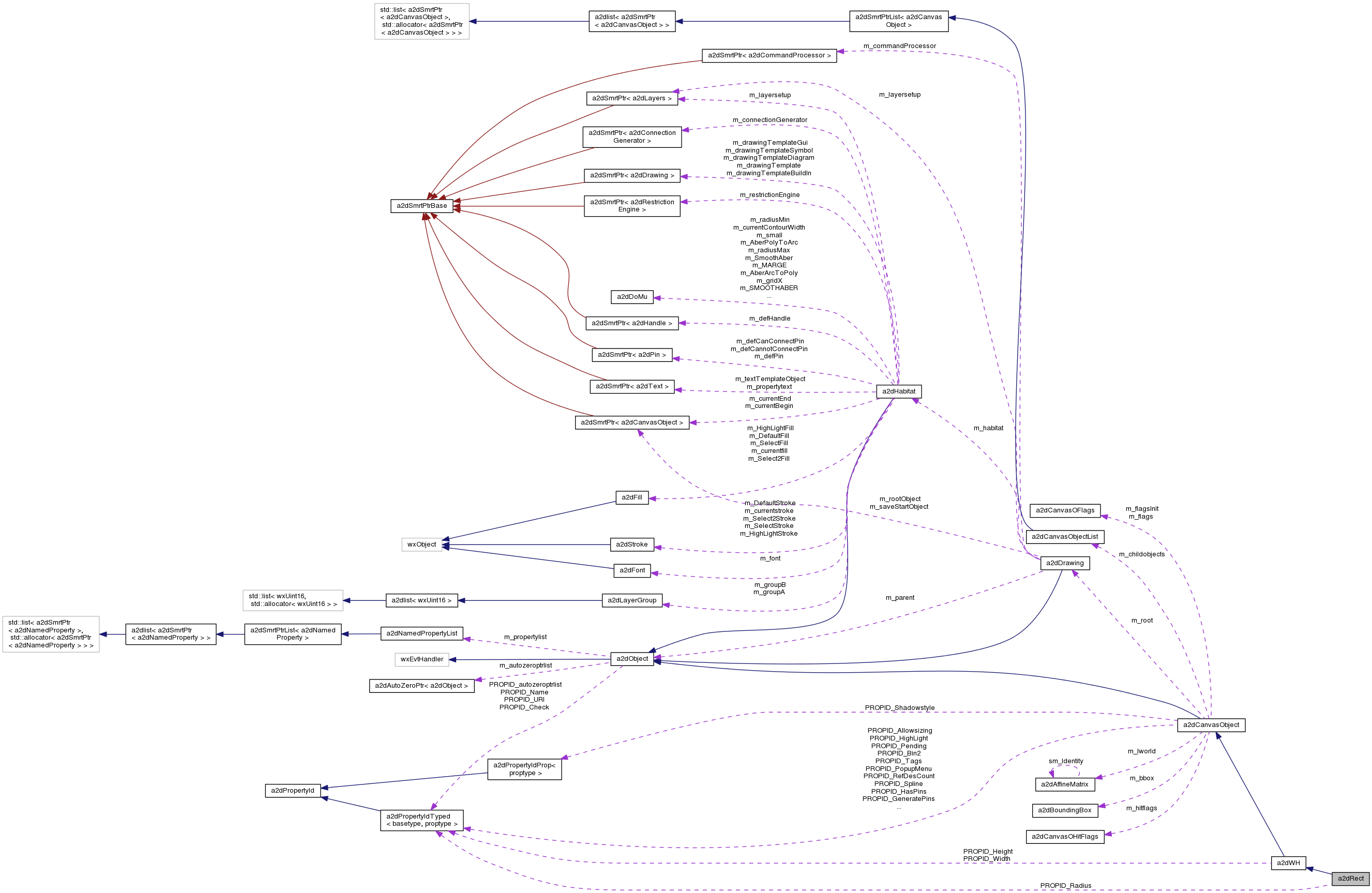

Collaboration diagram for a2dRect:

List of all members.

Public Member Functions

a2dRect (double x, double y, double w, double h, double radius=0, double contourwidth=0)

constructor

a2dRect (const a2dPoint2D &p1, const a2dPoint2D &p2, double radius=0, double contourwidth=0)

constructor

a2dRect (const a2dBoundingBox &bbox, double radius=0, double contourwidth=0)

constructor

a2dRect (const a2dRect &rec, CloneOptions options)

virtual a2dObject * Clone (CloneOptions options) const

This is here so that this class cannot be used directly.

void SetContourWidth (double width)

set the Contour width of the shape

double GetContourWidth () const

get the Contour width of the shape

void SetRadius (double radius)

set corner radius of rectangle

double GetRadius () const

return radius

void SetBoxType (int type)

GDSII compatible to sub identify types of rectangles.

int GetBoxType () const

GDSII compatible to sub identify types of rectangles.

virtual void DoSave (wxObject *parent, a2dIOHandlerXmlSerOut &out, a2dXmlSer_flag xmlparts, a2dObjectList *towrite)

write object specific CVGL data

void DoLoad (wxObject *parent, a2dIOHandlerXmlSerIn &parser, a2dXmlSer_flag xmlparts)

load object specific CVG data

a2dVertexList * GetAsPolygon ()

a2dCanvasObjectList * GetAsCanvasVpaths (bool transform=true)

when implemented the object without its children, is converted to

bool GeneratePins (a2dPinClass *toConnectTo, a2dConnectTask task, double x, double y)

create pins in derived objects.

void OnHandleEvent (a2dHandleMouseEvent &event)

called if a mouse event occured on a child object, that is a handle

Static Public Attributes

static a2dPropertyIdDouble * PROPID_Radius = NULL

Protected Member Functions

virtual void EditFeedback (a2dIterC &ic, const a2dFeedbackId *id, a2dCanvasObject *currentEdit=0, int depth=INT_MAX, a2dCanvasObjectFlagsMask flags=0, double x=0, double y=0)

tool editing feedback

virtual bool DoStartEdit (wxUint16 editmode, wxEditStyle editstyle)

only used for editable objects and under control of a editing tool.

void DoRender (a2dIterC &ic, OVERLAP clipparent)

render derived object

bool DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)

Does hit test on the object (exclusif child objects).

a2dBoundingBox DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const

Protected Attributes

int m_boxtype

GDSII compatible to sub identify types of rectangles.

double m_radius

radius in case of rounded rectangle (negatif inwards positif outwards)

double m_contourwidth

if != 0 you get a contour around the rectangle ( donut like ).

Detailed Description

a2dRect

Rectangle with radius

Definition at line 1122 of file canprim.h.

Constructor & Destructor Documentation

a2dRect::a2dRect	(	double	x,
		double	y,
		double	w,
		double	h,
		double	radius = `0`,
		double	contourwidth = `0`
	)

constructor

Parameters:

	x,:	x minimum
	y,:	y minimum
	w,:	Width of rectangle.
	h,:	Heigth of rectangle
	radius	Radius at corners (negatif inwards positif outwards).
	contourwidth	contour around rectangle.

Definition at line 2462 of file canprim.cpp.

a2dRect::a2dRect	(	const a2dPoint2D &	p1,
		const a2dPoint2D &	p2,
		double	radius = `0`,
		double	contourwidth = `0`
	)

constructor

Parameters:

	p1	one point of rectangle
	p2	second point on diagonal
	radius	Radius at corners (negatif inwards positif outwards).
	contourwidth	contour around rectangle.

Definition at line 2469 of file canprim.cpp.

a2dRect::a2dRect	(	const a2dBoundingBox &	bbox,
		double	radius = `0`,
		double	contourwidth = `0`
	)

constructor

Parameters:

	bbox	used for size of rectangle
	radius	Radius at corners (negatif inwards positif outwards).
	contourwidth	contour around rectangle.

Definition at line 2476 of file canprim.cpp.

Member Function Documentation

void a2dRect::SetRadius ( double radius ) [inline]

set corner radius of rectangle

Parameters:

radius

rounded corner radius of rectangle

Definition at line 1175 of file canprim.h.

void a2dRect::SetBoxType ( int type ) [inline]

GDSII compatible to sub identify types of rectangles.

you can use it as a special tagged rectangle

Definition at line 1182 of file canprim.h.

int a2dRect::GetBoxType ( ) const [inline]

GDSII compatible to sub identify types of rectangles.

you can use it as a special tagged rectangle

Definition at line 1186 of file canprim.h.

void a2dRect::DoLoad	(	wxObject *	parent,
		a2dIOHandlerXmlSerIn &	parser,
		a2dXmlSer_flag	xmlparts
	)			`[virtual]`

load object specific CVG data

todo ignore until this down here is fully converted.

Reimplemented from a2dWH.

Definition at line 2920 of file canprim.cpp.

a2dCanvasObjectList * a2dRect::GetAsCanvasVpaths ( bool transform = true ) [virtual]

when implemented the object without its children, is converted to

to a list of a2dVectorPath's. Else wxNullCanvasObjectList is returned.

Reimplemented from a2dWH.

Definition at line 2520 of file canprim.cpp.

bool a2dRect::GeneratePins	(	a2dPinClass *	toConnectTo,
		a2dConnectTask	task,
		double	x,
		double	y
	)			`[virtual]`

create pins in derived objects.

When wanting to connect to shapes which at construction have no pins, but still make sence to connect too, this function generates pins for the object, when connection is asked for by a tool. This is via EditFeedBack()

The idea is to generate temporary pins for the tools, so the user sees where connection are possible.

Parameters:

	toConnectTo	the pinClass to which the generated pin must be able to connect.
	task	what/how to connect
	x	x position of mouse or pin which wants/needs connection
	y	y position of mouse or pin which wants/needs connection

Reimplemented from a2dCanvasObject.

Definition at line 2961 of file canprim.cpp.

void a2dRect::EditFeedback	(	a2dIterC &	ic,
		const a2dFeedbackId *	id,
		a2dCanvasObject *	currentEdit = `0`,
		int	depth = `INT_MAX`,
		a2dCanvasObjectFlagsMask	flags = `0`,
		double	x = `0`,
		double	y = `0`
	)			`[protected, virtual]`

tool editing feedback

Parameters:

	ic	iteration context
	id	the id for the editing situation.
	currentEdit	the currently edited object or another hint object
	depth	recursion depth (0=this object, 1=this object+childs, ...)
	flags	objects with this flag set ignore the depth limit
	x	x world coordinate of mouse
	y	y world coordinate of mouse

Reimplemented from a2dCanvasObject.

Definition at line 2956 of file canprim.cpp.

bool a2dRect::DoStartEdit	(	wxUint16	editmode,
		wxEditStyle	editstyle
	)			`[protected, virtual]`

only used for editable objects and under control of a editing tool.

If object is editable this function is used to initialize the object for editing. In general this means adding editing handles to the child list. In the event handling of the object those handles are hit and moved, the object itself is changed accordingly.

Returns:: true is this object can be edited and is initialized for that.

Todo:: edit of bbox ( children or not included )

Reimplemented from a2dWH.

Reimplemented in a2dControl.

Definition at line 2668 of file canprim.cpp.

void a2dRect::DoRender	(	a2dIterC &	ic,
		OVERLAP	clipparent
	)			`[protected, virtual]`

render derived object

if the object has sub objects (apart from the childobject which are handled here), those subobject most rendered by iterating on layer when needed/wanted, simular to child objects. We do not iterate here, since that is only needed if indeed there or subobjects. This will be know in a "wxDerivedCanvasObject DoRender".

SO parent objects that call this function, must:

1- clip object against area to redraw.
2- iterate on layers when needed.

A a2dCanvasObject is rendered as a + (plus sign) when there or no children.

Reimplemented from a2dCanvasObject.

Reimplemented in a2dControl.

Definition at line 2873 of file canprim.cpp.

bool a2dRect::DoIsHitWorld	(	a2dIterC &	ic,
		a2dHitEvent &	hitEvent
	)			`[protected, virtual]`

Does hit test on the object (exclusif child objects).

DoIsHitWorld() should return the way the object is hit by filling a2dHitEvent::m_how with the correct info.

Parameters:

	ic	iterative context ( e.g. current transform WITH the local transform applied )
	hitEvent	stores hit information

Returns:: true if hit

Reimplemented from a2dWH.

Reimplemented in a2dControl.

Definition at line 2934 of file canprim.cpp.
