a2dWidgetButton Class Reference
[a2dCanvasObject related objects]

a2dWidgetButton is a a2dCanvasObject based button in a canvas More...

#include <canwidget.h>

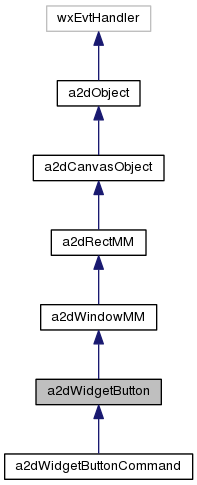

Inheritance diagram for a2dWidgetButton:

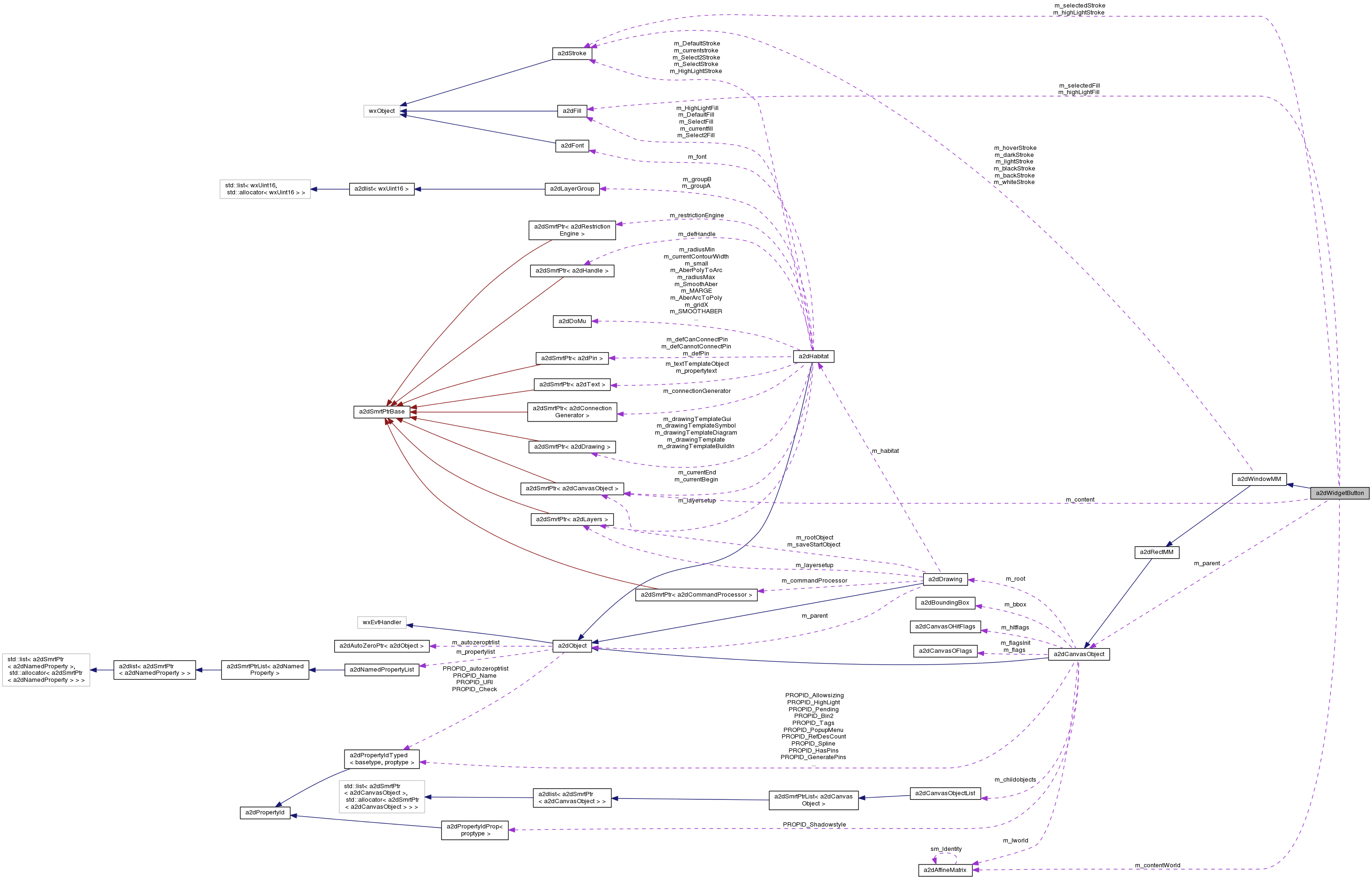

Collaboration diagram for a2dWidgetButton:

List of all members.

Public Types

enum WidgetMode { Boundingbox, BoundingboxSize, ScaledContent, ScaledContentKeepAspect }

Public Member Functions

a2dWidgetButton (a2dCanvasObject *parent, int buttonId, double x, double y, double w, double h, WidgetMode mode=Boundingbox)

Standard constructor.

a2dWidgetButton (const a2dWidgetButton &other, CloneOptions options)

~a2dWidgetButton ()

destructor

virtual a2dObject * Clone (CloneOptions options) const

Clone this object and return a pointer to the new object.

virtual void SetParent (a2dCanvasObject *parent)

set parent object of the pin or some other objects that needs a parent

virtual a2dEvtHandler * GetParentEvtHandler ()

get parent object if available

void SetContentObject (a2dCanvasObject *content)

Set the content object.

a2dCanvasObject * GetContentObject ()

Get the content object,.

void SetContentBorder (double contentBorder)

Set the border width around the content.

double GetContentBorder ()

Get the border width around the content.

void SetSelectedStroke (const a2dStroke &selectedStroke)

Set the selected stroke style for the button.

void SetSelectedFill (const a2dFill &selectedFill)

Set the selected fill style for the button.

void SetHighLightStroke (const a2dStroke &highLightStroke)

Set the selected stroke style for the button.

void SetHighLightFill (const a2dFill &highLightFill)

Set the selected fill style for the button.

int GetButtonId ()

id used for button event.

Protected Member Functions

void DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)

iterate over this object and its children

virtual void DrawHighLighted (a2dIterC &ic)

called by Render() if m_flags.m_HighLight is set

virtual void Render (a2dIterC &ic, OVERLAP clipparent)

Render this object to the active a2dCanvasView.

virtual bool DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)

Update derived Object specific things ( mainly boundingbox).

virtual a2dBoundingBox DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const

virtual void DoRender (a2dIterC &ic, OVERLAP clipparent)

render derived object

bool DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)

Does hit test on the object (exclusif child objects).

void OnEnterObject (a2dCanvasObjectMouseEvent &event)

handler for A2D_EVT_CANVASOBJECT_ENTER_EVENT

void OnLeaveObject (a2dCanvasObjectMouseEvent &event)

handler for A2D_EVT_CANVASOBJECT_LEAVE_EVENT

void OnCanvasObjectMouseEvent (a2dCanvasObjectMouseEvent &event)

handler for A2D_EVT_CANVASOBJECT_MOUSE_EVENT

Protected Attributes

a2dStroke m_selectedStroke

a2dFill m_selectedFill

a2dStroke m_highLightStroke

a2dFill m_highLightFill

int m_buttonId

event id used when sending events

WidgetMode m_mode

type of button rendering of the m_content object.

double m_contentBorder

here a border between the button and the content can be given

a2dCanvasObjectPtr m_content

the button its graphics, which will be scaled in WidgetMode::ScaleChildren

a2dCanvasObject * m_parent

events are sent from the button to this object, if not handled by the button itself.

a2dAffineMatrix m_contentWorld

for scaling/translating the m_content

Detailed Description

a2dWidgetButton is a a2dCanvasObject based button in a canvas

a2dWidgetButton implements a a2dCanvasObject based button. This is usefull for selecting objects from a a2dCanvas that is used as a palette of objects, styles or tools. If the object is selected, it is drawn with the styles set by SetSelectedStroke and SetSelectedFill. Otherwise it is drawn by the usual style for this object. The default selected style is a one pixel black line and white fill. The default non-selected style is transparent stroke and fill.

a2dWidgetButton does not need a tool. It processes Mouse events.

Definition at line 41 of file canwidget.h.

Member Enumeration Documentation

enum a2dWidgetButton::WidgetMode

Enumerator:

Boundingbox	The width and height is the boundingbox of the m_content ORed with the button and children.
BoundingboxSize	Like Boundingbox, but objects with negative extend are shifted positive.
ScaledContent	The width and height button, m_content are scaled to fit in.
ScaledContentKeepAspect	like ScaledContent, but keep aspect ratio.

Definition at line 46 of file canwidget.h.

Member Function Documentation

virtual a2dEvtHandler* a2dWidgetButton::GetParentEvtHandler ( ) [inline, virtual]

get parent object if available

A wxCommandEvent is sent to a parent when available.

Reimplemented from a2dEvtHandler.

Definition at line 67 of file canwidget.h.

void a2dWidgetButton::SetContentObject ( a2dCanvasObject * content ) [inline]

Set the content object.

child objects can be added to a button, but they will always be drawn unscaled, independent of WidgetMode. Therefore one can not fit the children inside of the boundingbox of the button. It is important to be able to split normalized content from child objects, for example when object tips that are added to the button. Such an object tip should never be scaled, when the button itself is resized. So the prefered manner of setting the drawing for a button is using SetContentObject(). Children should be used for decorating the button itself, not for fitting/scaling the inside drawing of tyhe button.

Definition at line 79 of file canwidget.h.

a2dCanvasObject* a2dWidgetButton::GetContentObject ( ) [inline]

Get the content object,.

See also:: SetContentObject()

Definition at line 82 of file canwidget.h.

void a2dWidgetButton::DoWalker	(	wxObject *	parent,
		a2dWalkerIOHandler &	handler
	)			`[protected, virtual]`

iterate over this object and its children

This function allows you to extend the functionality of all a2dCanvasObject classes in a a2dCanvasDocument, without adding extra members to these objects.

Default functions are called on the a2dWalkerIOHandler, which redirect the calls to other functions based on this object its classname. On can register classes to a2dWalkerIOHandler or derived classes. This way for each unique object in the document there can be a function in a2dWalkerIOHandler.

Returns:: false if some object did not have a function attached via a2dWalkerIOHandler.

See a2dWalkerIOHandler for more.

Reimplemented from a2dCanvasObject.

Definition at line 84 of file canwidget.cpp.

void a2dWidgetButton::DrawHighLighted ( a2dIterC & ic ) [protected, virtual]

called by Render() if m_flags.m_HighLight is set

Parameters:

ic

iteration context (has a2dCanvasView accumulative matrix to calculate absolute position of the object)

Reimplemented from a2dCanvasObject.

Definition at line 95 of file canwidget.cpp.

void a2dWidgetButton::Render	(	a2dIterC &	ic,
		OVERLAP	clipparent
	)			`[protected, virtual]`

Render this object to the active a2dCanvasView.

This function is called via the a2dCanvasDocument class or its nested children. The active a2dCanvasView which is set for the document is used to draw to (either on its buffer or directly on the device) All rendering goes through this function to be able to render specific things in the base class first (like a2dCanvasObject its properties.) Somewhere internal DoRender will be called to really render the derived object itself. Next to that nested a2dCanvasObject's will be rendered too.

If wanted only the canvas objects with a certain mask set, will be rendered. Mask example: Checking visible and selected

use: mask=(a2dCANOBJ_VISIBLE | a2dCANOBJ_SELECTED)

Remarks:: Do not use directly from outside the containing document of this object. Normally only used directly in derived classes

See also:: a2dCanvasDocument

Remarks:

The active clipping rectangle is set within the active drawer. It can be used to decide which parts of the object need to be re-drawn or not. This may speed up drawing in sepcial cases, but in general the active a2dCanvasView, simply clips all that is drawn on it to active clipping rectangle. The fact that the object is called to redrawn itself, is not decided here, instead it is part of the pending object mechanism. Which uses the object its boundingbox to request redrawing.

Normally an object will be rendered if the given layer is equal to the object its layer.

wxLAYER_ALL has a special meaning. If the given input layer is wxLAYER_ALL, then the m_layer of objects is not tested. So the child objects their own layer settings are ignored/not checked in that case. All child objects are drawn at once, still the style of the layers settings is used when needed.

If the flag "m_flags.m_childrenOnSameLayer" is set, a new iteration over layers will take place. The effect is that all children will be drawn at once ( not only objects on the given layer ), but the order of the layers will be taken into account to draw the children. If the flag "m_flags.m_childrenOnSameLayer" is NOT set, a new iteration on layers is NOT done, and only the objects on the given layer will be drawn.

Remarks:: ic.GetPerLayerMode() is true, then only ic.GetLayer() is rendered, which can not be wxLAYER_ALL.

Parameters:

	ic	iteration context (has a2dCanvasView accumulative matrix to calculate absolute position of the object)
	clipparent	this must be the clip status of parent object, it is used to optimize drawing speed. e.g If parent is completely within the current clipping rectangle of the a2dCanvasView, there is no need to check child objects.

Reimplemented from a2dCanvasObject.

Definition at line 131 of file canwidget.cpp.

bool a2dWidgetButton::DoUpdate	(	UpdateMode	mode,
		const a2dBoundingBox &	childbox,
		const a2dBoundingBox &	clipbox,
		const a2dBoundingBox &	propbox
	)			`[protected, virtual]`

Update derived Object specific things ( mainly boundingbox).

Calculates the boundingbox of the object (exclusif base class child objects but with other nested objects).

Parameters:

	mode	way to update the objects
	childbox	size of children boundingbox
	clipbox	clip to this
	propbox	size of properties boundingbox

Remarks:: in a derived class this function can also be used to update object specific cache data.
force may or may not have direct influence on the object itself, if this function is called directly for some reason (e.g from derived objects), you must invalidate the boudingbox yourself. GetDrawerBox()->SetValid( false );

Reimplemented from a2dWindowMM.

Definition at line 138 of file canwidget.cpp.

void a2dWidgetButton::DoRender	(	a2dIterC &	ic,
		OVERLAP	clipparent
	)			`[protected, virtual]`

render derived object

if the object has sub objects (apart from the childobject which are handled here), those subobject most rendered by iterating on layer when needed/wanted, simular to child objects. We do not iterate here, since that is only needed if indeed there or subobjects. This will be know in a "wxDerivedCanvasObject DoRender".

SO parent objects that call this function, must:

1- clip object against area to redraw.
2- iterate on layers when needed.

A a2dCanvasObject is rendered as a + (plus sign) when there or no children.

Reimplemented from a2dWindowMM.

Definition at line 246 of file canwidget.cpp.

bool a2dWidgetButton::DoIsHitWorld	(	a2dIterC &	ic,
		a2dHitEvent &	hitEvent
	)			`[protected, virtual]`

Does hit test on the object (exclusif child objects).

DoIsHitWorld() should return the way the object is hit by filling a2dHitEvent::m_how with the correct info.

Parameters:

	ic	iterative context ( e.g. current transform WITH the local transform applied )
	hitEvent	stores hit information

Returns:: true if hit

Reimplemented from a2dRectMM.

Definition at line 313 of file canwidget.cpp.

Member Data Documentation

a2dStroke a2dWidgetButton::m_selectedStroke [protected]

See also:: SetSelectedStroke

Definition at line 135 of file canwidget.h.

a2dFill a2dWidgetButton::m_selectedFill [protected]

See also:: SetSelectedFill

Definition at line 138 of file canwidget.h.

a2dStroke a2dWidgetButton::m_highLightStroke [protected]

See also:: SetSelectedStroke

Definition at line 141 of file canwidget.h.

a2dFill a2dWidgetButton::m_highLightFill [protected]

See also:: SetSelectedFill

Definition at line 144 of file canwidget.h.

The documentation for this class was generated from the following files:


Public Types
enum	WidgetMode { Boundingbox, BoundingboxSize, ScaledContent, ScaledContentKeepAspect }
Public Member Functions
	a2dWidgetButton (a2dCanvasObject *parent, int buttonId, double x, double y, double w, double h, WidgetMode mode=Boundingbox)
	Standard constructor.
	a2dWidgetButton (const a2dWidgetButton &other, CloneOptions options)
	~a2dWidgetButton ()
	destructor
virtual a2dObject *	Clone (CloneOptions options) const
	Clone this object and return a pointer to the new object.
virtual void	SetParent (a2dCanvasObject *parent)
	set parent object of the pin or some other objects that needs a parent
virtual a2dEvtHandler *	GetParentEvtHandler ()
	get parent object if available
void	SetContentObject (a2dCanvasObject *content)
	Set the content object.
a2dCanvasObject *	GetContentObject ()
	Get the content object,.
void	SetContentBorder (double contentBorder)
	Set the border width around the content.
double	GetContentBorder ()
	Get the border width around the content.
void	SetSelectedStroke (const a2dStroke &selectedStroke)
	Set the selected stroke style for the button.
void	SetSelectedFill (const a2dFill &selectedFill)
	Set the selected fill style for the button.
void	SetHighLightStroke (const a2dStroke &highLightStroke)
	Set the selected stroke style for the button.
void	SetHighLightFill (const a2dFill &highLightFill)
	Set the selected fill style for the button.
int	GetButtonId ()
	id used for button event.
Protected Member Functions
void	DoWalker (wxObject *parent, a2dWalkerIOHandler &handler)
	iterate over this object and its children
virtual void	DrawHighLighted (a2dIterC &ic)
	called by Render() if m_flags.m_HighLight is set
virtual void	Render (a2dIterC &ic, OVERLAP clipparent)
	Render this object to the active a2dCanvasView.
virtual bool	DoUpdate (UpdateMode mode, const a2dBoundingBox &childbox, const a2dBoundingBox &clipbox, const a2dBoundingBox &propbox)
	Update derived Object specific things ( mainly boundingbox).
virtual a2dBoundingBox	DoGetUnTransformedBbox (a2dBboxFlags flags=a2dCANOBJ_BBOX_NON) const
virtual void	DoRender (a2dIterC &ic, OVERLAP clipparent)
	render derived object
bool	DoIsHitWorld (a2dIterC &ic, a2dHitEvent &hitEvent)
	Does hit test on the object (exclusif child objects).
void	OnEnterObject (a2dCanvasObjectMouseEvent &event)
	handler for A2D_EVT_CANVASOBJECT_ENTER_EVENT
void	OnLeaveObject (a2dCanvasObjectMouseEvent &event)
	handler for A2D_EVT_CANVASOBJECT_LEAVE_EVENT
void	OnCanvasObjectMouseEvent (a2dCanvasObjectMouseEvent &event)
	handler for A2D_EVT_CANVASOBJECT_MOUSE_EVENT
Protected Attributes
a2dStroke	m_selectedStroke
a2dFill	m_selectedFill
a2dStroke	m_highLightStroke
a2dFill	m_highLightFill
int	m_buttonId
	event id used when sending events
WidgetMode	m_mode
	type of button rendering of the m_content object.
double	m_contentBorder
	here a border between the button and the content can be given
a2dCanvasObjectPtr	m_content
	the button its graphics, which will be scaled in WidgetMode::ScaleChildren
a2dCanvasObject *	m_parent
	events are sent from the button to this object, if not handled by the button itself.
a2dAffineMatrix	m_contentWorld
	for scaling/translating the m_content

a2dWidgetButton Class Reference [a2dCanvasObject related objects]

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

Member Function Documentation

Member Data Documentation

a2dWidgetButton Class Reference
[a2dCanvasObject related objects]
